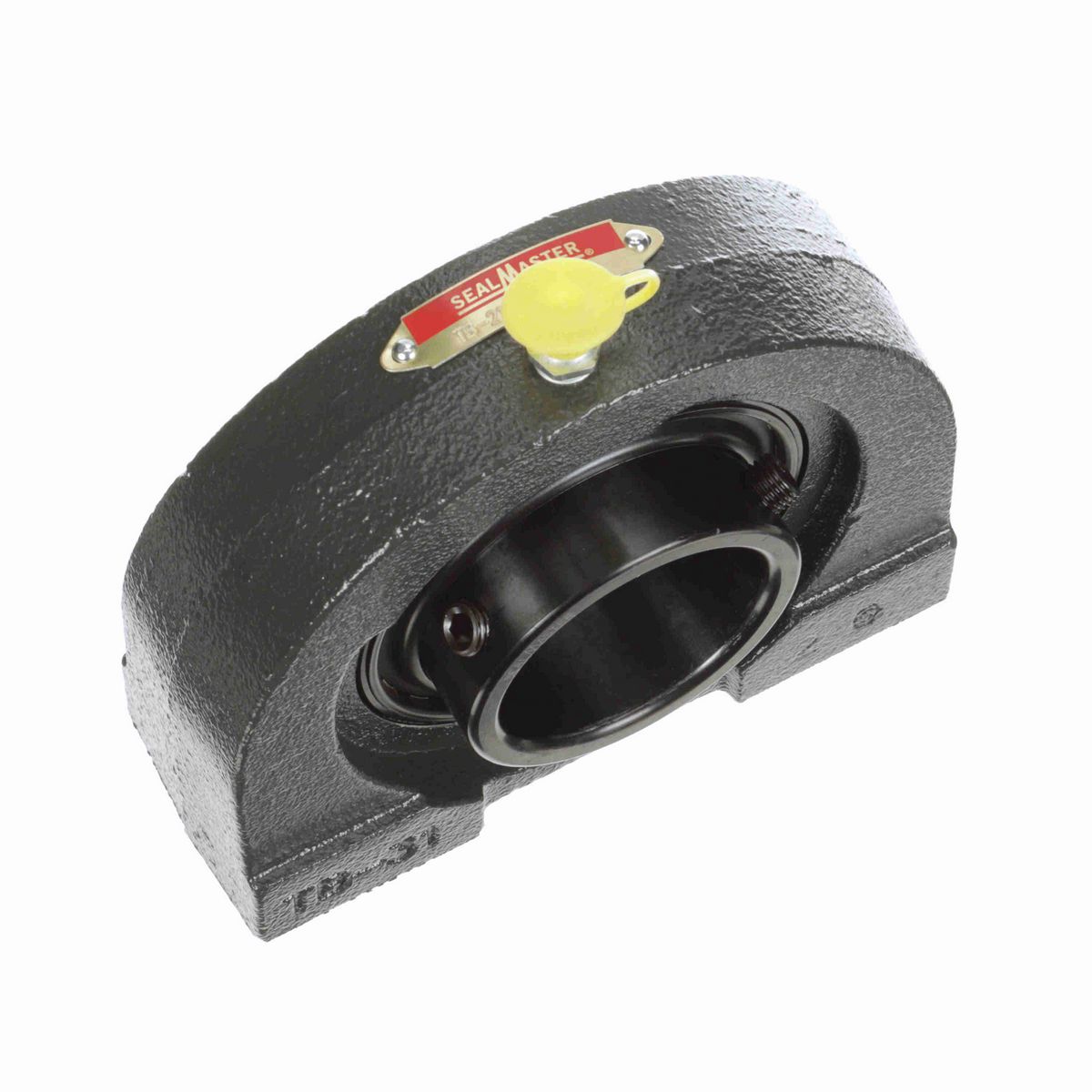

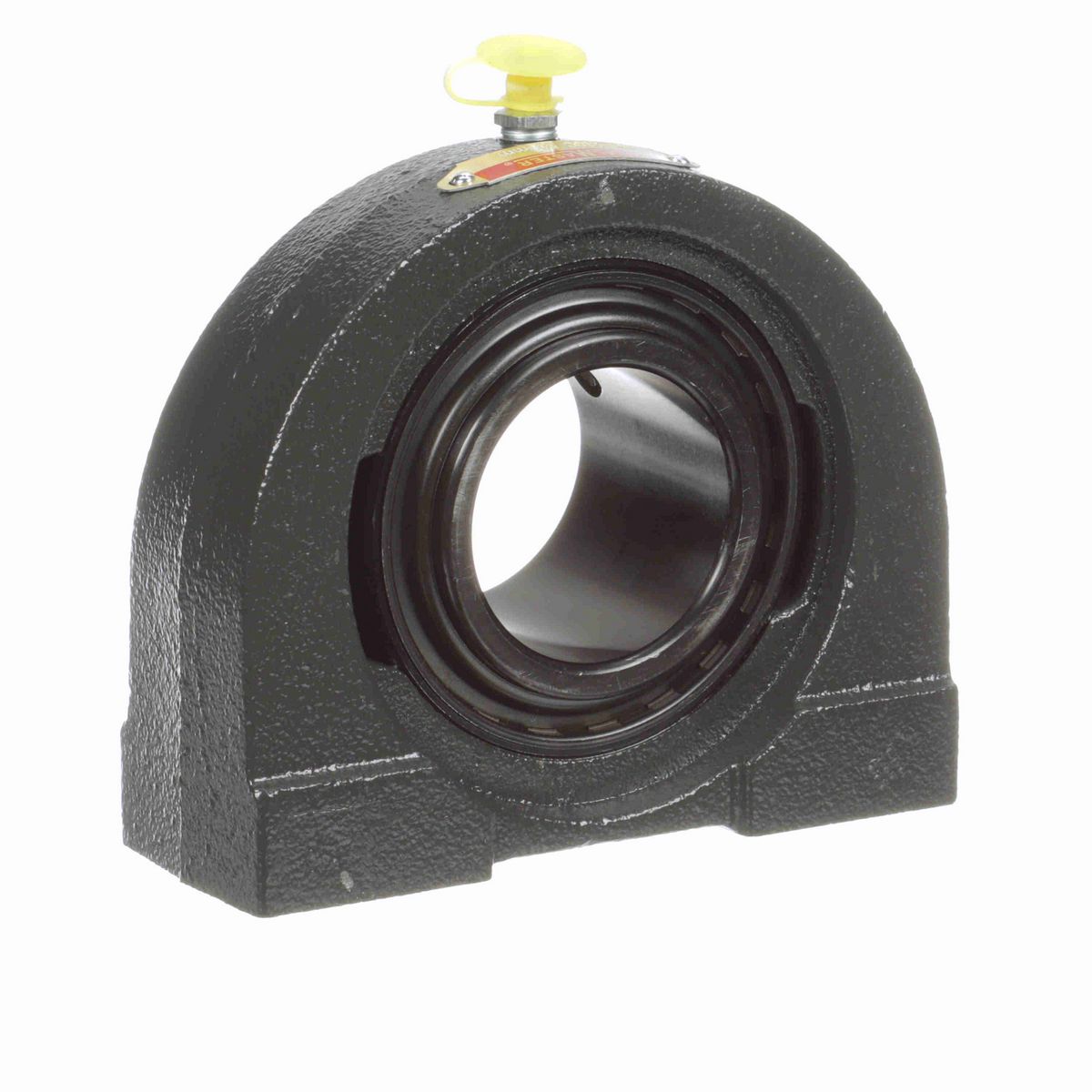

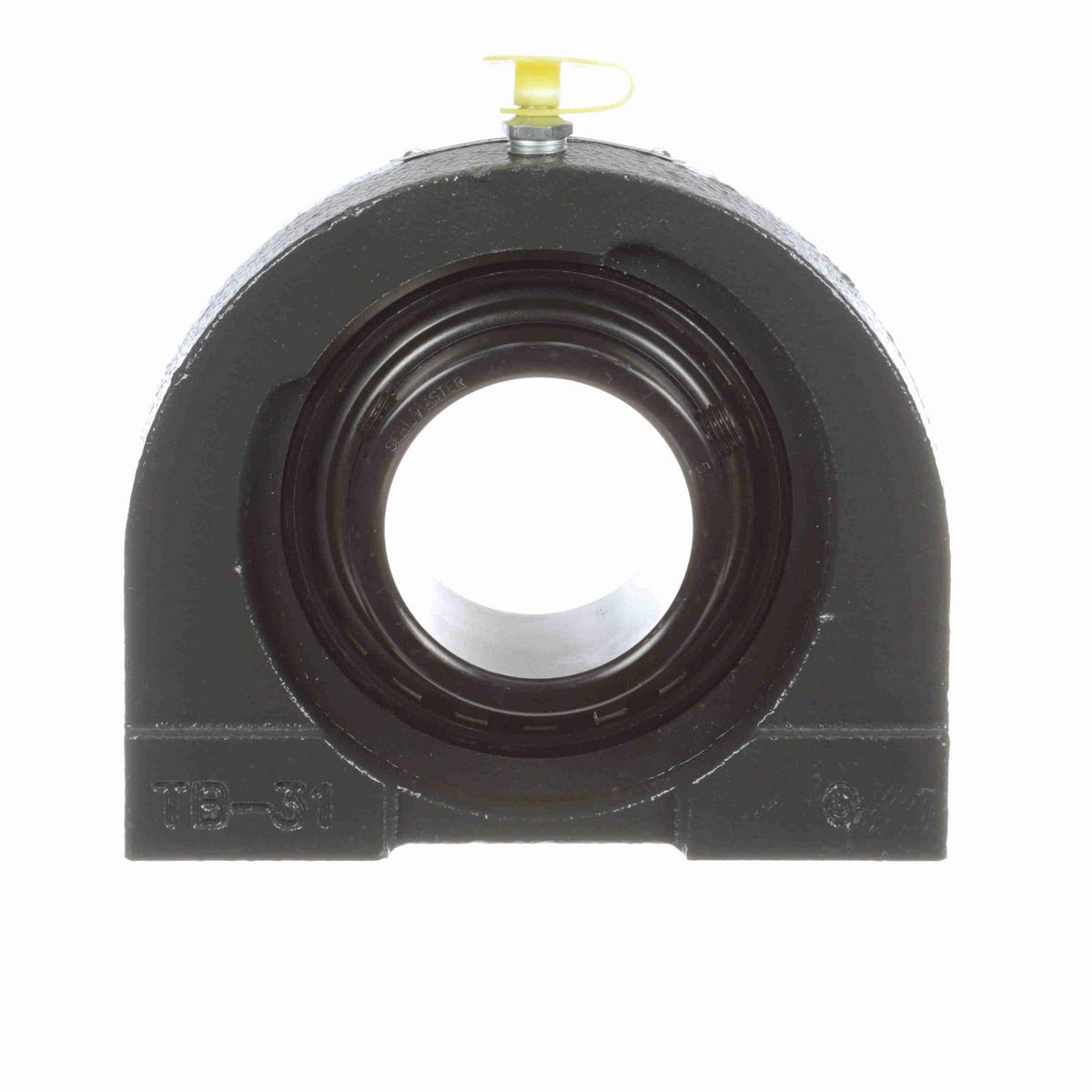

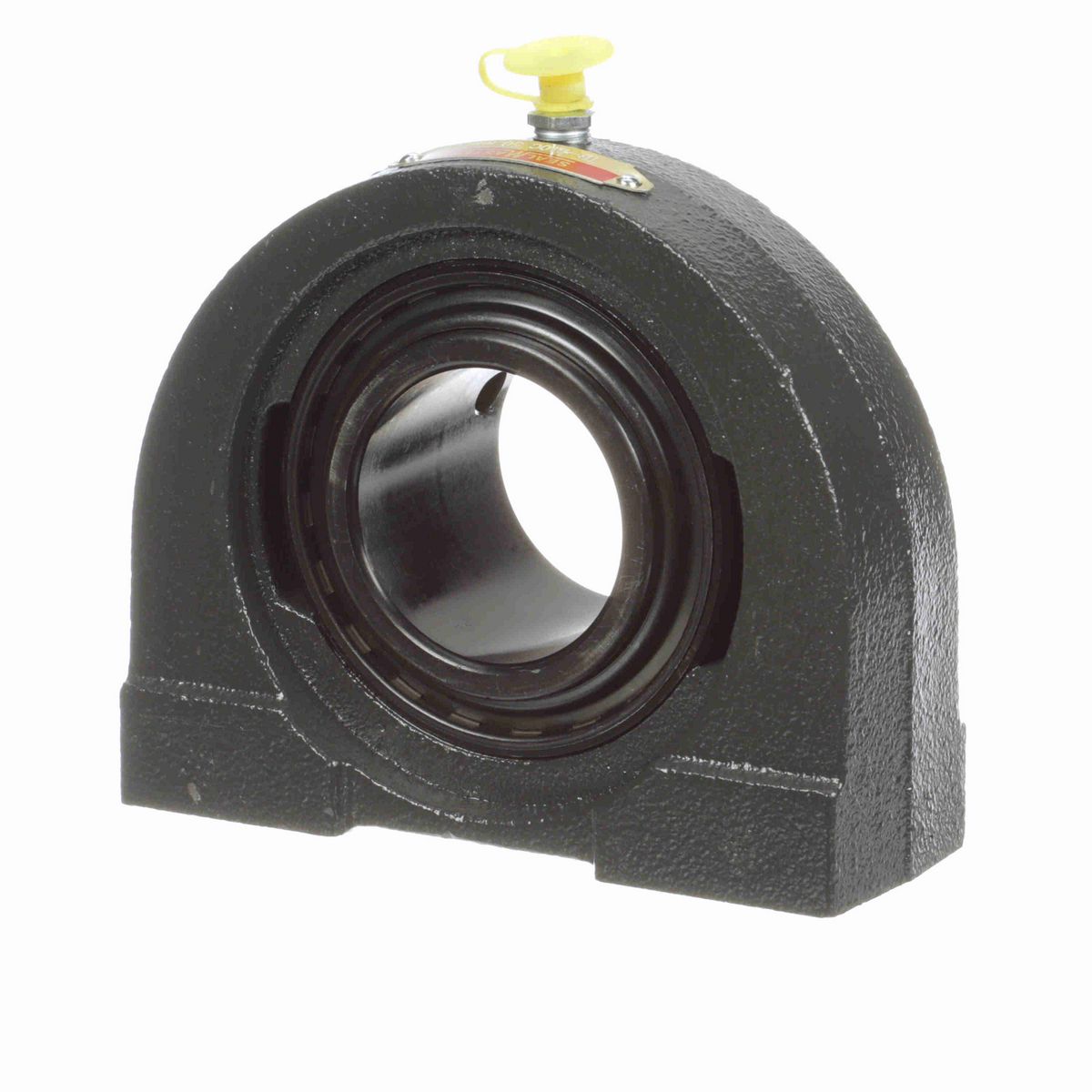

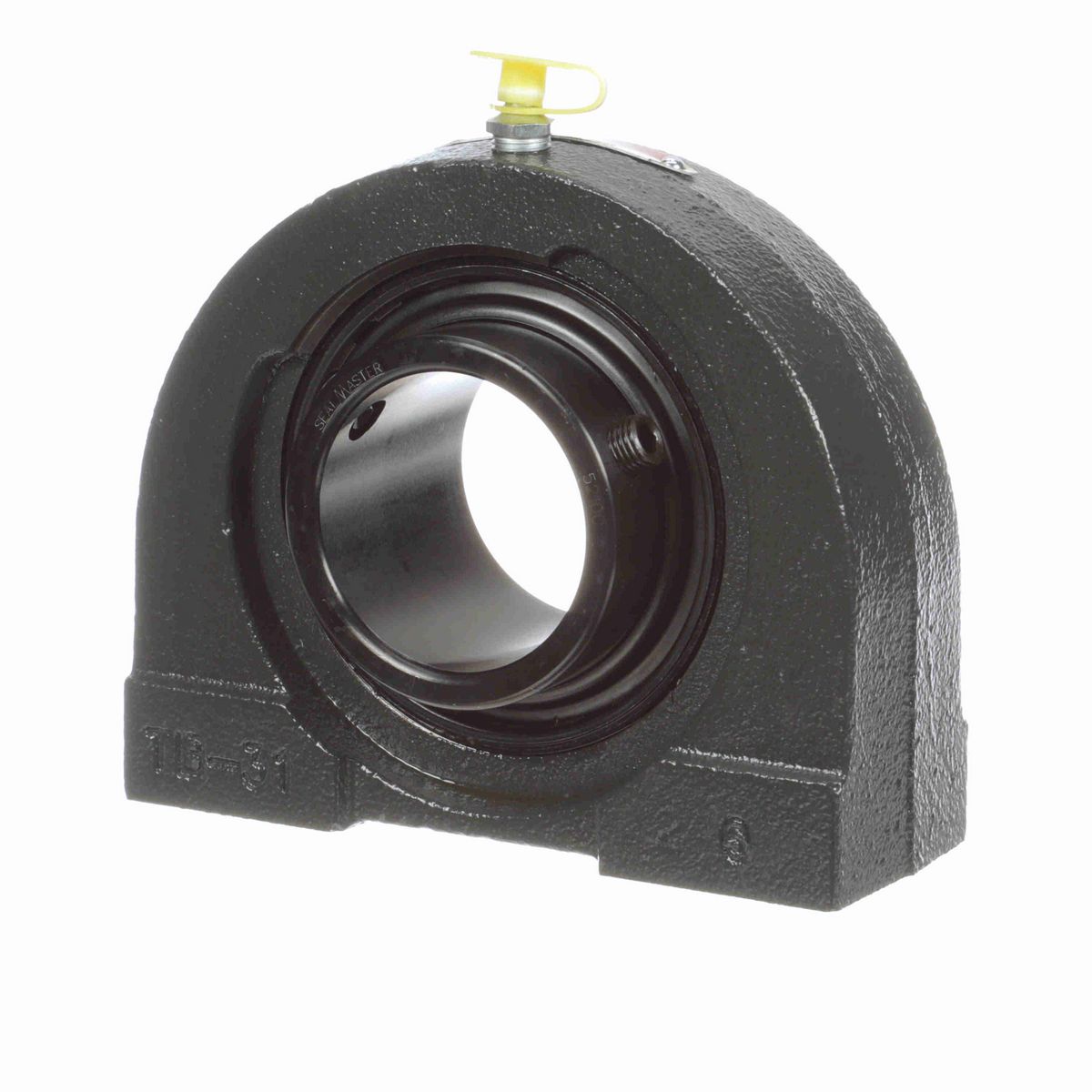

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	5/8-11
Overall Height (in)	4.63 in
Base Width (in)	2 in
Overall Length (in)	5.44 in
Overall Width (in)	2.03 in
Bore Diameter (mm)	50 mm
Thread Depth (in)	0.88 in
Base to Center Height (in)	2.252 in
Length Through Bore (in)	2.0312 in
Bolt Spacing (in)	4 in
Centerline to Outermost Bearing Face (in)	1.28 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Misalignment Capability	±2.0° Misalignment - Static Only
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	220 °F
Lubricant	Lithium Complex NLGI 2 Grease
Static Load Rating (lb)	5,216 lb
Insert	5210C
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Dynamic Load Rating (lb)	7,889 lb
Bearing Insert Material	52100 Bearing Steel
Maximum Speed (RPM)	3550 rpm
Cage Type	Land Riding Retainer
End Cap Available	No
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard
Size Code	2-115
Inner Ring Outside Diameter (in)	2.4688 in
Base Length (in)	5.438 in
Housing Material	Cast Iron
Bearing Type	Standard Duty
Shaft Locking Type	Set Screw
Housing Width (in)	2 in

General Specifications

UPC	662461055632
Weight	8.00 LB
Packaged Length	6.06 IN
Packaged Width	5.94 IN
Packaged Height	2.19 IN
HTC	8483.20.8040
Country of Origin	United States of America
