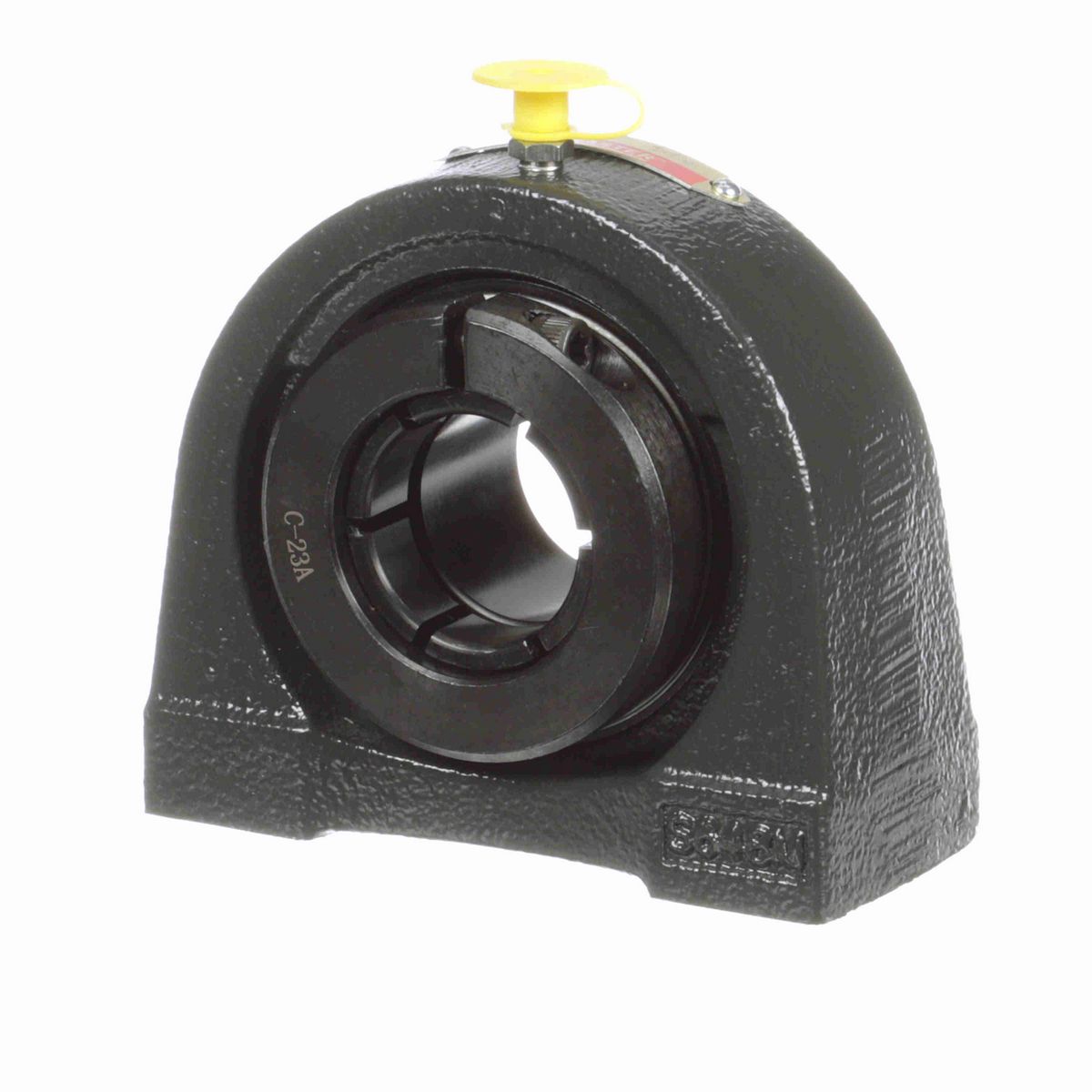

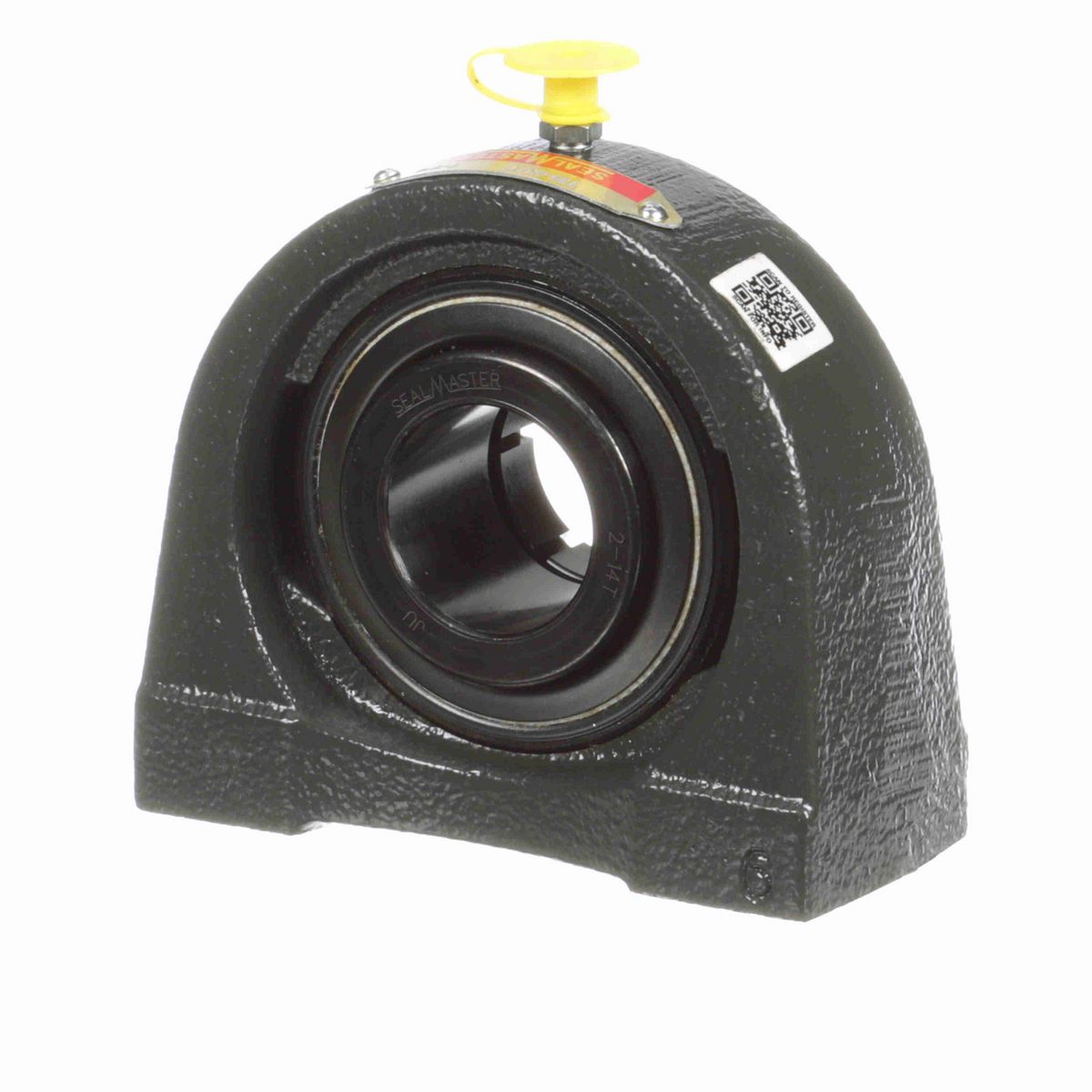

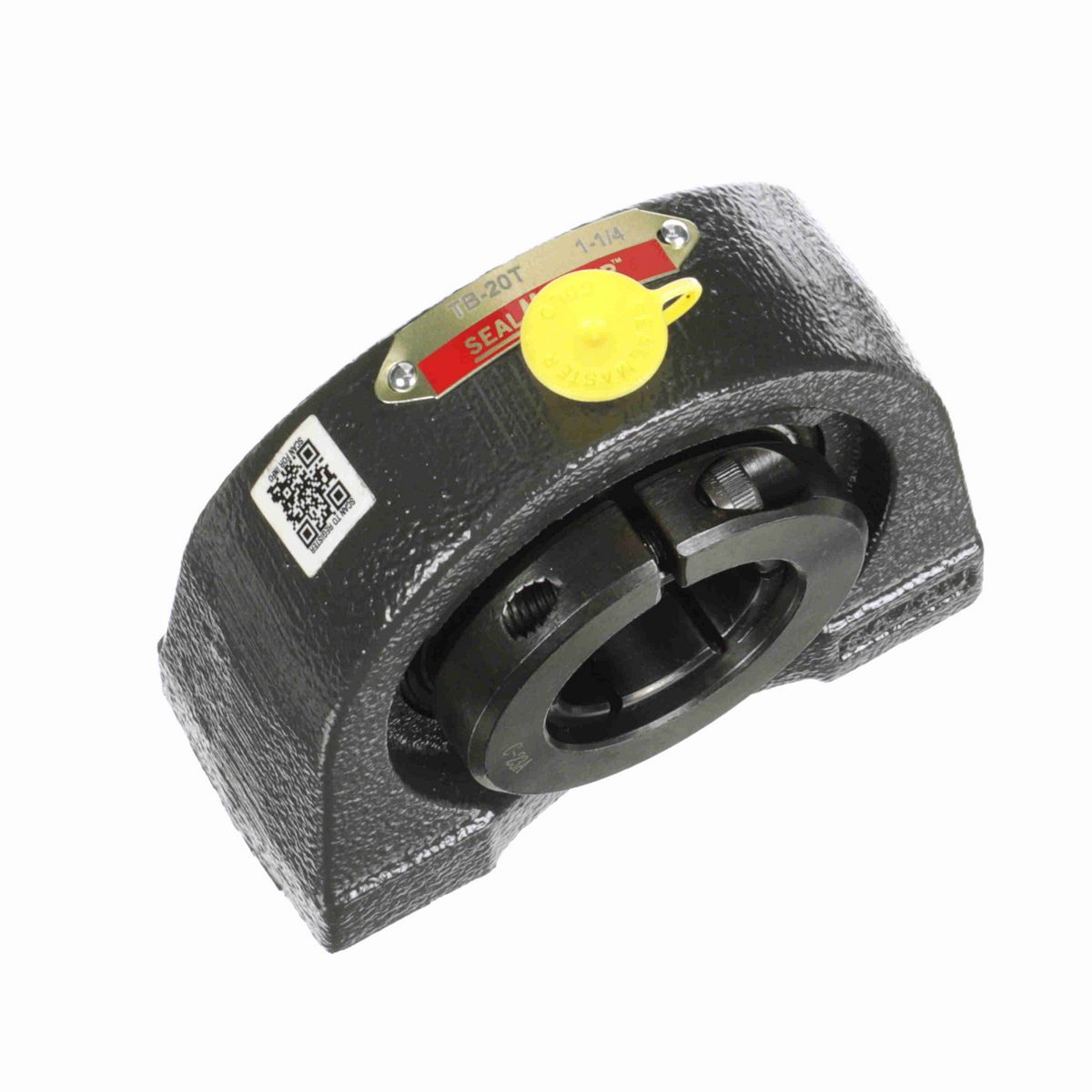

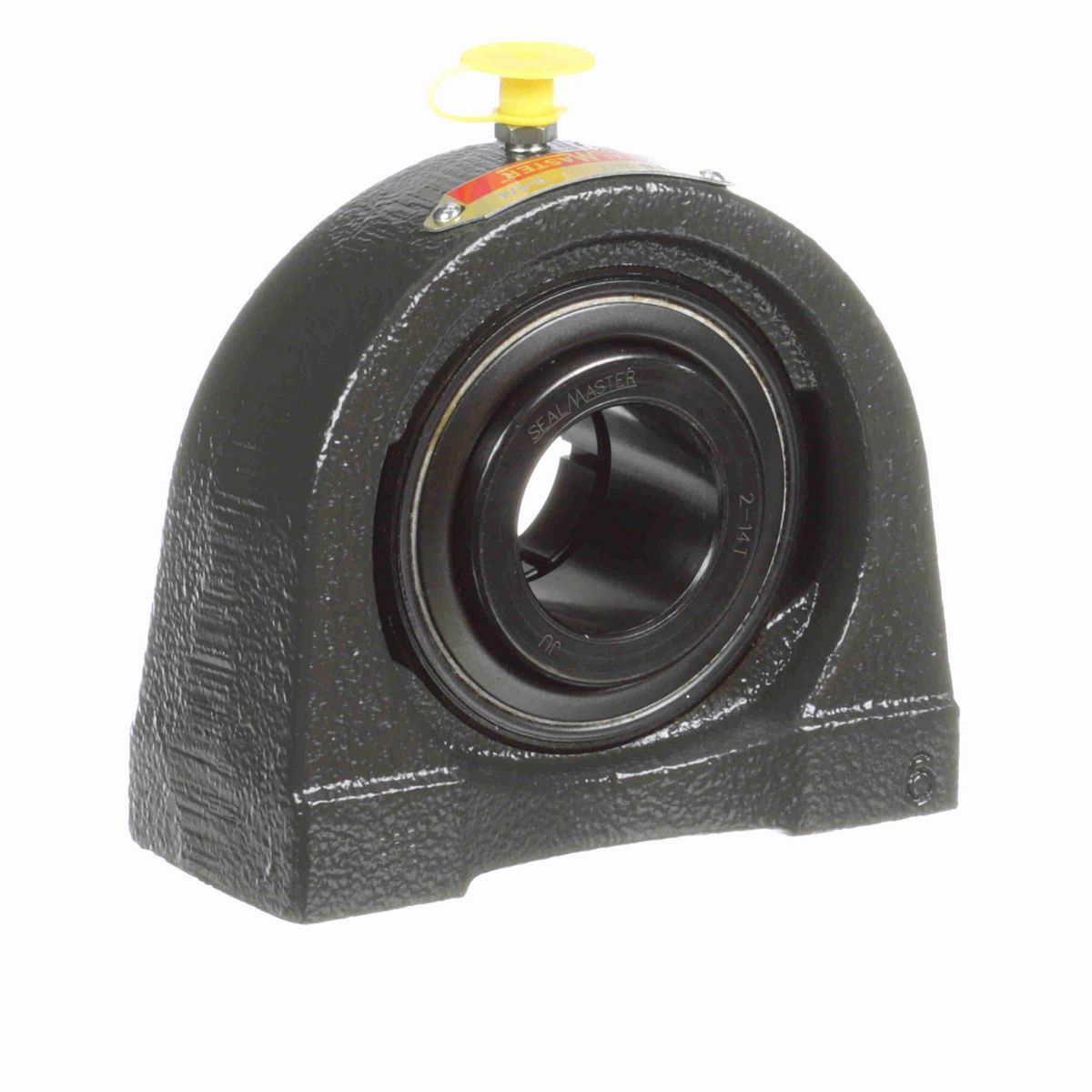

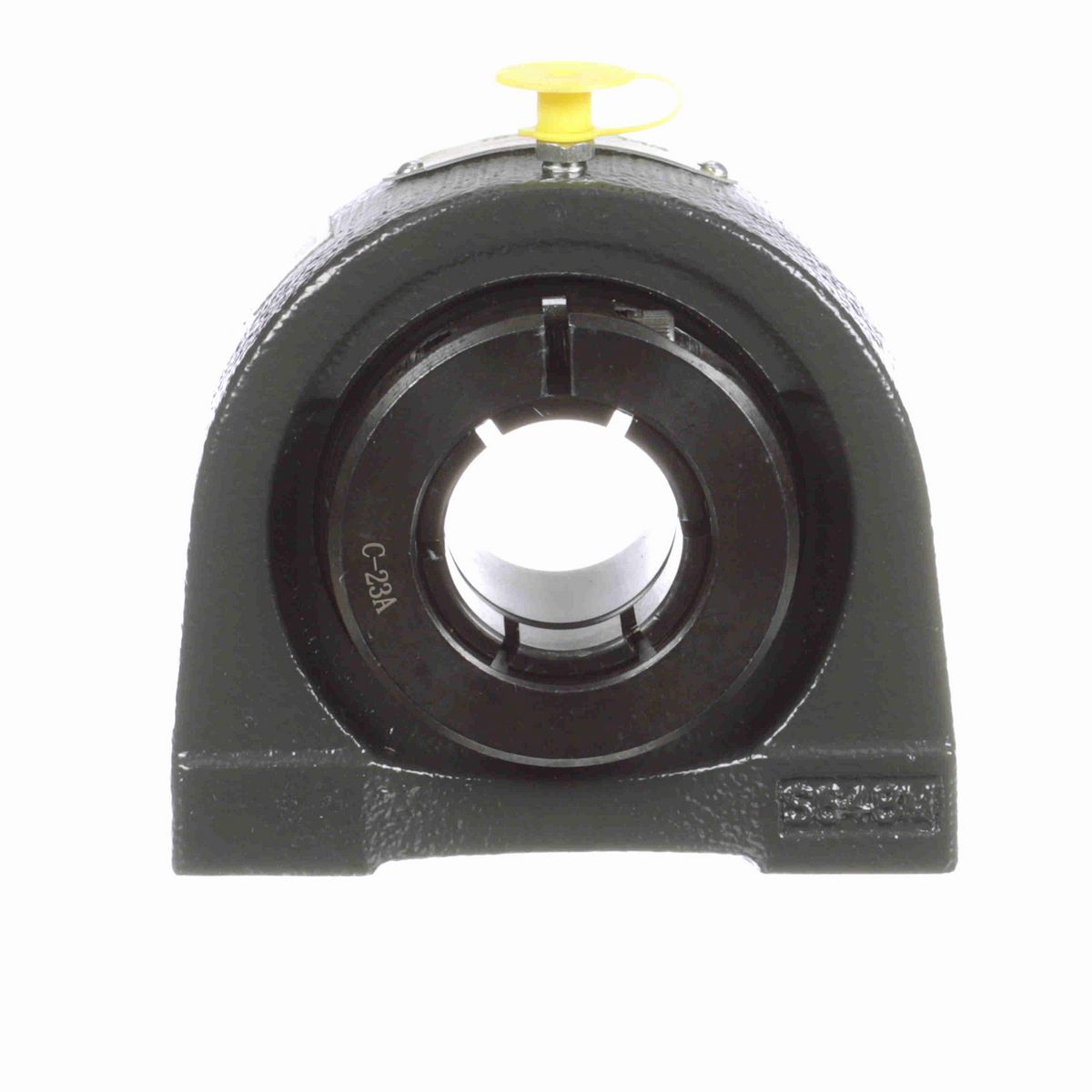

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	1/2-13
Overall Height (in)	3.75 in
Base Width (in)	1.75 in
Overall Length (in)	4.41 in
Overall Width (in)	1.88 in
Bore Diameter (in)	1.2500 in
Thread Depth (in)	0.75 in
Base to Center Height (in)	1.875 in
Length Through Bore (in)	1.6875 in
Bolt Spacing (in)	3.25 in
Centerline to Outermost Bearing Face (in)	1.063 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Locking Collar Outside Diameter (in)	2.438 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Housing Material	Cast Iron
Bearing Insert Material	52100 Bearing Steel
Bearing Insert Finish	Black Oxide
Grease Fitting Thread Size	1/4-28
Insert	2-14T
Housing Coating	Powder Coated
Base Length (in)	4.25 in
Radial Clearance	Standard
Inner Ring Outside Diameter (in)	1.8620 in
Shaft Locking Type	Concentric
Misalignment Capability	±2.0° Misalignment - Static Only
Fixed vs. Expansion	Fixed
End Cap Available	No
Dynamic Load Rating (lb)	5,782 lb
Bearing Type	Standard Duty
Maximum Speed (RPM)	6500 rpm
Max Operating Temperature (F)	220 °F
Static Load Rating (lb)	3,493 lb
Size Code	2-17
Lubricant	Lithium Complex NLGI 2 Grease
Cage Type	Land Riding Retainer
Housing Width (in)	1.88 in

General Specifications

UPC	662461031049
Weight	4.30 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
