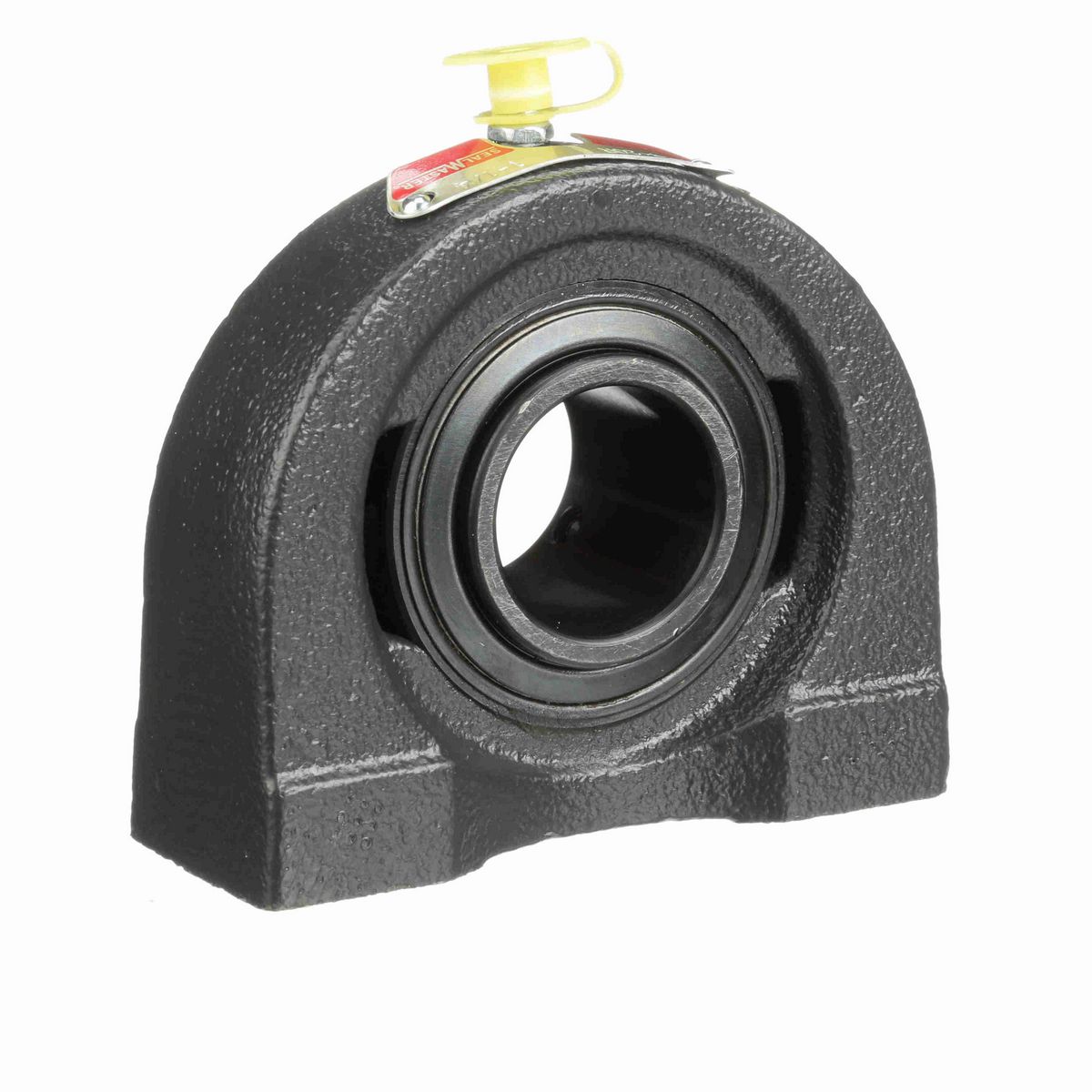

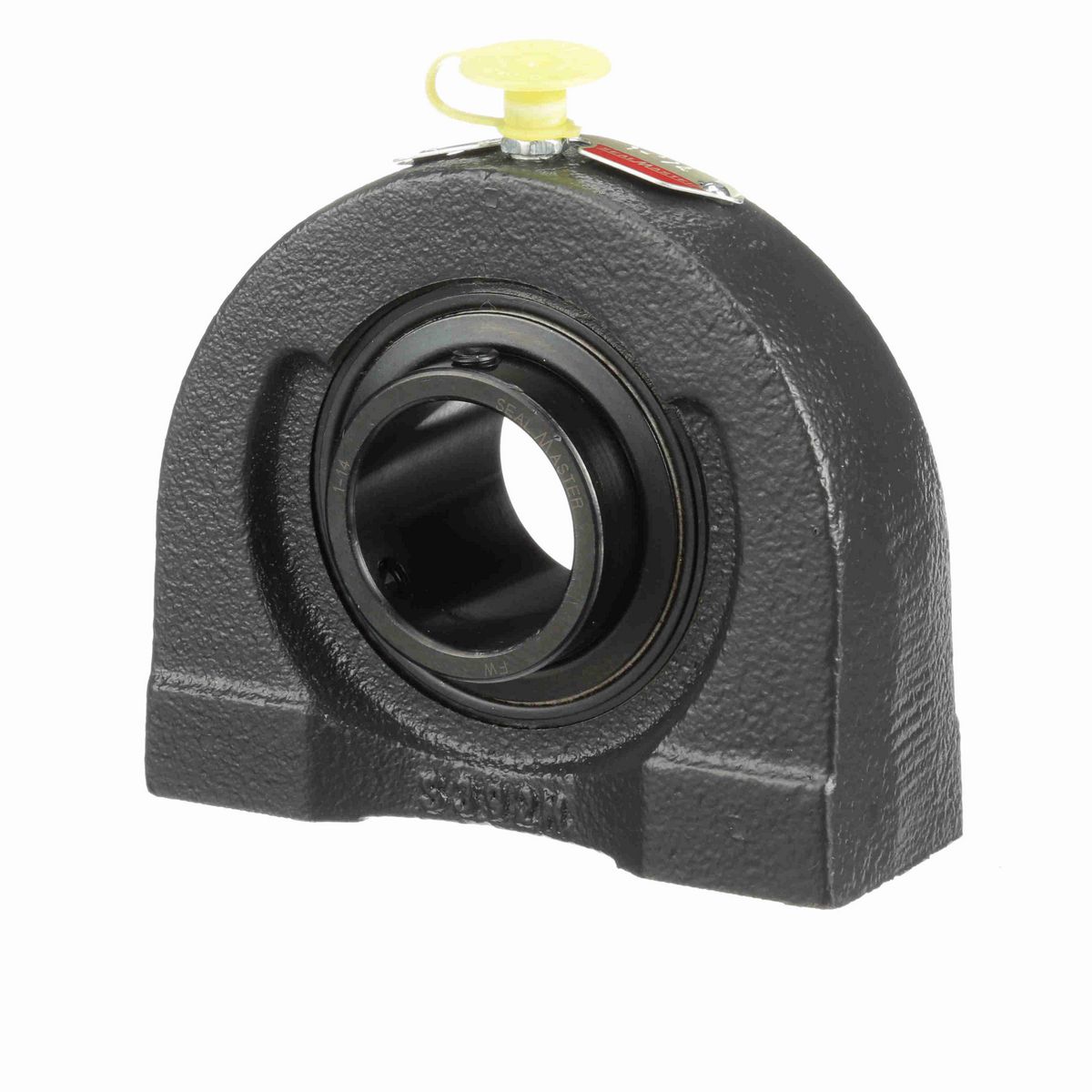

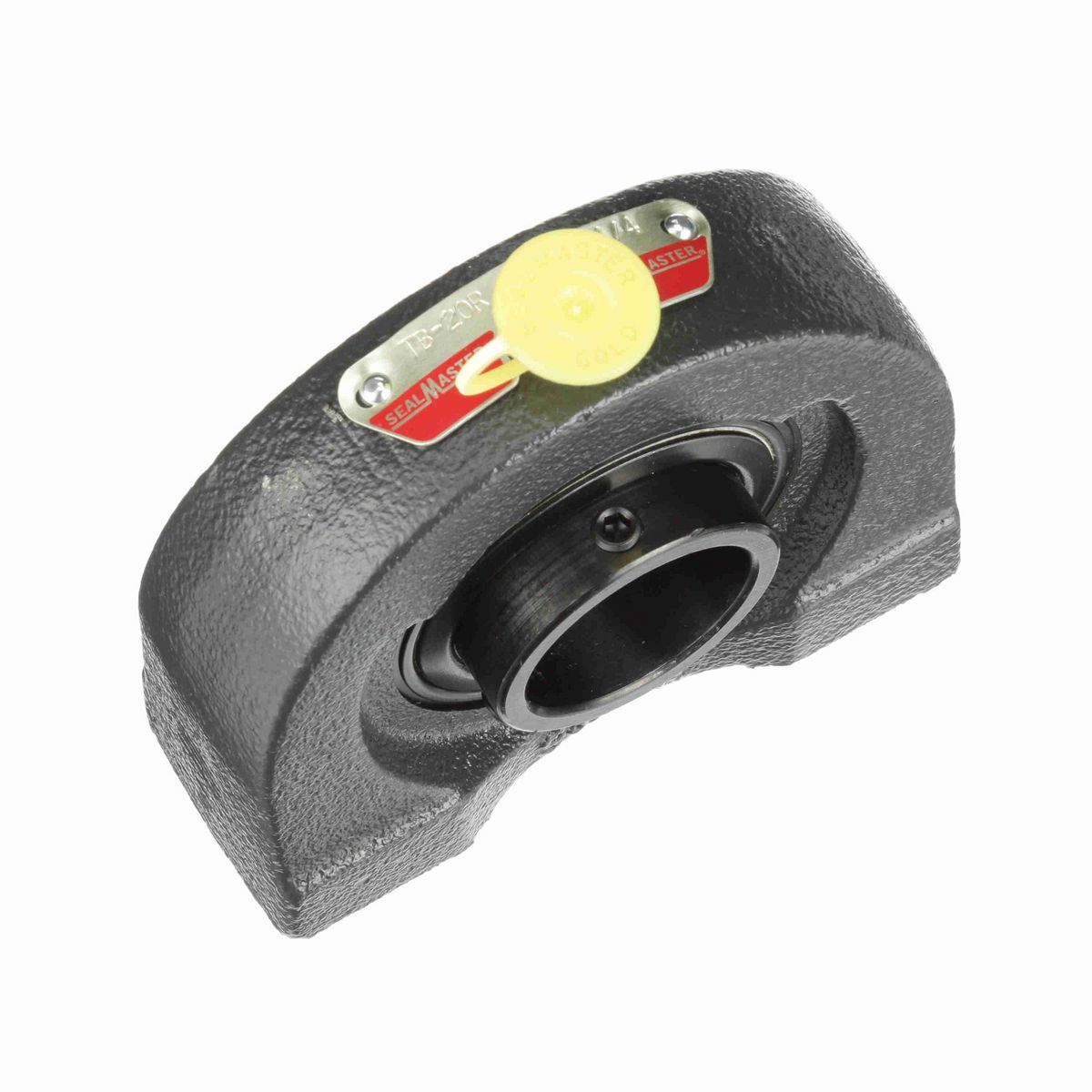

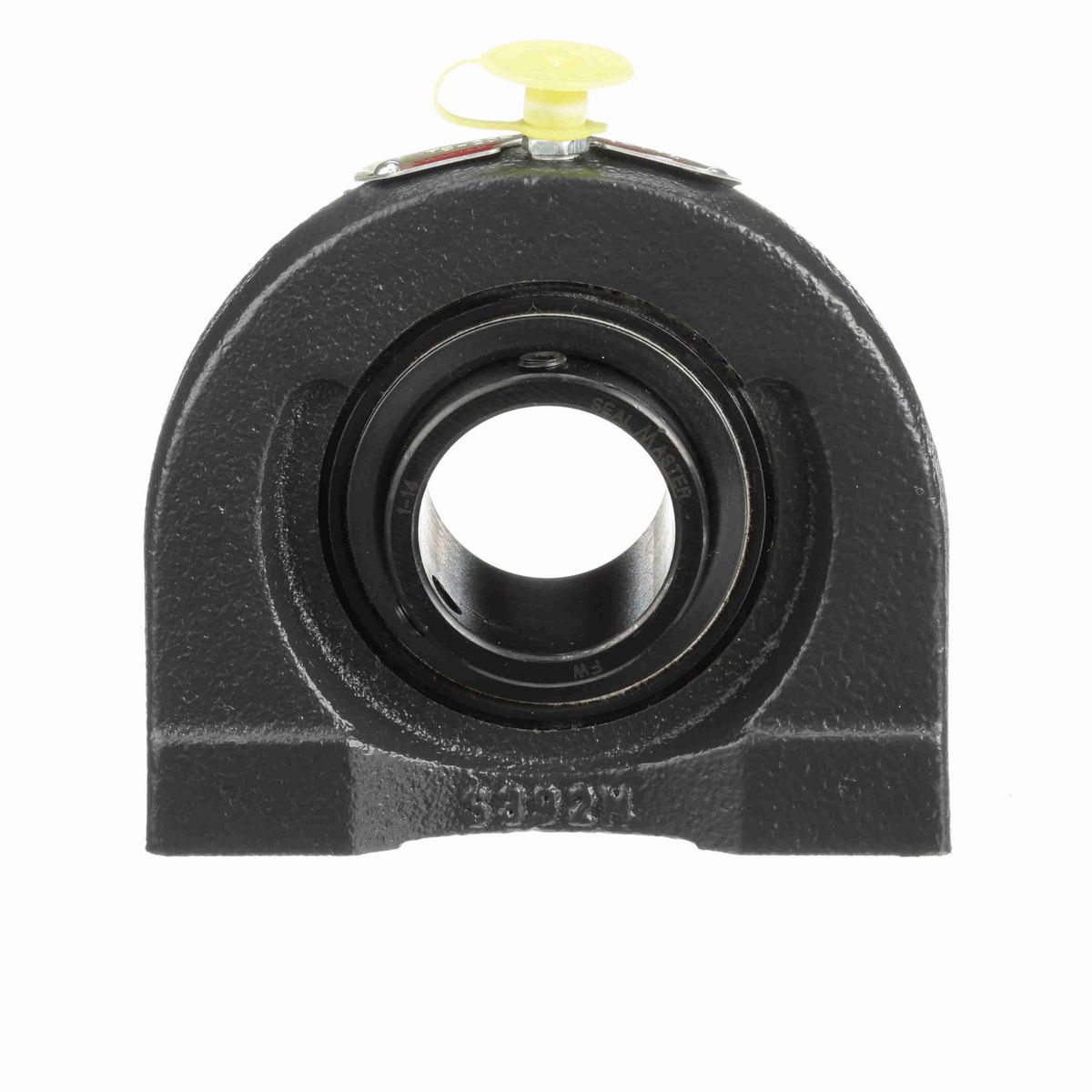

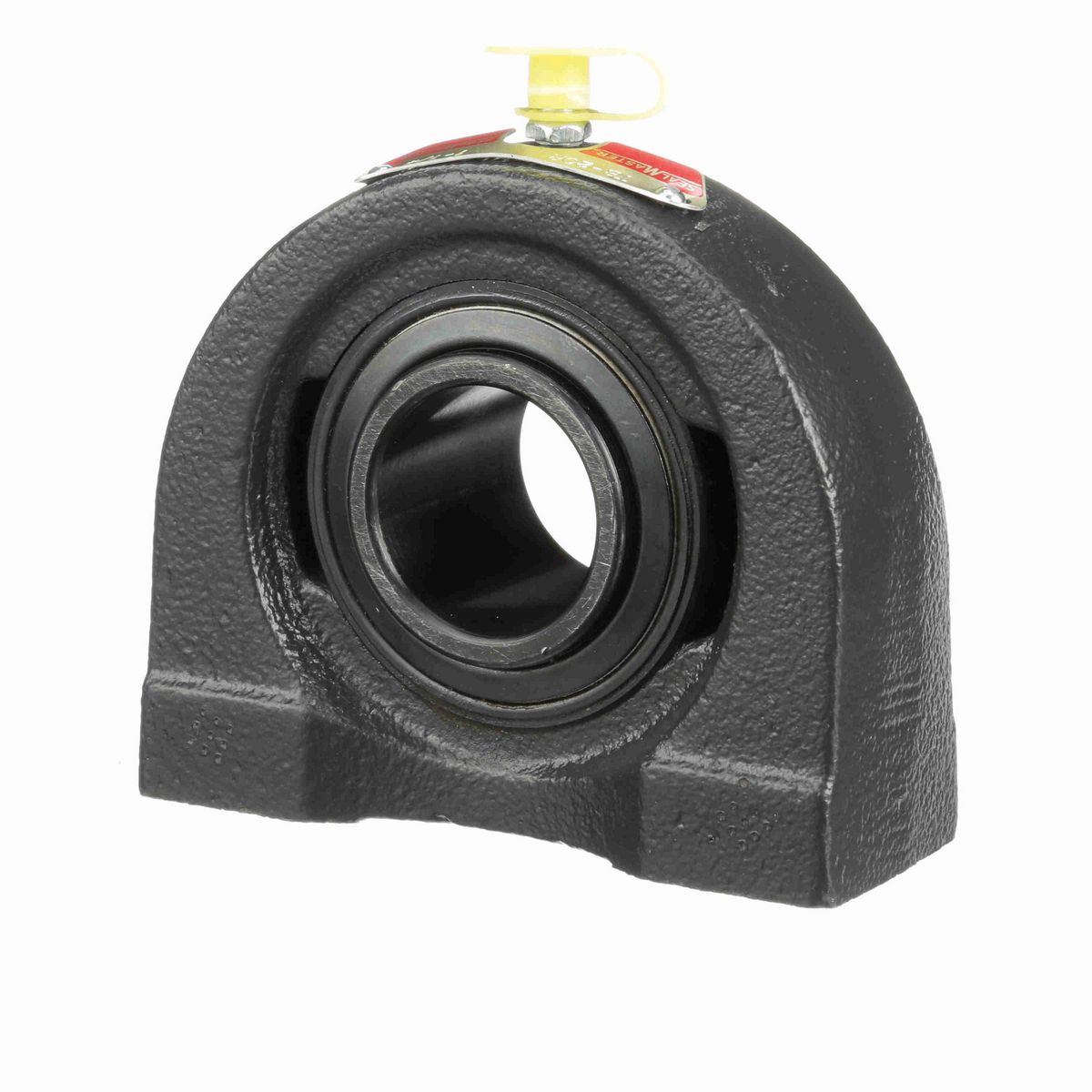

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	7/16-14
Overall Height (in)	3.41 in
Overall Length (in)	4 in
Base Width (in)	1.50 in
Overall Width (in)	1.5 in
Bore Diameter (in)	1.25 in
Thread Depth (in)	0.63 in
Base to Center Height (in)	1.688 in
Length Through Bore (in)	1.50 in
Centerline to Outermost Bearing Face (in)	0.88 in
Bolt Spacing (in)	3.00 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	65-85 in/lbs
Fixed vs. Expansion	Fixed
Base Length (in)	4.00 in
Shaft Locking Type	Set Screw
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.0595 cps
Insert	1-14
Vibration Frequency Inner Ring Defect	0.0905 cps
Bearing Insert Finish	Black Oxide
Bearing Type	Standard Duty
End Cap Available	No
Vibration Frequency Fundamental Train	0.0066 cps
Dynamic Load Rating (lb)	4,381 lb
Size Code	2-13
Radial Clearance	Standard
Vibration Frequency Roller Spin	0.0385 cps
Static Load Rating (lb)	2,567 lb
Grease Fitting Thread Size	1/4-28
Maximum Speed (RPM)	5450 rpm
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Inner Ring Outside Diameter (in)	1.594 in
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Coating	Powder Coated
Cage Type	Land Riding Retainer
Bearing Insert Material	52100 Bearing Steel
Housing Width (in)	1.5 in

General Specifications

UPC	662461007204
Weight	3.01 LB
Packaged Length	1.69 IN
Packaged Width	4.50 IN
Packaged Height	4.56 IN
HTC	8483.20.8040
Country of Origin	United States of America
