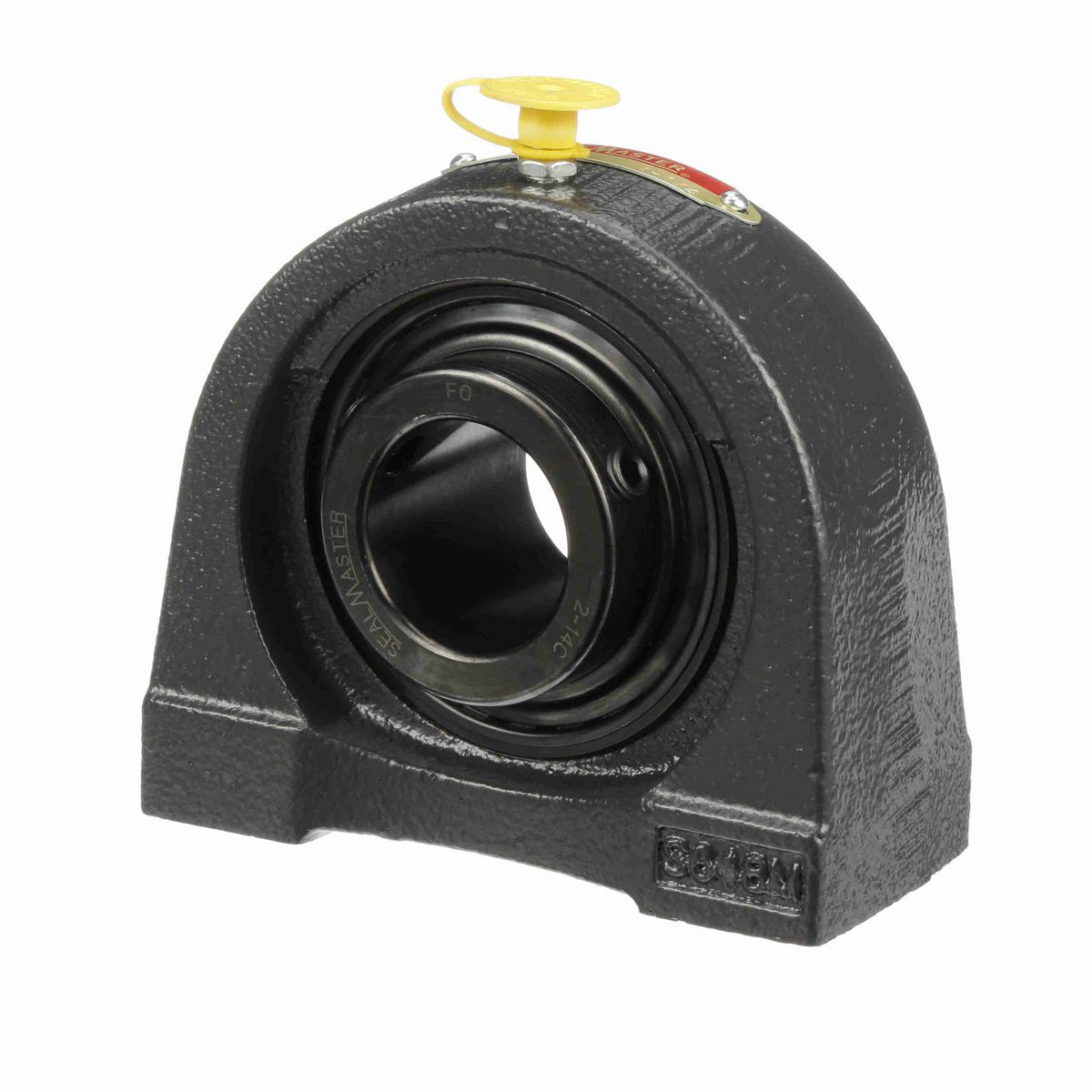

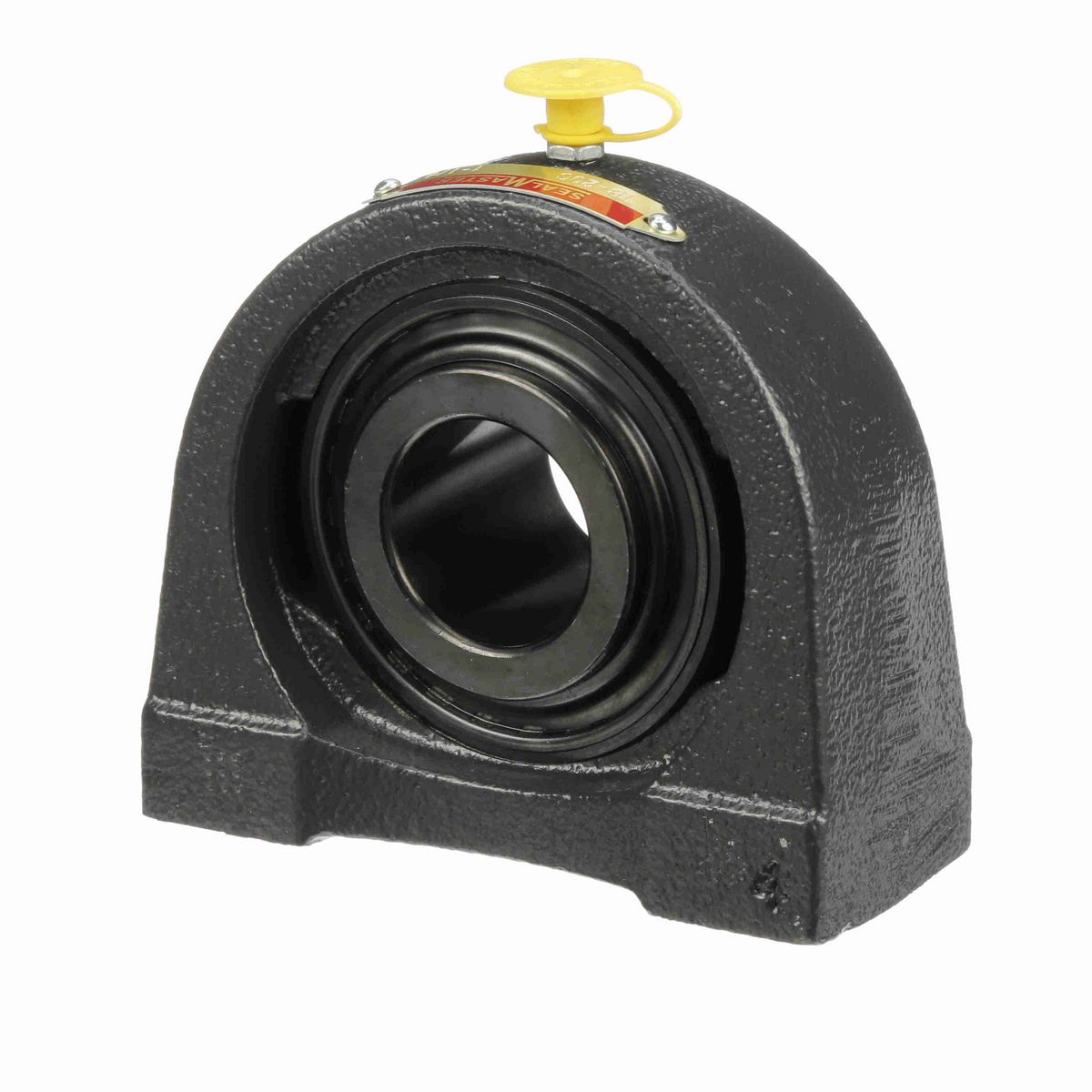

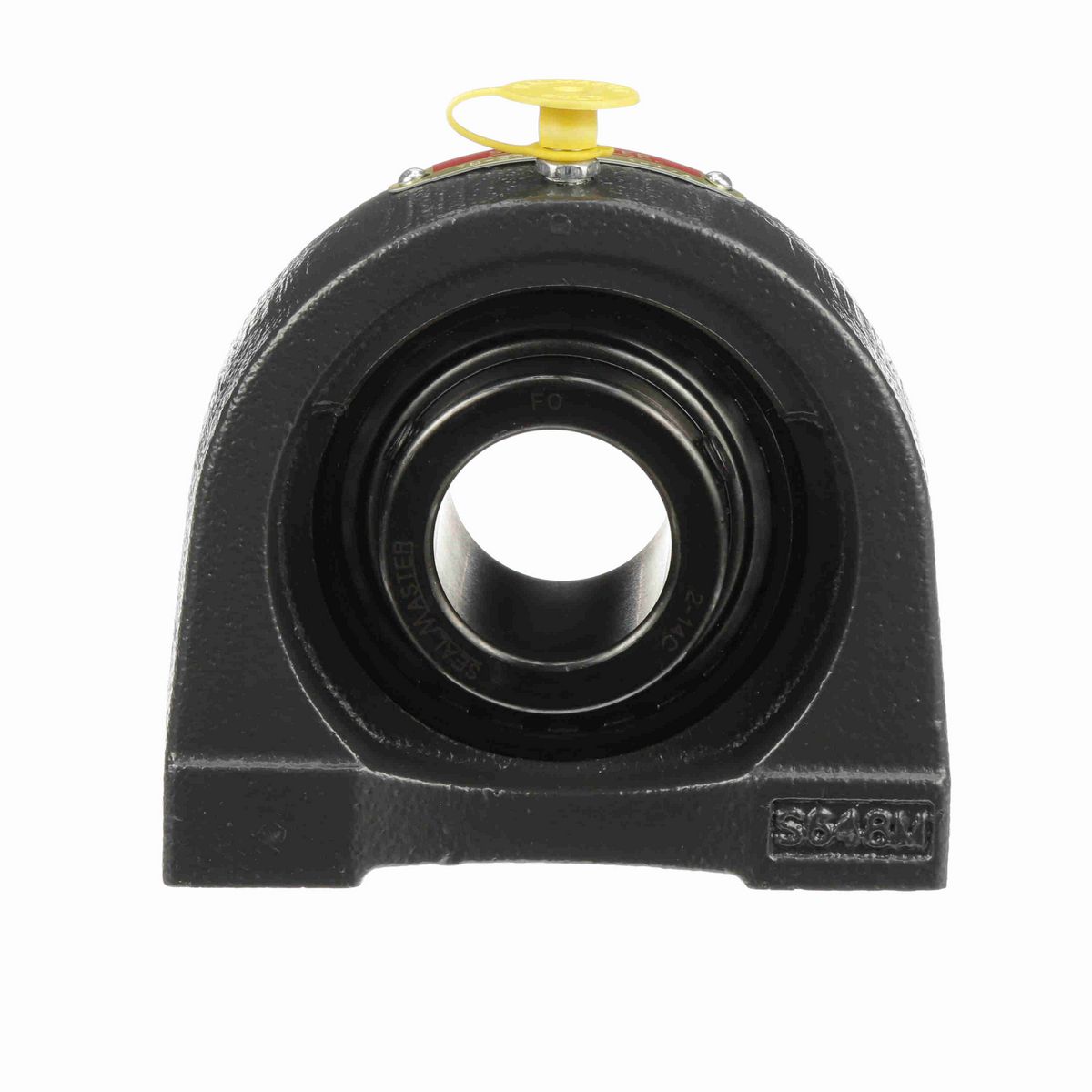

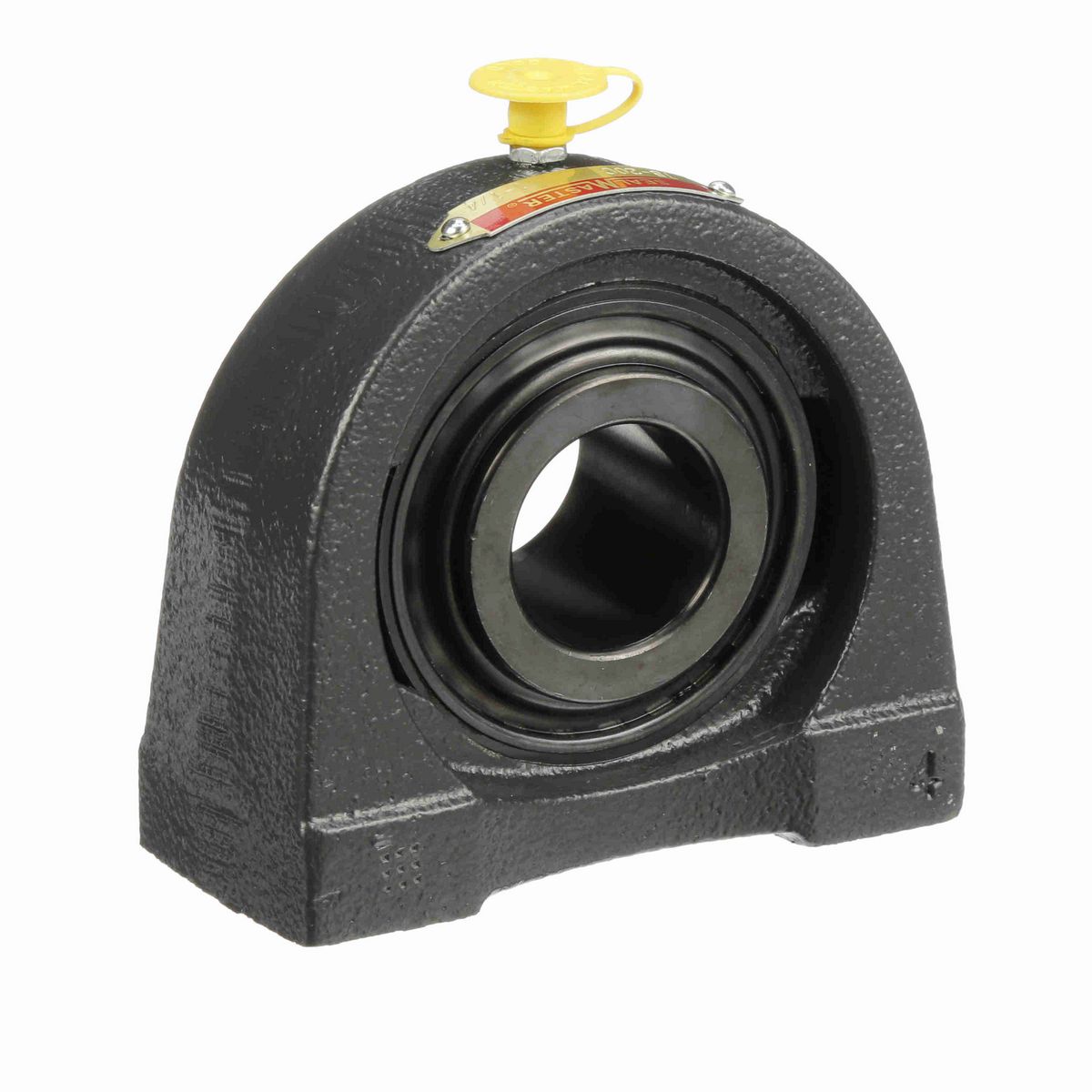

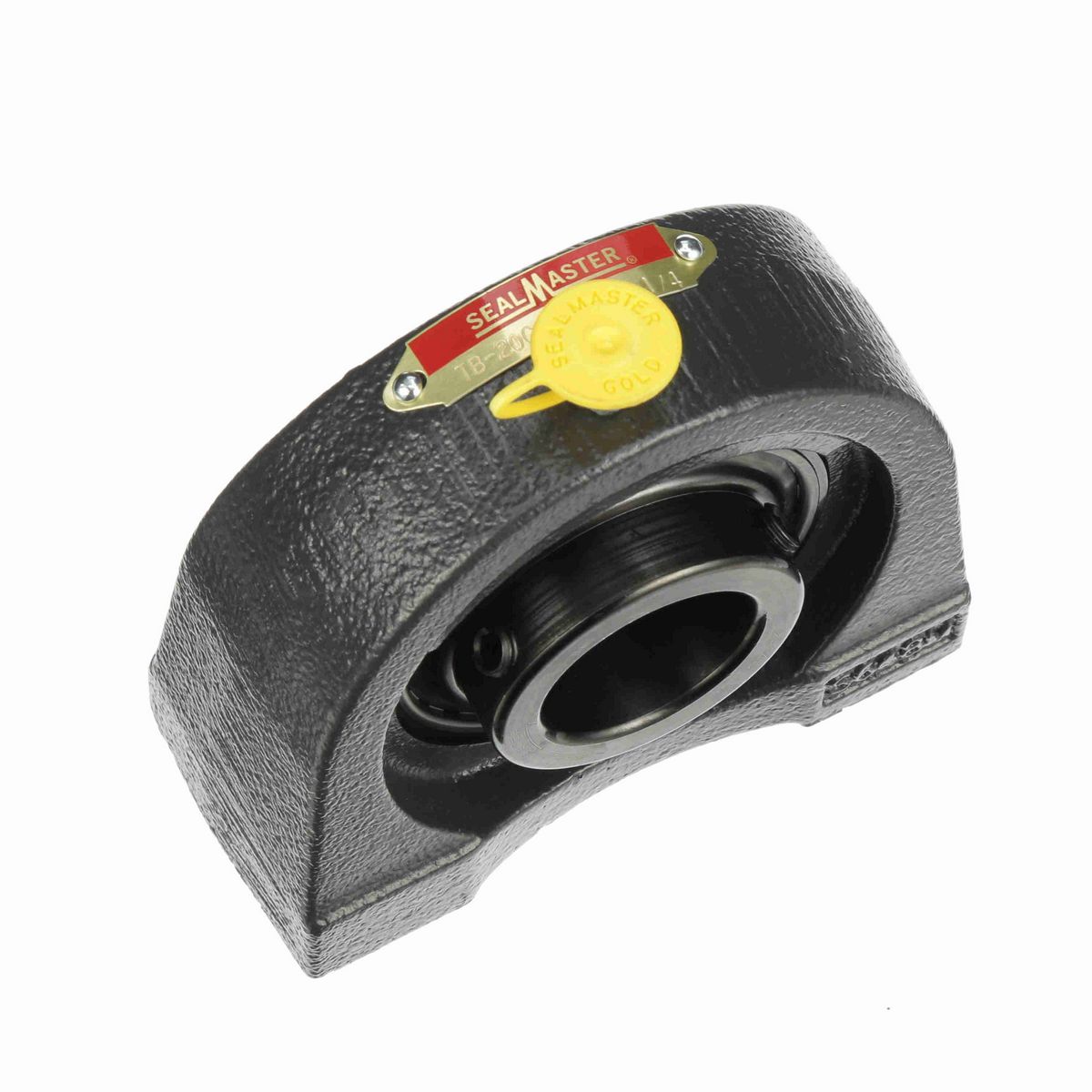

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	1/2-13
Overall Length (in)	4.41 in
Overall Height (in)	3.75 in
Base Width (in)	1.75 in
Overall Width (in)	1.88 in
Bore Diameter (in)	1.2500 in
Base to Center Height (in)	1.875 in
Thread Depth (in)	0.75 in
Length Through Bore (in)	1.6875 in
Centerline to Outermost Bearing Face (in)	1.000 in
Bolt Spacing (in)	3.25 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
End Cap Available	No
Housing Coating	Powder Coated
Inner Ring Outside Diameter (in)	1.859 in
Maximum Speed (RPM)	4650 rpm
Bearing Insert Finish	Black Oxide
Bearing Insert Material	52100 Bearing Steel
Size Code	2-17
Bearing Type	Standard Duty
Radial Clearance	Standard
Shaft Locking Type	Set Screw
Cage Type	Land Riding Retainer
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Static Load Rating (lb)	3,493 lb
Grease Fitting Thread Size	1/4-28
Lubricant	Lithium Complex NLGI 2 Grease
Insert	2-14C
Base Length (in)	4.25 in
Dynamic Load Rating (lb)	5,782 lb
Housing Width (in)	1.88 in

General Specifications

UPC	662461024447
Weight	4.08 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
