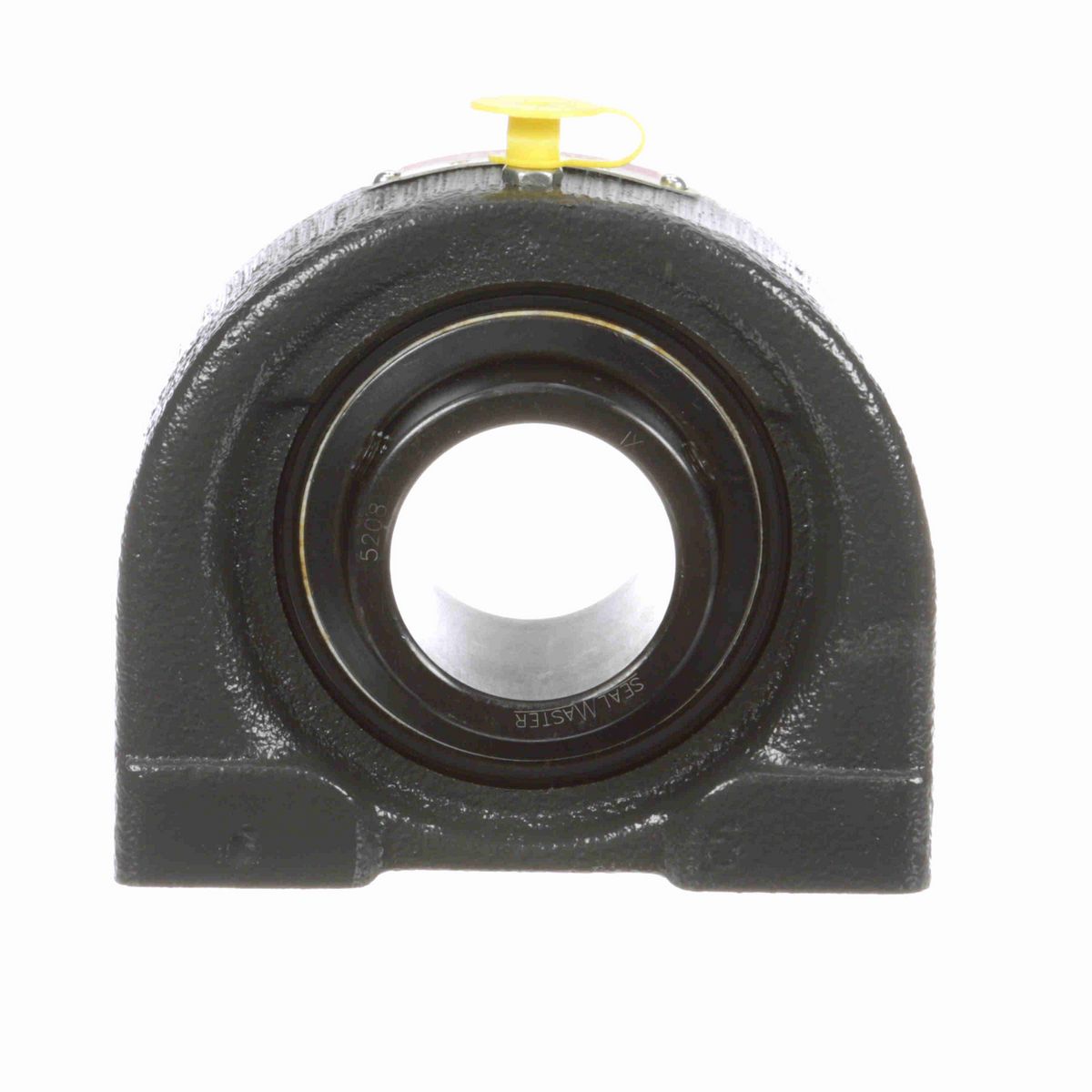

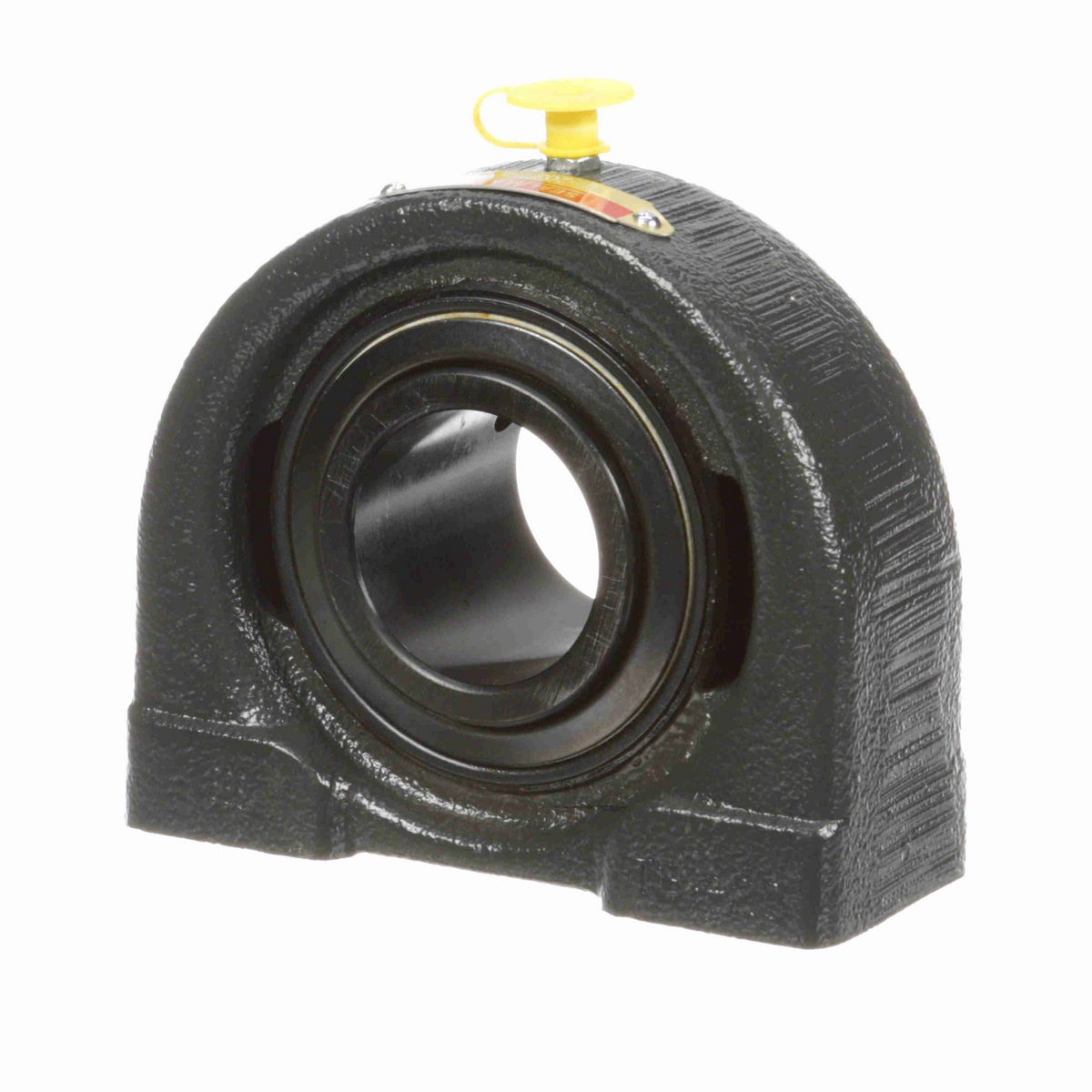

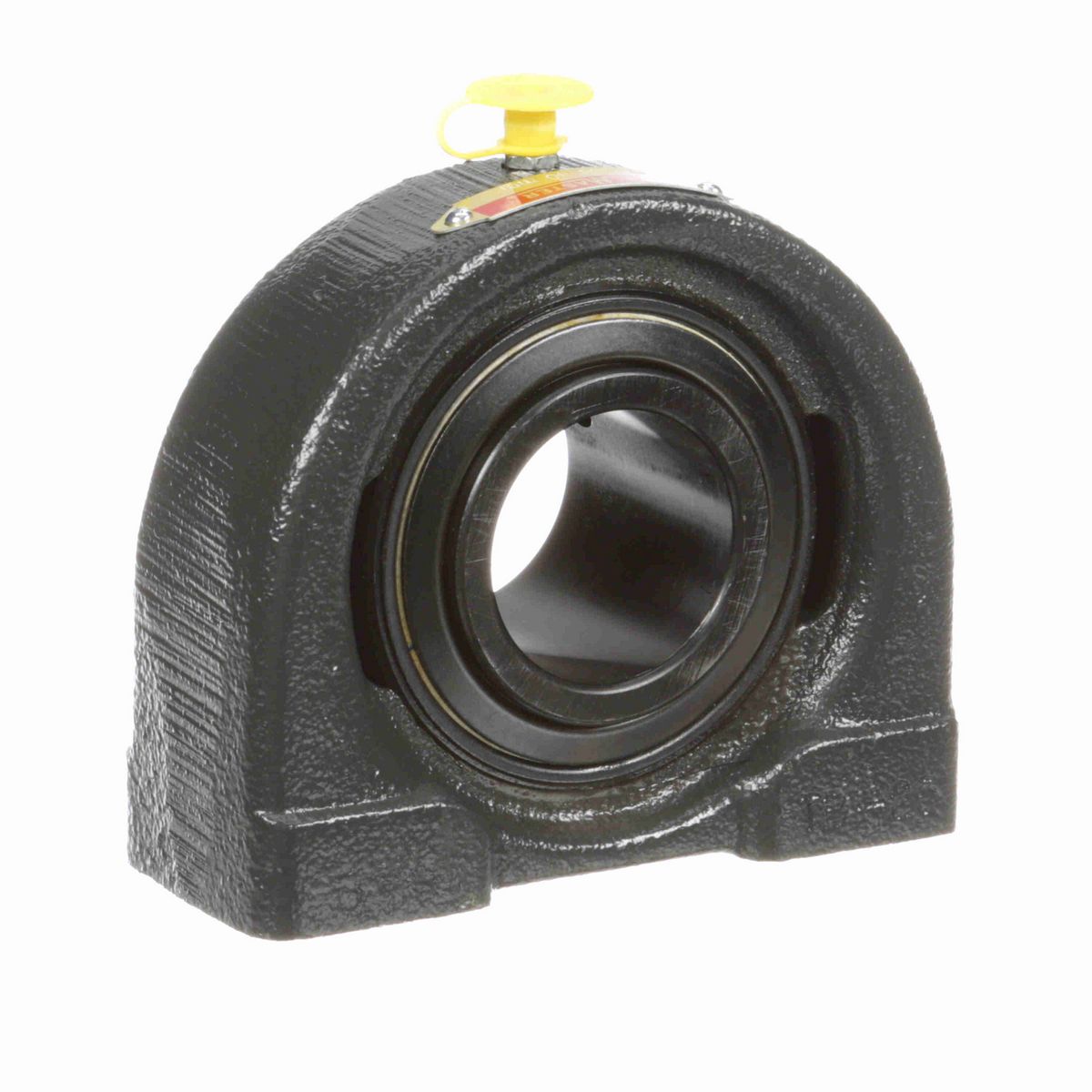

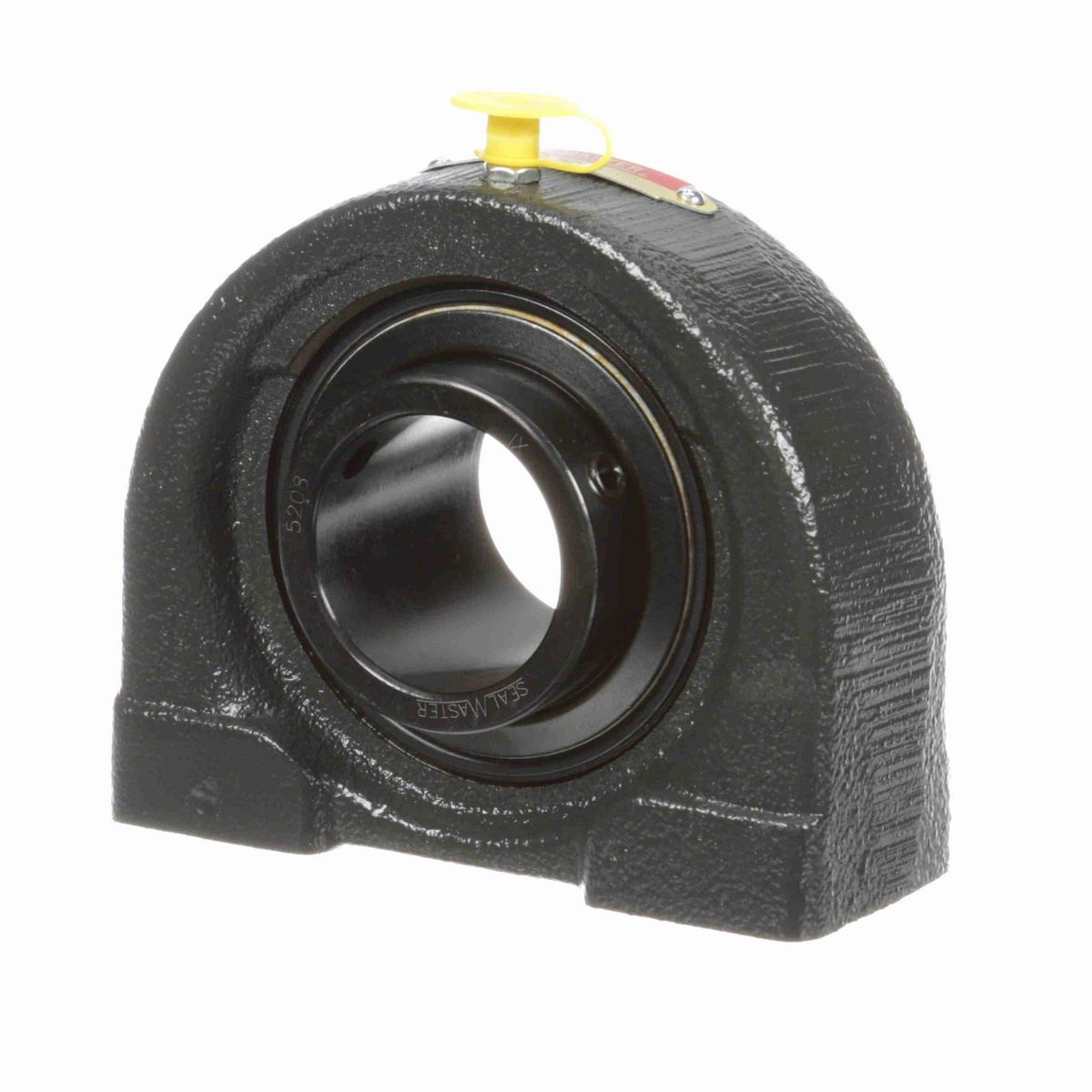

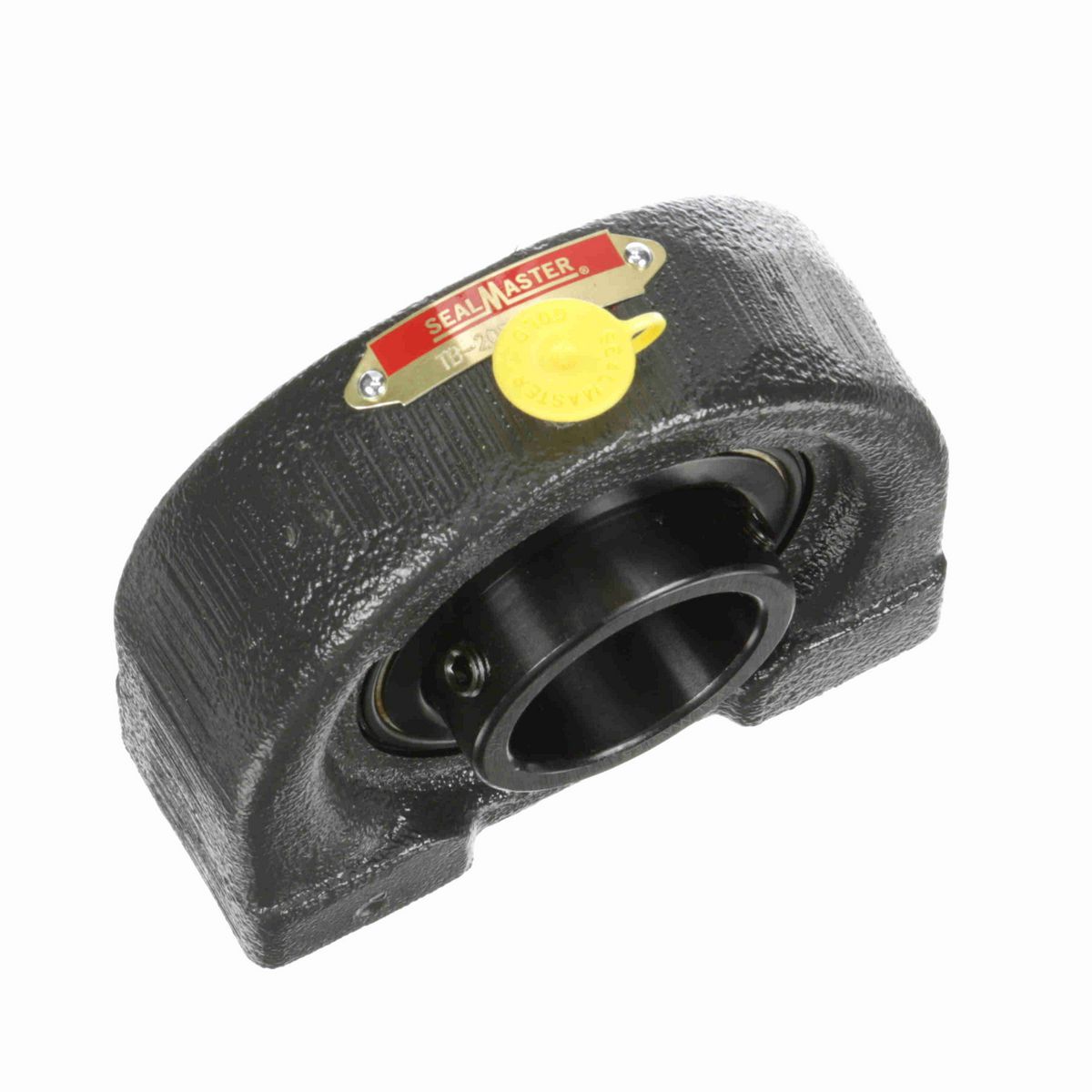

Sealmaster Mounted Cast Iron Tapped Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - TB-208
(0) |
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Поделиться
Sealmaster Mounted Cast Iron Tapped Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - TB-208
(0) |
0 руб.
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
| Thread Size | 1/2-13 |
| Base Width (in) | 1.88 in |
| Overall Length (in) | 4.63 in |
| Overall Height (in) | 3.93 in |
| Overall Width (in) | 1.94 in |
| Bore Diameter (mm) | 40 mm |
| Thread Depth (in) | 0.75 in |
| Base to Center Height (in) | 1.9375 in |
| Length Through Bore (in) | 1.9375 in |
| Centerline to Outermost Bearing Face (in) | 1.1875 in |
| Bolt Spacing (in) | 3.500 in |
| Housing Base | Solid |
| Rolling Element | Ball Bearing |
| Housing Construction | One Piece |
| Bore Shape | Straight |
| Housing Color | Black |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Cage Material | PPS - Polyphenylene Sulfide |
| Seal Type | Felt Labyrinth Seal |
| Housing Type | Pillow Block, Tapped Base |
| Housing Style | Pillow Block |
| Inner Race Heat Treat Method | Zone-Hardened |
| Ability to Relubricate | Yes |
| Max Operating Temperature (F) | 220 °F |
| Housing Material | Cast Iron |
| Bearing Insert Material | 52100 Bearing Steel |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Grease Fitting Thread Size | 1/4-28 |
| Housing Coating | Powder Coated |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Shaft Locking Type | Set Screw |
| Static Load Rating (lb) | 4,467 lb |
| Bearing Insert Finish | Black Oxide |
| Base Length (in) | 4.625 in |
| End Cap Available | No |
| Fixed vs. Expansion | Fixed |
| Dynamic Load Rating (lb) | 7,340 lb |
| Inner Ring Outside Diameter (in) | 2.0625 in |
| Size Code | 2-19 |
| Insert | 5208 |
| Cage Type | Land Riding Retainer |
| Radial Clearance | Standard |
| Maximum Speed (RPM) | 4150 rpm |
| Bearing Type | Standard Duty |
| Housing Width (in) | 1.88 in |
| UPC | 662461053157 |
| Weight | 5.50 LB |
| Packaged Length | 5.00 IN |
| Packaged Width | 2.00 IN |
| Packaged Height | 5.00 IN |
| HTC | 8483.20.8040 |
| Country of Origin | United States of America |
