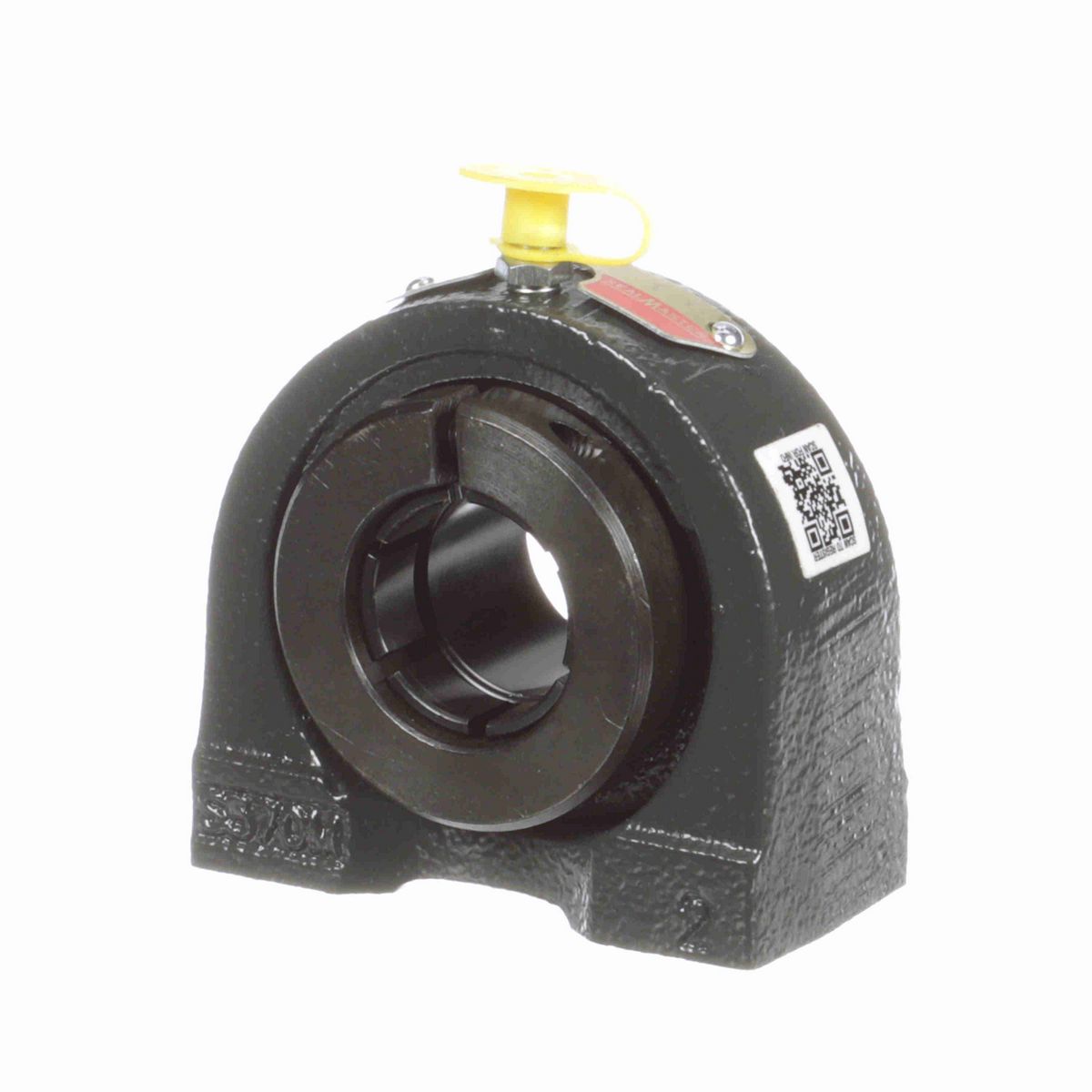

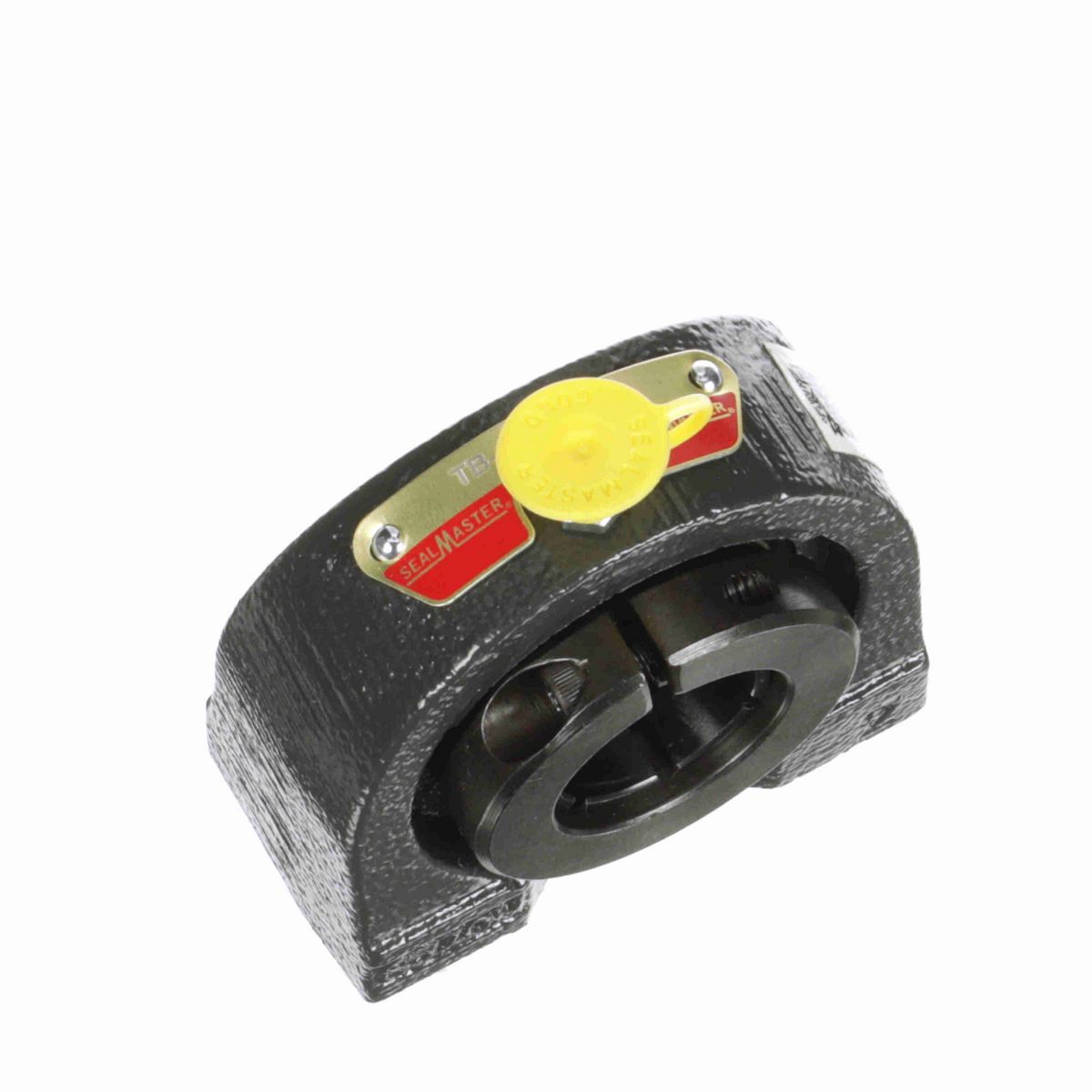

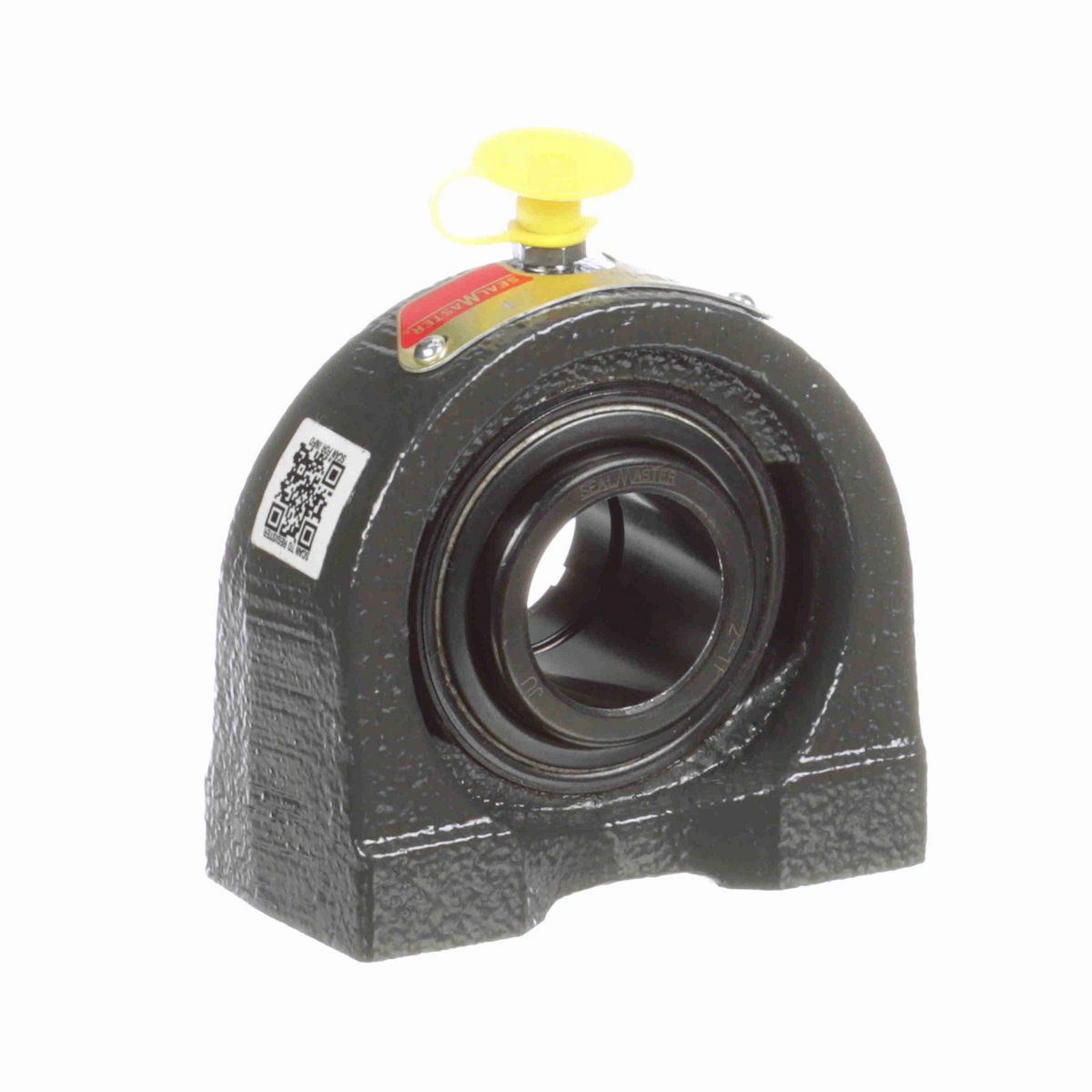

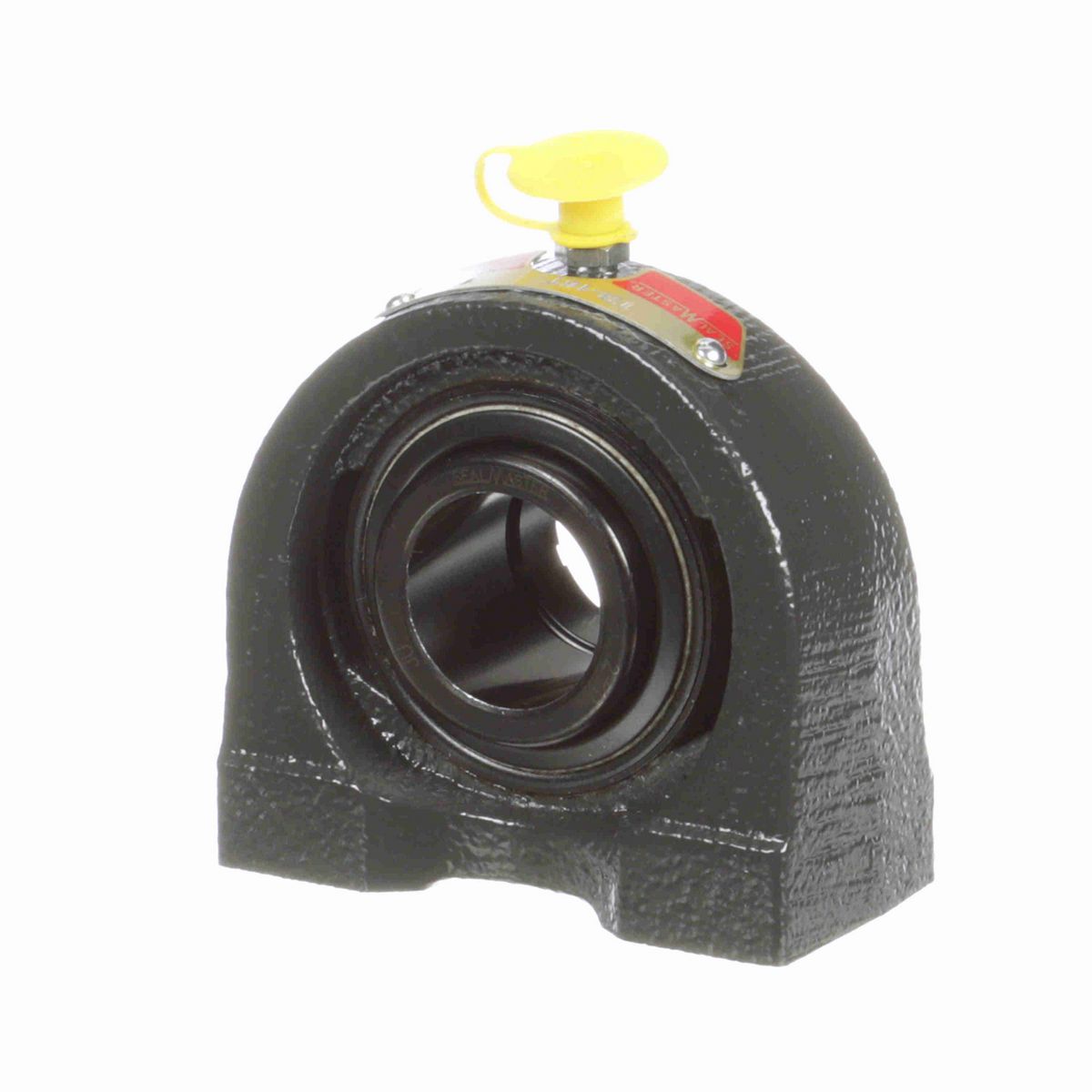

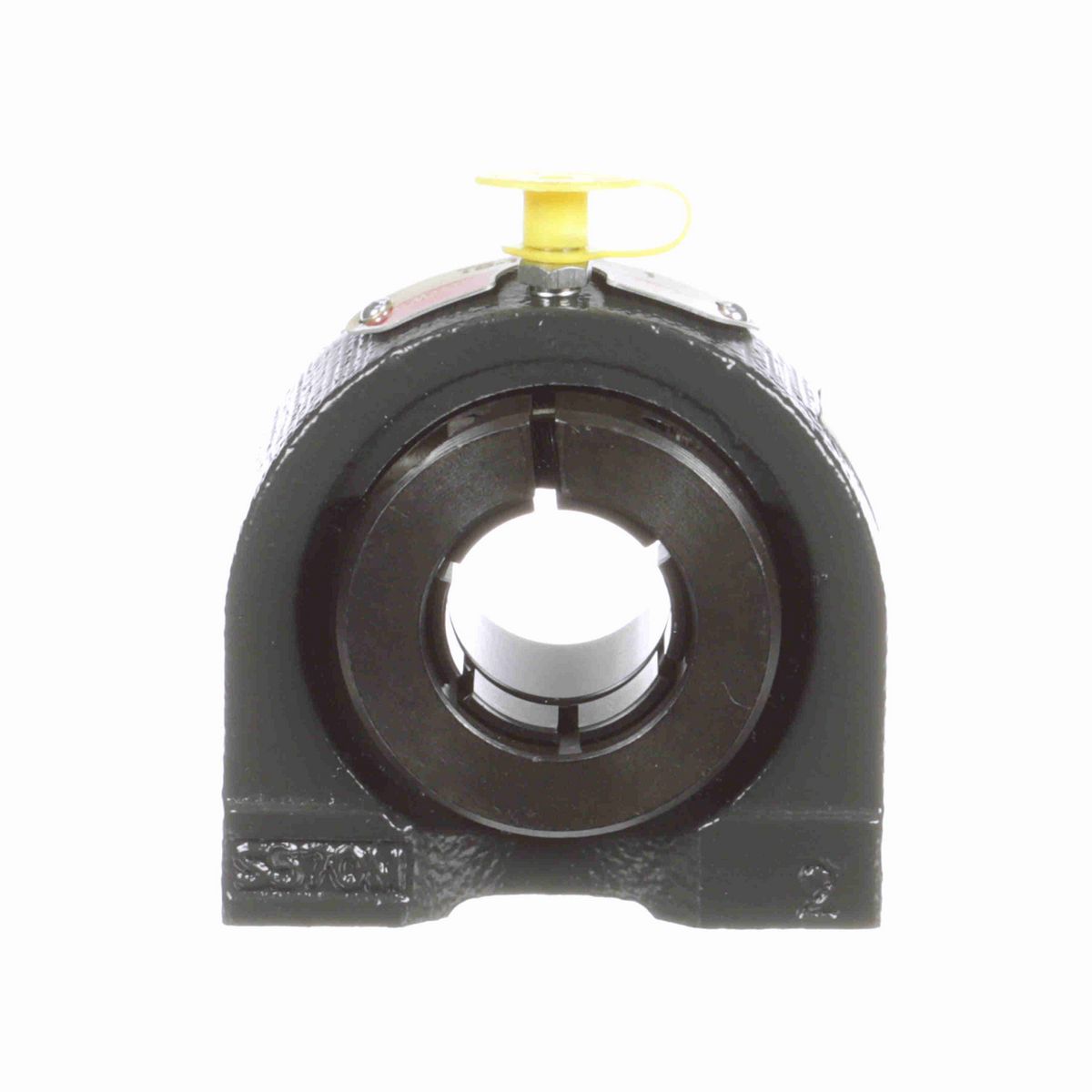

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	3/8-16
Overall Height (in)	2.81 in
Overall Length (in)	3 in
Base Width (in)	1.50 in
Overall Width (in)	1.5 in
Bore Diameter (in)	1 in
Thread Depth (in)	0.5 in
Base to Center Height (in)	1.438 in
Length Through Bore (in)	1.4375 in
Bolt Spacing (in)	2.00 in
Centerline to Outermost Bearing Face (in)	0.81 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	1.94 in
Setscrew Torque (in-lbs)	70 in/lbs
Ability to Relubricate	Yes
Housing Material	Cast Iron
Vibration Frequency Roller Spin	0.0442 cps
Radial Clearance	Standard
Grease Fitting Thread Size	1/4-28
Insert	2-1T
Maximum Speed (RPM)	9000 rpm
Vibration Frequency Inner Ring Defect	0.0985 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel
Size Code	2-015
Static Load Rating (lb)	1,651 lb
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Fundamental Train	0.0068 cps
Max Operating Temperature (F)	220 °F
Bearing Insert Finish	Black Oxide
Inner Ring Outside Diameter (in)	1.38 in
End Cap Available	No
Base Length (in)	3.00 in
Cage Type	Land Riding Retainer
Vibration Frequency Outer Ring Defect	0.0682 cps
Fixed vs. Expansion	Fixed
Bearing Type	Standard Duty
Shaft Locking Type	Concentric
Dynamic Load Rating (lb)	2,801 lb
Housing Coating	Powder Coated
Housing Width (in)	1.5 in

General Specifications

UPC	662461031018
Weight	1.19 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.8040
Country of Origin	United States of America
