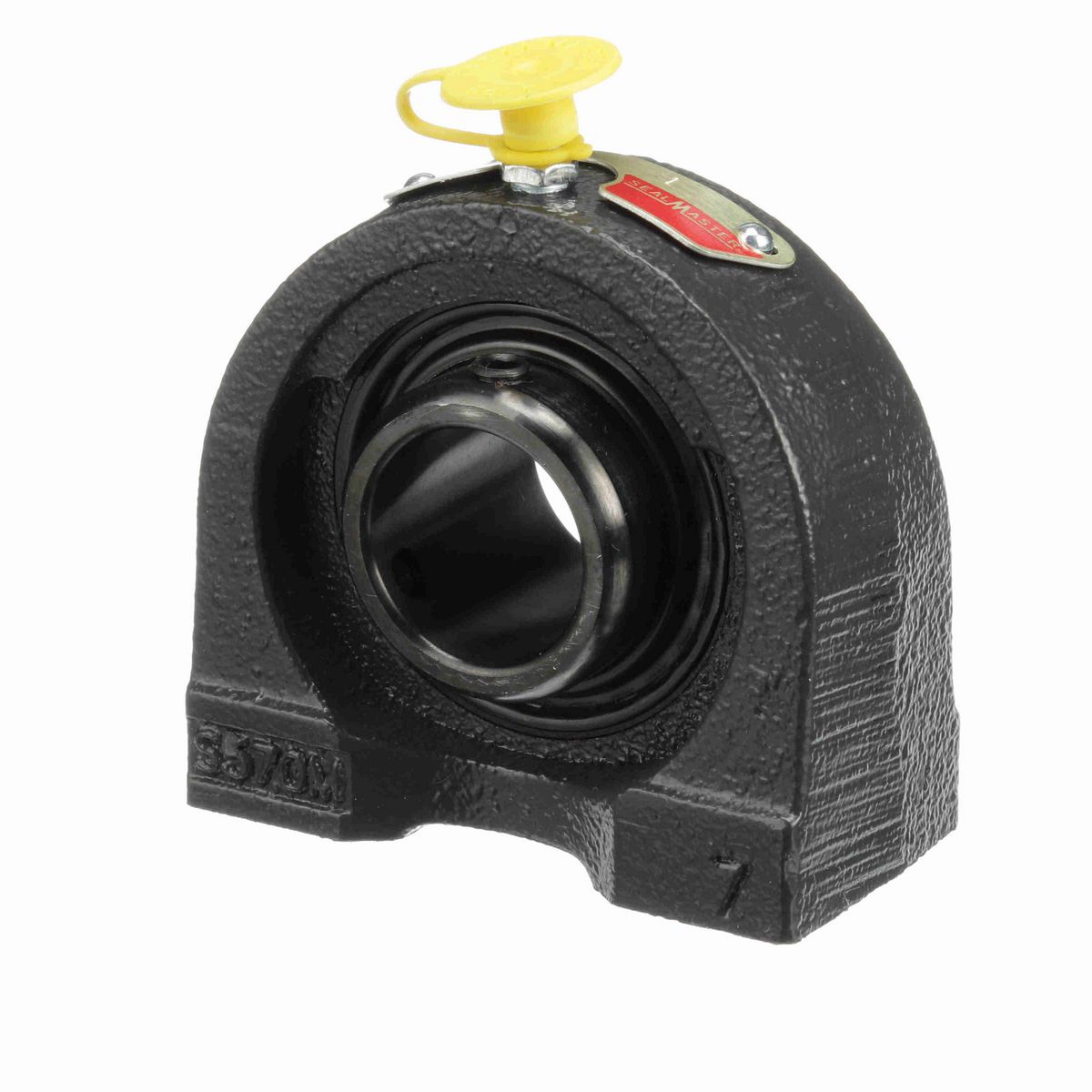

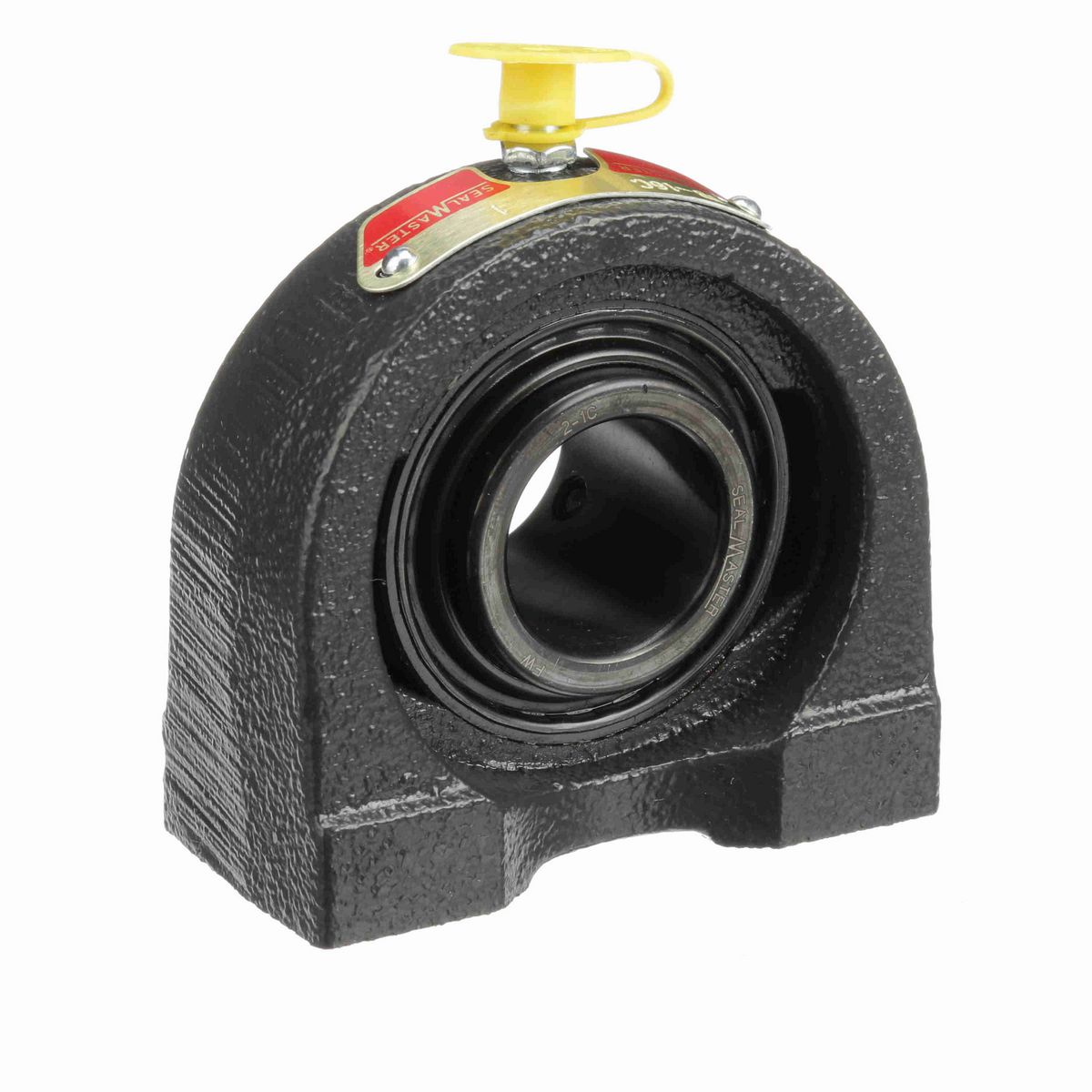

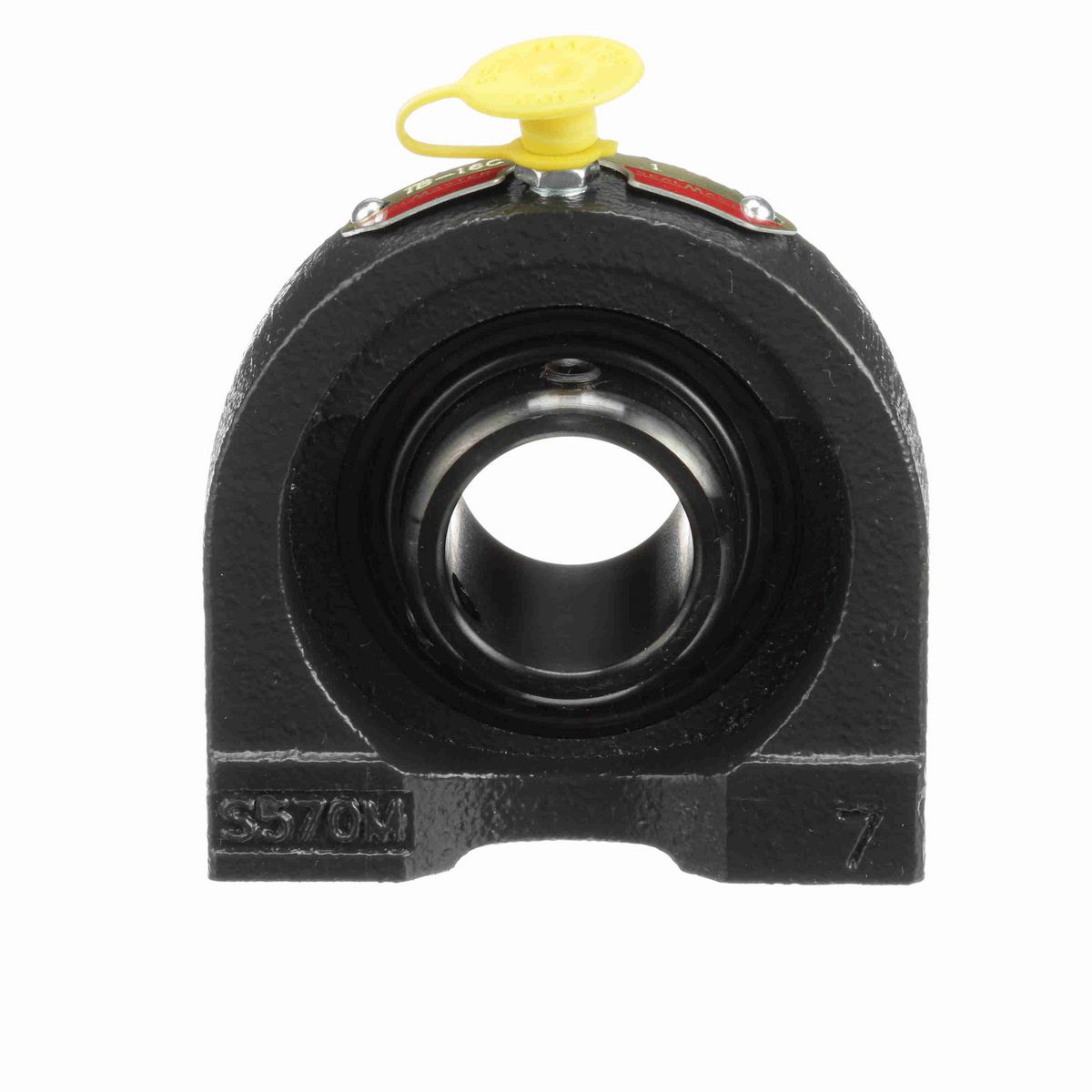

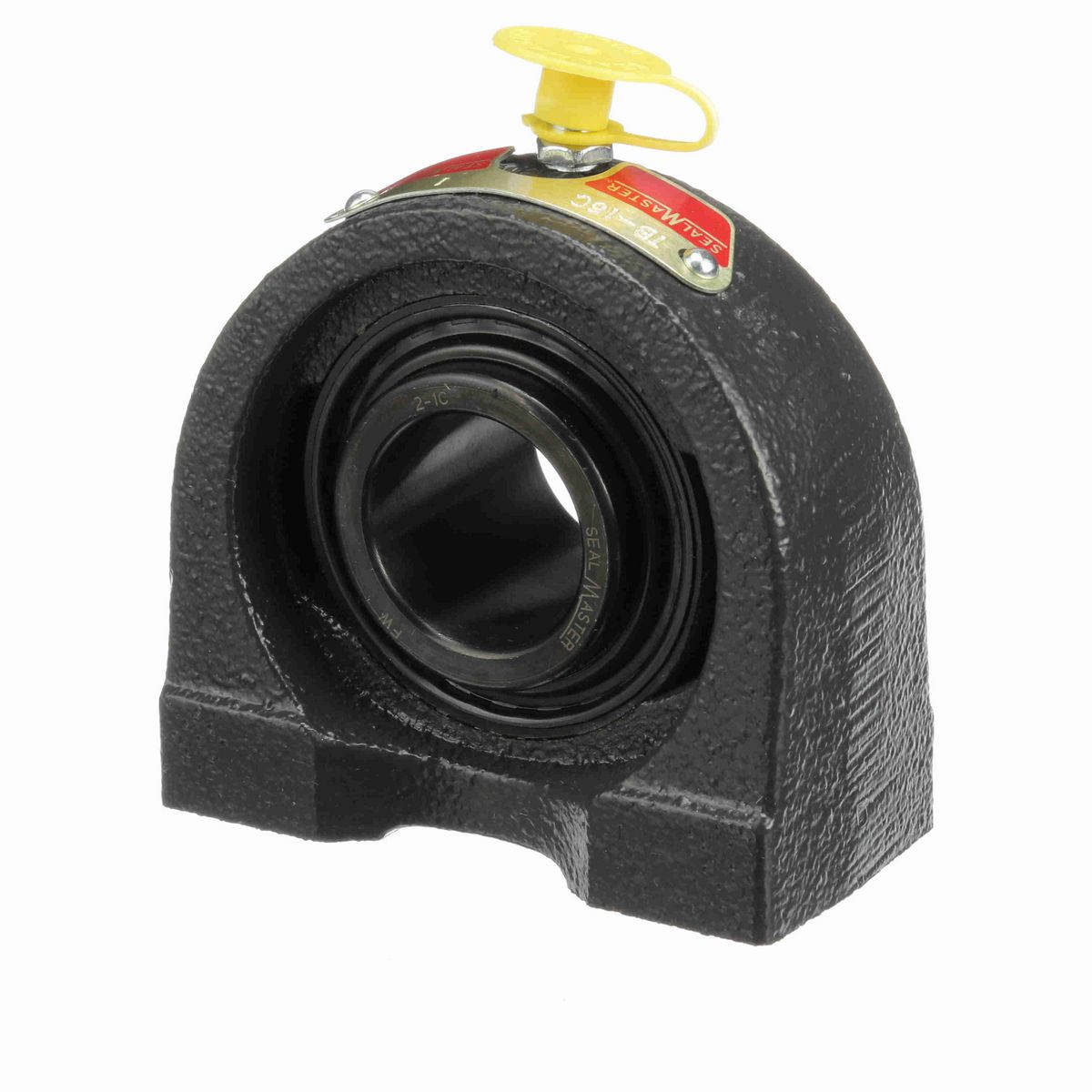

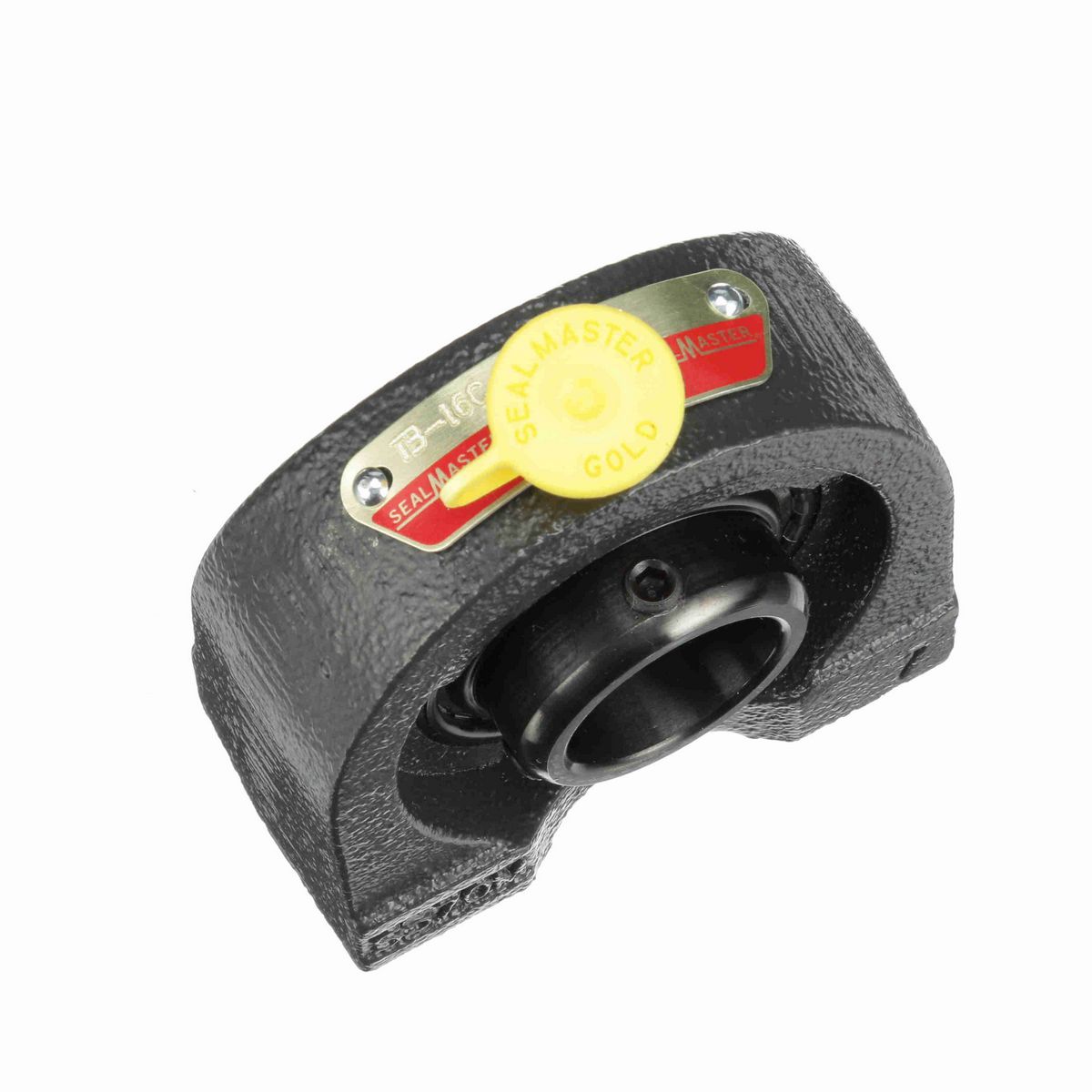

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	3/8-16
Base Width (in)	1.50 in
Overall Height (in)	2.81 in
Overall Length (in)	3 in
Overall Width (in)	1.5 in
Bore Diameter (in)	1 in
Thread Depth (in)	0.5 in
Base to Center Height (in)	1.438 in
Length Through Bore (in)	1.375 in
Centerline to Outermost Bearing Face (in)	0.81 in
Bolt Spacing (in)	2.00 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	65-85 in/lbs
Inner Race Heat Treat Method	Zone-Hardened
Static Load Rating (lb)	1,651 lb
Radial Clearance	Standard
End Cap Available	No
Vibration Frequency Inner Ring Defect	0.0985 cps
Housing Material	Cast Iron
Base Length (in)	3.00 in
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-015
Cage Type	Land Riding Retainer
Insert	2-1C
Housing Coating	Powder Coated
Vibration Frequency Fundamental Train	0.0068 cps
Grease Fitting Thread Size	1/4-28
Shaft Locking Type	Set Screw
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Bearing Type	Standard Duty
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	1.38 in
Dynamic Load Rating (lb)	2,801 lb
Vibration Frequency Roller Spin	0.0442 cps
Vibration Frequency Outer Ring Defect	0.0682 cps
Maximum Speed (RPM)	6350 rpm
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Housing Width (in)	1.5 in

General Specifications

UPC	662461024393
Weight	1.79 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.8040
Country of Origin	United States of America
