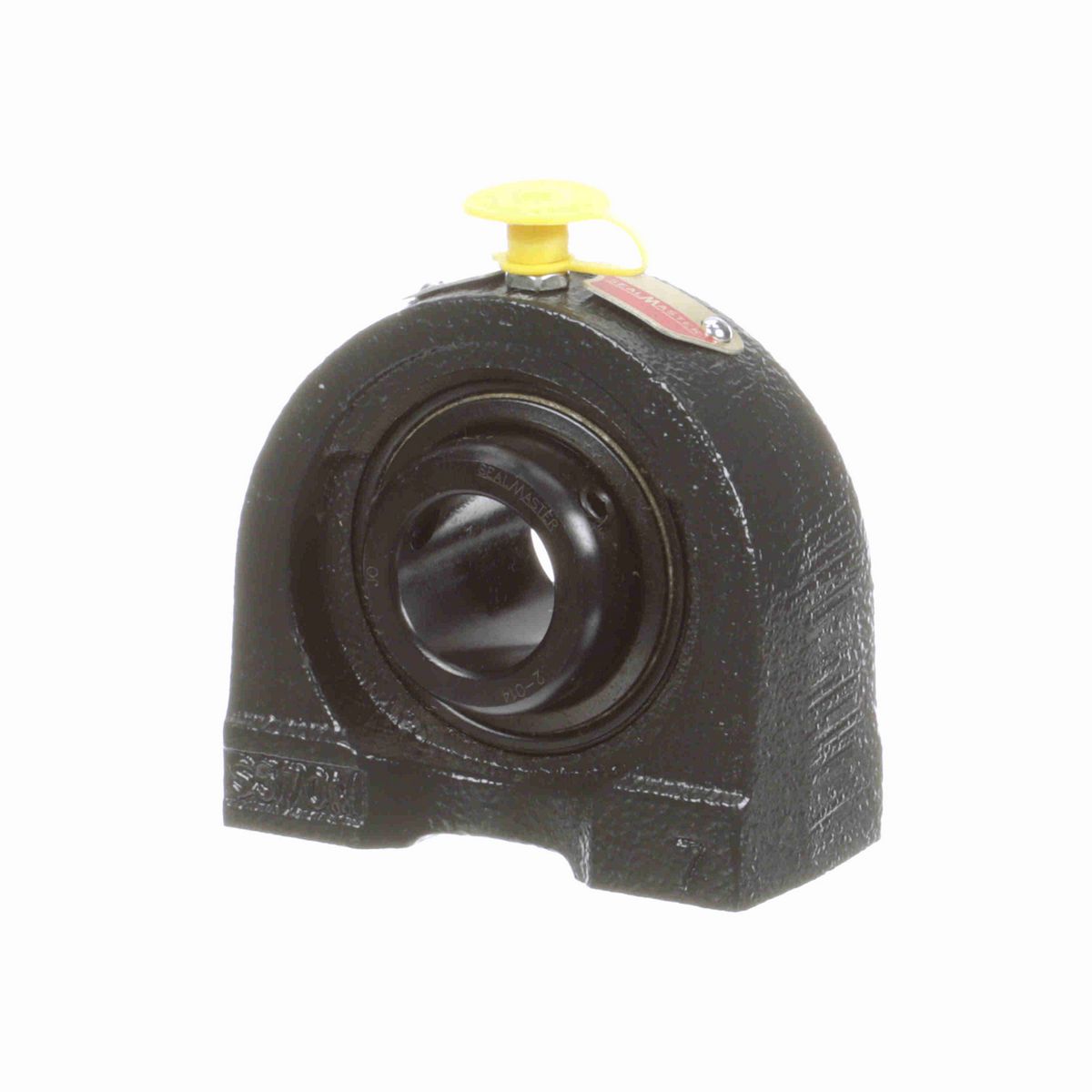

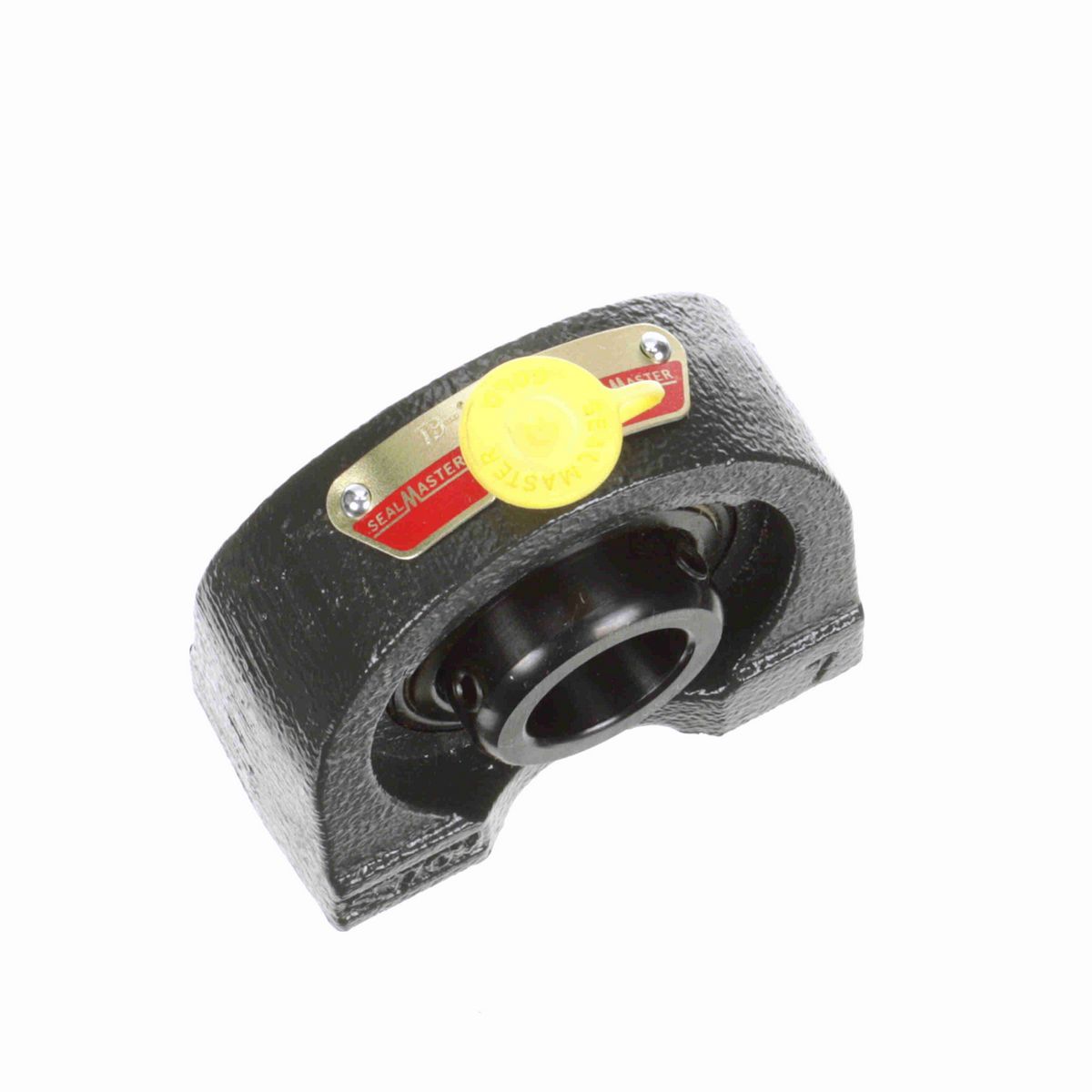

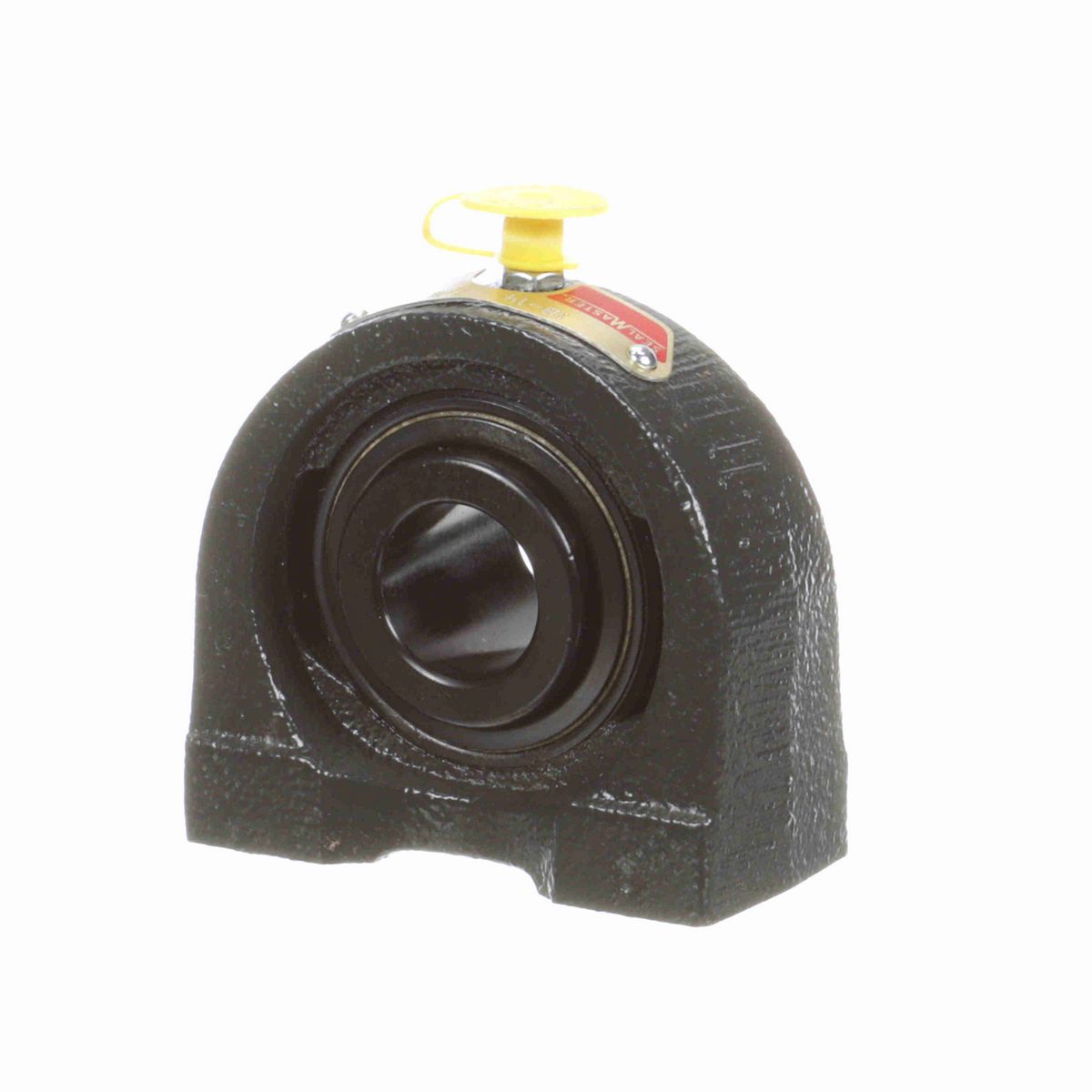

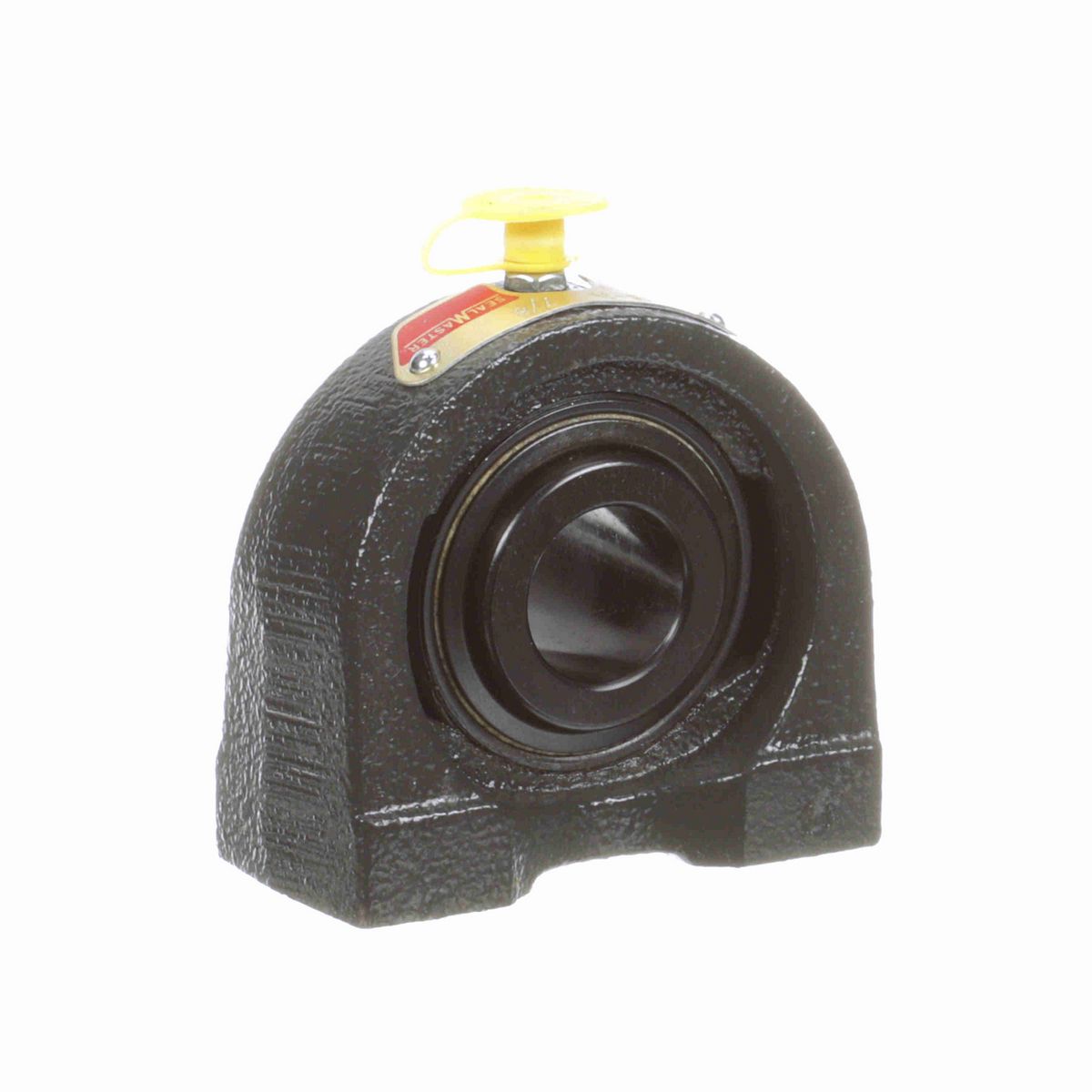

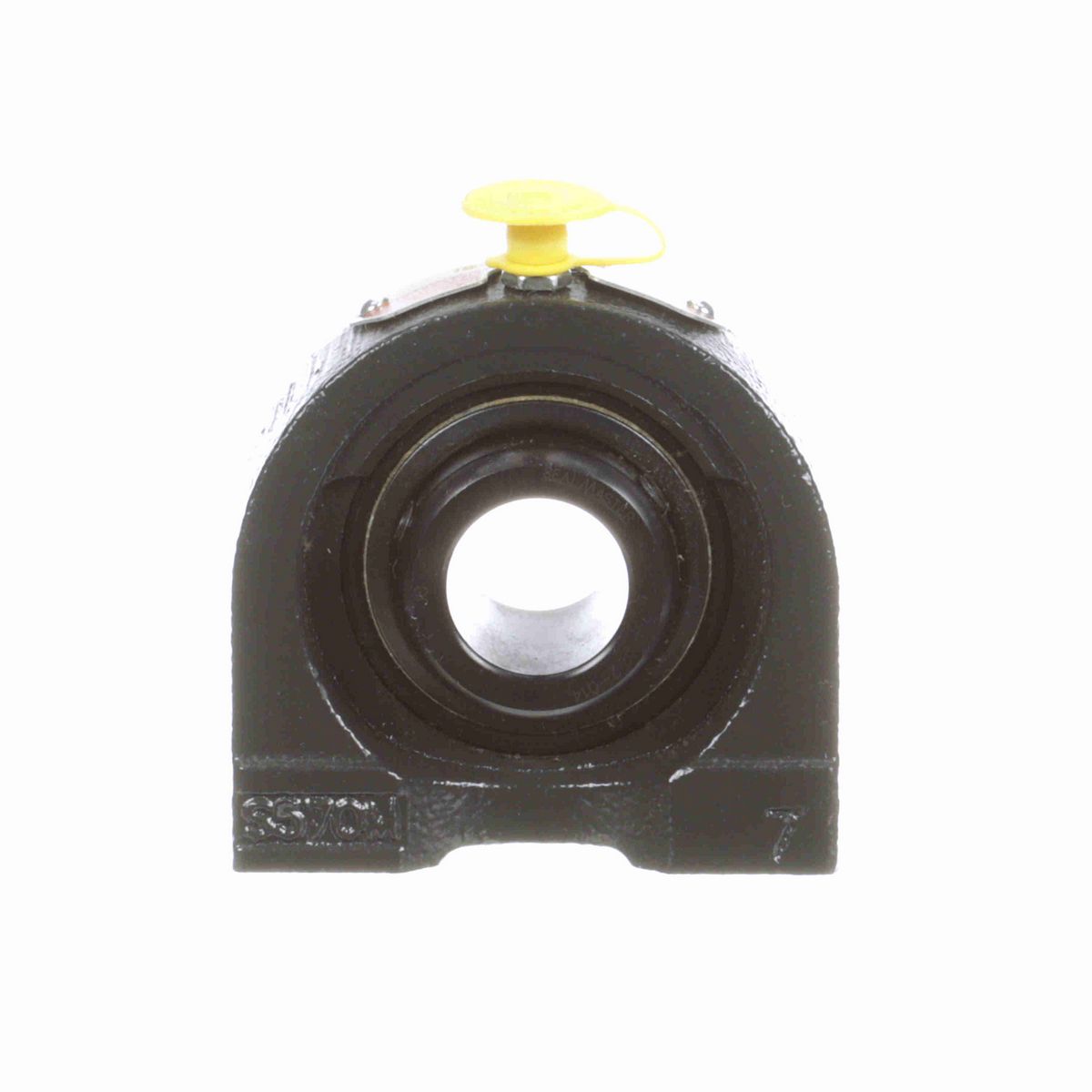

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	3/8-16
Overall Height (in)	2.81 in
Overall Length (in)	3 in
Base Width (in)	1.50 in
Overall Width (in)	1.5 in
Bore Diameter (in)	0.875 in
Thread Depth (in)	0.5 in
Base to Center Height (in)	1.438 in
Length Through Bore (in)	1.375 in
Bolt Spacing (in)	2.00 in
Centerline to Outermost Bearing Face (in)	0.81 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Setscrew Torque (in-lbs)	65-85 in/lbs
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Cage Type	Land Riding Retainer
Maximum Speed (RPM)	6350 rpm
Fixed vs. Expansion	Fixed
Shaft Locking Type	Set Screw
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±2.0° Misalignment - Static Only
Insert	2-014
Base Length (in)	3.00 in
Vibration Frequency Roller Spin	0.0442 cps
Radial Clearance	Standard
Inner Ring Outside Diameter (in)	1.38 in
Bearing Type	Standard Duty
Size Code	2-015
Static Load Rating (lb)	1,651 lb
Grease Fitting Thread Size	1/4-28
End Cap Available	No
Vibration Frequency Outer Ring Defect	0.0682 cps
Dynamic Load Rating (lb)	2,801 lb
Bearing Insert Finish	Black Oxide
Vibration Frequency Fundamental Train	0.0068 cps
Vibration Frequency Inner Ring Defect	0.0985 cps
Housing Material	Cast Iron
Housing Coating	Powder Coated
Max Operating Temperature (F)	220 °F
Lubricant	Lithium Complex NLGI 2 Grease
Housing Width (in)	1.5 in

General Specifications

UPC	662461007143
Weight	1.84 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.8040
Country of Origin	United States of America
