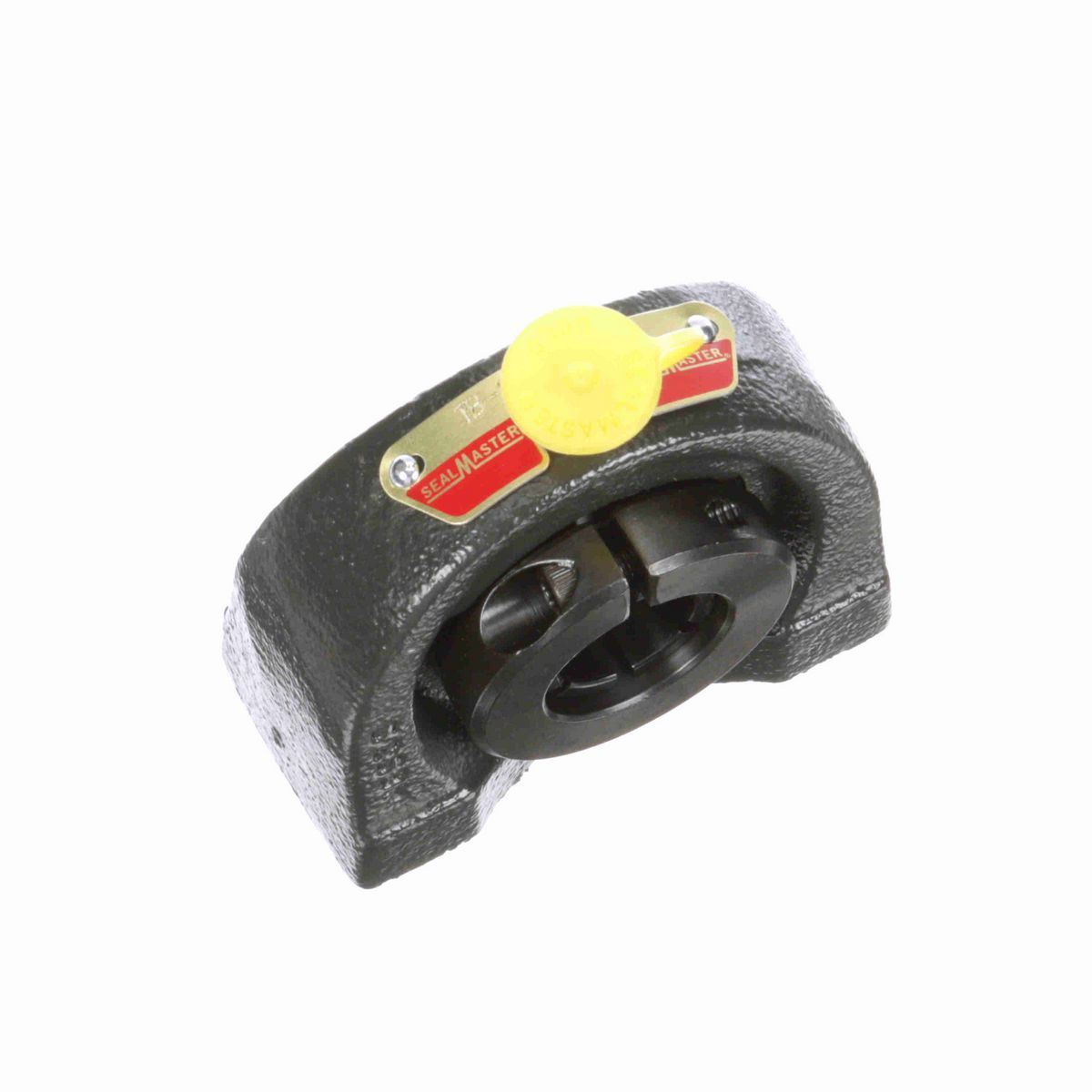

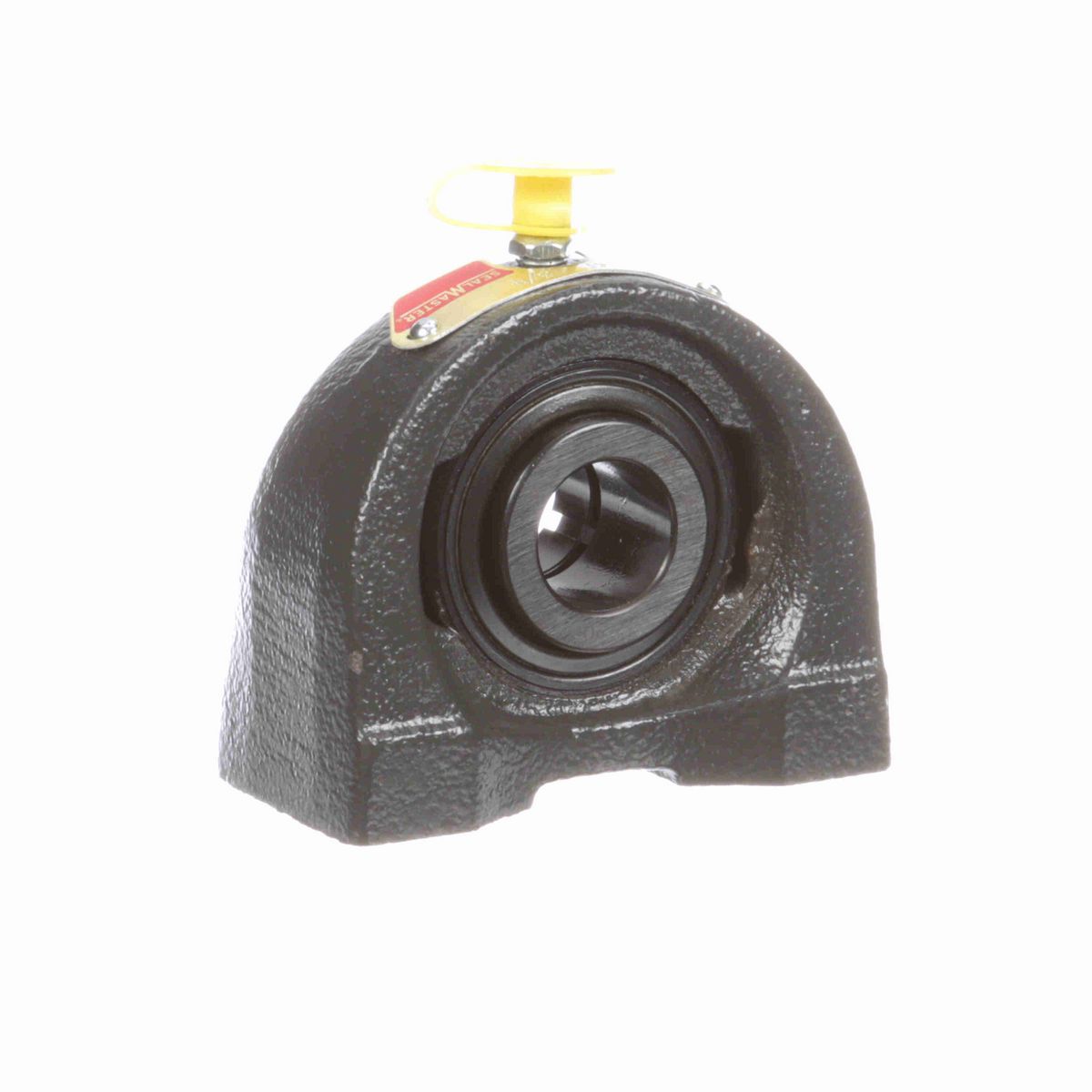

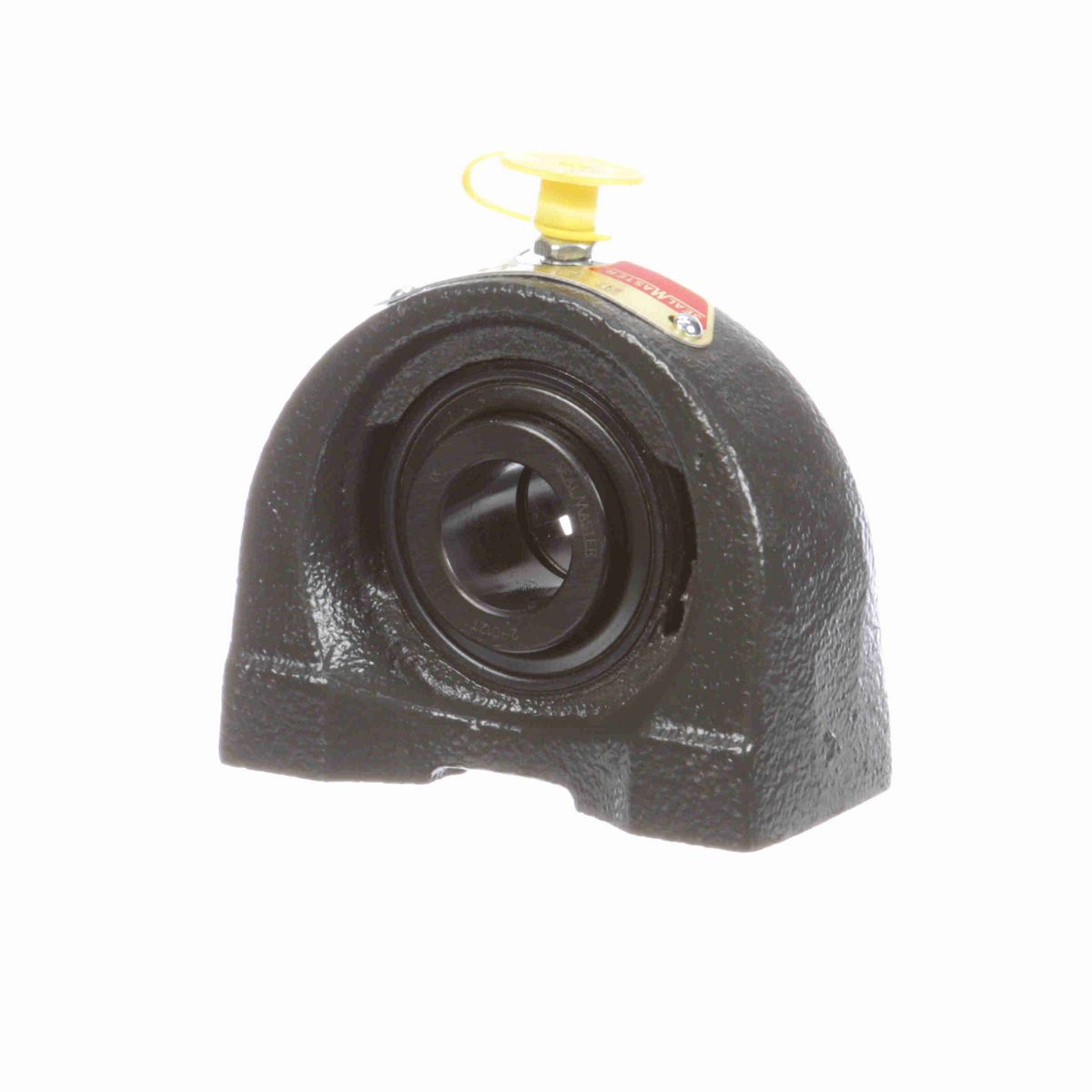

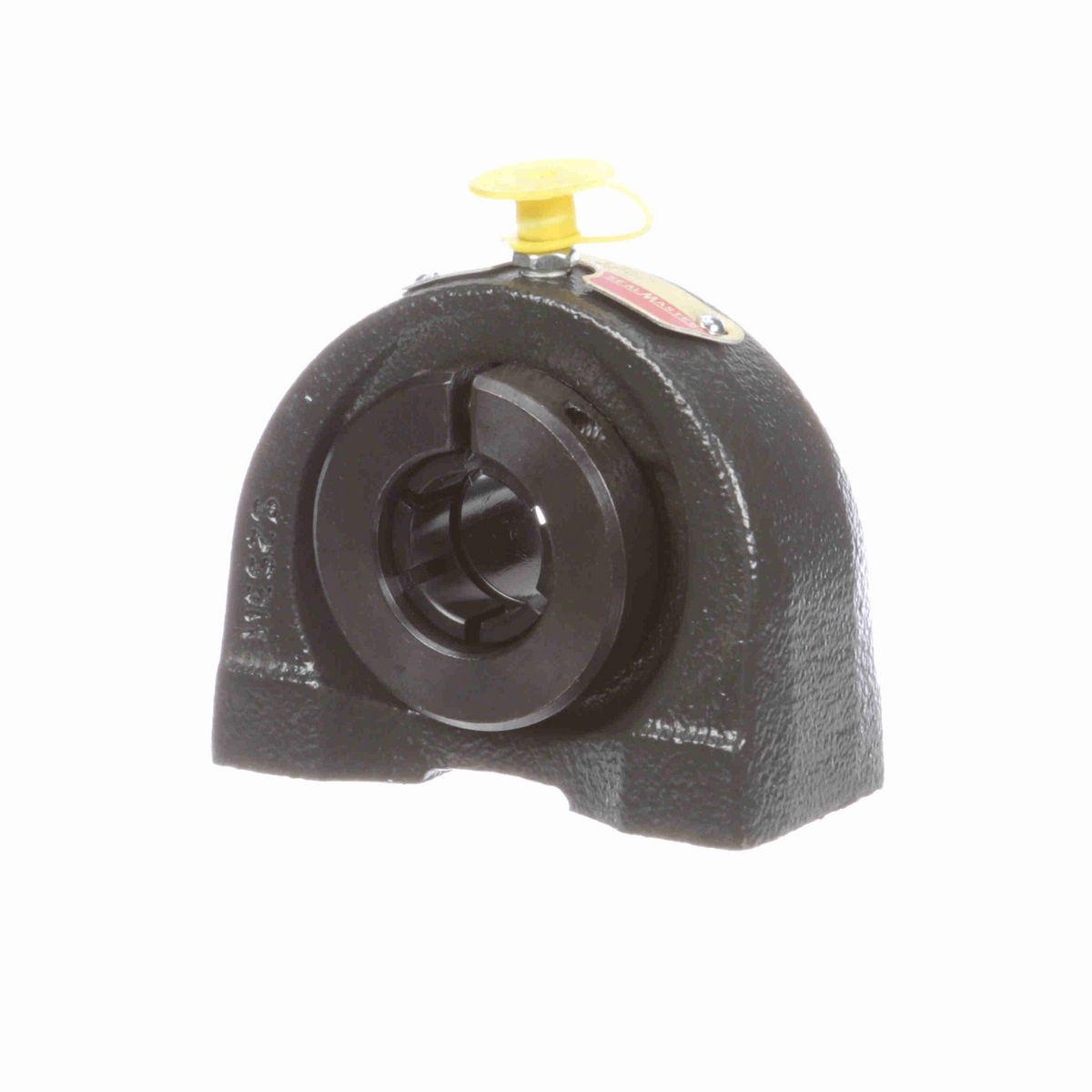

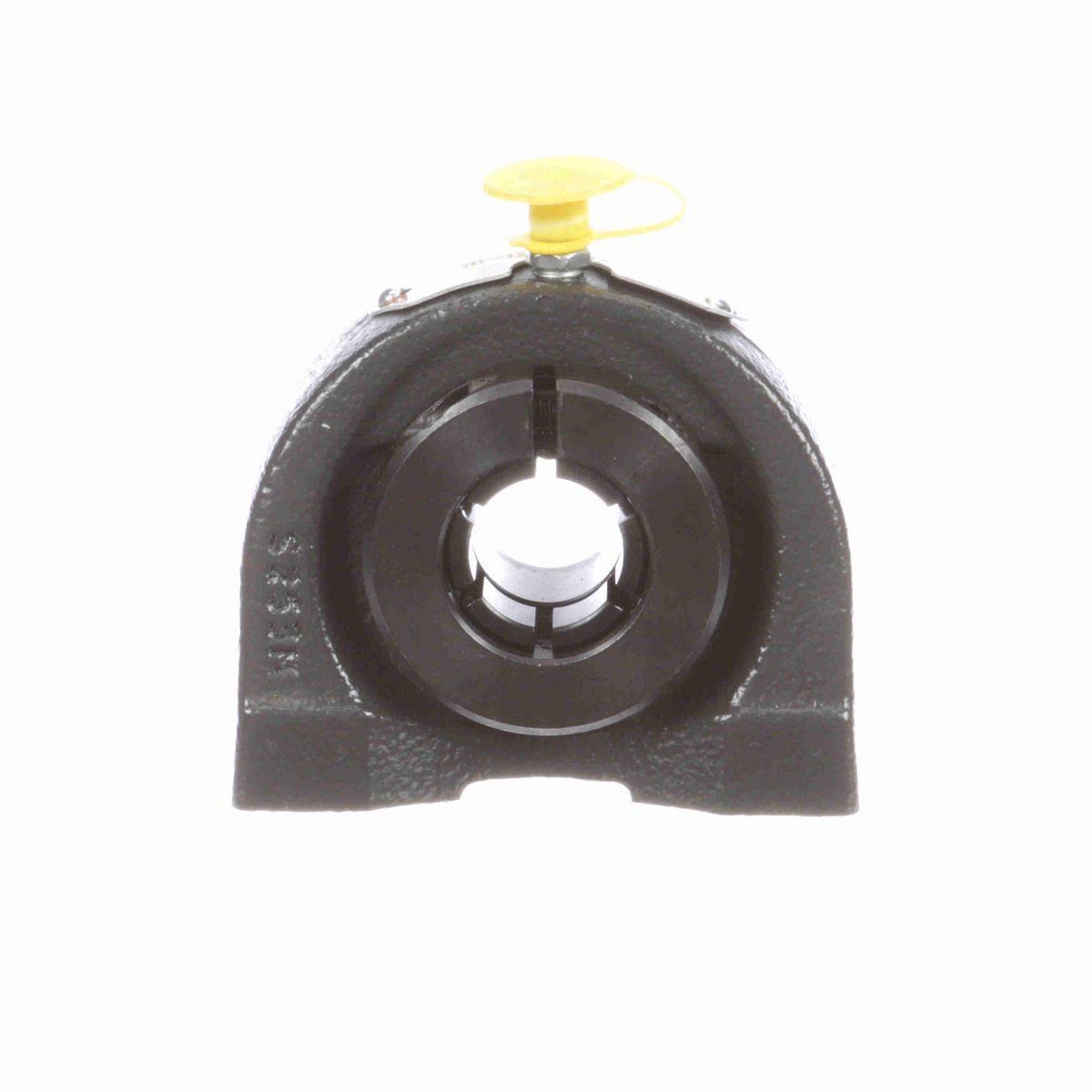

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	3/8-16
Overall Height (in)	2.56 in
Overall Length (in)	3.13 in
Base Width (in)	1.50 in
Overall Width (in)	1.5 in
Bore Diameter (in)	0.75 in
Base to Center Height (in)	1.312 in
Thread Depth (in)	0.5 in
Length Through Bore (in)	1.28 in
Bolt Spacing (in)	2.00 in
Centerline to Outermost Bearing Face (in)	0.72 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Setscrew Torque (in-lbs)	70 in/lbs
Locking Collar Outside Diameter (in)	1.80 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Misalignment Capability	±2.0° Misalignment - Static Only
Radial Clearance	Standard
Cage Type	Land Riding Retainer
End Cap Available	No
Fixed vs. Expansion	Fixed
Base Length (in)	3.13 in
Dynamic Load Rating (lb)	2,611 lb
Grease Fitting Thread Size	1/4-28
Vibration Frequency Outer Ring Defect	0.0593 cps
Static Load Rating (lb)	1,444 lb
Inner Ring Outside Diameter (in)	1.188 in
Shaft Locking Type	Concentric
Housing Material	Cast Iron
Vibration Frequency Fundamental Train	0.0066 cps
Bearing Type	Standard Duty
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-012
Vibration Frequency Roller Spin	0.0381 cps
Vibration Frequency Inner Ring Defect	0.0907 cps
Bearing Insert Finish	Black Oxide
Insert	2-012T
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Maximum Speed (RPM)	10200 rpm
Housing Coating	Powder Coated
Housing Width (in)	1.5 in

General Specifications

UPC	662461030998
Weight	1.70 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.8040
Country of Origin	United States of America
