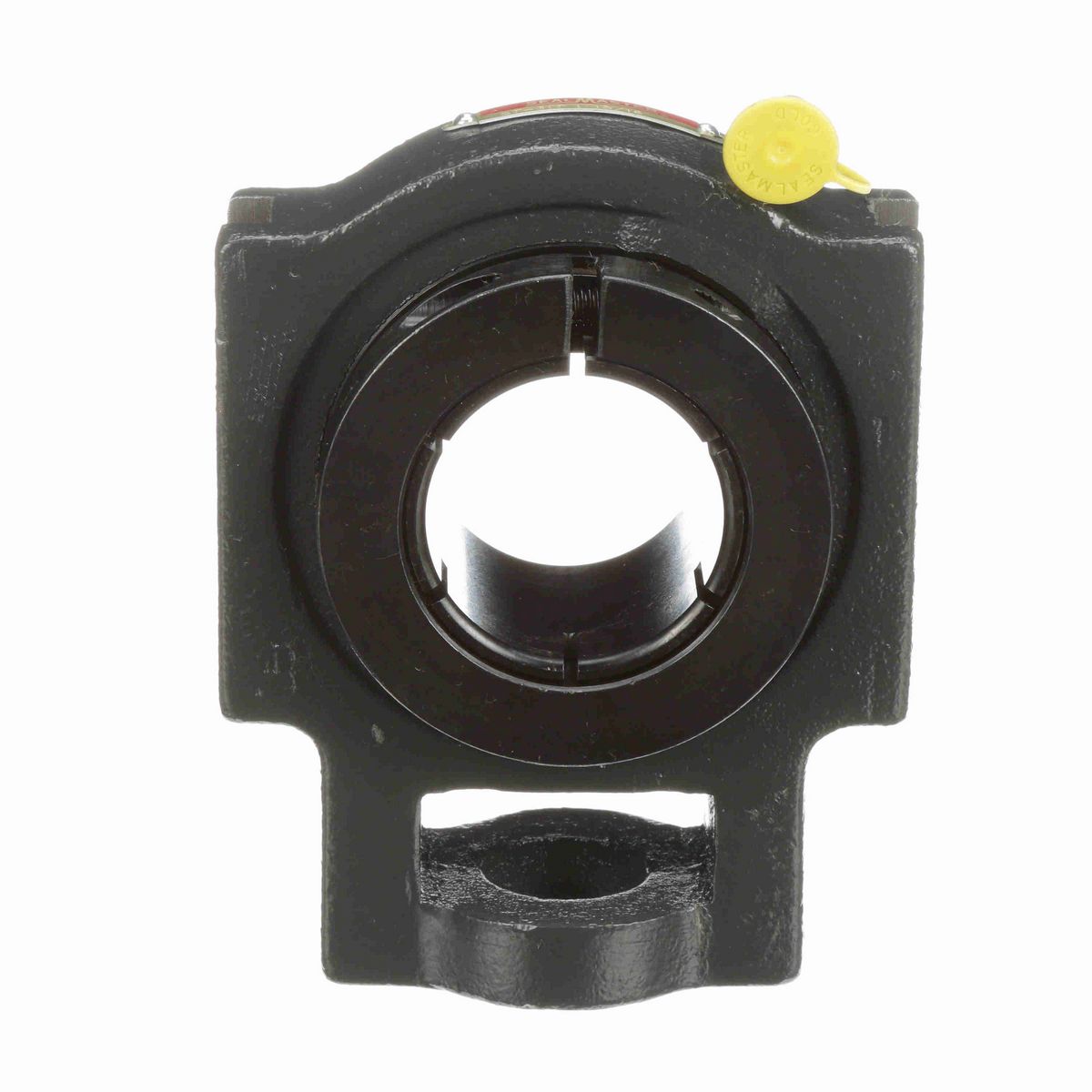

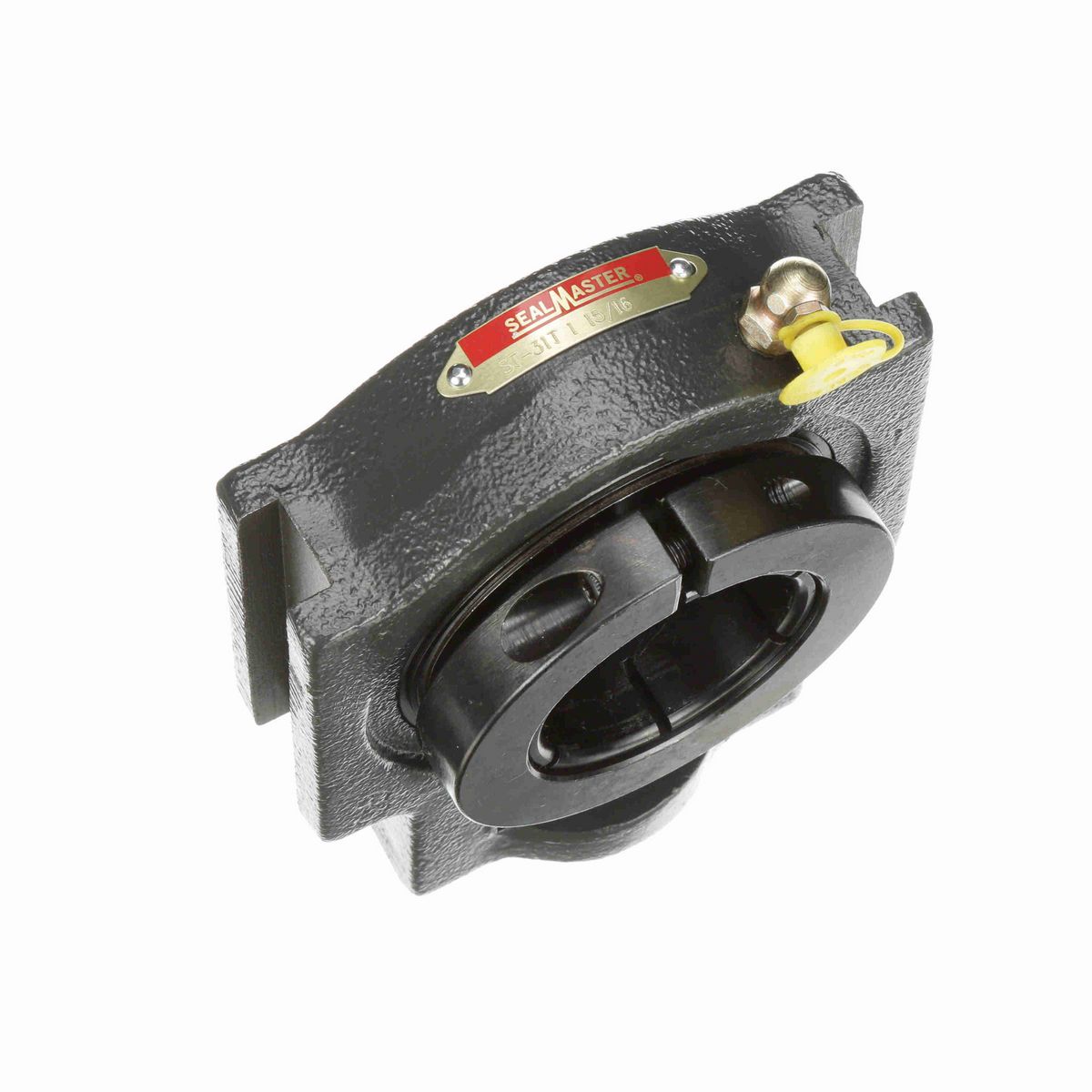

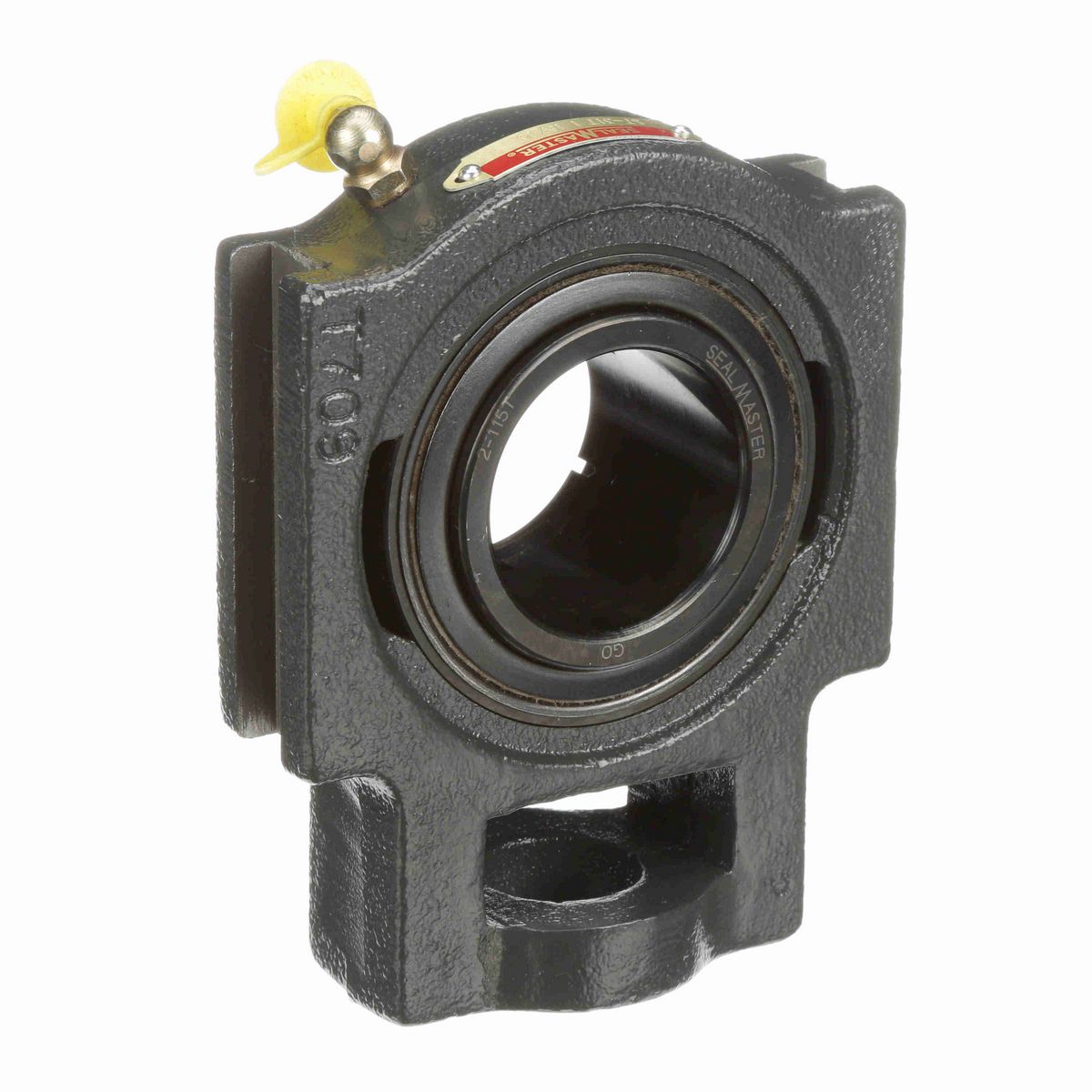

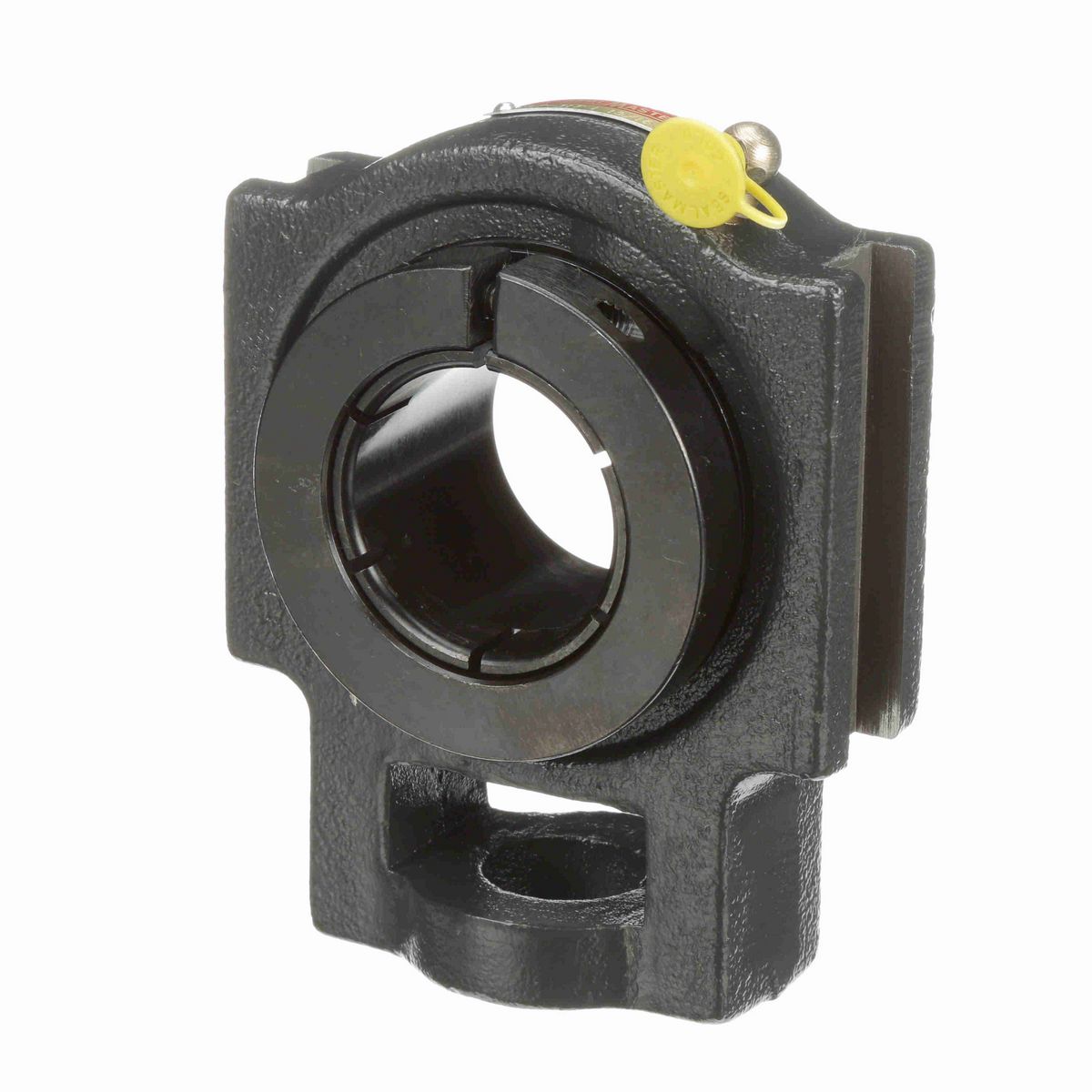

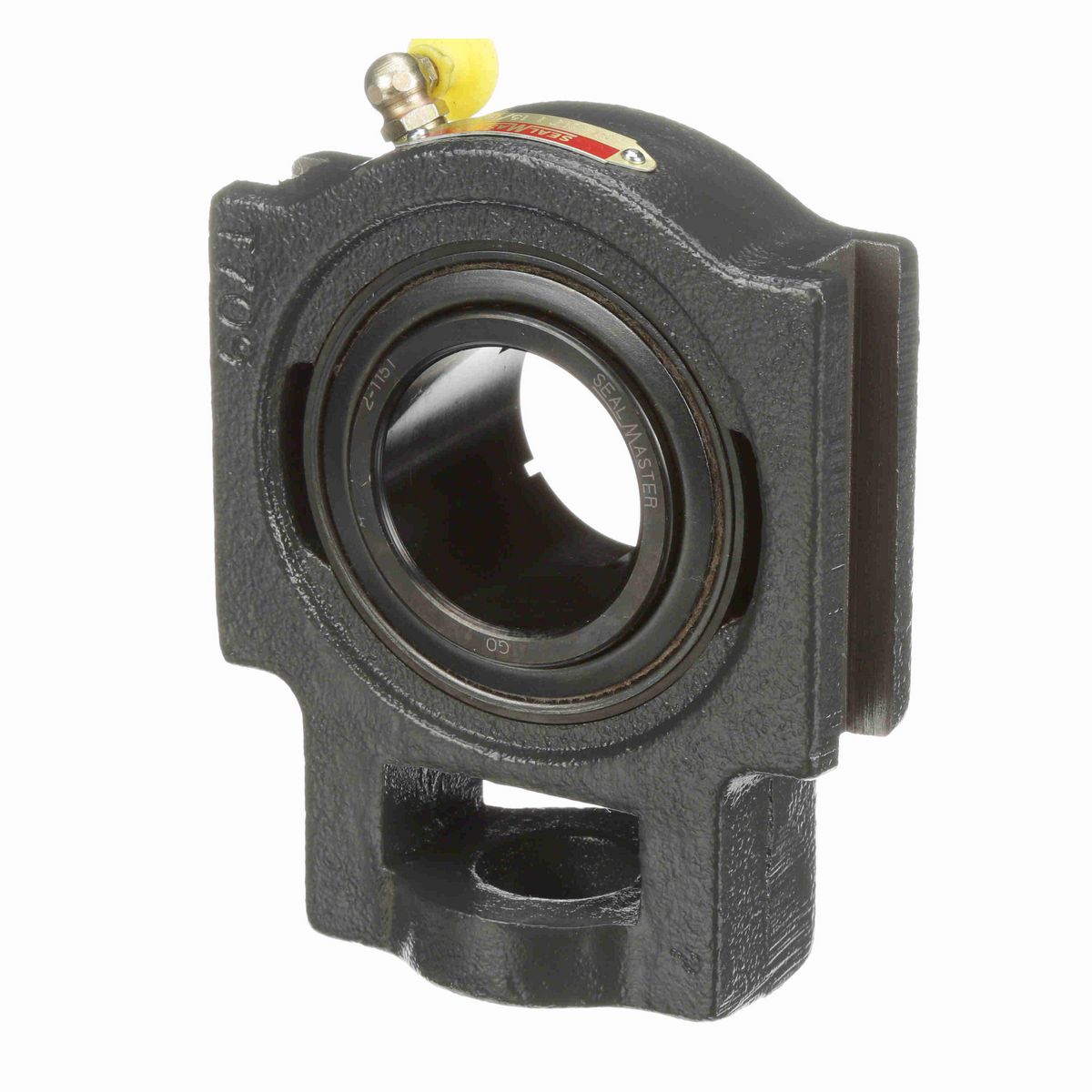

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	2.19 in
Overall Height (in)	4.63 in
Overall Length (in)	5.88 in
Bore Diameter (in)	1.9375 in
Base to Center Height (in)	3.57 in
Length Through Bore (in)	2.17 in
Slot Width (in)	0.688 in
Slot Spacing (in)	4 in
Centerline to Outermost Bearing Face (in)	1.42 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Series	ST
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Take-Up Block, Wide Slot
Seal Type	Felt Labyrinth Seal
Slot Length (in)	3.38 in
Housing Style	Take-Up Block
Carriage Bolt Size (in)	3/4 in
Adjusting Screw Square Nut Seat Height (in)	1.94 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	3.35 in
Adjusting Screw Clearance Hole Diameter (in)	1.13 in
Fixed vs. Expansion	Fixed
Vibration Frequency Outer Ring Defect	0.0683 cps
Housing Material	Cast Iron
Vibration Frequency Roller Spin	0.0445 cps
Inner Ring Outside Diameter (in)	2.469 in
Shaft Locking Type	Concentric
Maximum Speed (RPM)	5000 rpm
Vibration Frequency Inner Ring Defect	0.0984 cps
Vibration Frequency Fundamental Train	0.0068 cps
End Cap Available	No
Housing Coating	Powder Coated
Lubricant	Lithium Complex NLGI 2 Grease
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	220 °F
Static Load Rating (lb)	5,216 lb
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel
Insert	2-115T
Size Code	2-115
Bearing Type	Standard Duty
Dynamic Load Rating (lb)	7,889 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461030929
Weight	6.60 LB
Packaged Length	5.19 IN
Packaged Width	2.13 IN
Packaged Height	7.81 IN
HTC	8483.20.4040
Country of Origin	United States of America
