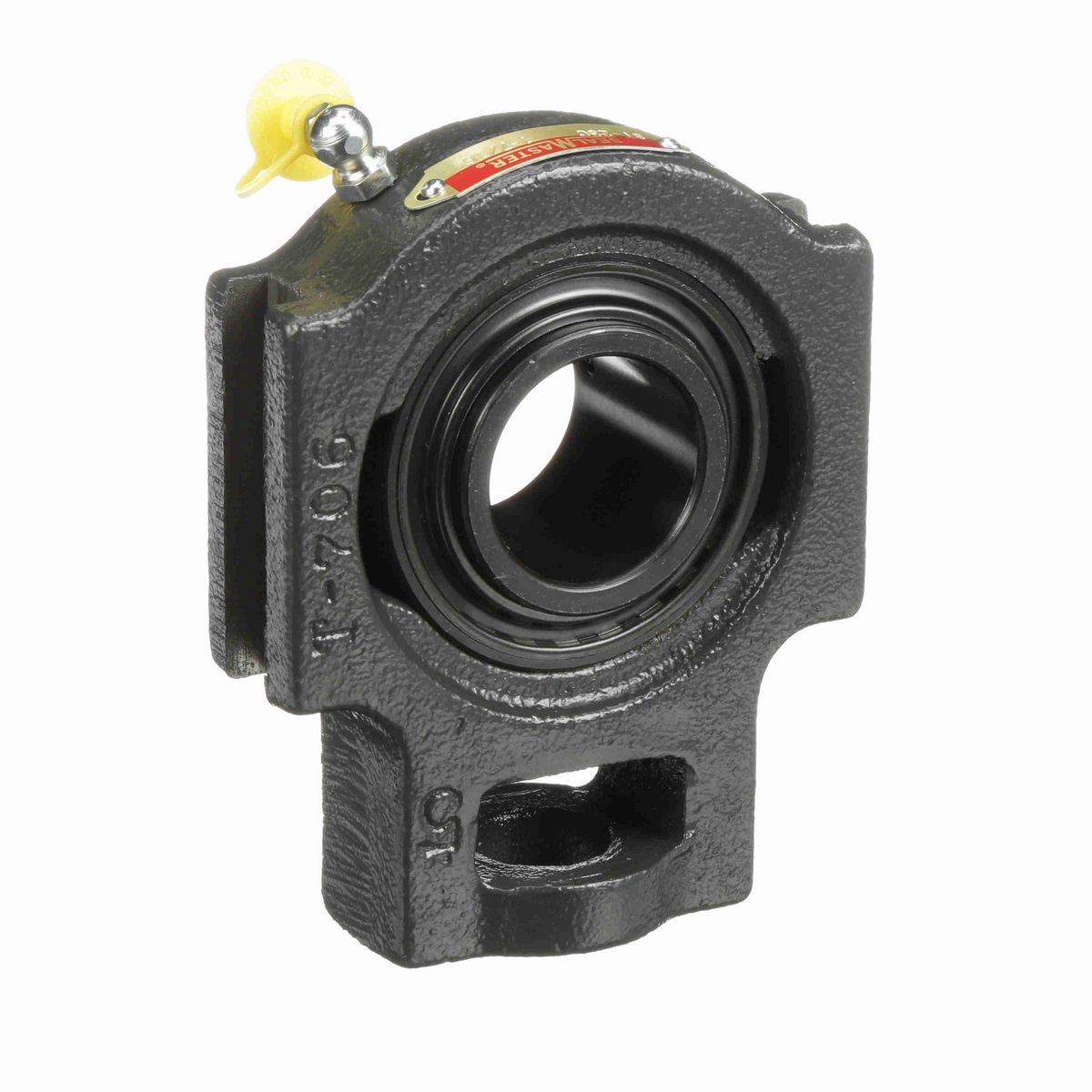

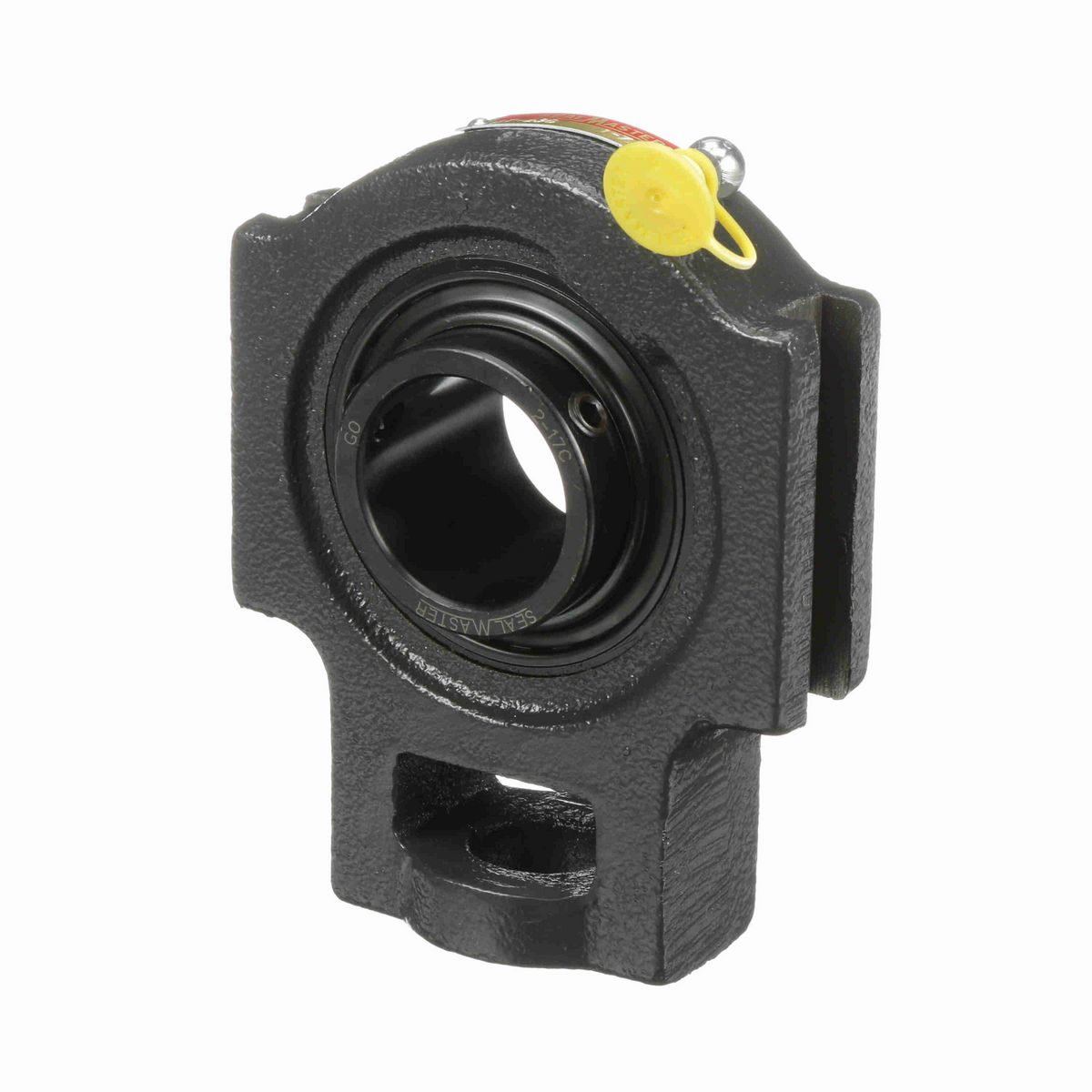

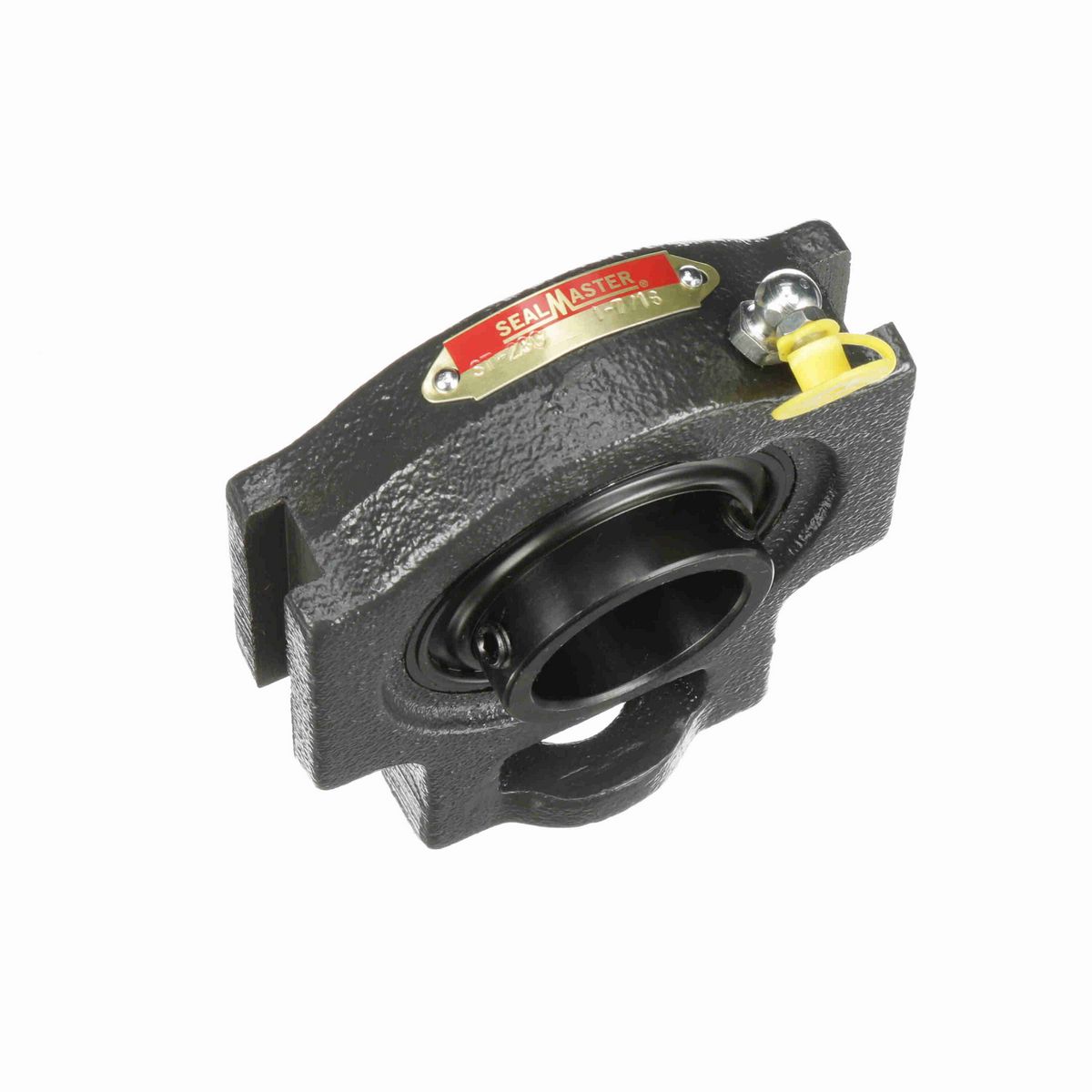

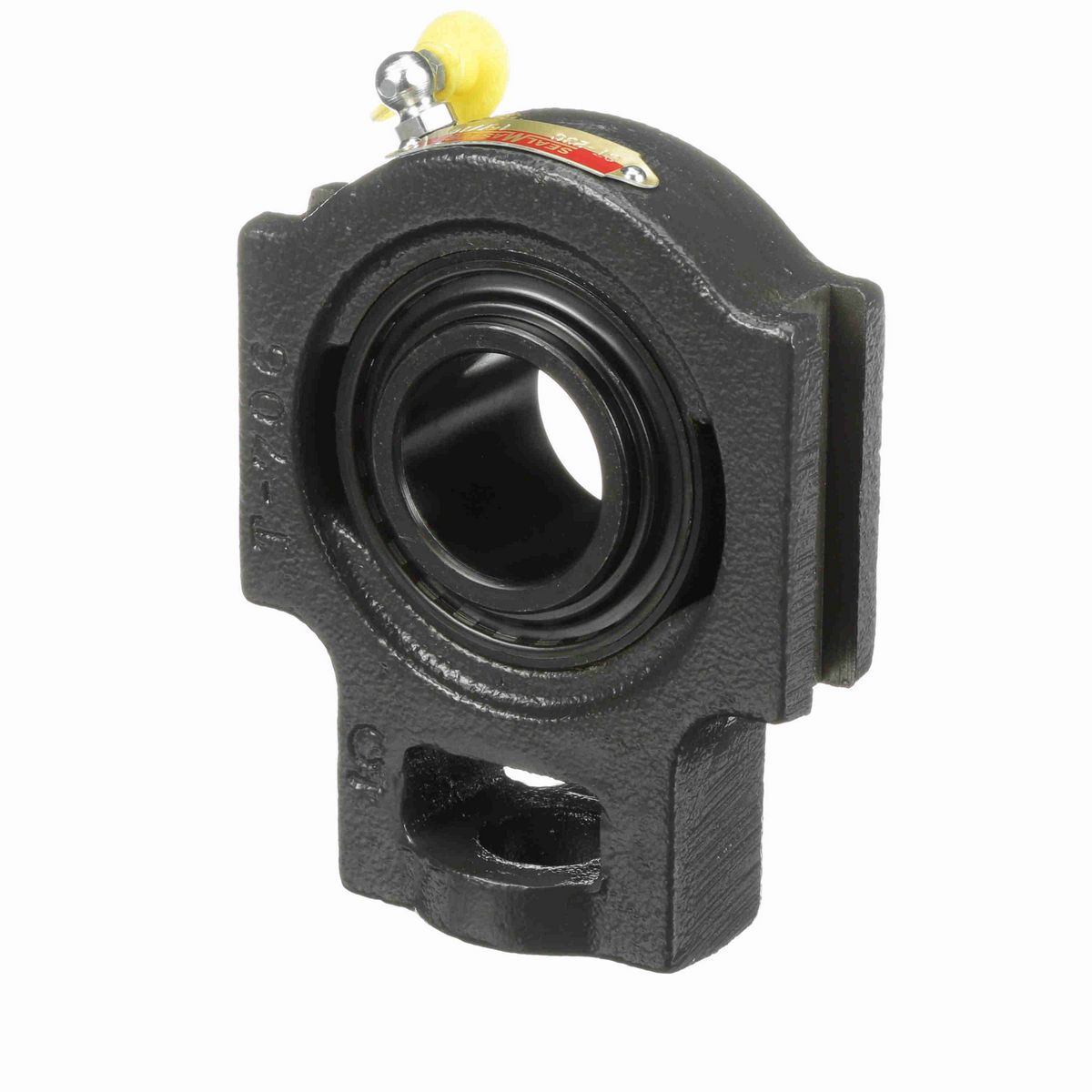

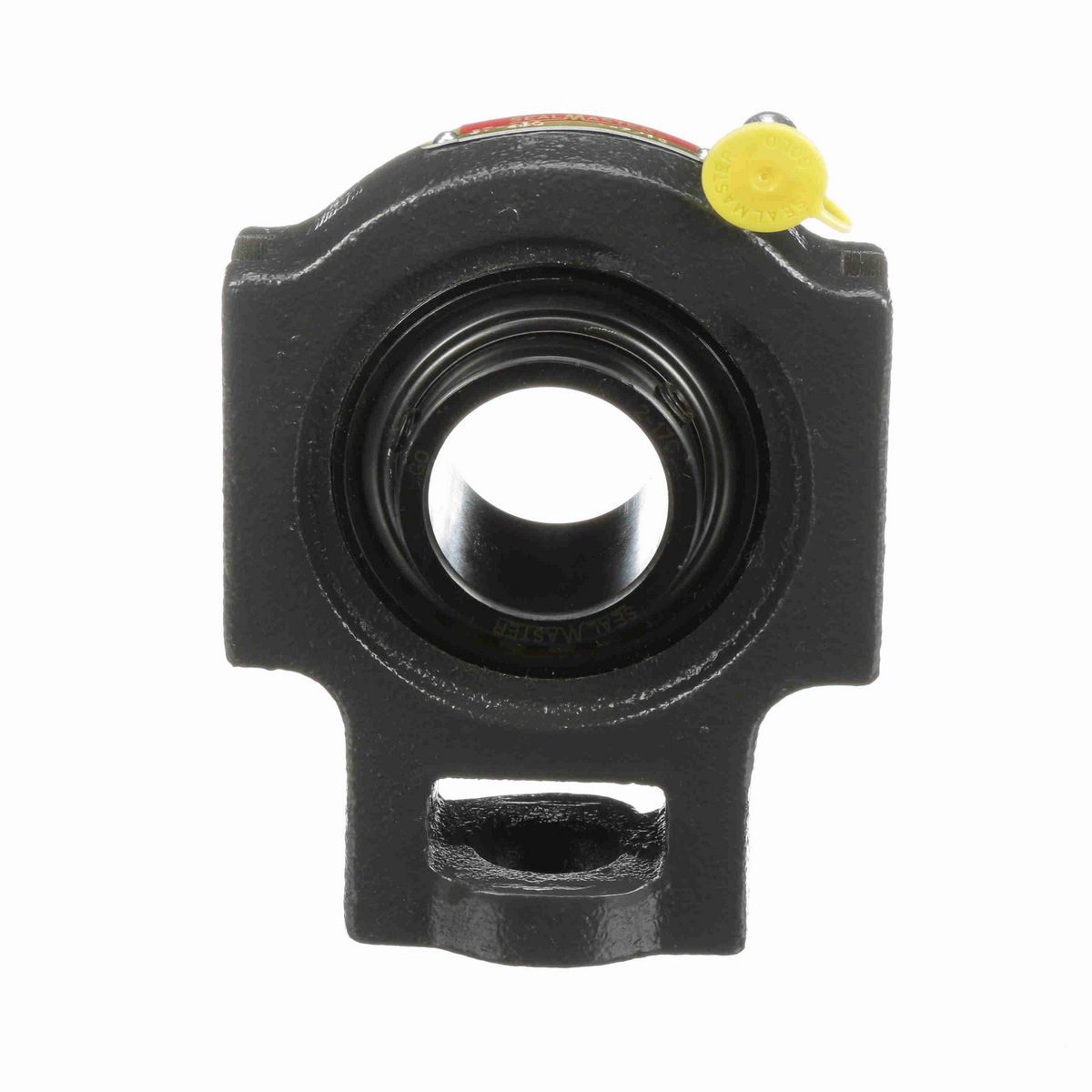

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	4.00 in
Overall Width (in)	1.75 in
Overall Length (in)	5.06 in
Bore Diameter (in)	1.4375 in
Base to Center Height (in)	3.06 in
Length Through Bore (in)	1.685 in
Slot Width (in)	0.531 in
Slot Spacing (in)	3.500 in
Centerline to Outermost Bearing Face (in)	1.00 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Series	ST
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Take-Up Block, Wide Slot
Seal Type	Single Lip Contact Seal
Slot Length (in)	2.50 in
Housing Style	Take-Up Block
Carriage Bolt Size (in)	5/8 in
Adjusting Screw Clearance Hole Diameter (in)	0.88 in
Ability to Relubricate	Yes
Adjusting Screw Square Nut Seat Height (in)	1.44 in
Inner Race Heat Treat Method	Zone-Hardened
Shaft Locking Type	Set Screw
Size Code	2-17
Dynamic Load Rating (lb)	5,782 lb
Maximum Speed (RPM)	4650 rpm
Inner Ring Outside Diameter (in)	1.859 in
Vibration Frequency Fundamental Train	0.0066 cps
Bearing Insert Material	52100 Bearing Steel
Static Load Rating (lb)	3,493 lb
Bearing Insert Finish	Black Oxide
End Cap Available	No
Housing Coating	Powder Coated
Vibration Frequency Roller Spin	0.0386 cps
Insert	2-17C
Radial Clearance	Standard
Fixed vs. Expansion	Fixed
Lubricant	Lithium Complex NLGI 2 Grease
Misalignment Capability	±2.0° Misalignment - Static Only
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/4-28
Housing Material	Cast Iron
Vibration Frequency Outer Ring Defect	0.0595 cps
Vibration Frequency Inner Ring Defect	0.0905 cps
Max Operating Temperature (F)	220 °F
Bearing Type	Standard Duty

General Specifications

UPC	662461024041
Weight	3.79 LB
Packaged Length	4.38 IN
Packaged Width	2.06 IN
Packaged Height	6.81 IN
HTC	8483.20.4040
Country of Origin	United States of America
