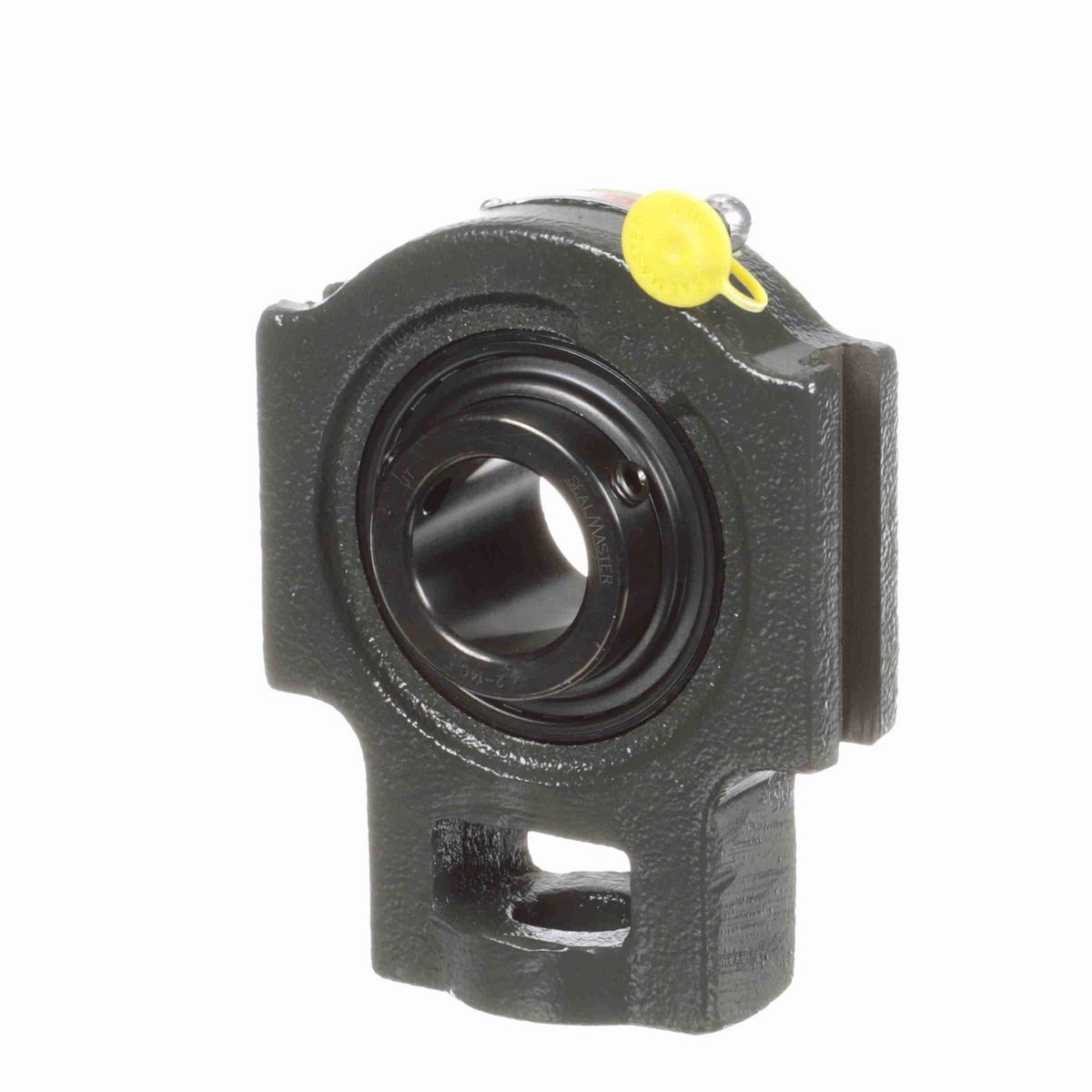

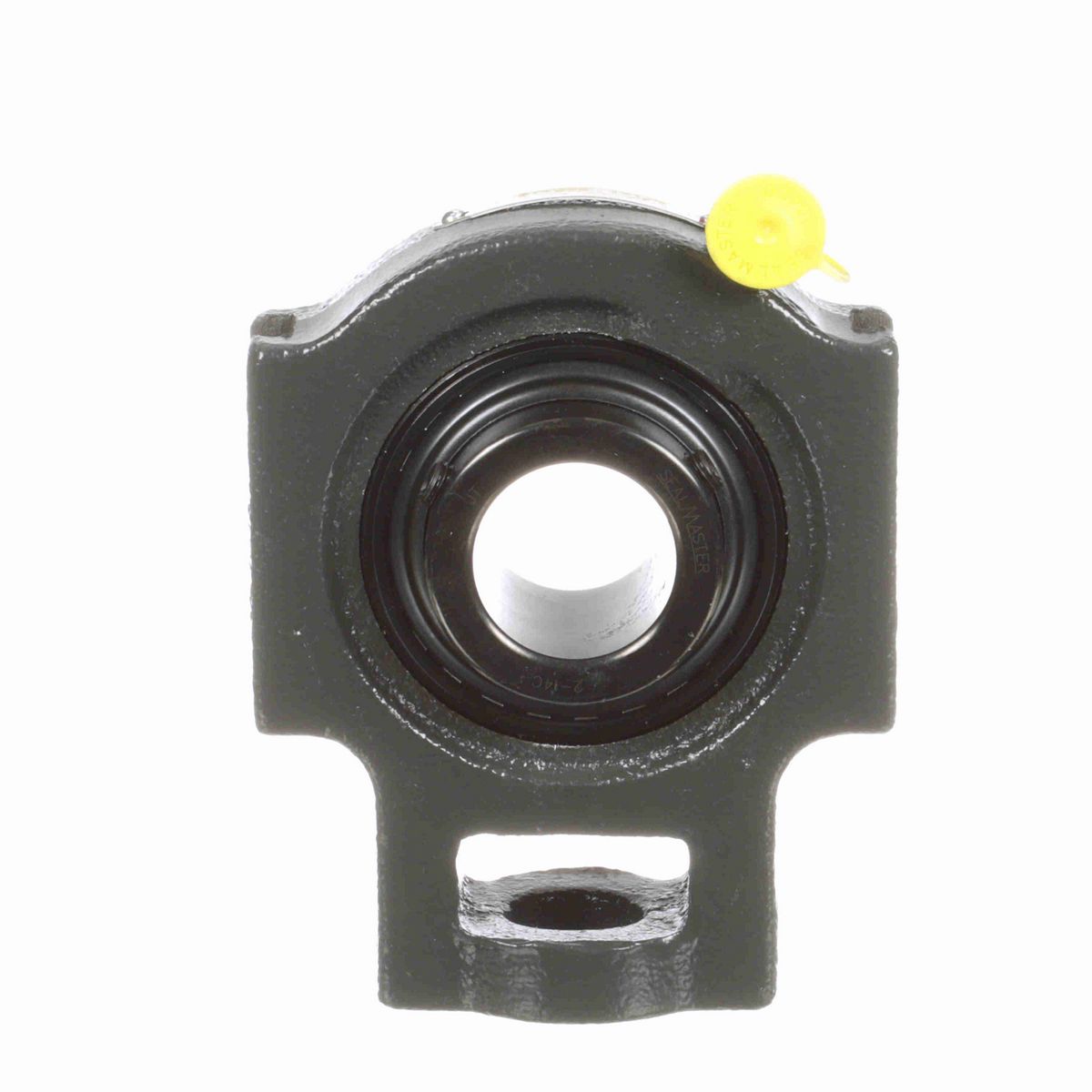

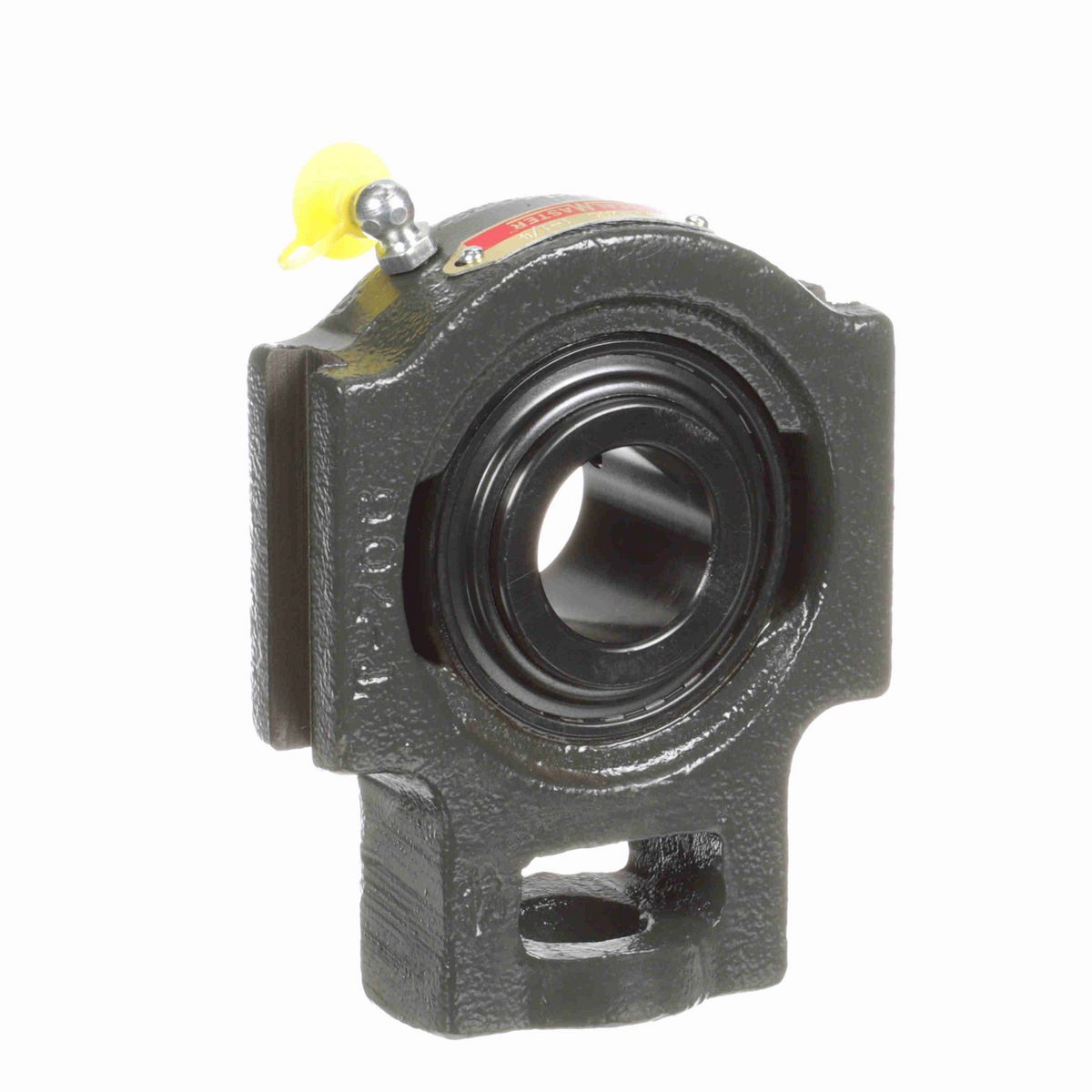

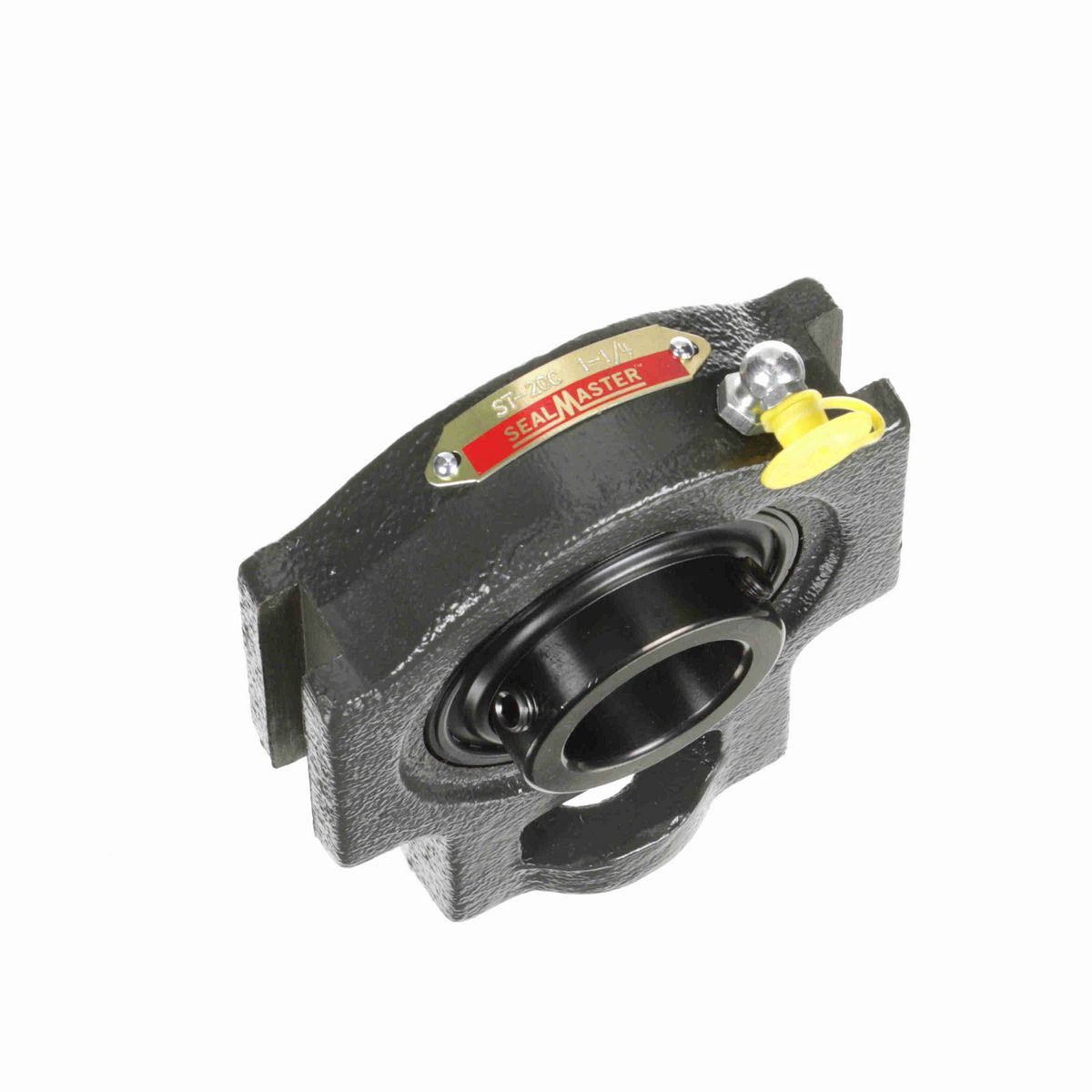

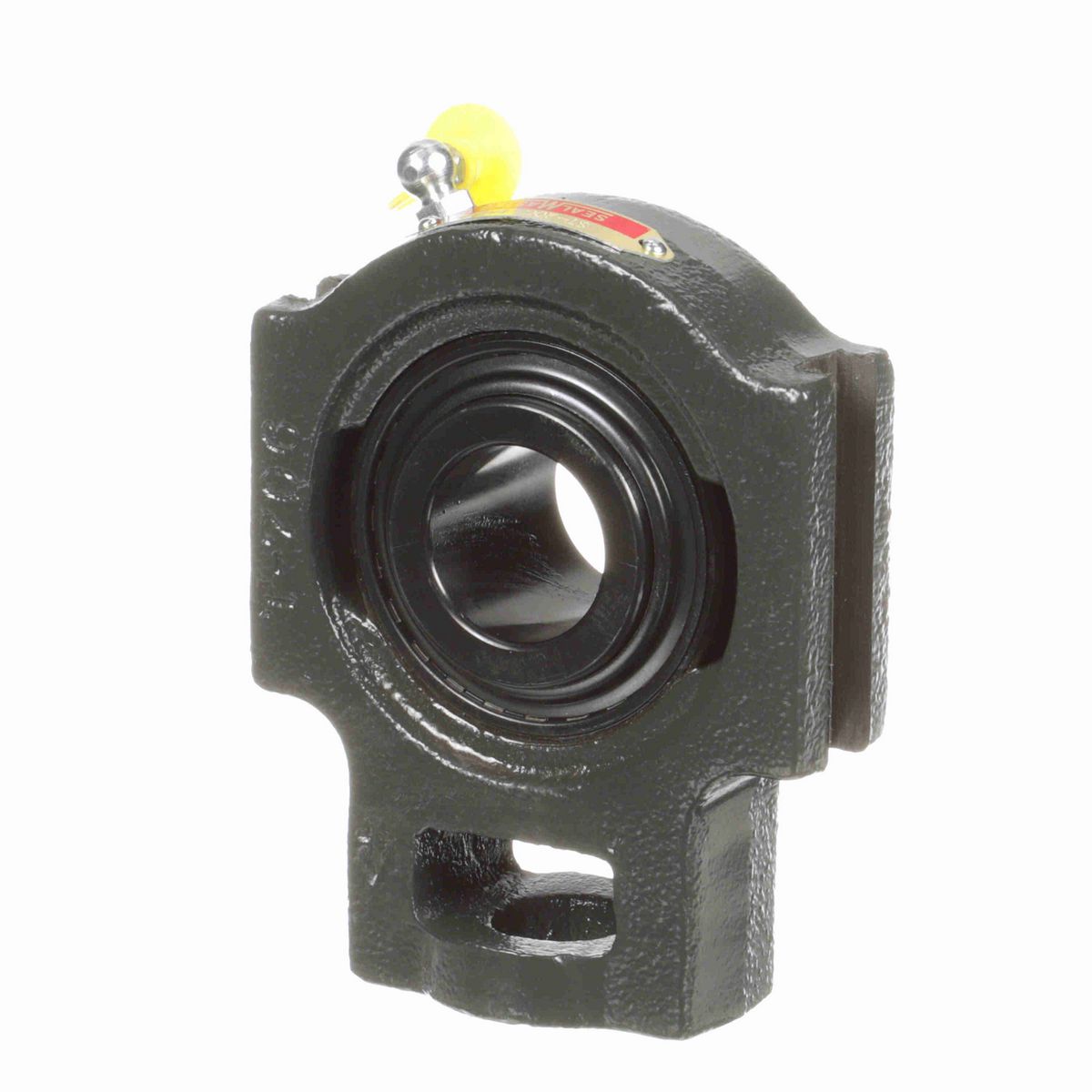

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	1.75 in
Overall Height (in)	4.00 in
Overall Length (in)	5.06 in
Bore Diameter (in)	1.25 in
Base to Center Height (in)	3.06 in
Length Through Bore (in)	1.685 in
Slot Width (in)	0.531 in
Slot Spacing (in)	3.500 in
Centerline to Outermost Bearing Face (in)	1.00 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Series	ST
Housing Type	Take-Up Block, Wide Slot
Seal Type	Single Lip Contact Seal
Slot Length (in)	2.50 in
Housing Style	Take-Up Block
Adjusting Screw Square Nut Seat Height (in)	1.44 in
Adjusting Screw Clearance Hole Diameter (in)	0.88 in
Ability to Relubricate	Yes
Carriage Bolt Size (in)	5/8 in
Inner Race Heat Treat Method	Zone-Hardened
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Outer Ring Defect	0.0595 cps
Grease Fitting Thread Size	1/4-28
Inner Ring Outside Diameter (in)	1.859 in
Vibration Frequency Inner Ring Defect	0.0905 cps
Lubricant	Lithium Complex NLGI 2 Grease
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Set Screw
Max Operating Temperature (F)	220 °F
Vibration Frequency Roller Spin	0.0386 cps
Static Load Rating (lb)	3,493 lb
Size Code	2-17
Bearing Type	Standard Duty
Fixed vs. Expansion	Fixed
Insert	2-14C
Cage Type	Land Riding Retainer
Maximum Speed (RPM)	4650 rpm
End Cap Available	No
Housing Coating	Powder Coated
Vibration Frequency Fundamental Train	0.0066 cps
Dynamic Load Rating (lb)	5,782 lb
Housing Material	Cast Iron

General Specifications

UPC	662461024010
Weight	4.00 LB
Packaged Length	4.38 IN
Packaged Width	2.06 IN
Packaged Height	6.81 IN
HTC	8483.20.4040
Country of Origin	United States of America
