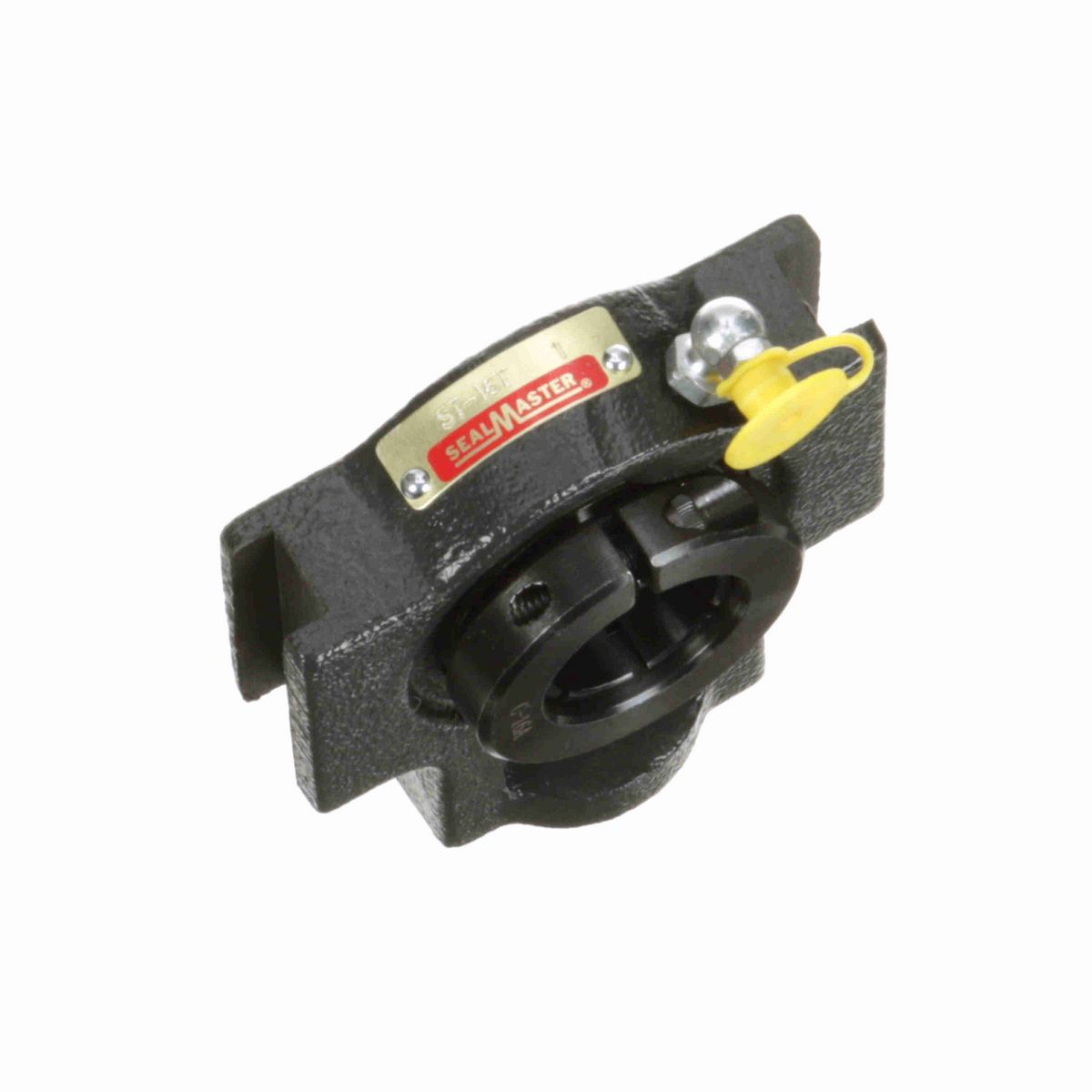

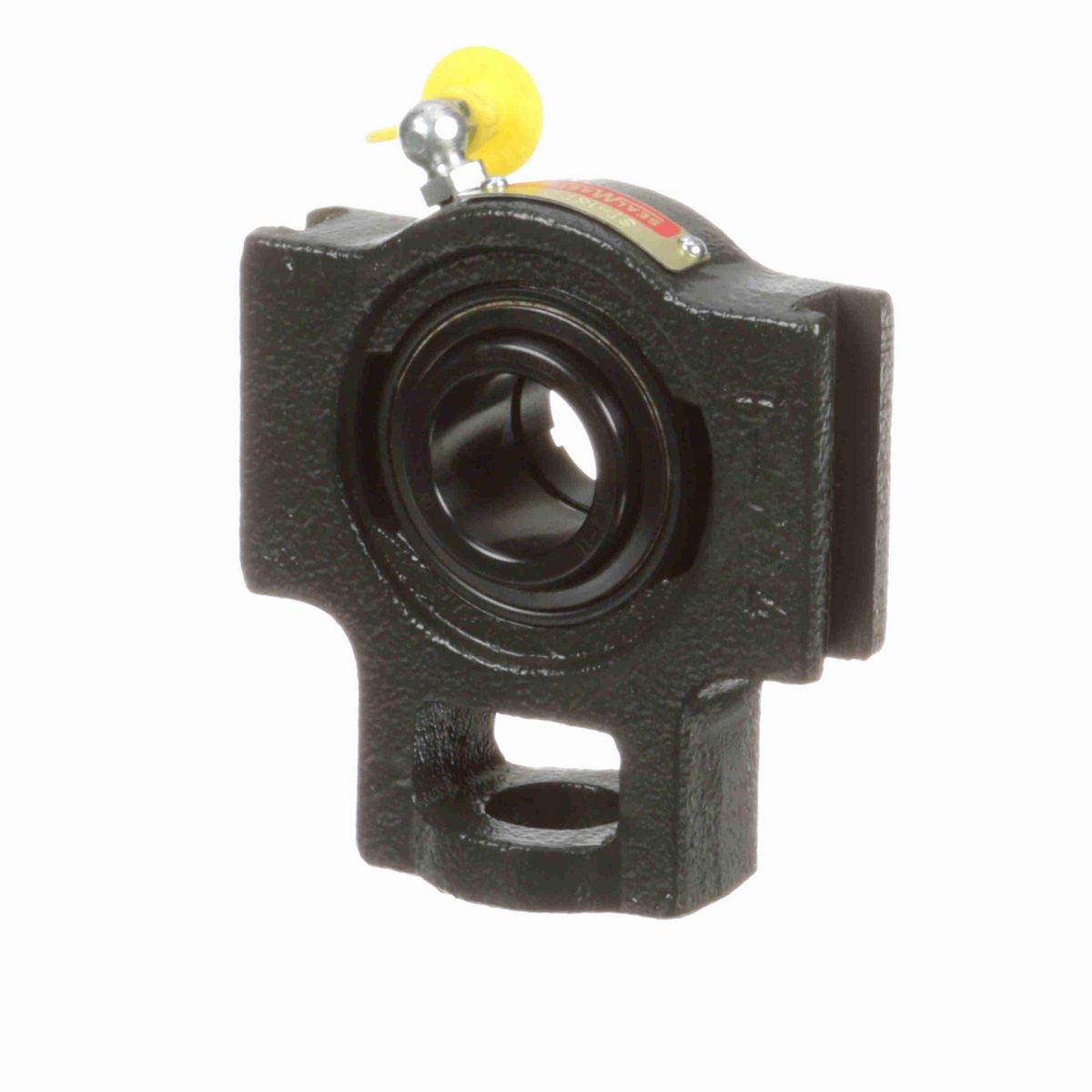

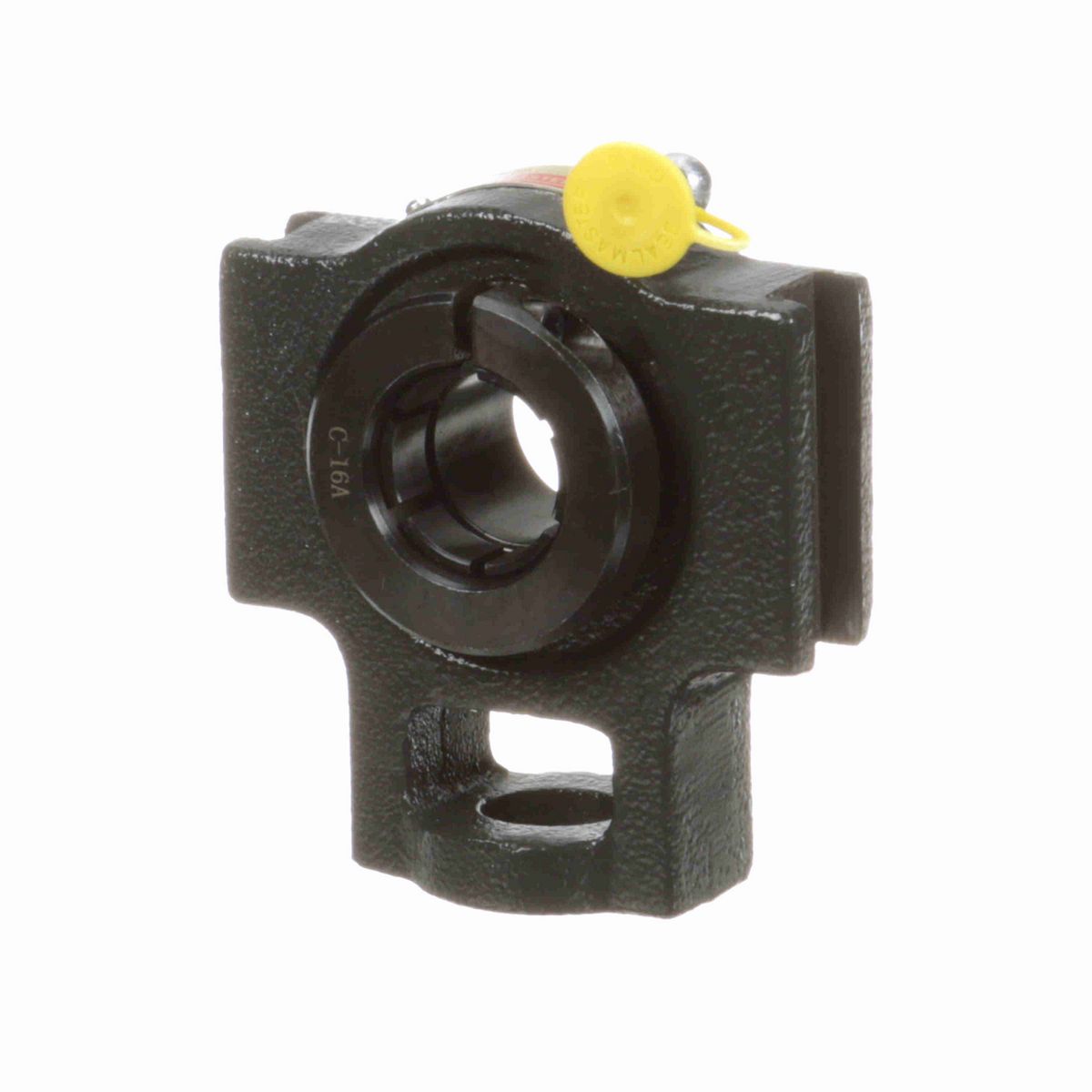

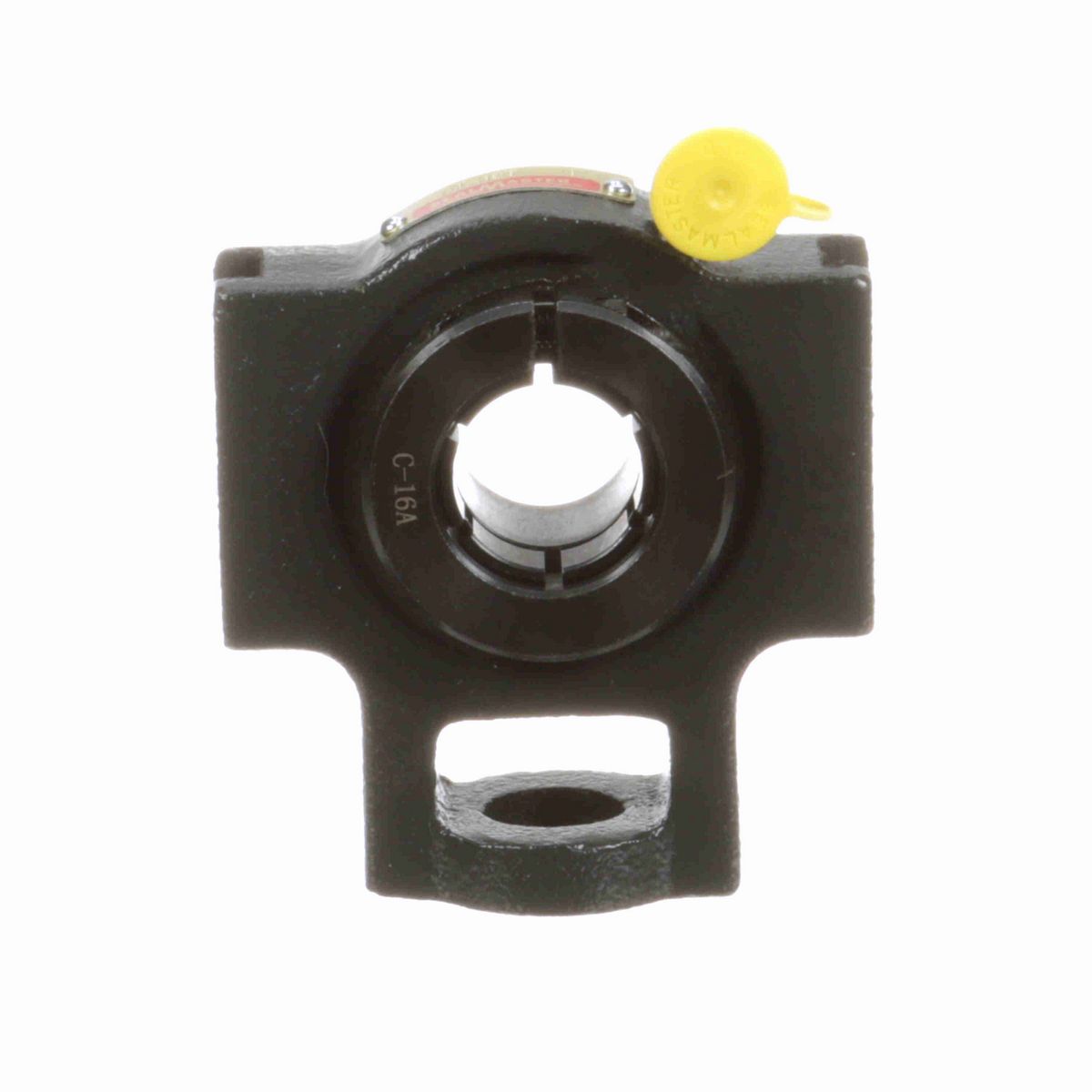

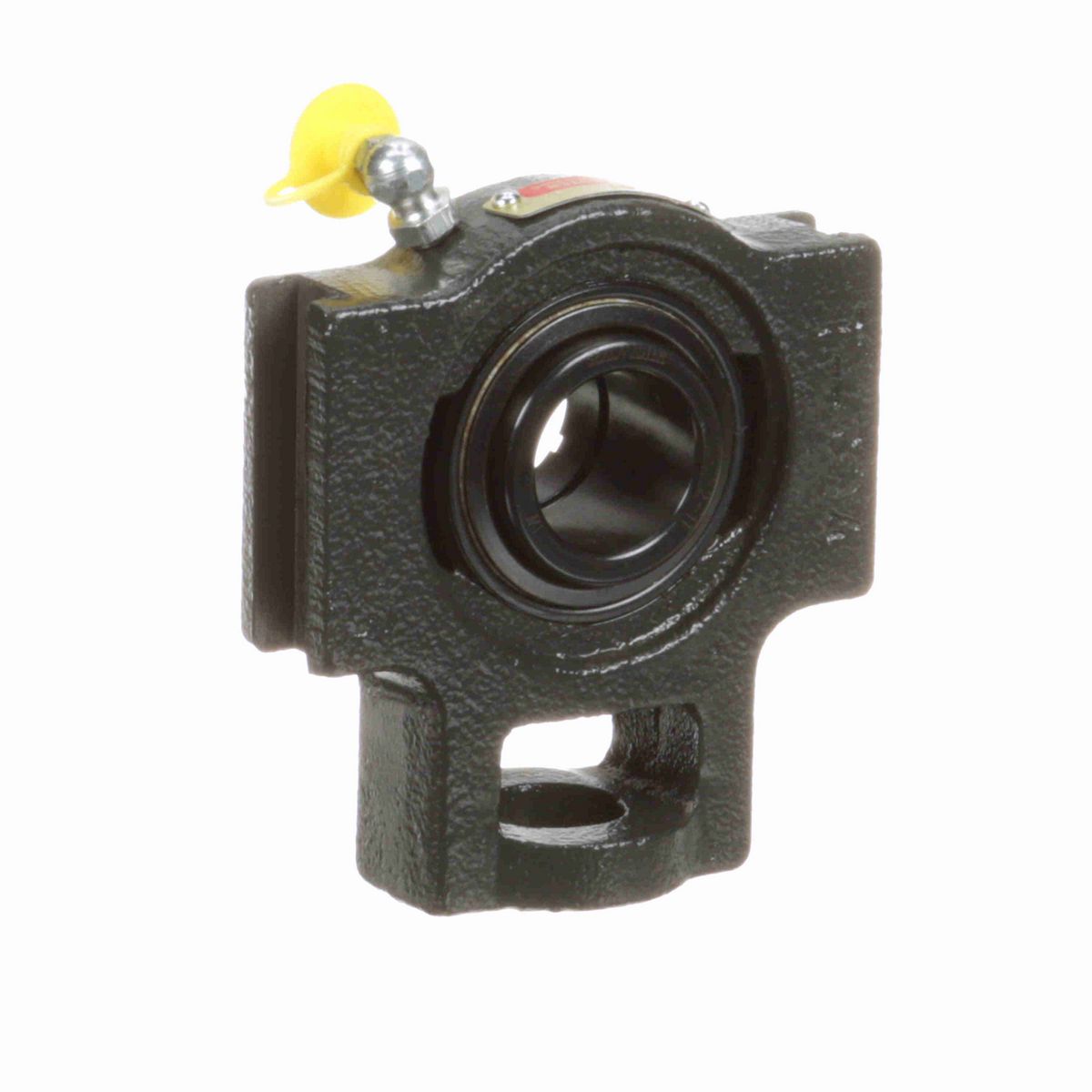

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	1.44 in
Overall Height (in)	3.50 in
Overall Length (in)	3.81 in
Bore Diameter (in)	1 in
Base to Center Height (in)	2.44 in
Length Through Bore (in)	1.438 in
Slot Width (in)	0.531 in
Slot Spacing (in)	3.000 in
Centerline to Outermost Bearing Face (in)	0.875 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Series	ST
Housing Type	Take-Up Block, Wide Slot
Seal Type	Felt Labyrinth Seal
Slot Length (in)	2.00 in
Housing Style	Take-Up Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	1.98 in
Adjusting Screw Square Nut Seat Height (in)	1.25 in
Adjusting Screw Clearance Hole Diameter (in)	0.75 in
Carriage Bolt Size (in)	5/8 in
Setscrew Torque (in-lbs)	70 in/lbs
Bearing Insert Finish	Black Oxide
Static Load Rating (lb)	1,651 lb
Radial Clearance	Standard
Inner Ring Outside Diameter (in)	1.375 in
Vibration Frequency Outer Ring Defect	0.0682 cps
Shaft Locking Type	Concentric
Max Operating Temperature (F)	220 °F
Size Code	2-015
Vibration Frequency Roller Spin	0.0442 cps
End Cap Available	No
Housing Coating	Powder Coated
Maximum Speed (RPM)	9000 rpm
Bearing Type	Standard Duty
Housing Material	Cast Iron
Insert	2-1T
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/4-28
Misalignment Capability	±2.0° Misalignment - Static Only
Lubricant	Lithium Complex NLGI 2 Grease
Dynamic Load Rating (lb)	2,801 lb
Vibration Frequency Inner Ring Defect	0.0985 cps
Fixed vs. Expansion	Fixed
Vibration Frequency Fundamental Train	0.0068 cps
Bearing Insert Material	52100 Bearing Steel

General Specifications

UPC	662461074572
Weight	2.80 LB
Packaged Length	4.50 IN
Packaged Width	1.69 IN
Packaged Height	4.56 IN
HTC	8483.20.4040
Country of Origin	United States of America
