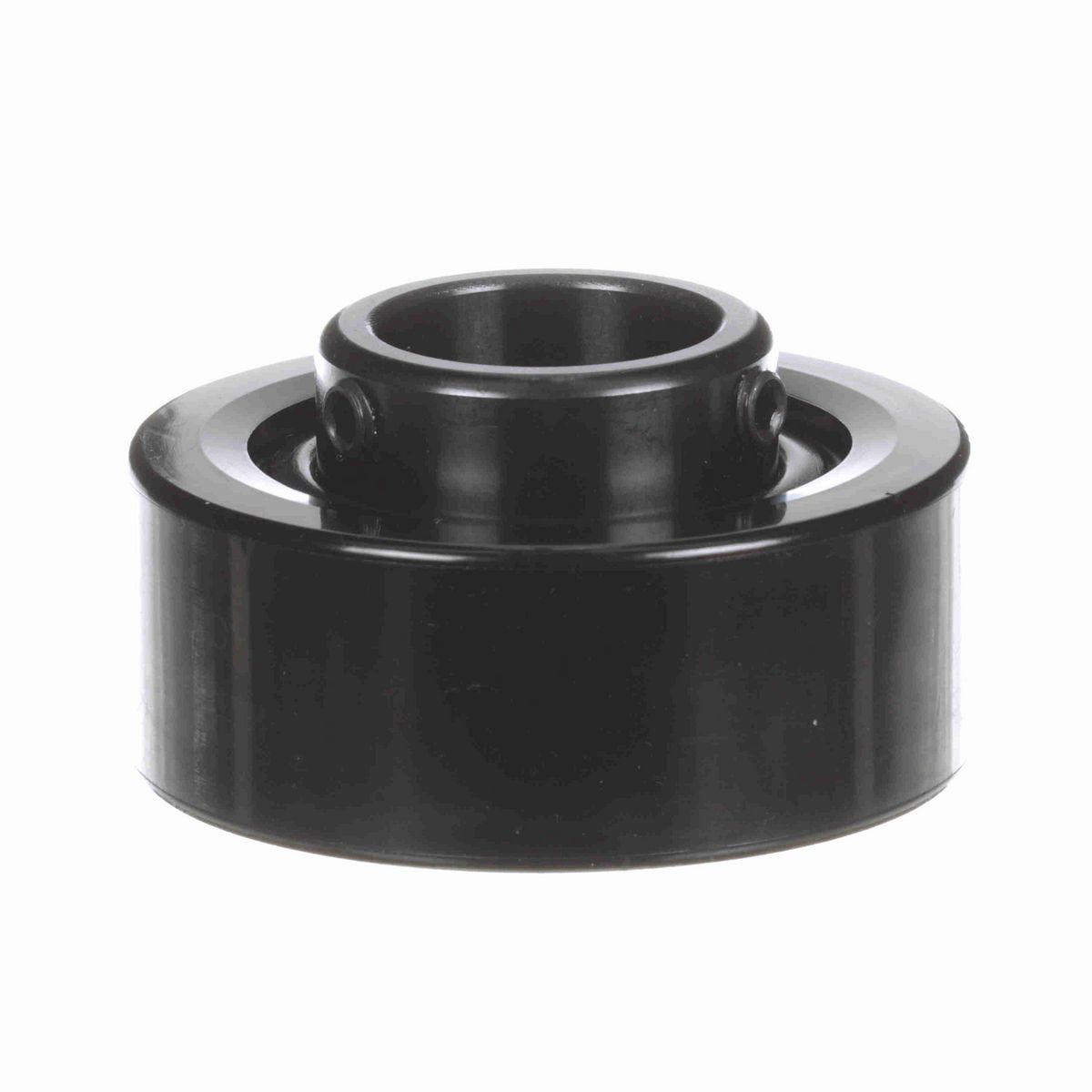

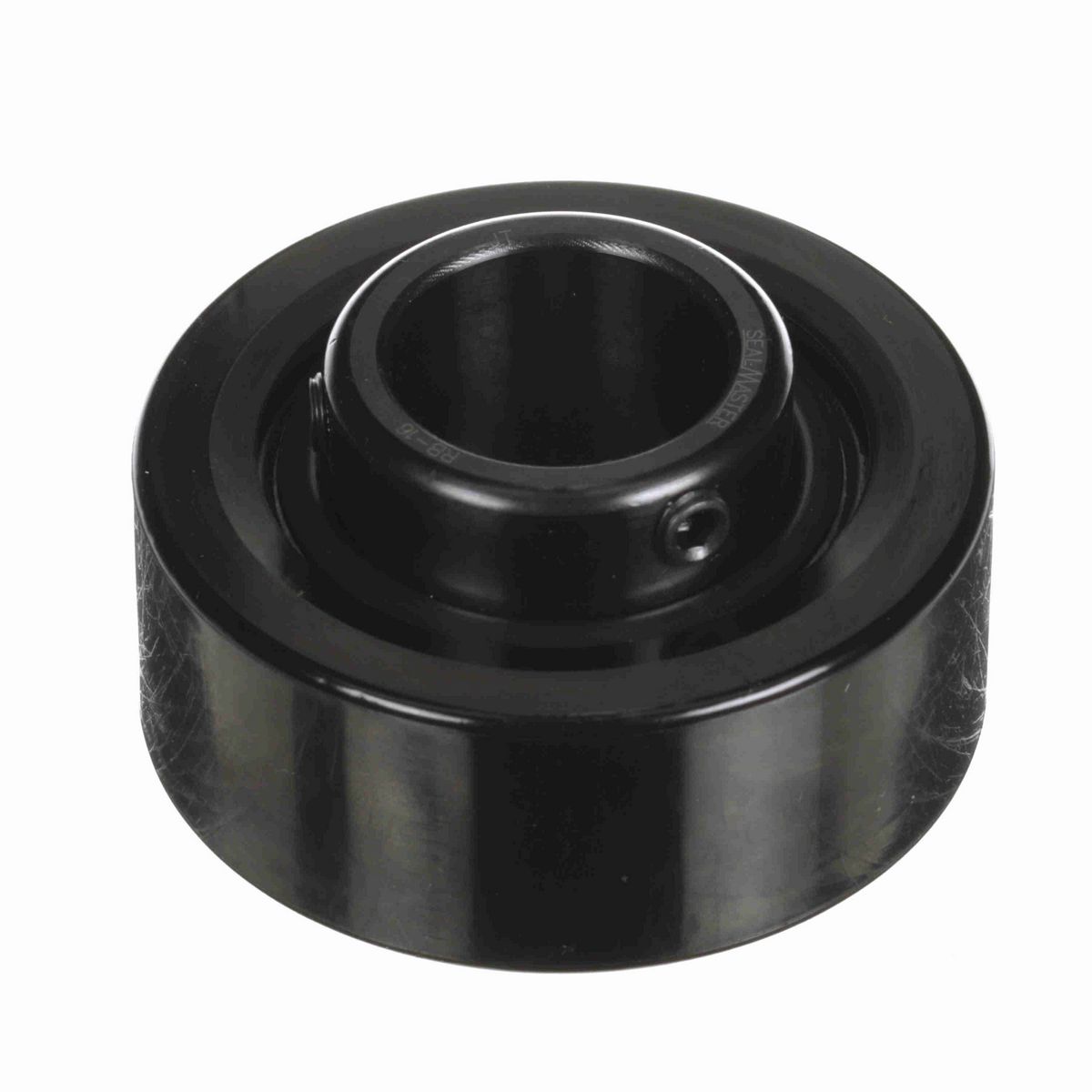

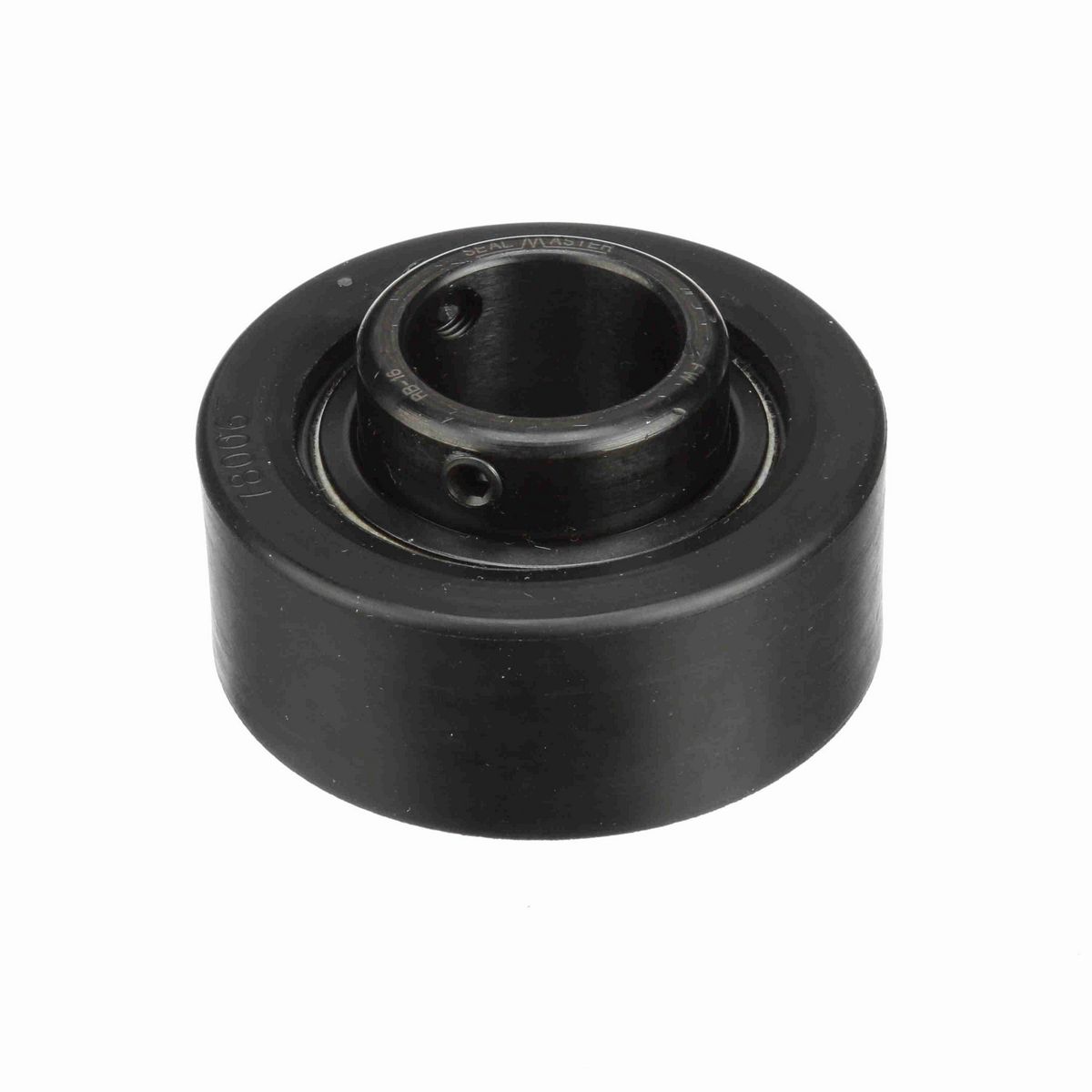

• Rubber grommeted wide extended inner ring bearing with not relubrication
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Height (in)	2.53 in
Overall Length (in)	2.53 in
Length Through Bore (in)	1.375 in
Overall Width (in)	1.38 in
Bore Diameter (in)	1 in
Centerline to Outermost Bearing Face (in)	0.87 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Cage Material	Molded fiber glass reinforced nylon
Series	SRC
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Type	Cartridge, Cylindrical
Seal Type	Felt Labyrinth Seal
Outside Diameter (in)	2.53
Housing Style	Cartridge Block
Ability to Relubricate	No
Inner Race Heat Treat Method	Zone-Hardened
Size Code	2-015
Dynamic Load Rating (lb)	2,801 lb
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	1.375 in
Maximum Speed (RPM)	6350 rpm
Bearing Insert Finish	Black Oxide
Max Operating Temperature (F)	200 °F
Bearing Type	Standard Duty
Static Load Rating (lb)	1,651 lb
Misalignment Capability	None
Housing Material	Rubber
Insert	RB-16
End Cap Available	No
Fixed vs. Expansion	Fixed
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Set Screw
Radial Clearance	Standard
Housing Width (in)	1.01 in

General Specifications

UPC	662461005408
Weight	0.62 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5048
Country of Origin	Mexico
