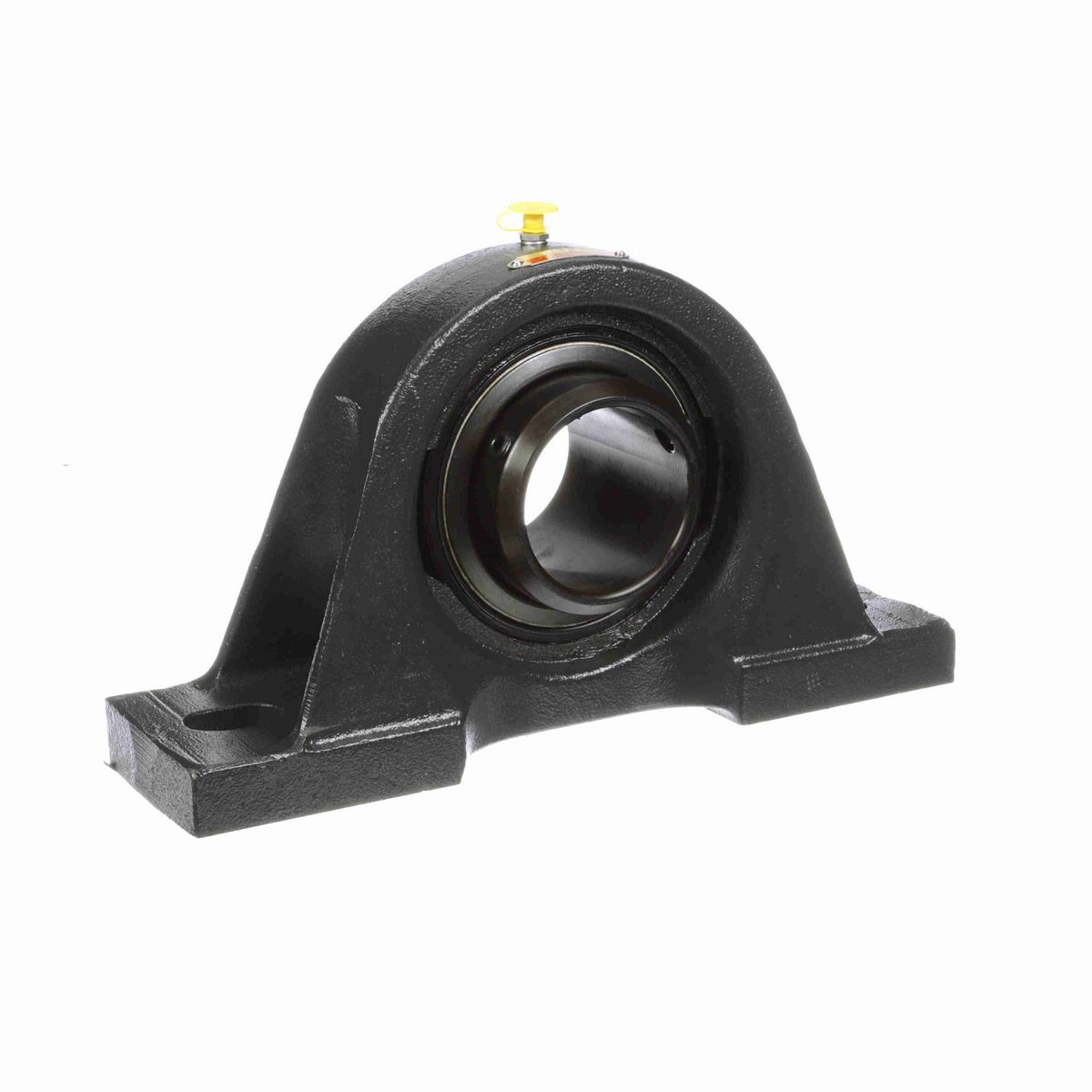

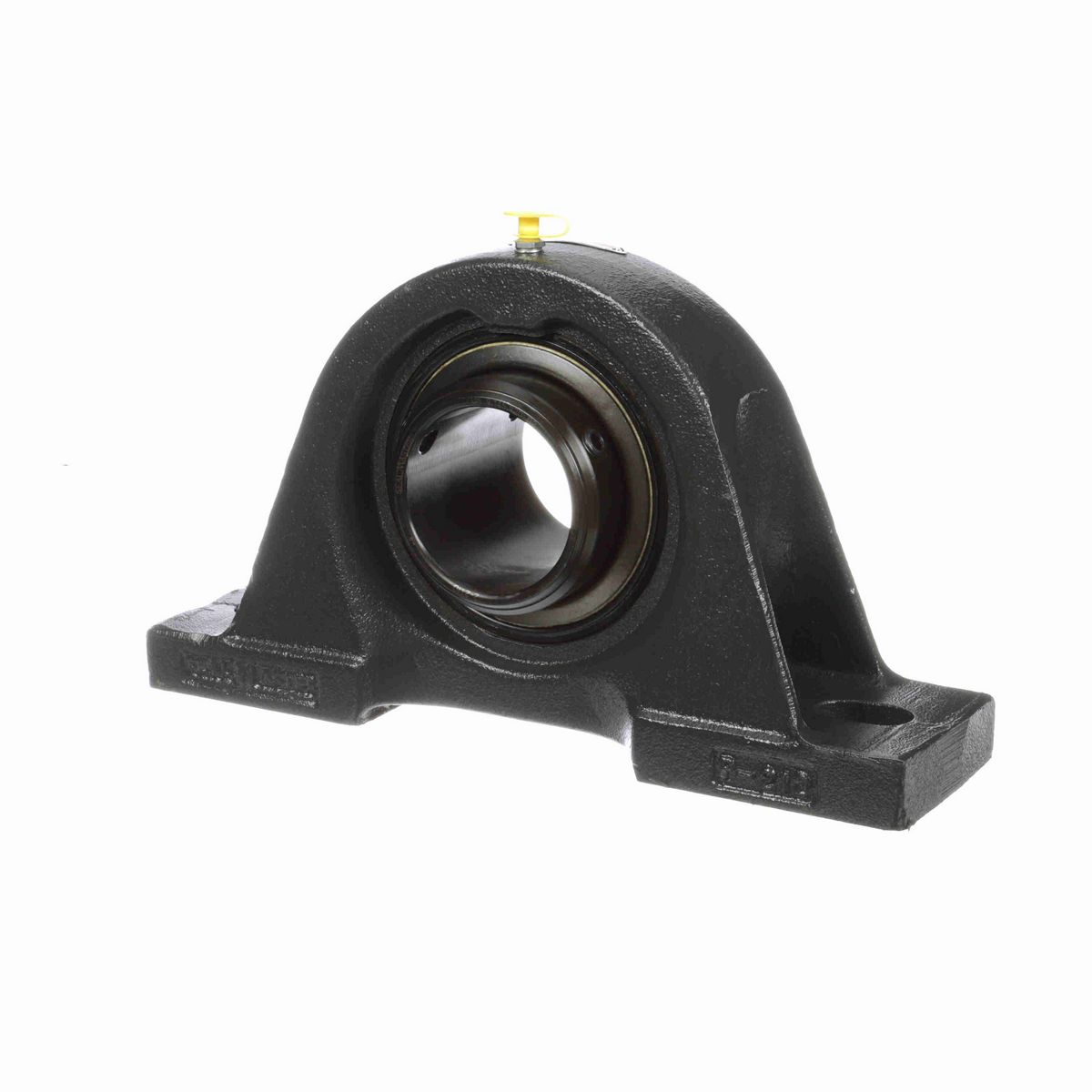

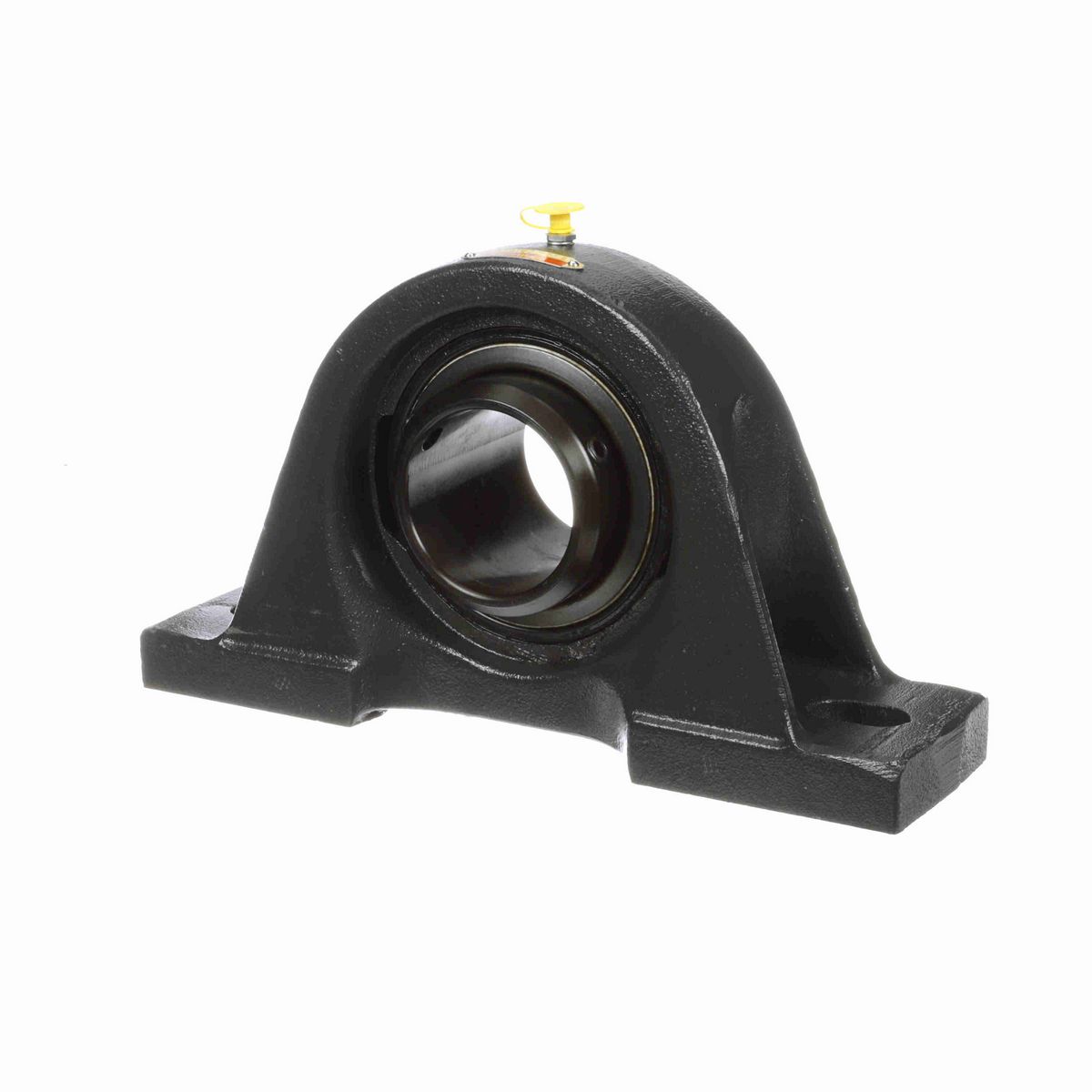

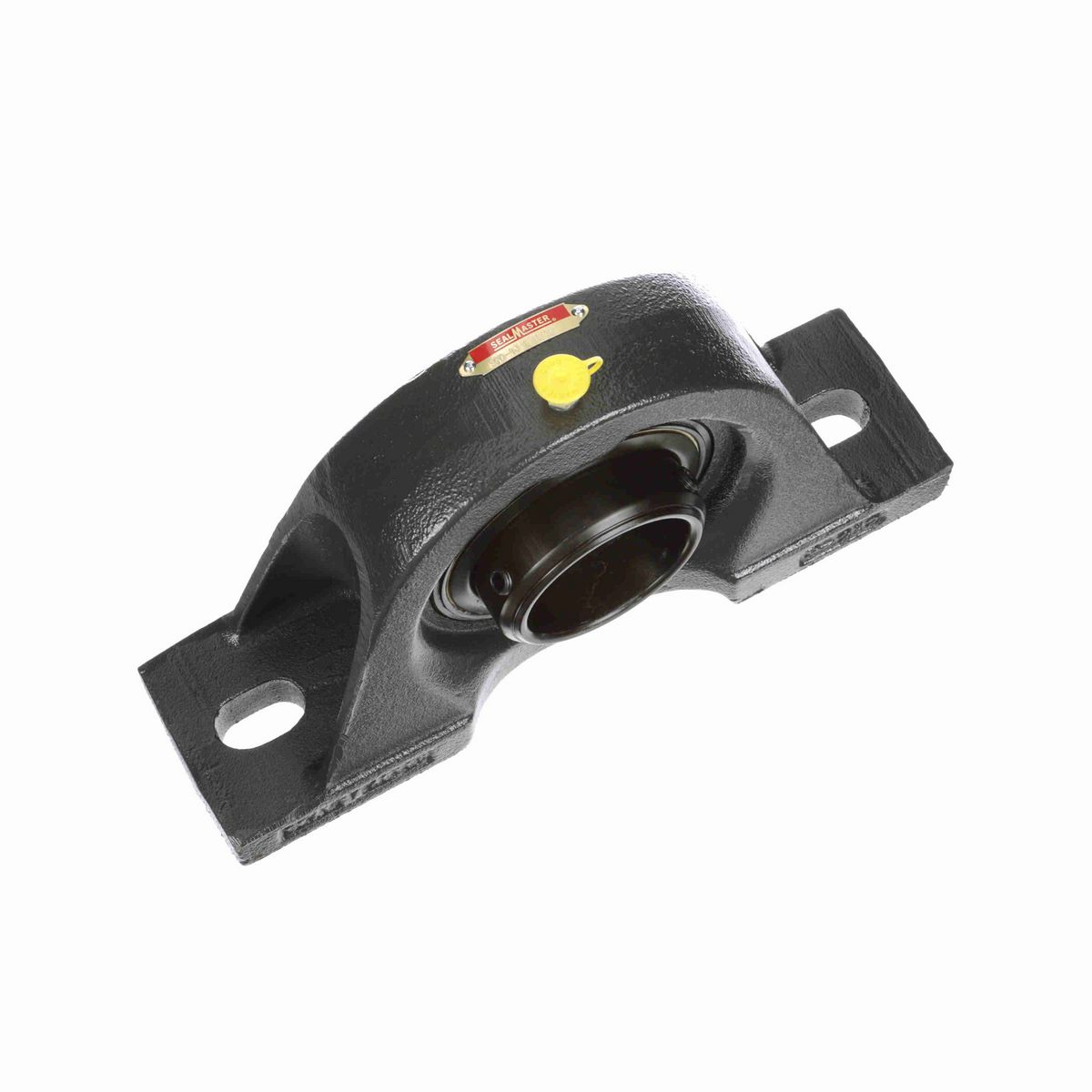

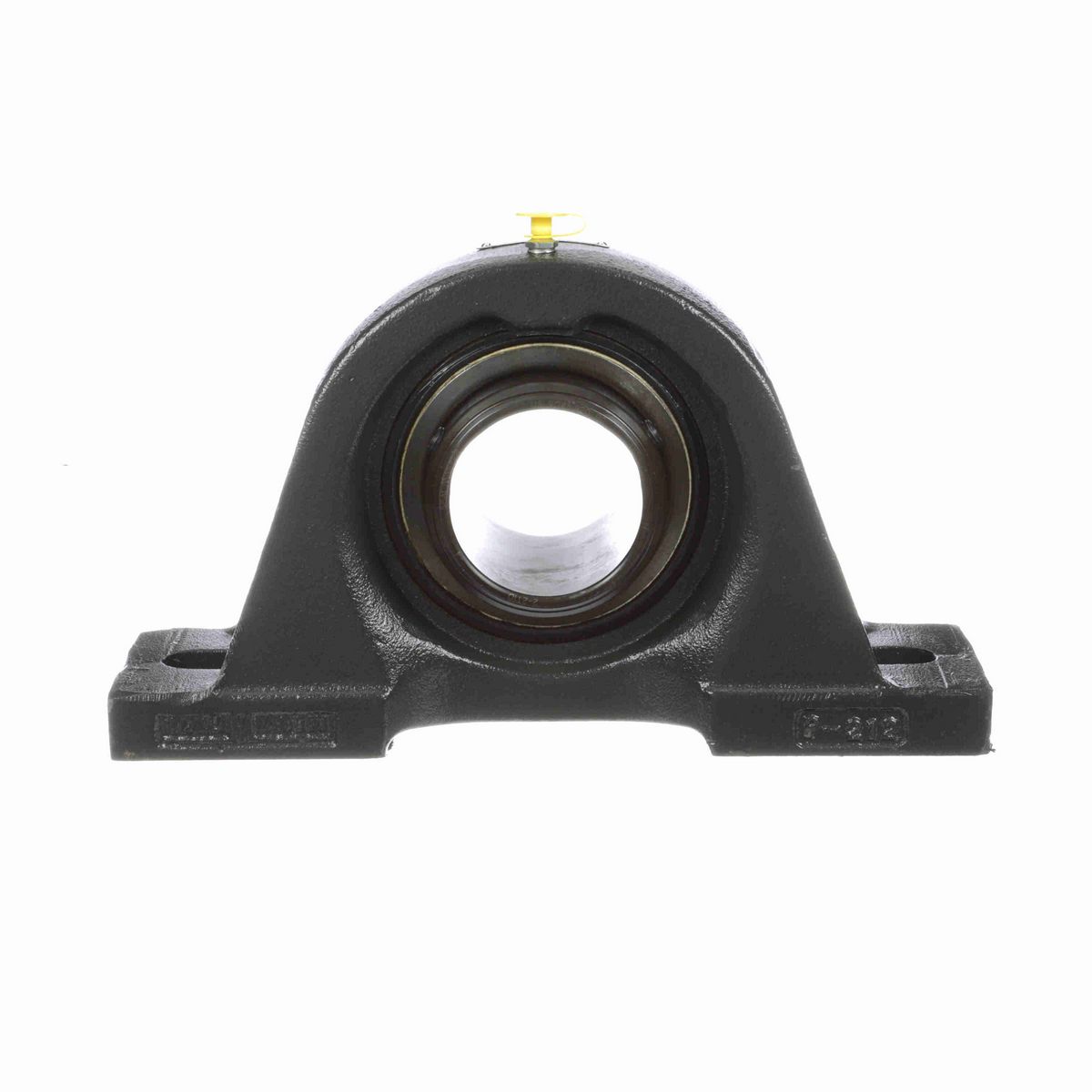

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - SPD-43

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - SPD-43
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - SPD-43
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - SPD-43
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - SPD-43
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - SPD-43
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - SPD-43
(0)
Под заказ
SealMaster
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Полное описание
Заказать товар
Товар доступен только под заказ.
Сроки поставки: 2–3 недели
Подарок при покупке
Дарим подарок при покупке данного товара
Выбрать подарок

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - SPD-43
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Double Setscrew Lock - SPD-43
(0)
Под заказ
0 руб.
В корзину
Описание Отзывы Доставка


  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Dimensions
Base Width (in)3.38 in
Overall Height (in)7.13 in
Overall Width (in)3.5 in
Overall Length (in)12.63 in
Bolt Size (in)3/4 in
Bore Diameter (in)2.6875 in
Base to Center Height (in)3.7500 in
Foot Height (in)1.00 in
Length Through Bore (in)3.498 in
Bolt Spacing Min (in)9.38 in
Bolt Spacing Max (in)10.63 in
Centerline to Outermost Bearing Face (in)1.750 in
Technical Specifications
Housing BaseSolid
Rolling ElementBall Bearing
Bore ShapeStraight
Housing ConstructionOne Piece
Misalignment TypeStatic Only
Housing ColorBlack
Outer Ring Land ProfileStandard
Cage MaterialBrass
Housing TypePillow Block, Two Bolt
Seal TypeFelt Labyrinth Seal
Housing StylePillow Block
Ability to RelubricateYes
Setscrew Torque (in-lbs)350-450 in/lbs
Inner Race Heat Treat MethodZone-Hardened
Max Operating Temperature (F)220 °F
Vibration Frequency Inner Ring Defect0.0982 cps
LubricantLithium Complex NLGI 2 Grease
Size Code2-211
Bearing Insert Material52100 Bearing Steel
Radial ClearanceStandard
Inner Ring Outside Diameter (in)3.438 in
Maximum Speed (RPM)3600 rpm
Shaft Locking TypeDouble Set Screw
Housing MaterialCast Iron
Static Load Rating (lb)10,063 lb
Bearing TypeStandard Duty
Bearing Insert FinishBlack Oxide
Base Length (in)12.63 in
Grease Fitting Thread Size1/8 NPT
Vibration Frequency Roller Spin0.0451 cps
Insert2-211D
Housing CoatingPowder Coated
Cage TypeLand Riding Retainer
Vibration Frequency Outer Ring Defect0.0684 cps
Vibration Frequency Fundamental Train0.0068 cps
Dynamic Load Rating (lb)13,971 lb
Misalignment Capability±2.0° Misalignment - Static Only
Fixed vs. ExpansionFixed
End Cap AvailableNo
General Specifications
UPC662461015803
Weight25.90 LB
Packaged Length8.06 IN
Packaged Width14.25 IN
Packaged Height4.00 IN
HTC8483.20.8040
Country of OriginUnited States of America
