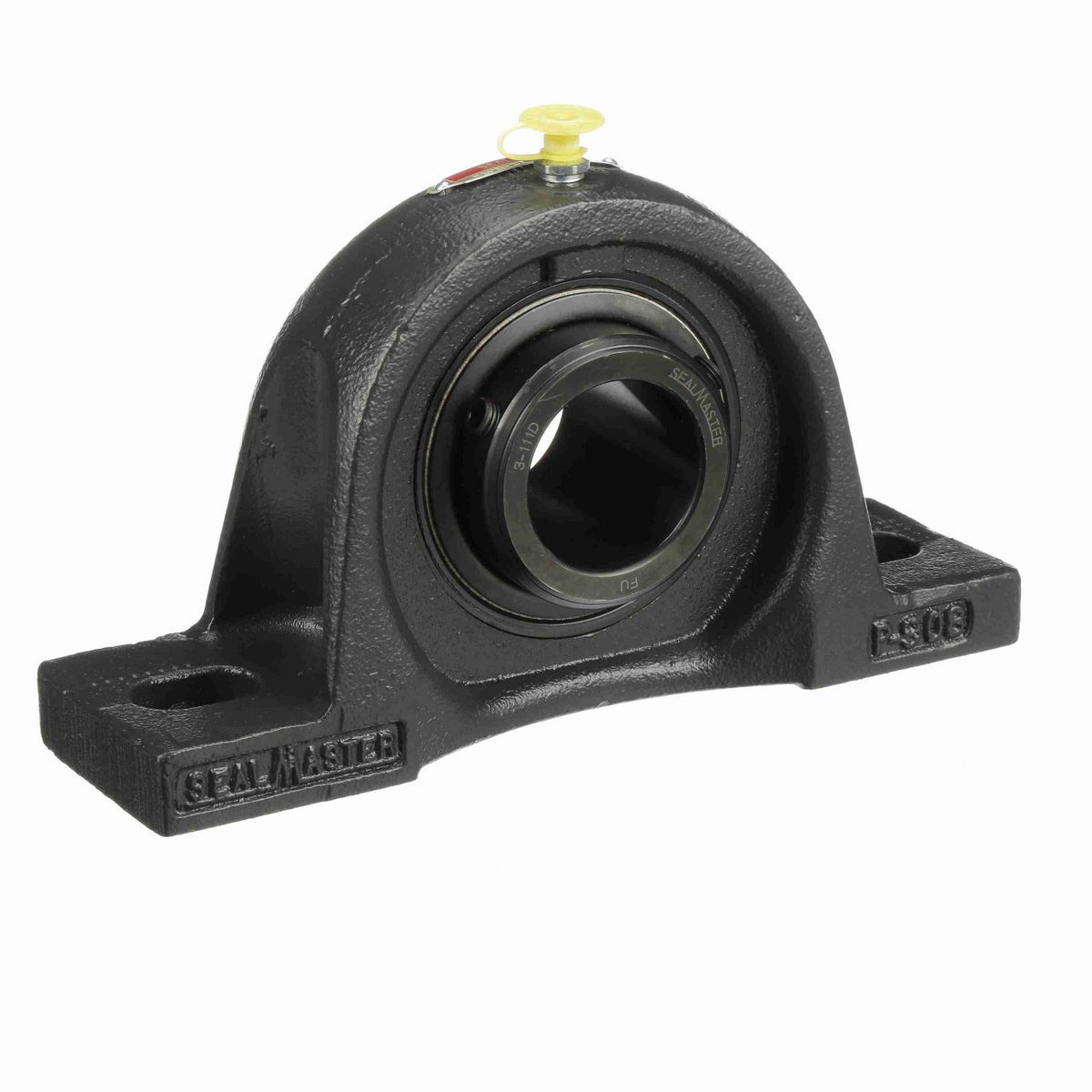

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	4.56 in
Overall Length (in)	8.5 in
Overall Width (in)	2.38 in
Base Width (in)	2.38 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.75 in
Base to Center Height (in)	2.38 in
Foot Height (in)	0.75 in
Length Through Bore (in)	2.375 in
Centerline to Outermost Bearing Face (in)	1.188 in
Bolt Spacing Min (in)	5.88 in
Bolt Spacing Max (in)	7.13 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	125-165 in/lbs
Housing Material	Cast Iron
Vibration Frequency Roller Spin	0.0417 cps
Bearing Insert Material	52100 Bearing Steel
Housing Coating	Powder Coated
Cage Type	Land Riding Retainer
Vibration Frequency Fundamental Train	0.0067 cps
Bearing Type	Standard Duty
Inner Ring Outside Diameter (in)	2.297 in
Fixed vs. Expansion	Fixed
Size Code	2-111
End Cap Available	No
Maximum Speed (RPM)	5300 rpm
Radial Clearance	Standard
Shaft Locking Type	Double Set Screw
Grease Fitting Thread Size	1/4-28
Misalignment Capability	±2.0° Misalignment - Static Only
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.0673 cps
Insert	2-112D
Dynamic Load Rating (lb)	7,901 lb
Base Length (in)	8.50 in
Bearing Insert Finish	Black Oxide
Static Load Rating (lb)	5,139 lb
Max Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0994 cps

General Specifications

UPC	662461015704
Weight	8.30 LB
Packaged Length	9.00 IN
Packaged Width	5.19 IN
Packaged Height	2.38 IN
HTC	8483.20.8040
Country of Origin	United States of America
