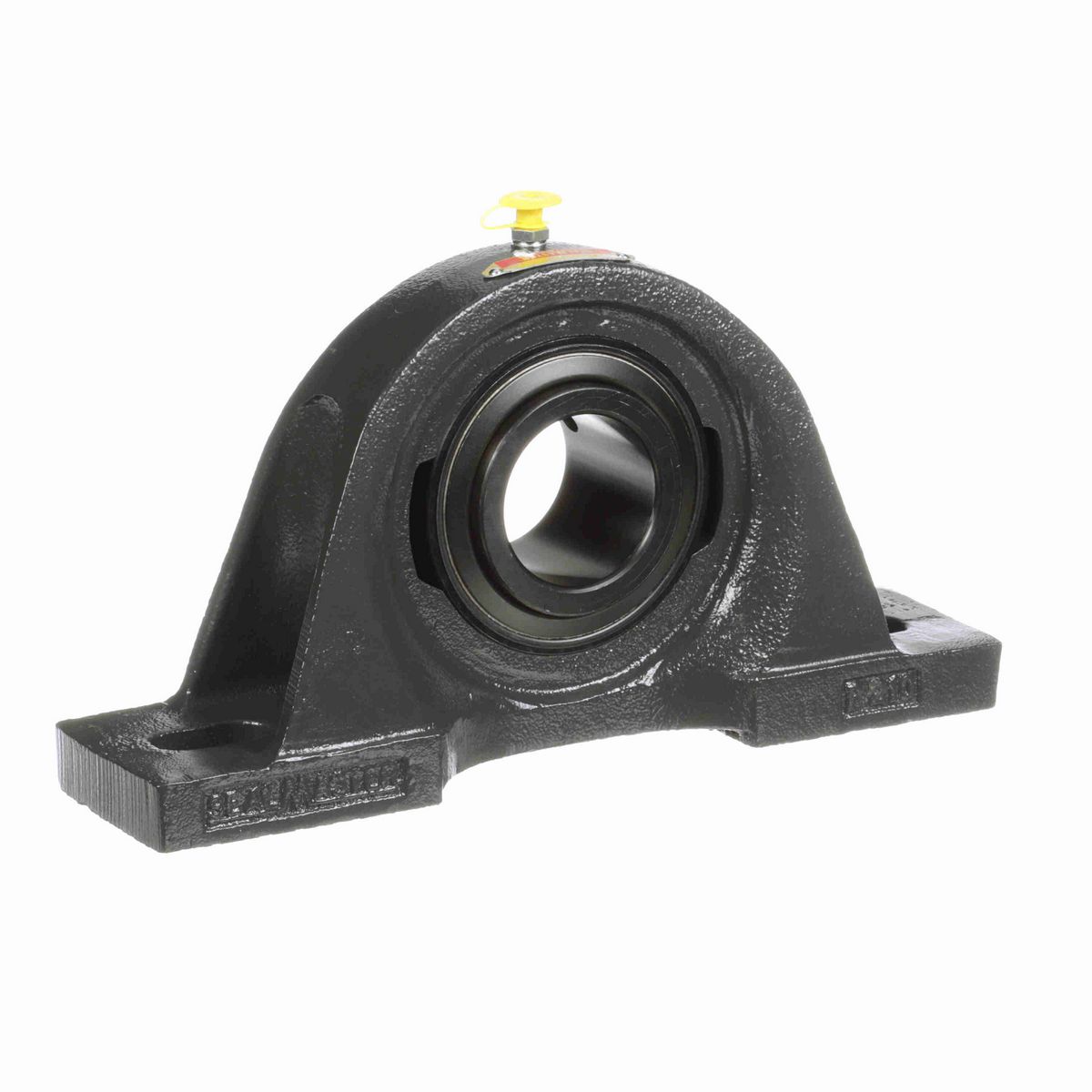

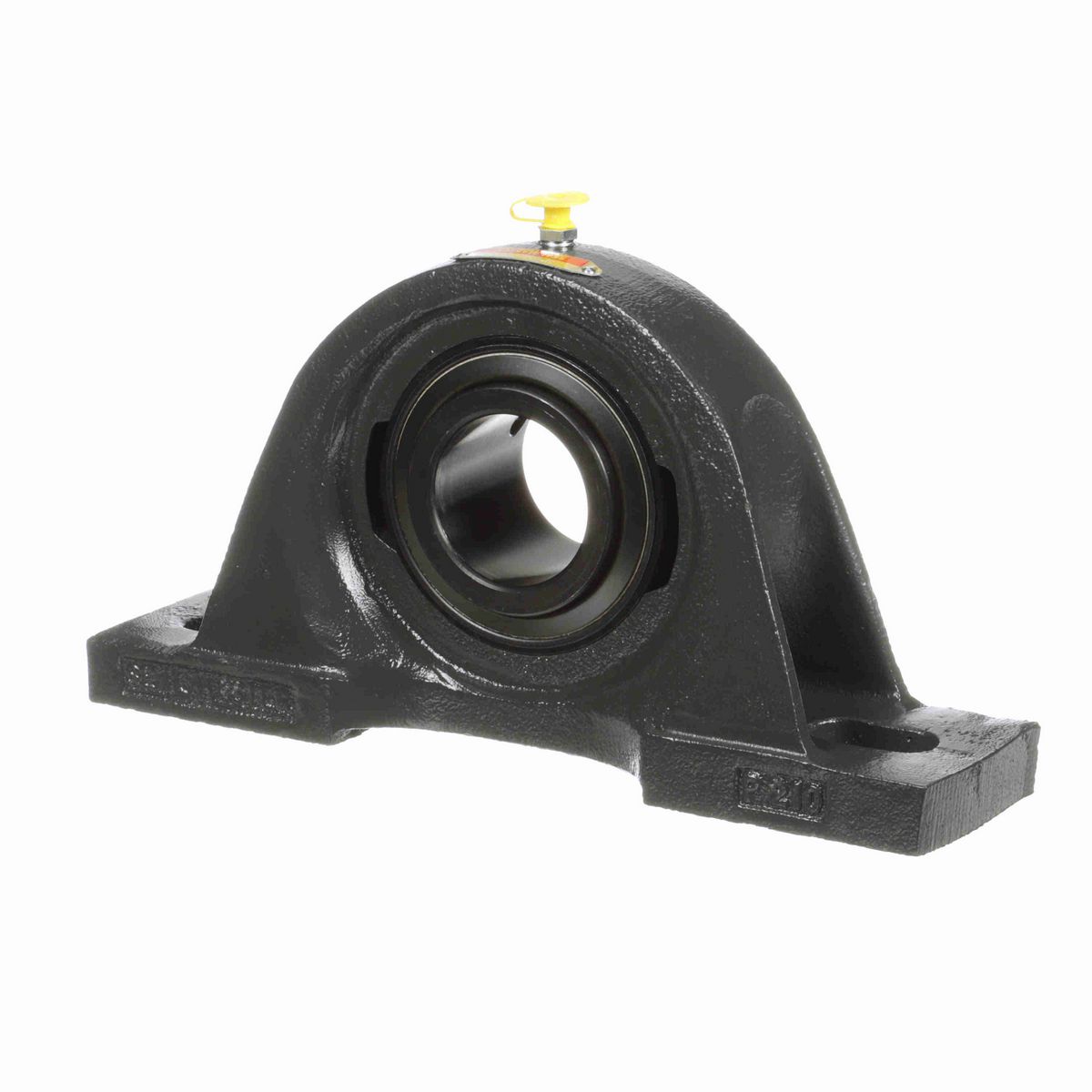

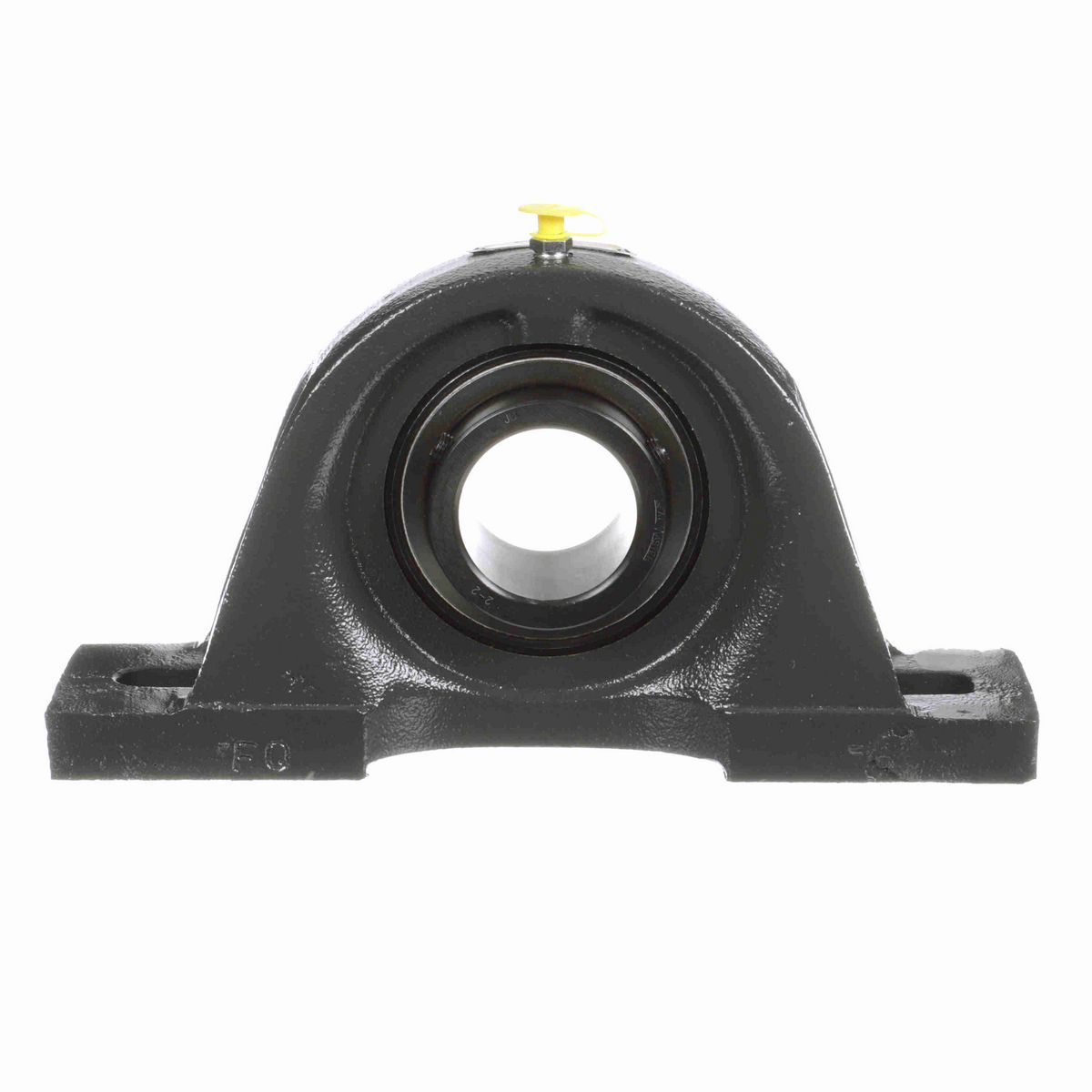

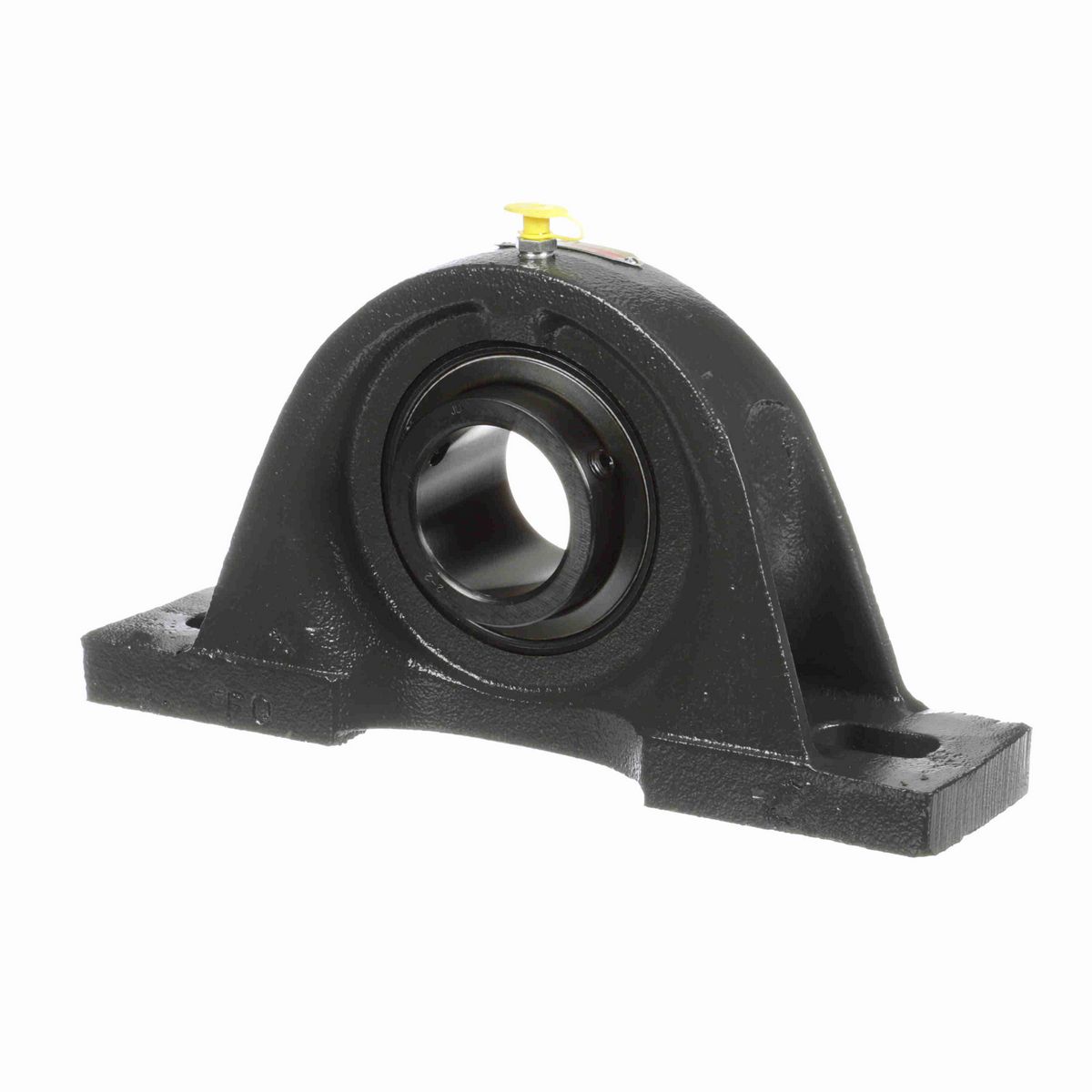

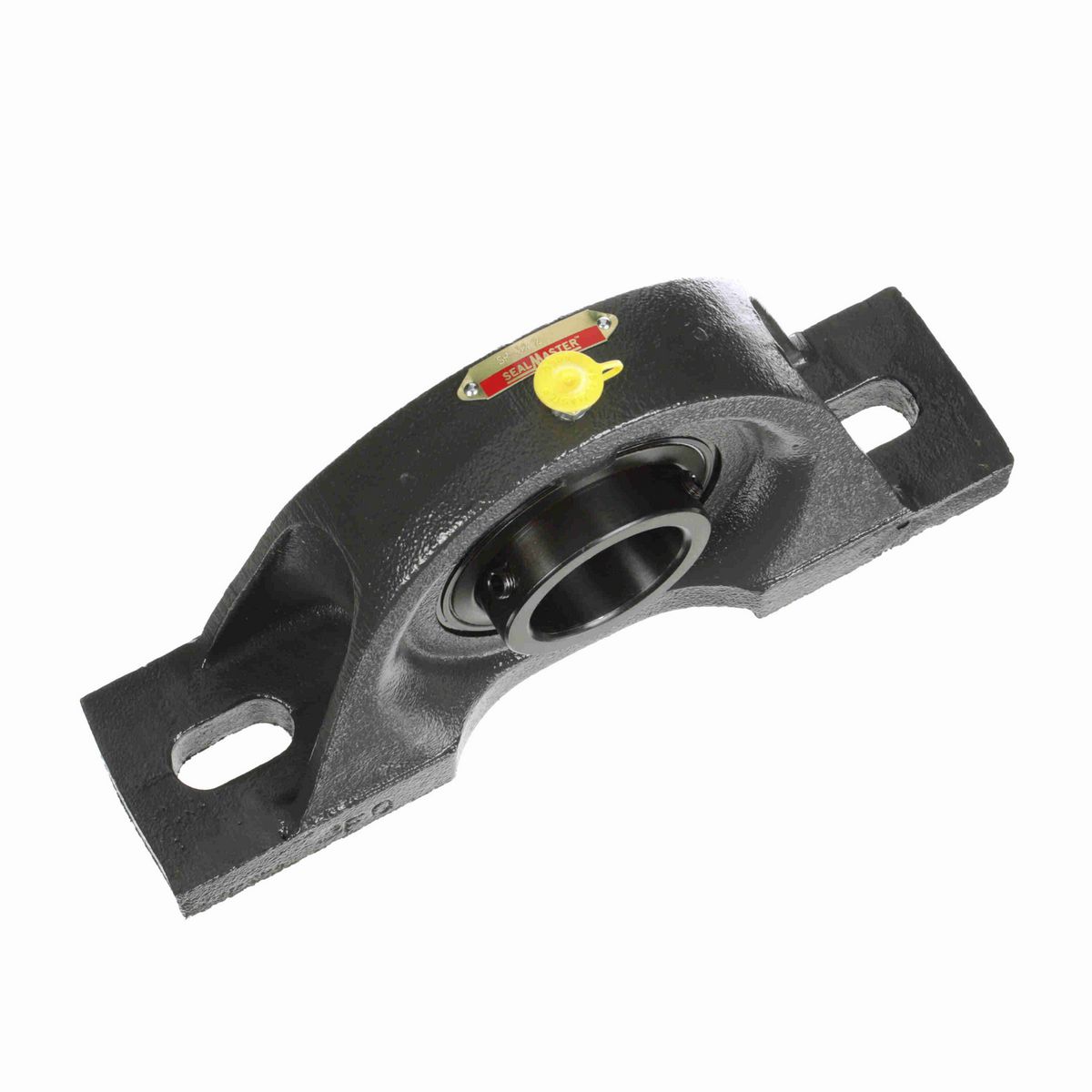

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	2.75 in
Base Width (in)	2.75 in
Overall Height (in)	5.94 in
Overall Length (in)	11.25 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	2 in
Base to Center Height (in)	3.1250 in
Foot Height (in)	0.88 in
Length Through Bore (in)	2.188 in
Bolt Spacing Min (in)	7.63 in
Centerline to Outermost Bearing Face (in)	1.313 in
Bolt Spacing Max (in)	9.38 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Insert	2-2
Bearing Insert Finish	Black Oxide
Bearing Type	Standard Duty
Misalignment Capability	±2.0° Misalignment - Static Only
Max Operating Temperature (F)	220 °F
Inner Ring Outside Diameter (in)	2.719 in
Vibration Frequency Inner Ring Defect	0.0987 cps
Dynamic Load Rating (lb)	9,752 lb
Maximum Speed (RPM)	3250 rpm
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/8 NPT
Housing Coating	Powder Coated
Size Code	2-23
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	6,601 lb
Vibration Frequency Roller Spin	0.0437 cps
Housing Material	Cast Iron
Shaft Locking Type	Set Screw
Base Length (in)	11.25 in
Vibration Frequency Outer Ring Defect	0.068 cps
End Cap Available	No
Vibration Frequency Fundamental Train	0.0068 cps
Cage Type	Land Riding Retainer
Radial Clearance	Standard
Lubricant	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461005026
Weight	14.30 LB
Packaged Length	11.44 IN
Packaged Width	7.50 IN
Packaged Height	3.25 IN
HTC	8483.20.8040
Country of Origin	United States of America
