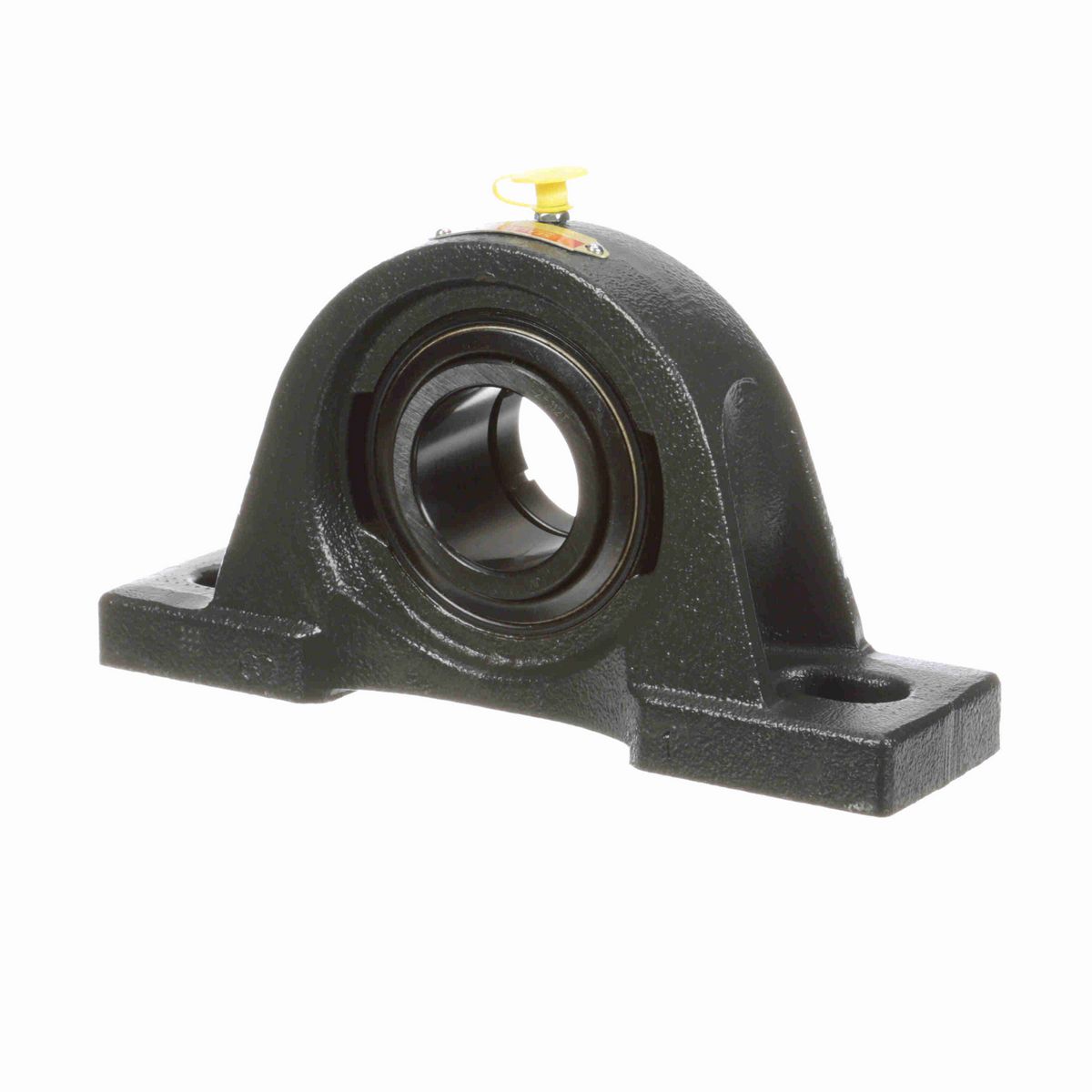

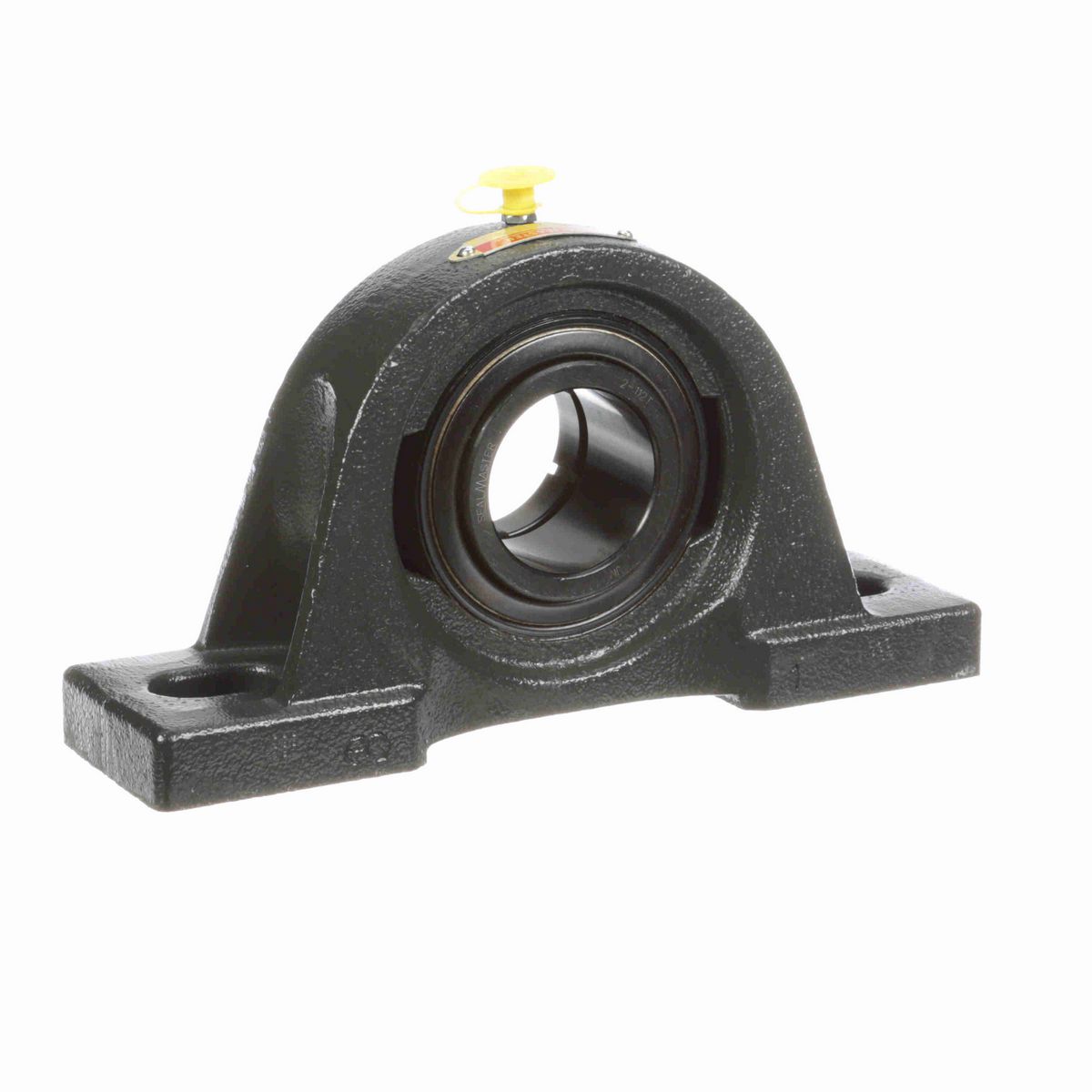

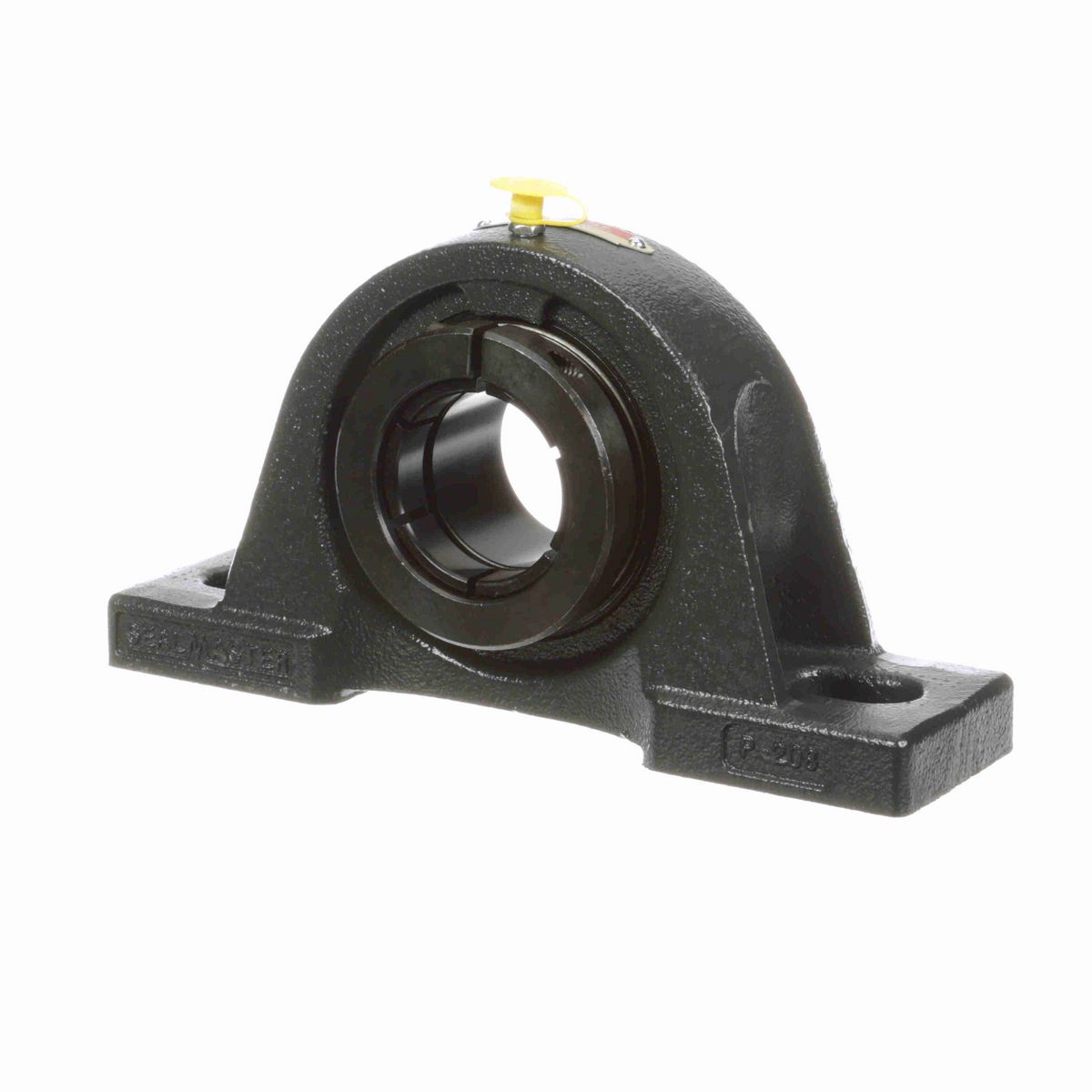

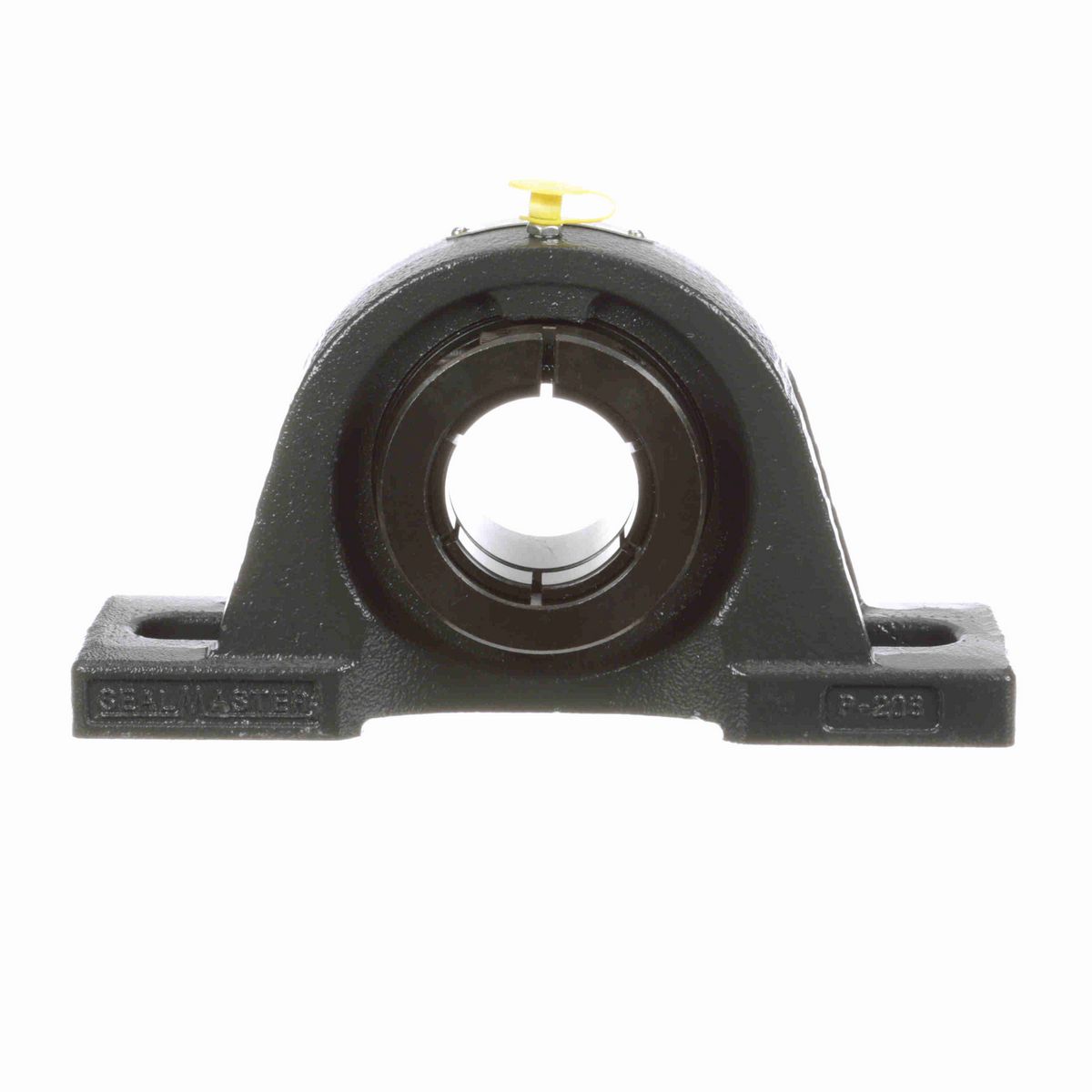

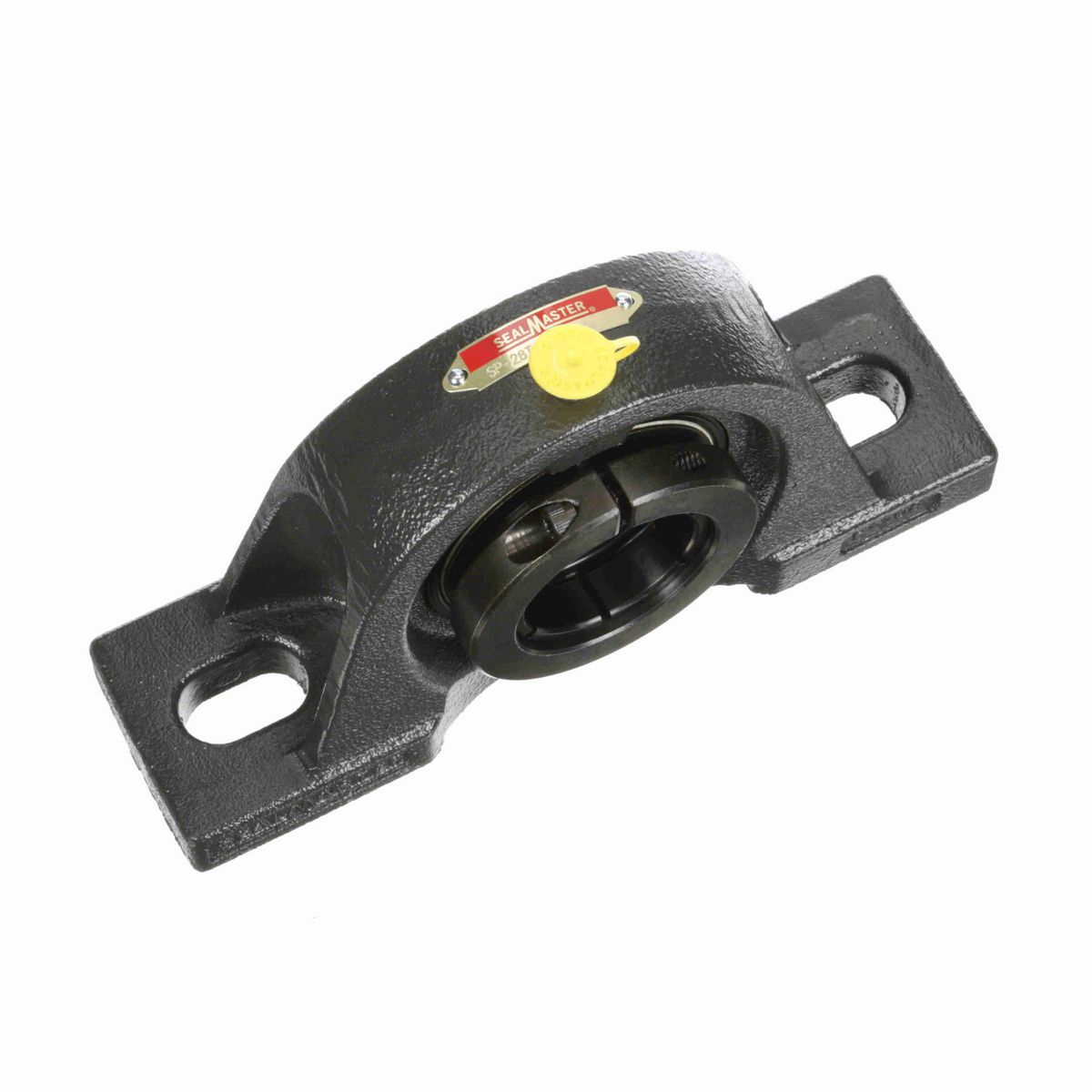

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	8.5 in
Overall Width (in)	2.38 in
Base Width (in)	2.38 in
Overall Height (in)	4.56 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.75 in
Base to Center Height (in)	2.38 in
Foot Height (in)	0.75 in
Length Through Bore (in)	2.00 in
Bolt Spacing Max (in)	7.13 in
Bolt Spacing Min (in)	5.88 in
Centerline to Outermost Bearing Face (in)	1.31 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	240 in/lbs
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.94 in
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Vibration Frequency Fundamental Train	0.0067 cps
Housing Coating	Powder Coated
Vibration Frequency Inner Ring Defect	0.0994 cps
Shaft Locking Type	Concentric
Bearing Insert Finish	Black Oxide
Inner Ring Outside Diameter (in)	2.297 in
Misalignment Capability	±2.0° Misalignment - Static Only
Static Load Rating (lb)	5,139 lb
Radial Clearance	Standard
Cage Type	Land Riding Retainer
Vibration Frequency Roller Spin	0.0417 cps
Insert	2-112T
Dynamic Load Rating (lb)	7,901 lb
End Cap Available	No
Grease Fitting Thread Size	1/4-28
Maximum Speed (RPM)	5300 rpm
Fixed vs. Expansion	Fixed
Size Code	2-111
Bearing Type	Standard Duty
Vibration Frequency Outer Ring Defect	0.0673 cps
Bearing Insert Material	52100 Bearing Steel
Base Length (in)	8.50 in
Lubricant	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461030776
Weight	8.35 LB
Packaged Length	9.00 IN
Packaged Width	5.19 IN
Packaged Height	2.38 IN
HTC	8483.20.8040
Country of Origin	United States of America
