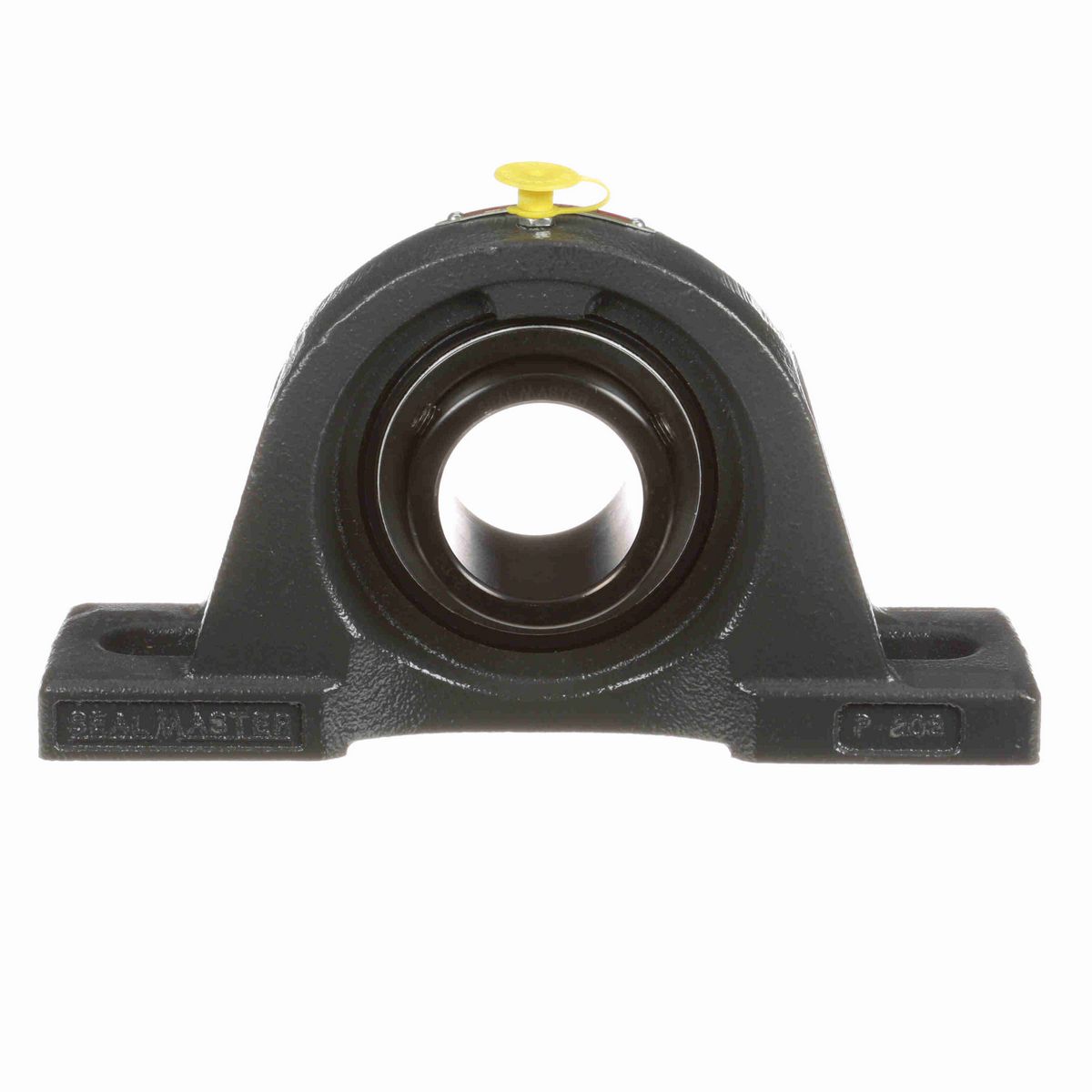

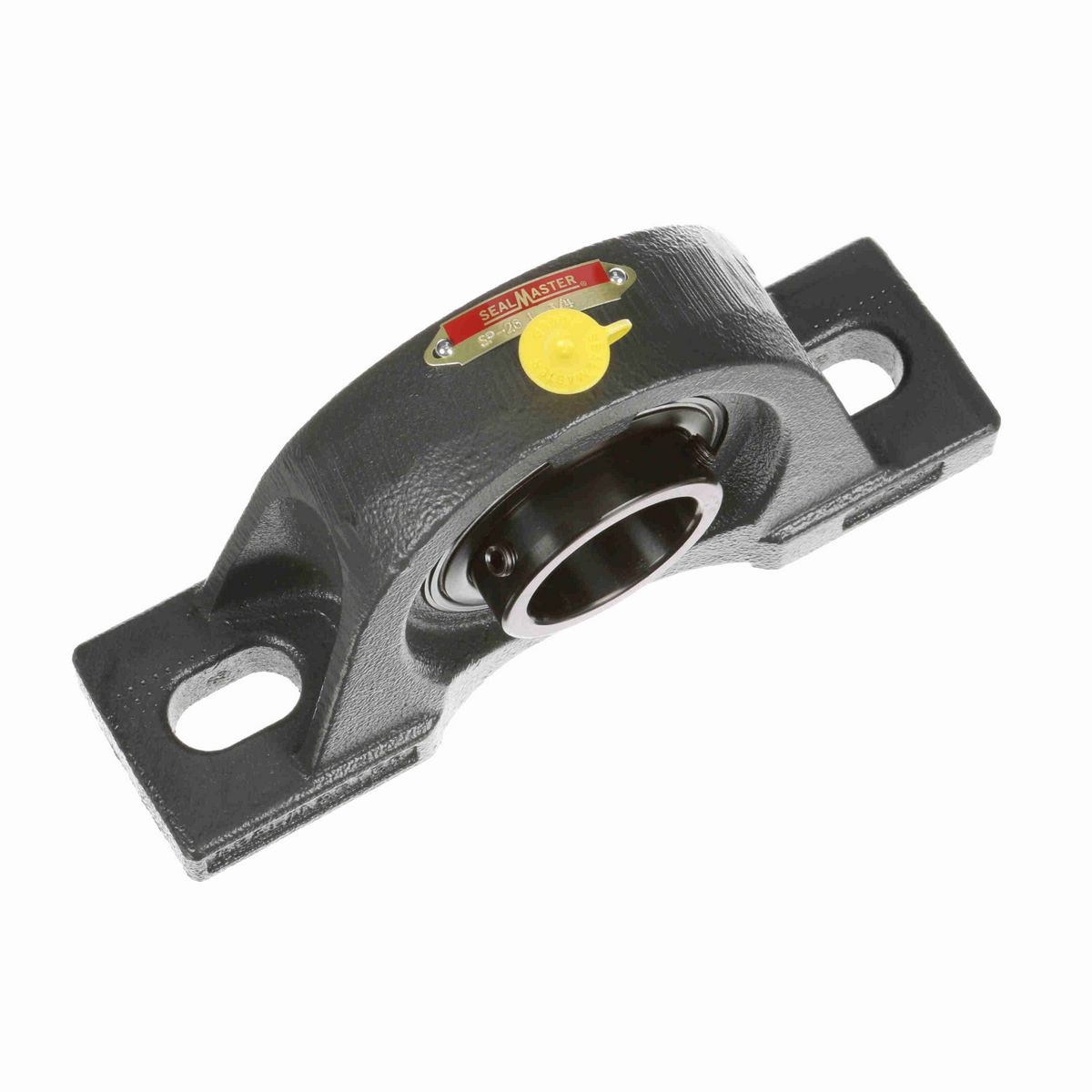

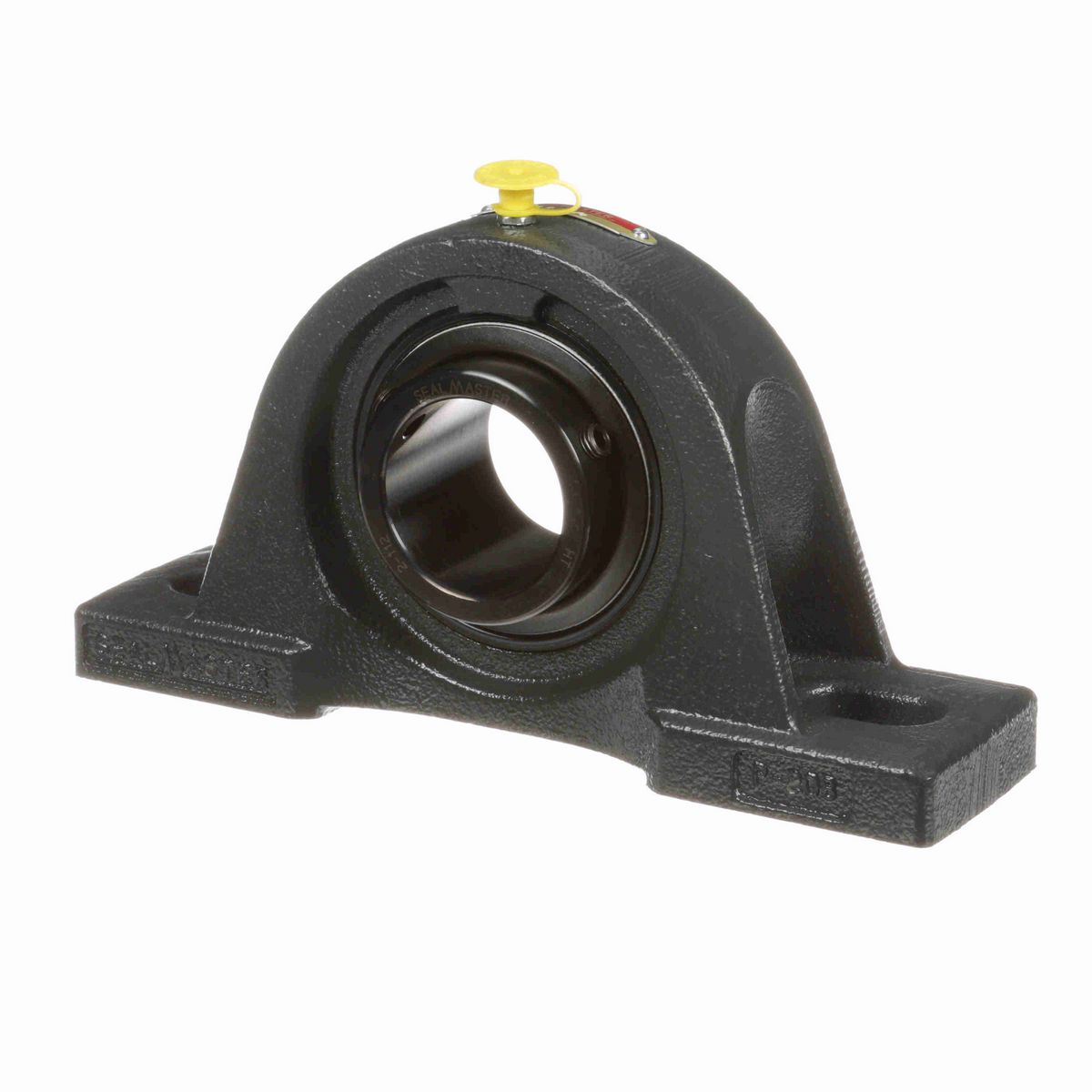

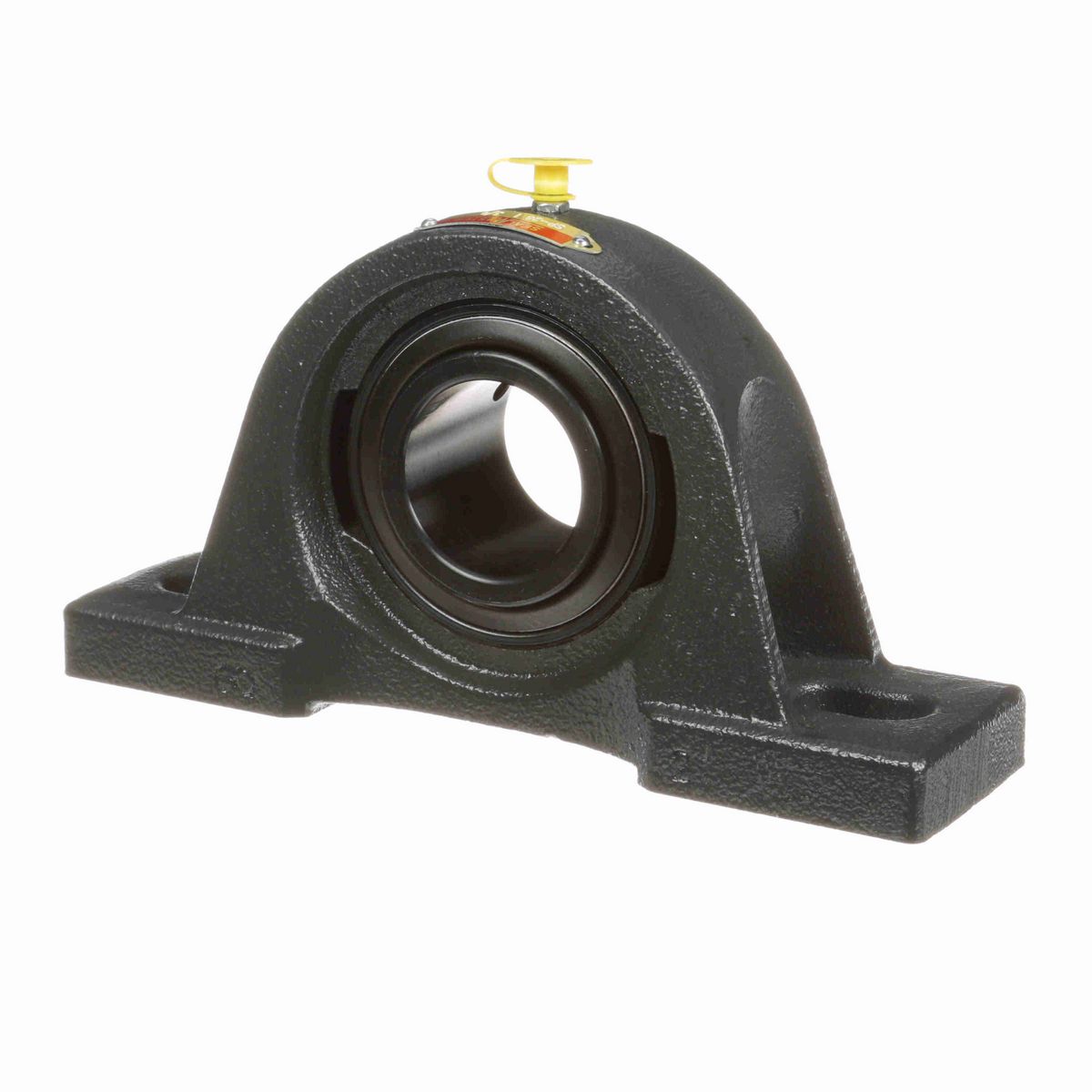

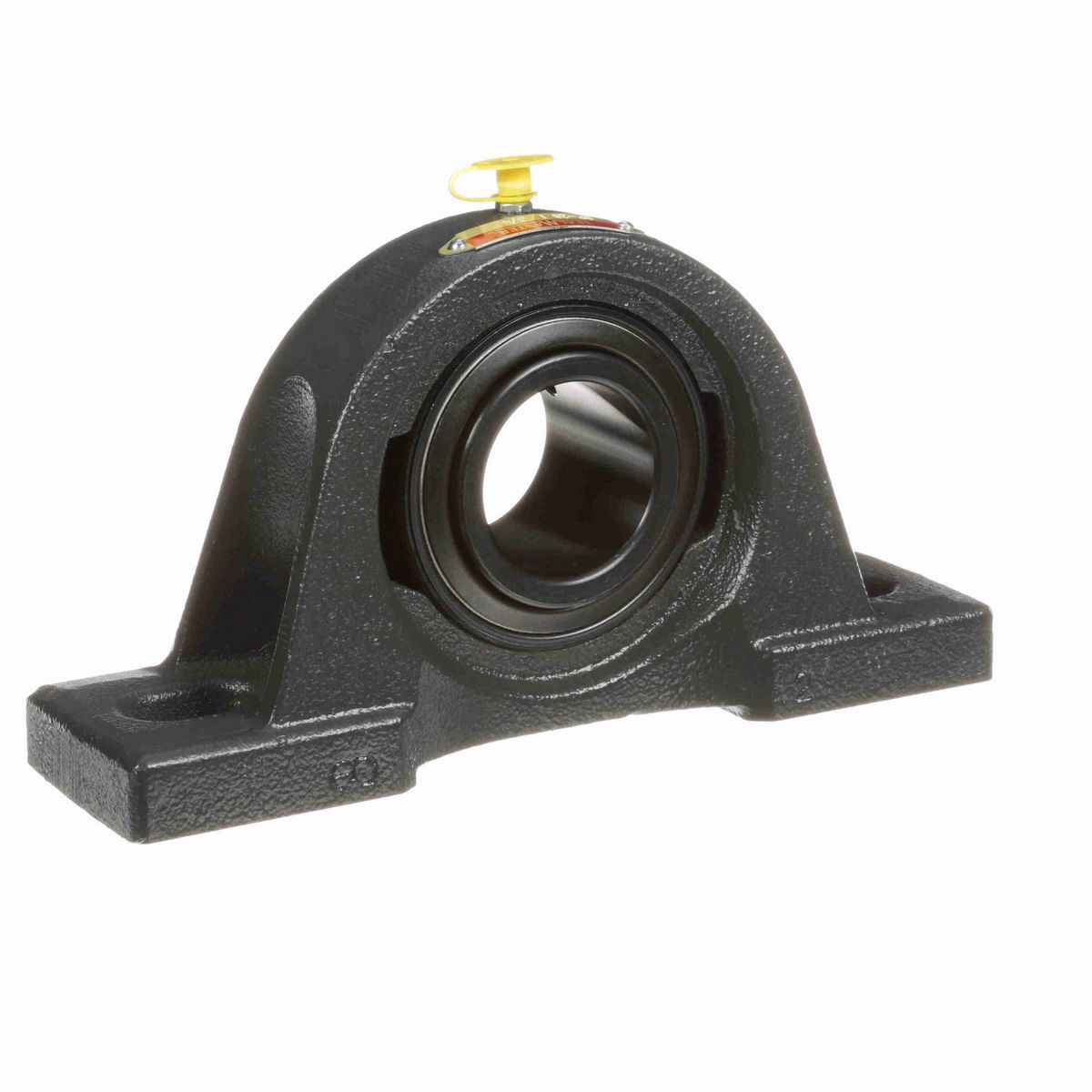

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	2.38 in
Overall Height (in)	4.56 in
Overall Length (in)	8.5 in
Overall Width (in)	2.38 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.75 in
Foot Height (in)	0.75 in
Base to Center Height (in)	2.38 in
Length Through Bore (in)	1.938 in
Centerline to Outermost Bearing Face (in)	1.188 in
Bolt Spacing Max (in)	7.13 in
Bolt Spacing Min (in)	5.88 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	125-165 in/lbs
Ability to Relubricate	Yes
Size Code	2-111
End Cap Available	No
Static Load Rating (lb)	5,139 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed
Vibration Frequency Roller Spin	0.0417 cps
Radial Clearance	Standard
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,901 lb
Housing Coating	Powder Coated
Shaft Locking Type	Set Screw
Vibration Frequency Outer Ring Defect	0.0673 cps
Vibration Frequency Inner Ring Defect	0.0994 cps
Base Length (in)	8.50 in
Inner Ring Outside Diameter (in)	2.297 in
Bearing Insert Material	52100 Bearing Steel
Insert	2-112
Vibration Frequency Fundamental Train	0.0067 cps
Max Operating Temperature (F)	220 °F
Bearing Type	Standard Duty
Grease Fitting Thread Size	1/4-28
Maximum Speed (RPM)	3800 rpm
Bearing Insert Finish	Black Oxide

General Specifications

UPC	662461004975
Weight	7.80 LB
Packaged Length	9.00 IN
Packaged Width	5.19 IN
Packaged Height	2.38 IN
HTC	8483.20.8040
Country of Origin	United States of America
