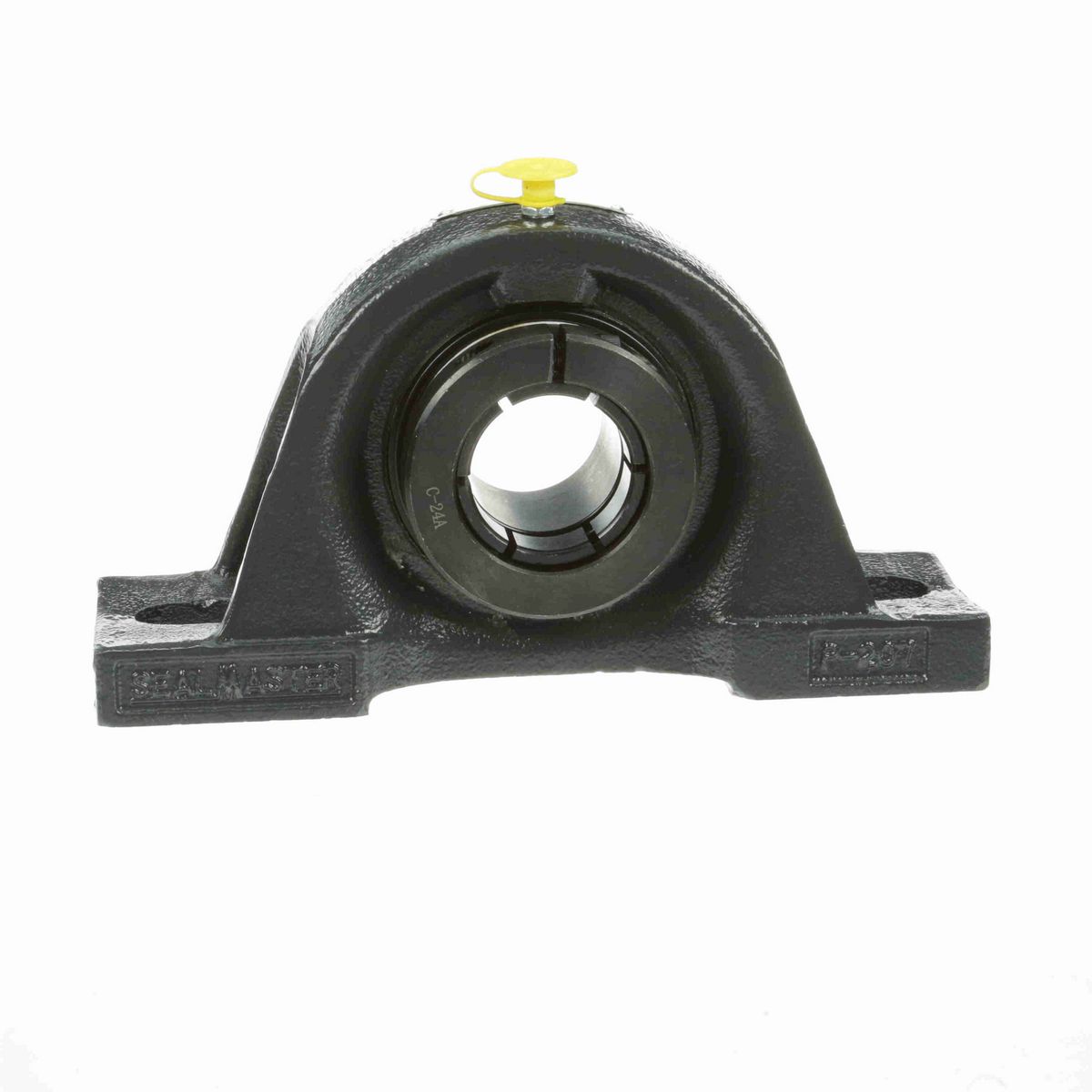

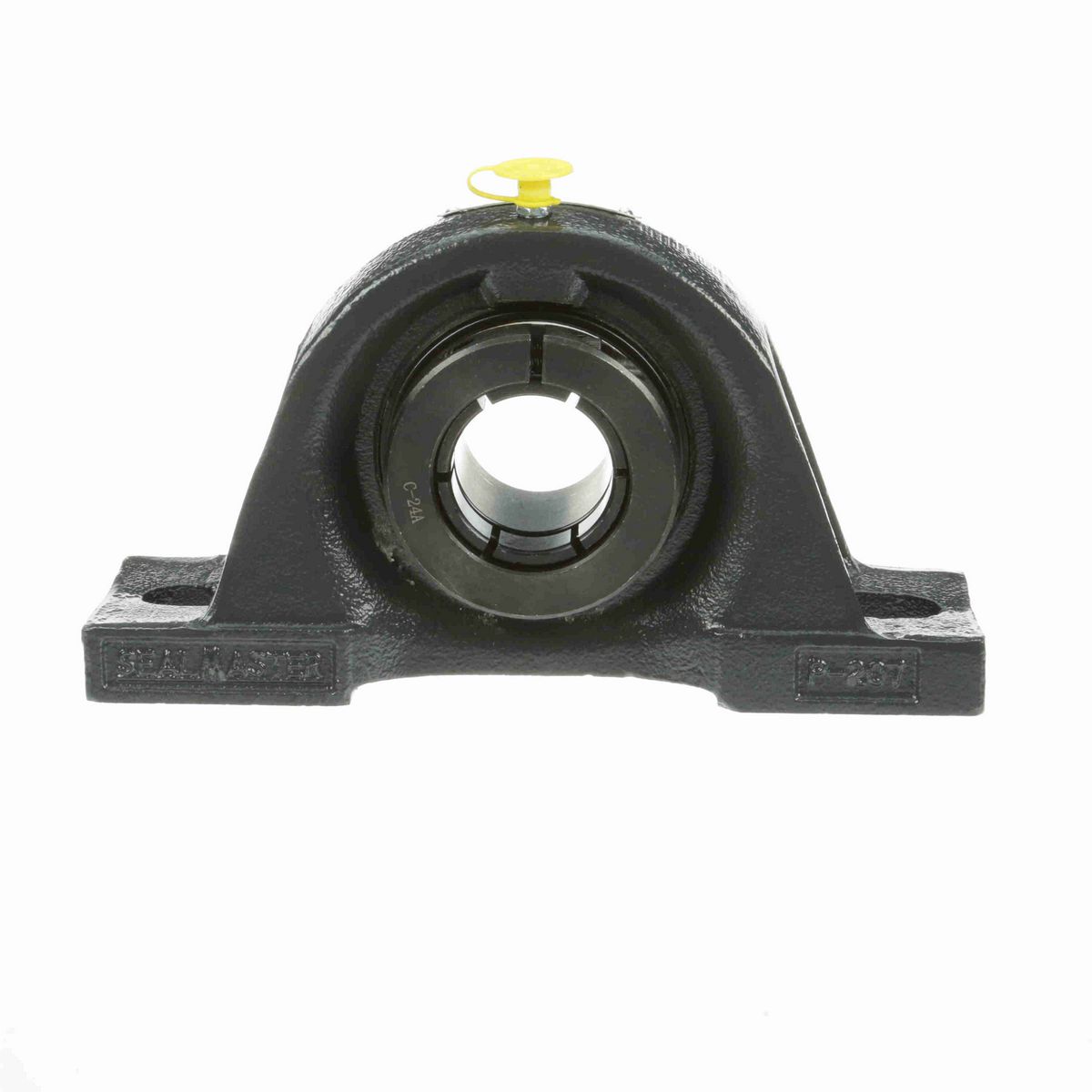

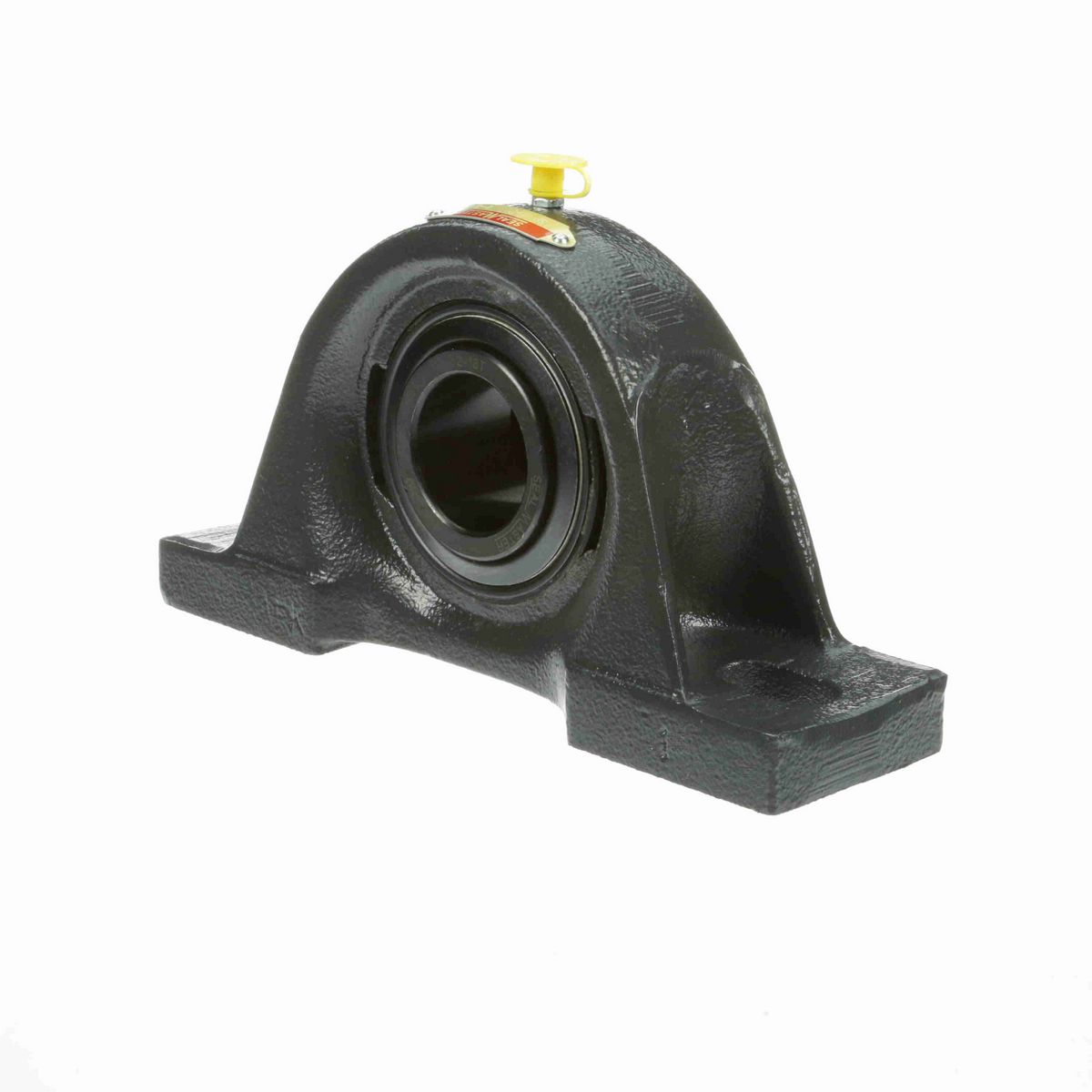

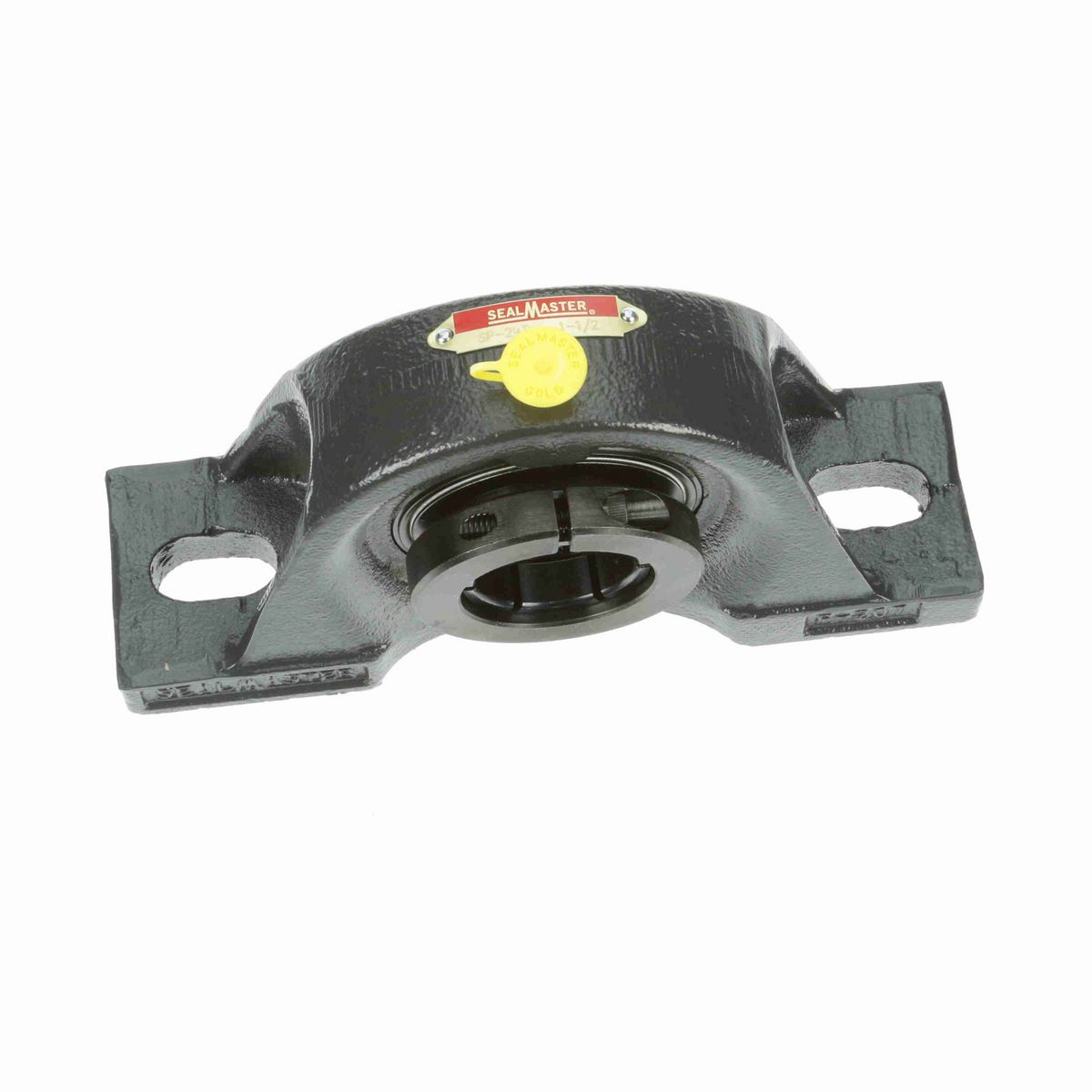

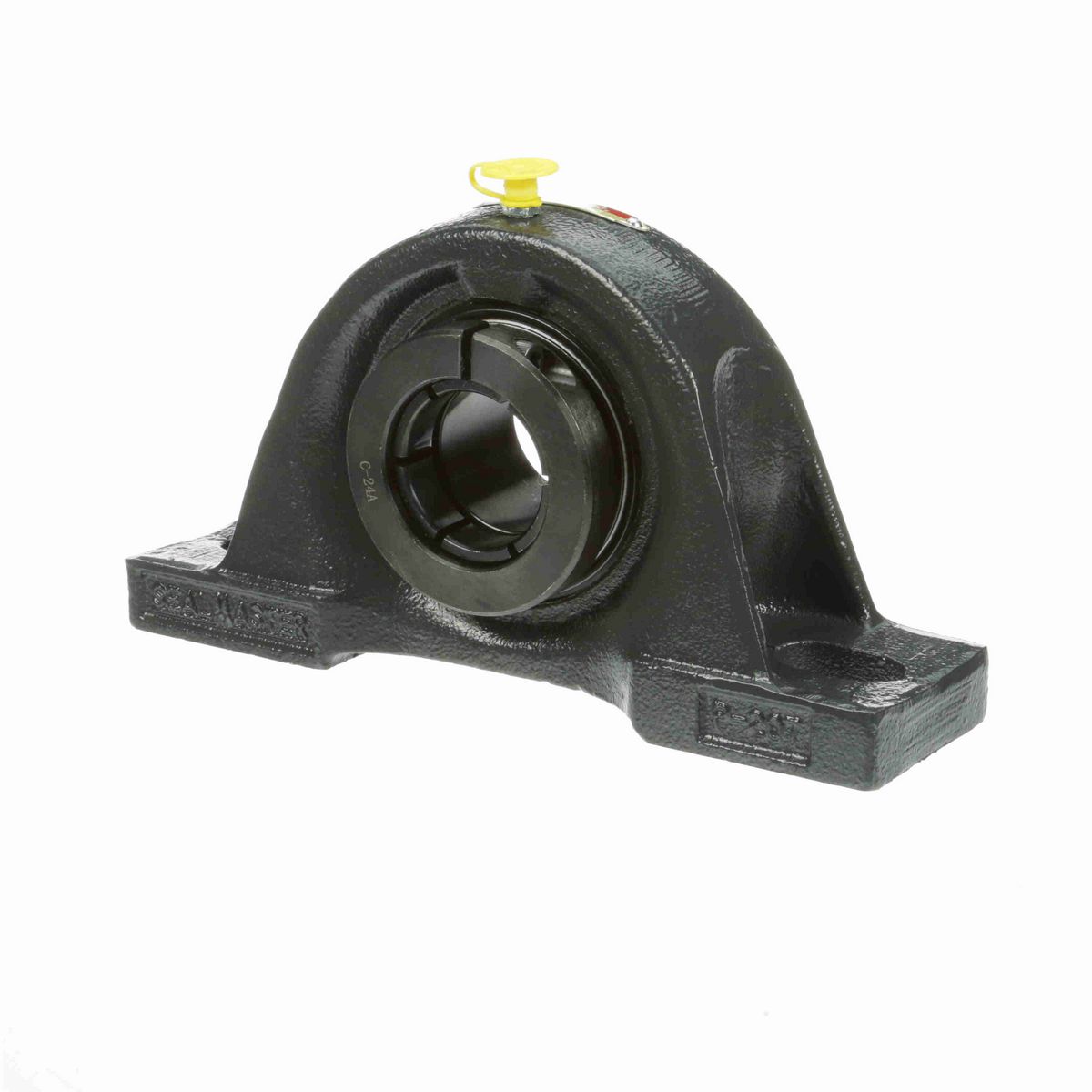

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	2.38 in
Overall Height (in)	4.56 in
Base Width (in)	2.38 in
Overall Length (in)	8.5 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.5 in
Foot Height (in)	0.75 in
Base to Center Height (in)	2.3125 in
Length Through Bore (in)	2 in
Bolt Spacing Max (in)	7.13 in
Centerline to Outermost Bearing Face (in)	1.31 in
Bolt Spacing (in)	6.5 in
Bolt Spacing Min (in)	5.88 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.75 in
Bearing Insert Material	52100 Bearing Steel
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Finish	Black Oxide
Housing Material	Cast Iron
Misalignment Capability	±2.0° Misalignment - Static Only
Cage Type	Land Riding Retainer
Size Code	2-19
Vibration Frequency Outer Ring Defect	0.0591 cps
Insert	2-18T
Vibration Frequency Inner Ring Defect	0.0909 cps
Vibration Frequency Fundamental Train	0.0066 cps
Shaft Locking Type	Concentric
Static Load Rating (lb)	4,467 lb
Bearing Type	Standard Duty
Vibration Frequency Roller Spin	0.0376 cps
Max Operating Temperature (F)	220 °F
Grease Fitting Thread Size	1/4-28
Dynamic Load Rating (lb)	7,340 lb
Radial Clearance	Standard
Fixed vs. Expansion	Fixed
End Cap Available	No
Maximum Speed (RPM)	5850 rpm
Inner Ring Outside Diameter (in)	2.07 in
Housing Coating	Powder Coated
Base Length (in)	8.5 in

General Specifications

UPC	662461030745
Weight	8.05 LB
Packaged Length	9.00 IN
Packaged Width	5.19 IN
Packaged Height	2.38 IN
HTC	8483.20.8040
Country of Origin	United States of America
