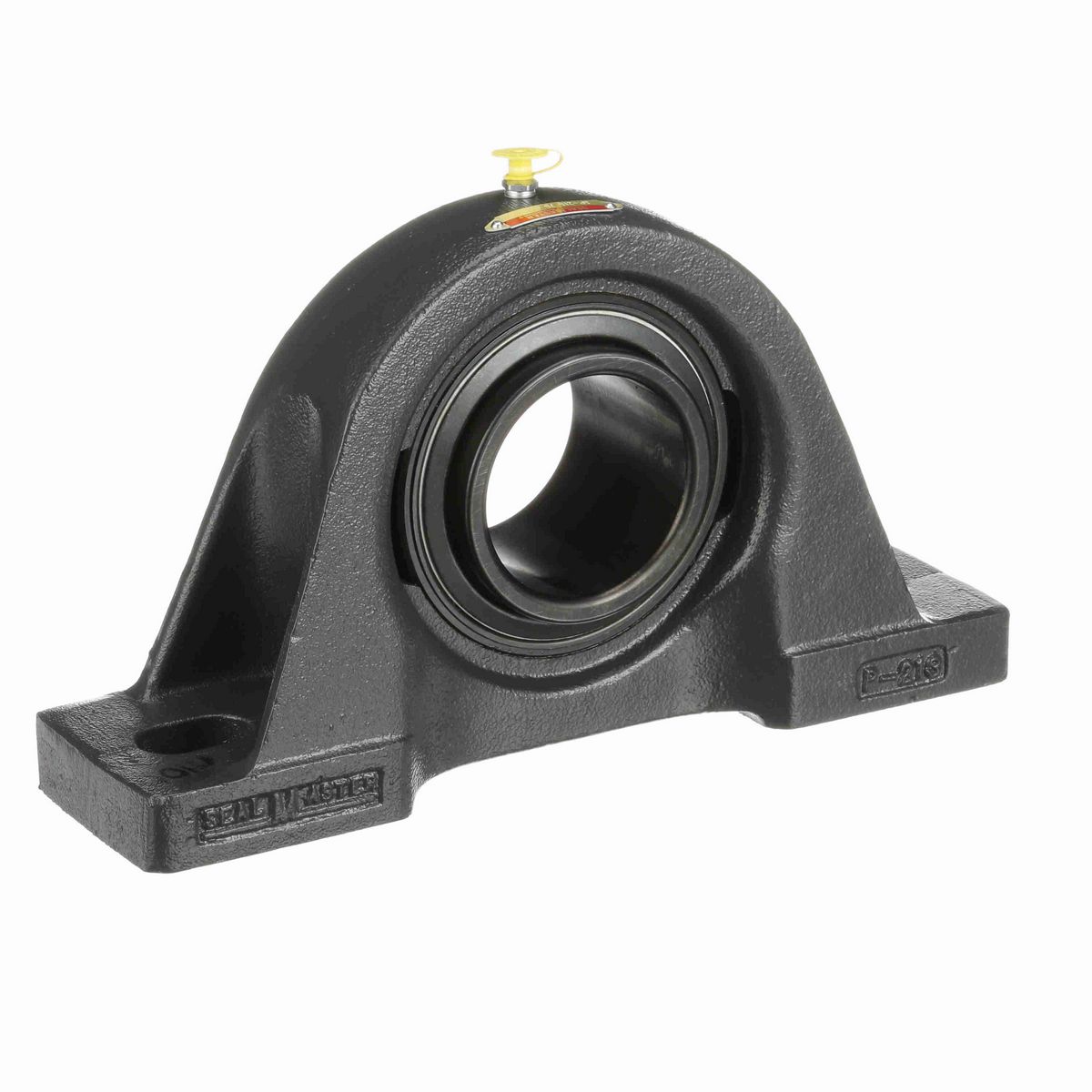

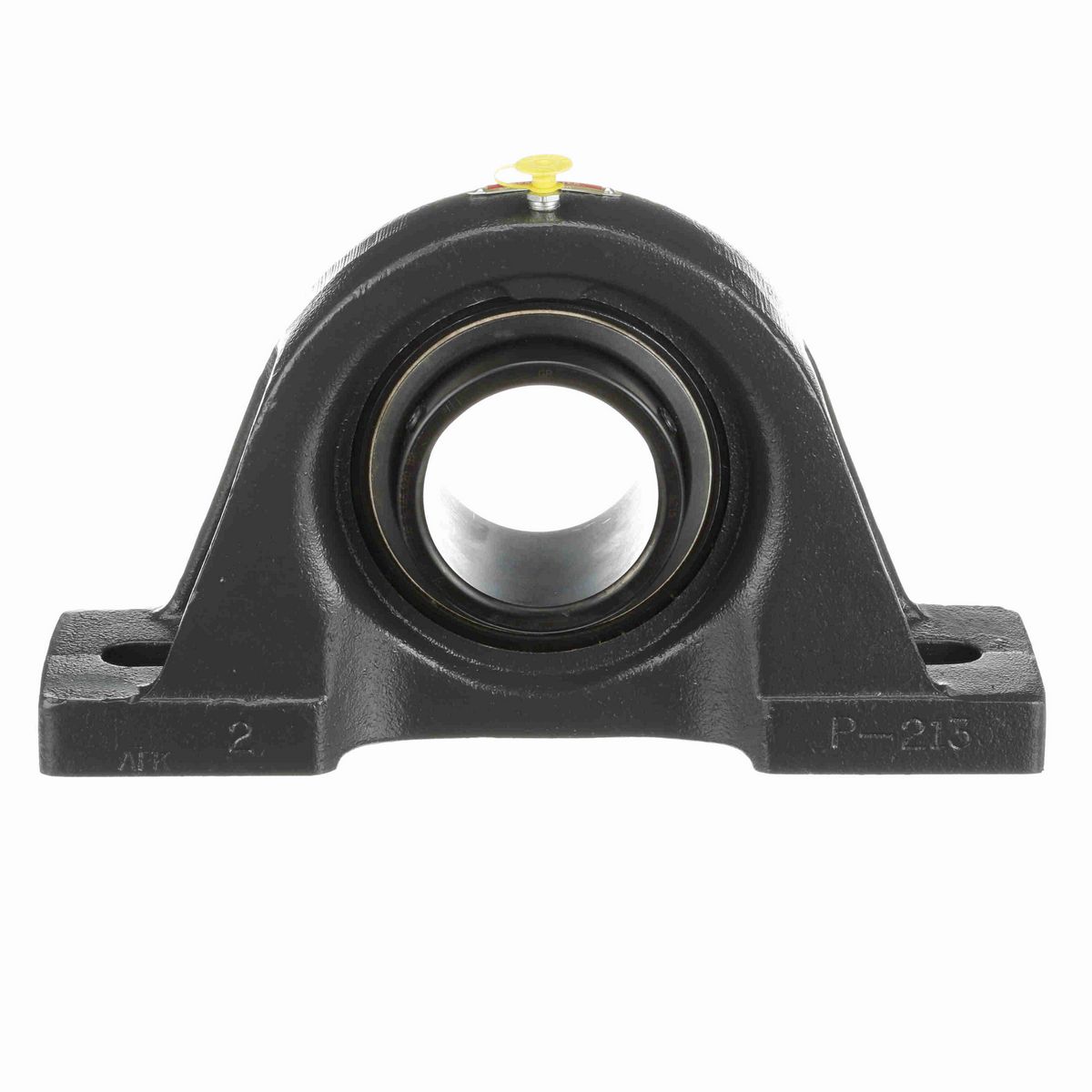

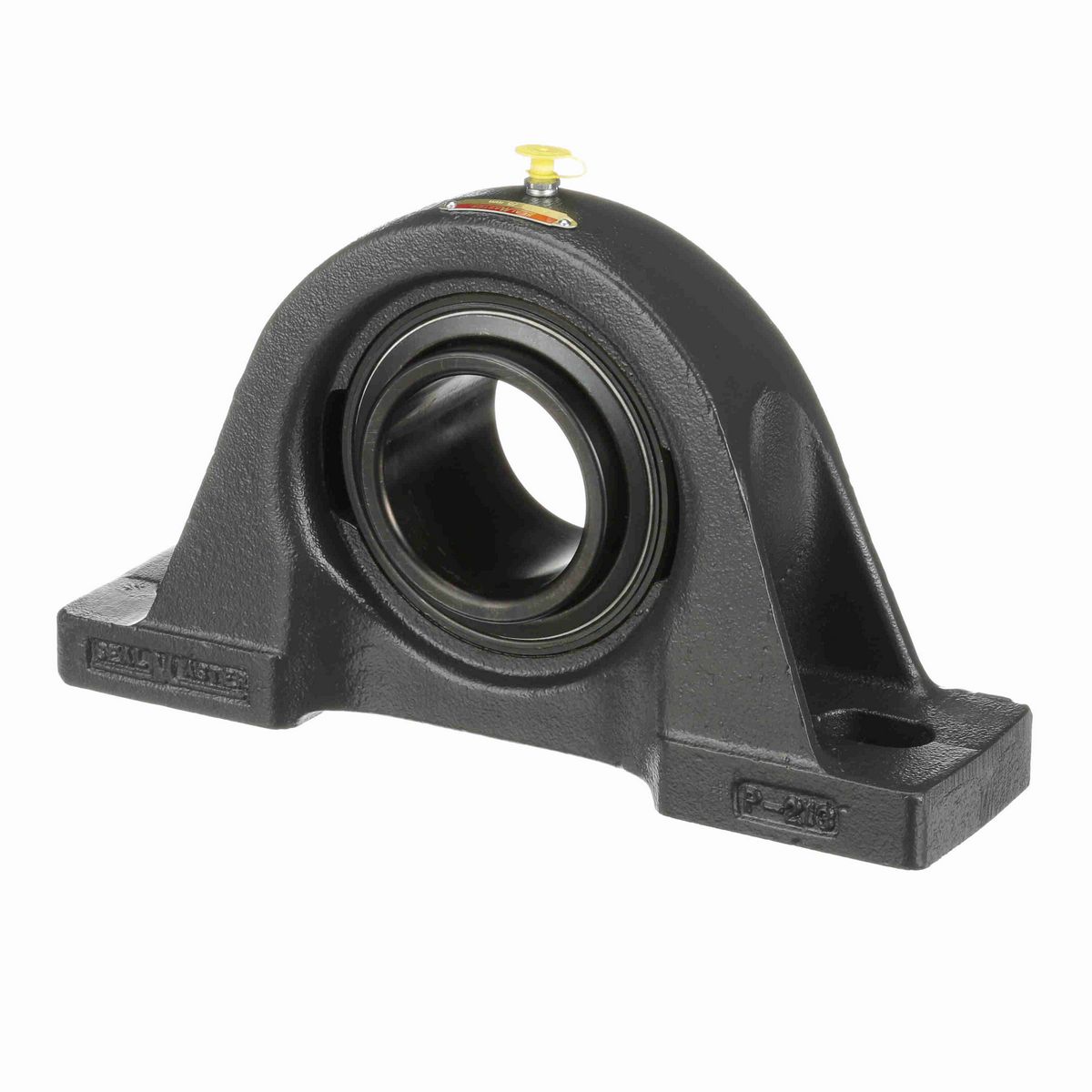

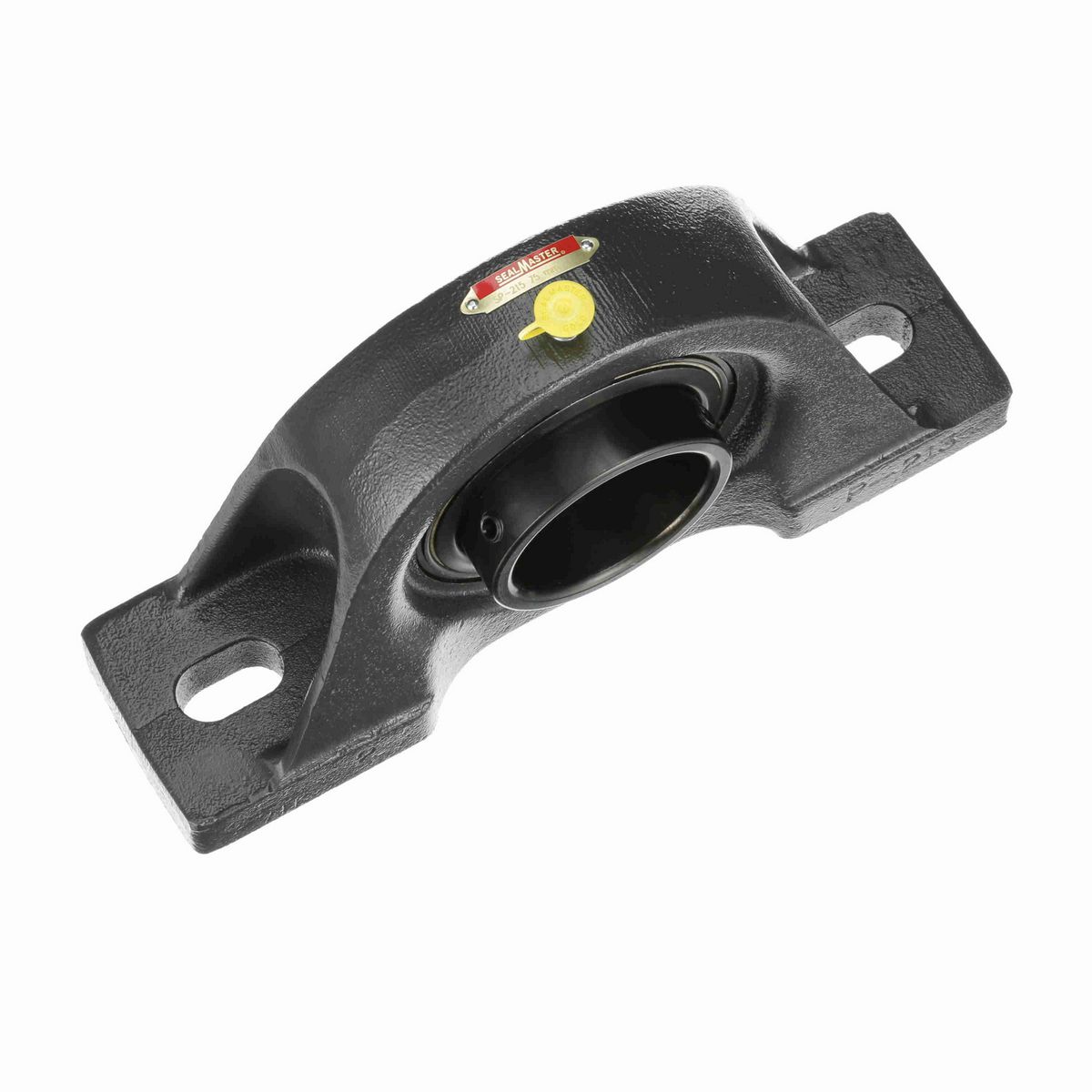

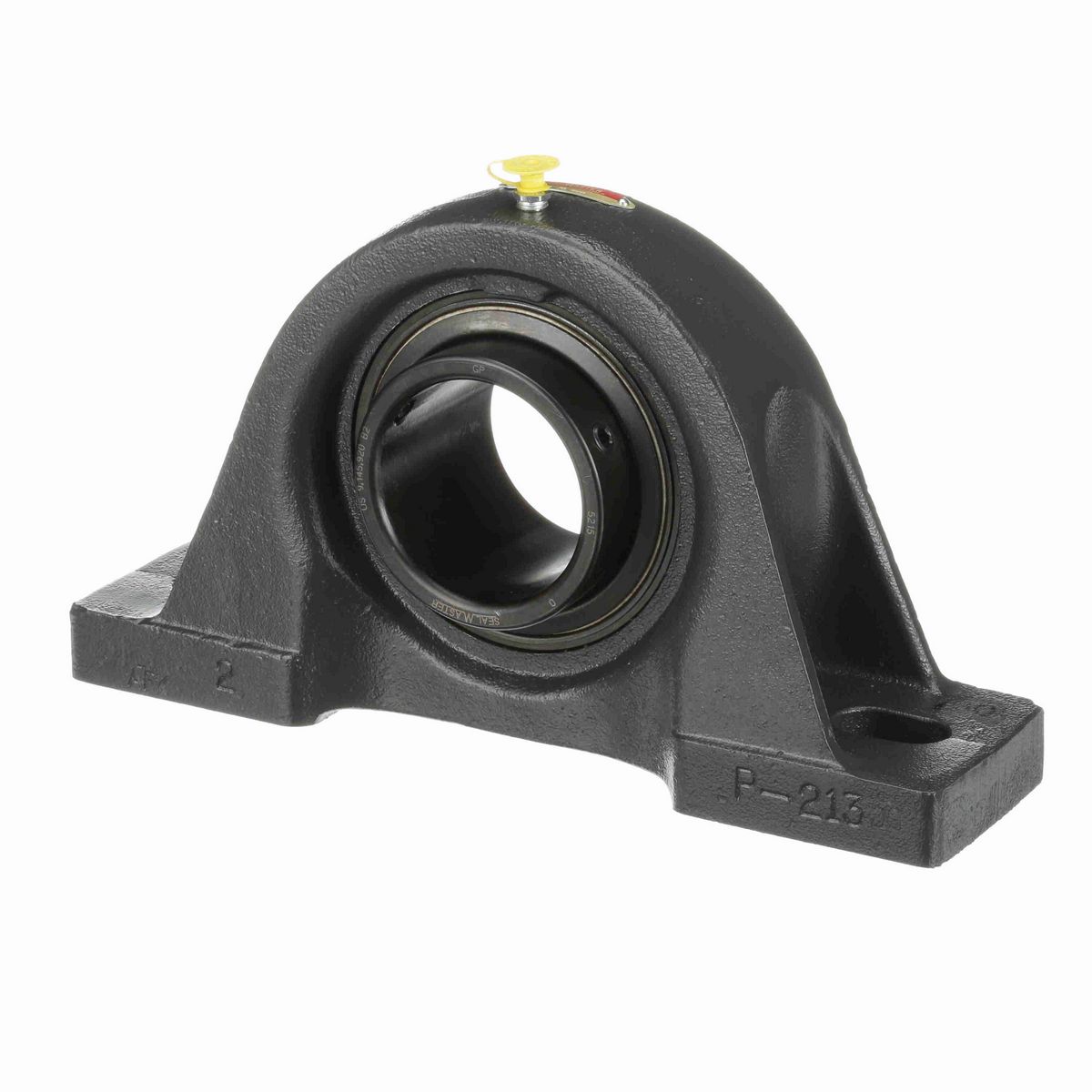

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - SP-215

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - SP-215
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - SP-215
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - SP-215
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - SP-215
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - SP-215
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - SP-215
(0)
Под заказ
SealMaster
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Полное описание
Заказать товар
Товар доступен только под заказ.
Сроки поставки: 2–3 недели
Подарок при покупке
Дарим подарок при покупке данного товара
Выбрать подарок

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - SP-215
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - SP-215
(0)
Под заказ
0 руб.
В корзину
Описание Отзывы Доставка


  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Dimensions
Overall Height (in)7.19 in
Overall Length (in)13 in
Base Width (in)3.38 in
Overall Width (in)3.38 in
Bolt Size (in)3/4 in
Bore Diameter (mm)75 mm
Foot Height (in)1.00 in
Base to Center Height (in)3.7500 in
Length Through Bore (in)3.063 in
Bolt Spacing Min (in)9.25 in
Centerline to Outermost Bearing Face (in)1.750 in
Bolt Spacing Max (in)10.75 in
Technical Specifications
Rolling ElementBall Bearing
Housing BaseSolid
Bore ShapeStraight
Housing ConstructionOne Piece
Outer Ring Land ProfileStandard
Misalignment TypeStatic Only
Housing ColorBlack
Cage MaterialBrass
Seal TypeFelt Labyrinth Seal
Housing TypePillow Block, Two Bolt
Housing StylePillow Block
Inner Race Heat Treat MethodZone-Hardened
Ability to RelubricateYes
Setscrew Torque (in-lbs)350-450 in/lbs
Bearing Insert FinishBlack Oxide
Shaft Locking TypeSet Screw
Static Load Rating (lb)11,224 lb
Vibration Frequency Outer Ring Defect0.0761 cps
Size Code2-215
Grease Fitting Thread Size1/8 NPT
Vibration Frequency Roller Spin0.0476 cps
Max Operating Temperature (F)220 °F
Fixed vs. ExpansionFixed
Insert5215
End Cap AvailableNo
Misalignment Capability±2.0° Misalignment - Static Only
Bearing TypeStandard Duty
Cage TypeLand Riding Retainer
Maximum Speed (RPM)2450 rpm
Radial ClearanceStandard
Housing CoatingPowder Coated
Inner Ring Outside Diameter (in)3.641 in
Housing MaterialCast Iron
LubricantLithium Complex NLGI 2 Grease
Bearing Insert Material52100 Bearing Steel
Vibration Frequency Fundamental Train0.0069 cps
Base Length (in)13.00 in
Vibration Frequency Inner Ring Defect0.1072 cps
Dynamic Load Rating (lb)14,839 lb
General Specifications
UPC662461052723
Weight25.91 LB
Packaged Length14.25 IN
Packaged Width8.06 IN
Packaged Height4.00 IN
HTC8483.20.8040
Country of OriginUnited States of America
