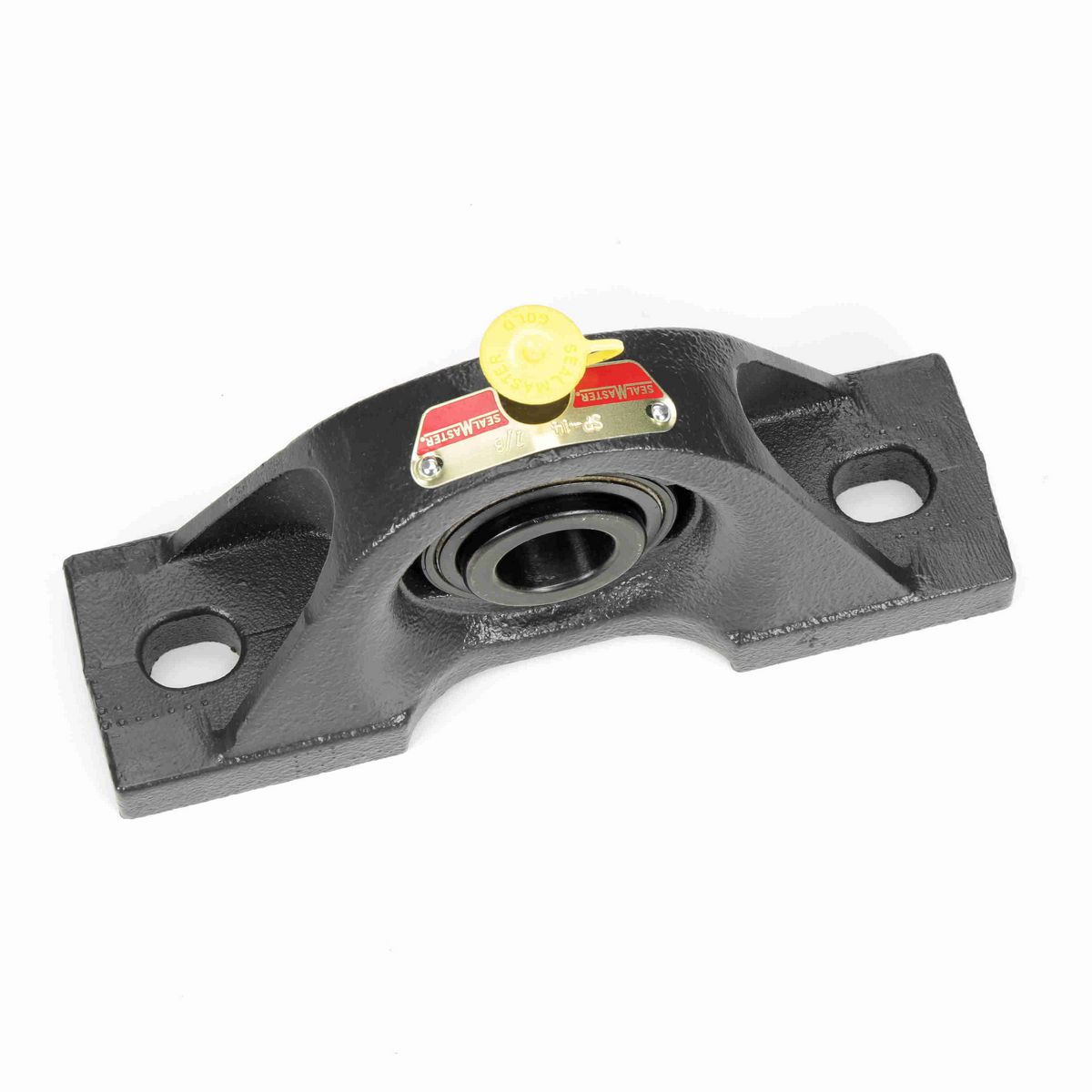

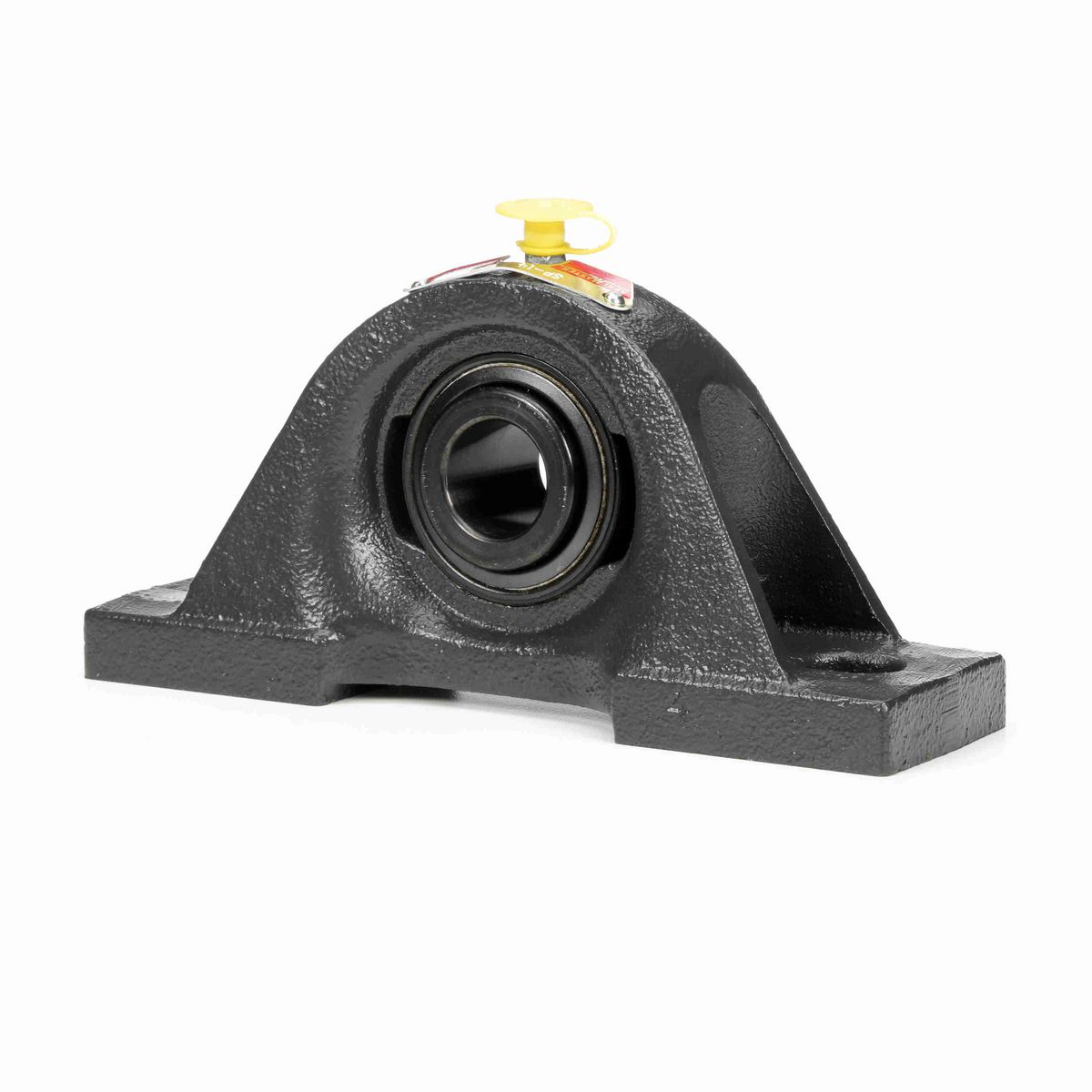

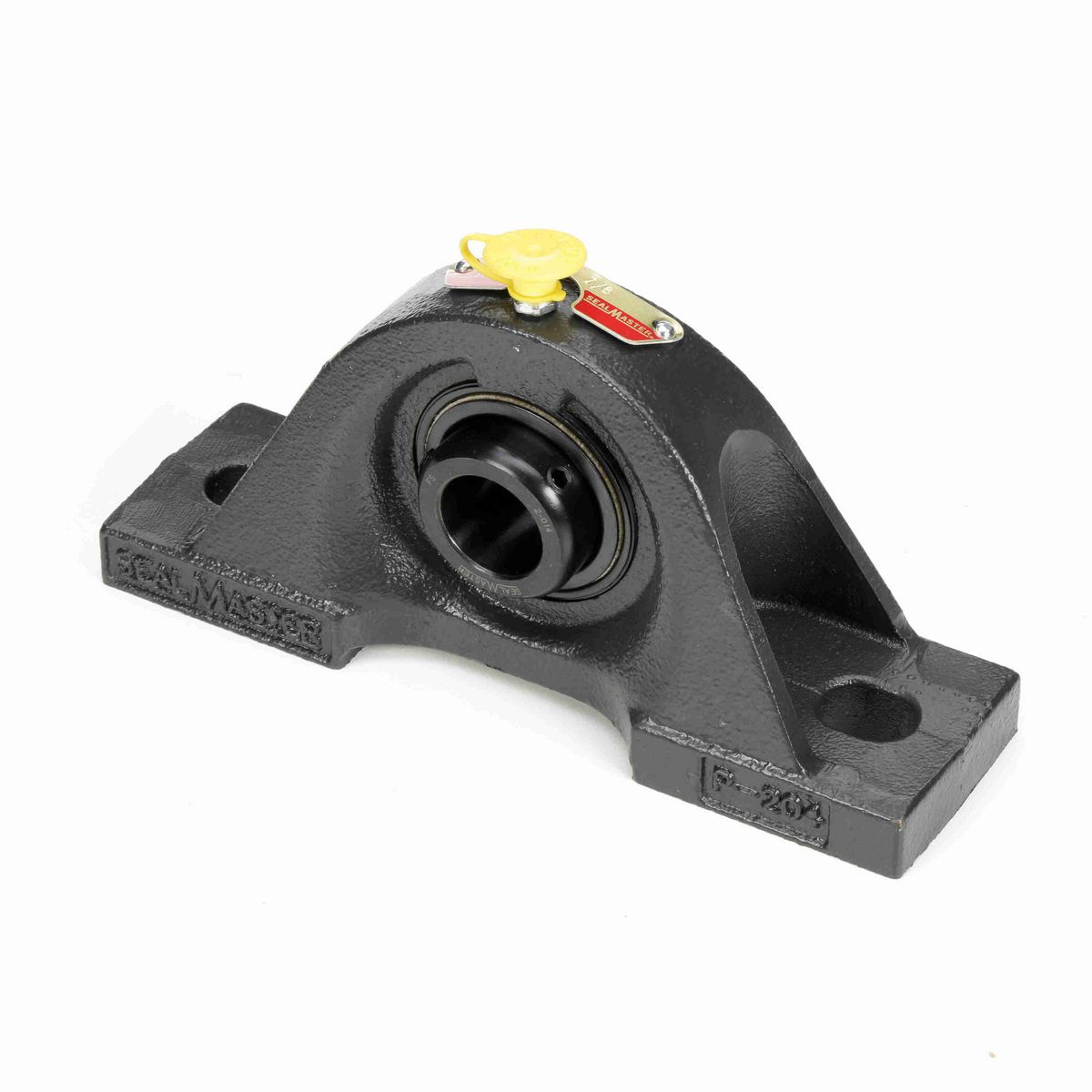

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	3.31 in
Overall Length (in)	7 in
Base Width (in)	2.00 in
Overall Width (in)	2.00 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	0.875 in
Foot Height (in)	0.56 in
Base to Center Height (in)	1.7500 in
Length Through Bore (in)	1.375 in
Bolt Spacing Max (in)	5.63 in
Bolt Spacing Min (in)	5.13 in
Centerline to Outermost Bearing Face (in)	0.813 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.0985 cps
Bearing Insert Material	52100 Bearing Steel
End Cap Available	No
Base Length (in)	7.00 in
Vibration Frequency Roller Spin	0.0442 cps
Radial Clearance	Standard
Bearing Type	Standard Duty
Fixed vs. Expansion	Fixed
Shaft Locking Type	Set Screw
Vibration Frequency Outer Ring Defect	0.0682 cps
Insert	2-014
Size Code	2-015
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
Max Operating Temperature (F)	220 °F
Inner Ring Outside Diameter (in)	1.375 in
Grease Fitting Thread Size	1/4-28
Misalignment Capability	±2.0° Misalignment - Static Only
Maximum Speed (RPM)	6350 rpm
Static Load Rating (lb)	1,651 lb
Cage Type	Land Riding Retainer
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Vibration Frequency Fundamental Train	0.0068 cps
Dynamic Load Rating (lb)	2,801 lb

General Specifications

UPC	662461004821
Weight	3.71 LB
Packaged Length	4.63 IN
Packaged Width	2.31 IN
Packaged Height	7.50 IN
HTC	8483.20.8040
Country of Origin	United States of America
