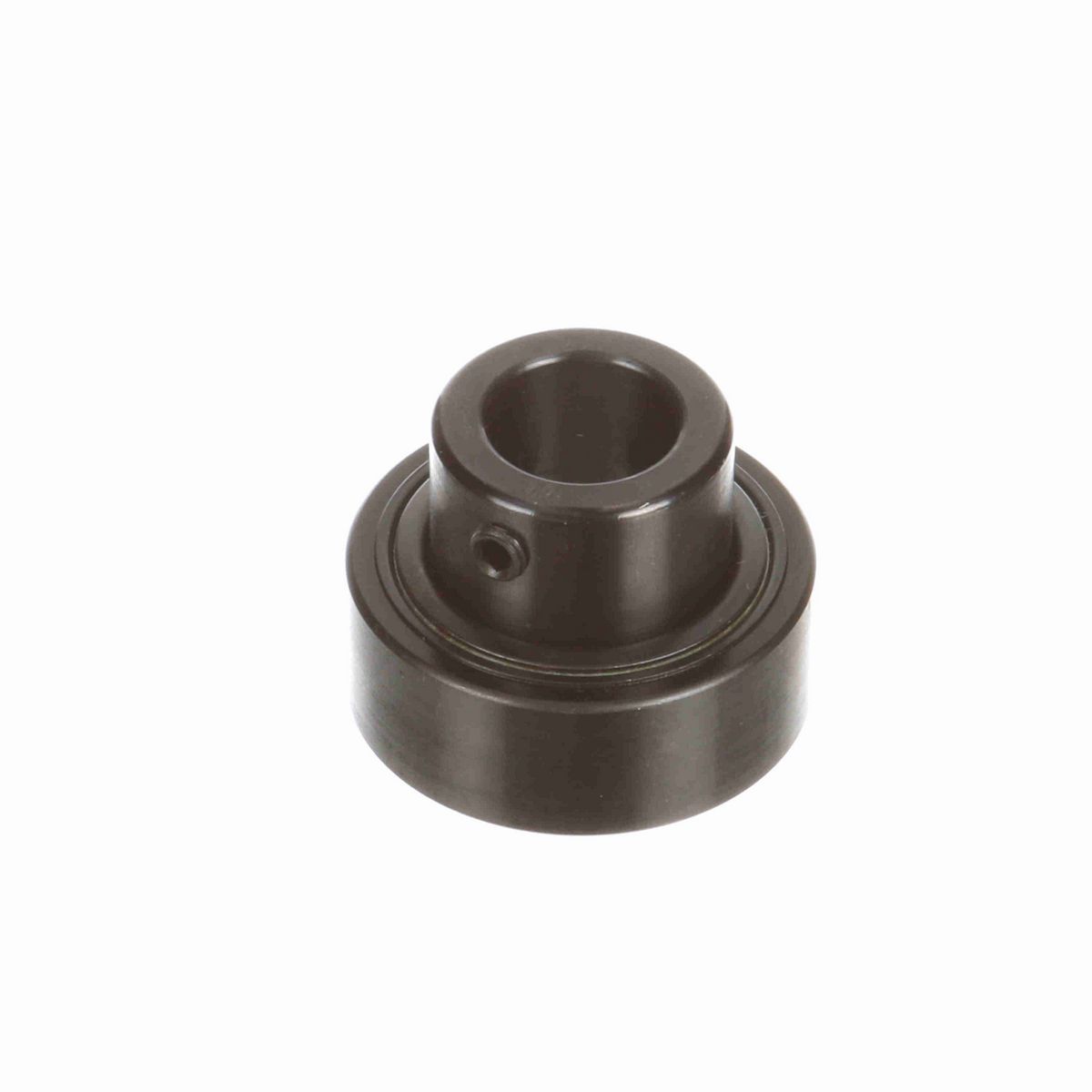

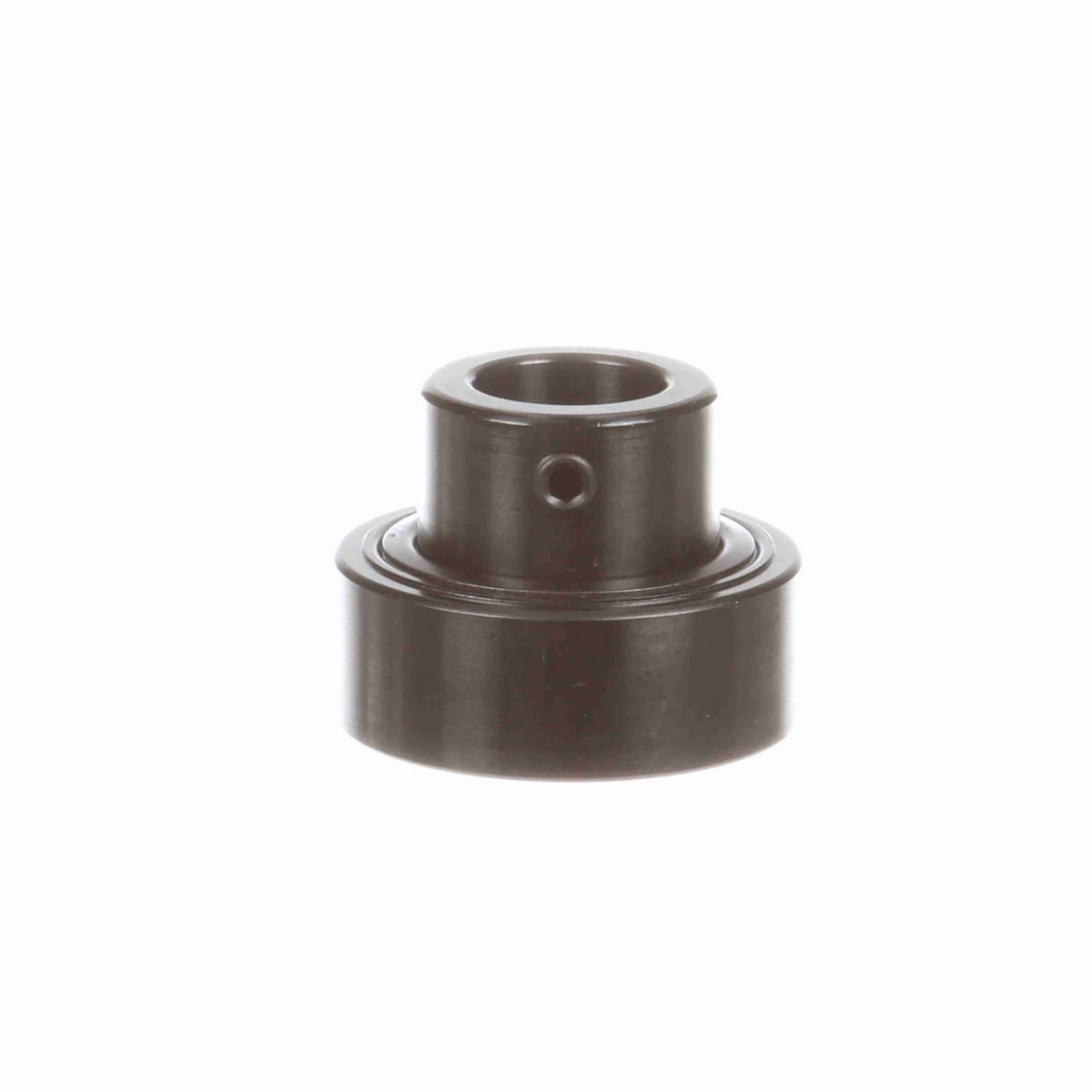

• Custom Sealmaster® mounted bearing insert with application specific features

Dimensions

Overall Width (in)	1.438 in
Bore Size (in)	0.7500 in
Inner Ring OD (in)	1.19 in
Centerline to Front Face (in)	1 in
Inner Race Length (in)	1.438 in
Outer Race OD (in)	1.85 in
Outer Race Width (in)	0.688 in

Technical Specifications

Housing Type	Insert Only
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Measure Units	Inch
Set Screw Thread	1/4-28
Radius	0.04
Rolling Element	Ball Bearing
Speed (Max) (RPM)	7300 rpm
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	2,611 lb
Misalignment Type	Static Only
End Cap	No
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
Replaceable Insert	Yes
Fixed vs. Expansion	No
Locking Type	Set Screw
Duty/Series	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Retainer Type	Land Riding Retainer
Ability to Relubricate	Yes
Type of Seal	Single Lip Contact Seal
Inner Race Heat Treat Method	Zone-Hardened

General Specifications

UPC	662461013304
Weight	0.48 LB
Packaged Length	1.44 IN
Packaged Width	2.38 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
