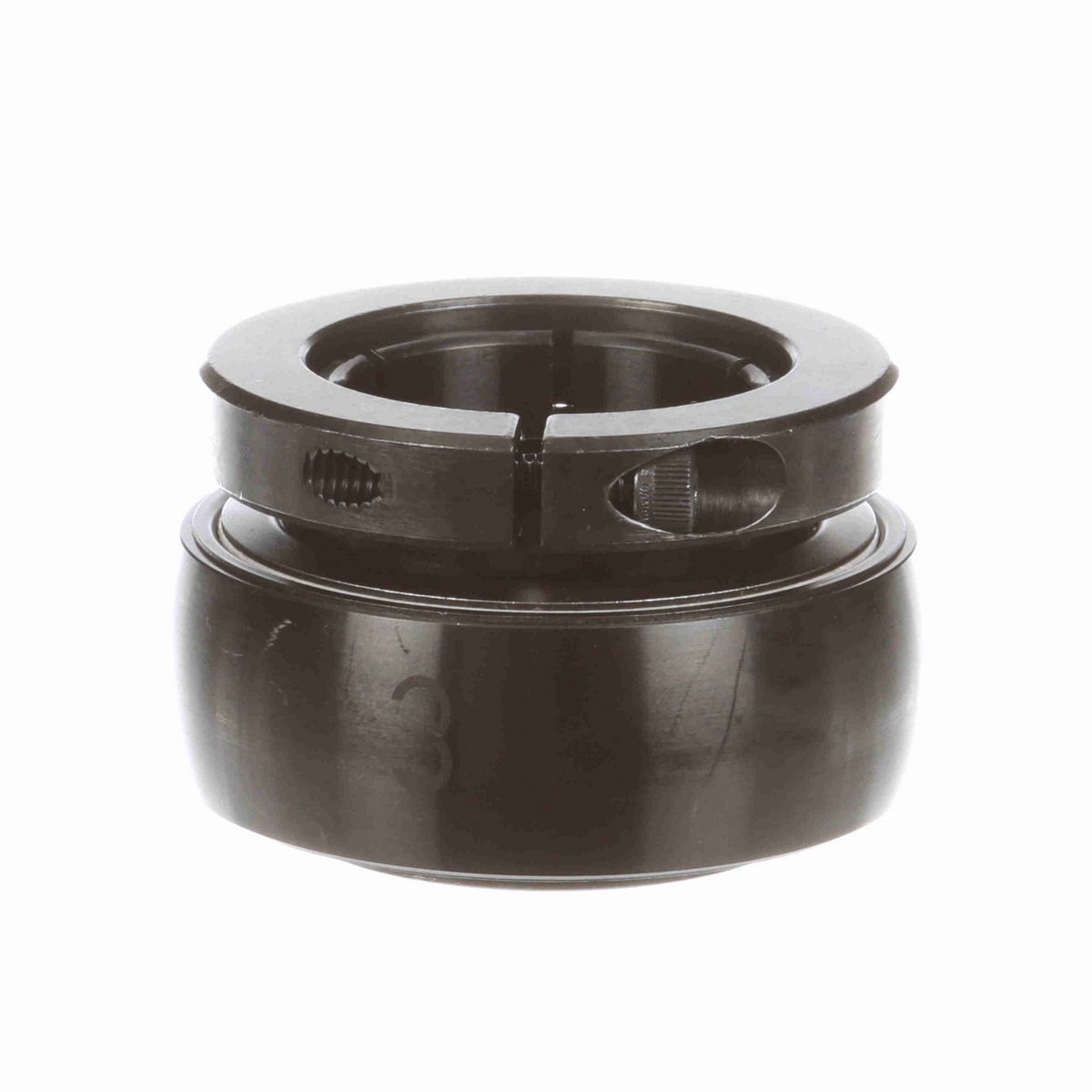

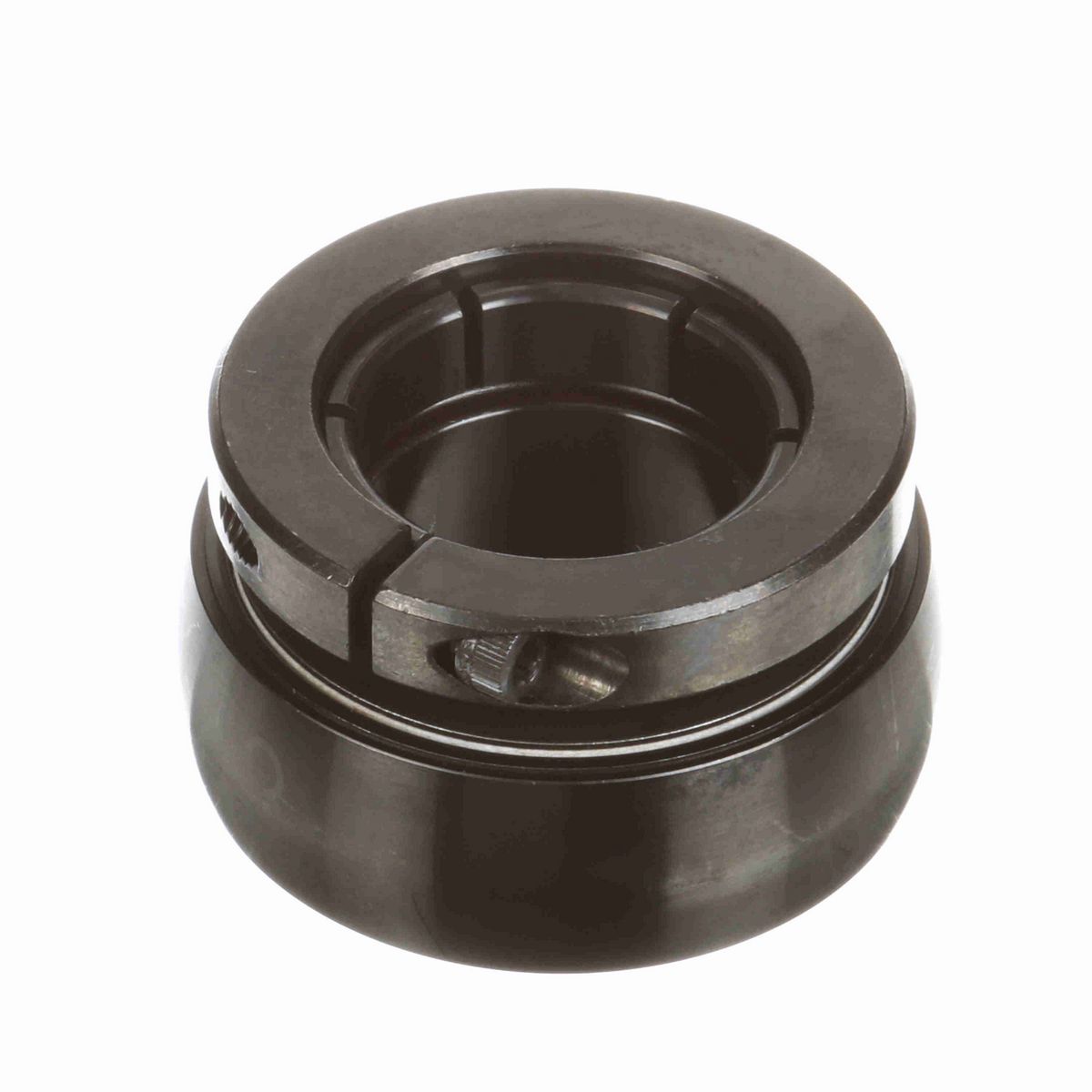

• Custom Sealmaster® mounted bearing insert with application specific features

Dimensions

Overall Width (in)	2.06 in
Bore Size (in)	1.7500 in
Outer Race OD (in)	3.346 in
Inner Race Length (in)	2.06 in
Centerline to Front Face (in)	1.31 in
Outer Race Width (in)	1.09 in
Inner Ring OD (in)	3 in
Collar OD (in)	3 in

Technical Specifications

Measure Units	Inch
Torx Cap Screw	1/4-20 X .75
Rolling Element	Ball Bearing
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Housing Type	Insert Only
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	7,901 lb
Speed (Max) (RPM)	5300 rpm
Misalignment Type	Static Only
Replaceable Insert	Yes
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Standard
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Maximum Operating Temperature (F)	220 °F
Lubrication Type	Lithium Complex NLGI 2 Grease
Retainer Type	Land Riding Retainer
Ability to Relubricate	Yes
Fixed vs. Expansion	No
Inner Race Heat Treat Method	Zone-Hardened
Type of Seal	Felt Labyrinth Seal
Duty/Series	Standard
Locking Type	Concentric

General Specifications

UPC	662461295229
Weight	2.63 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
