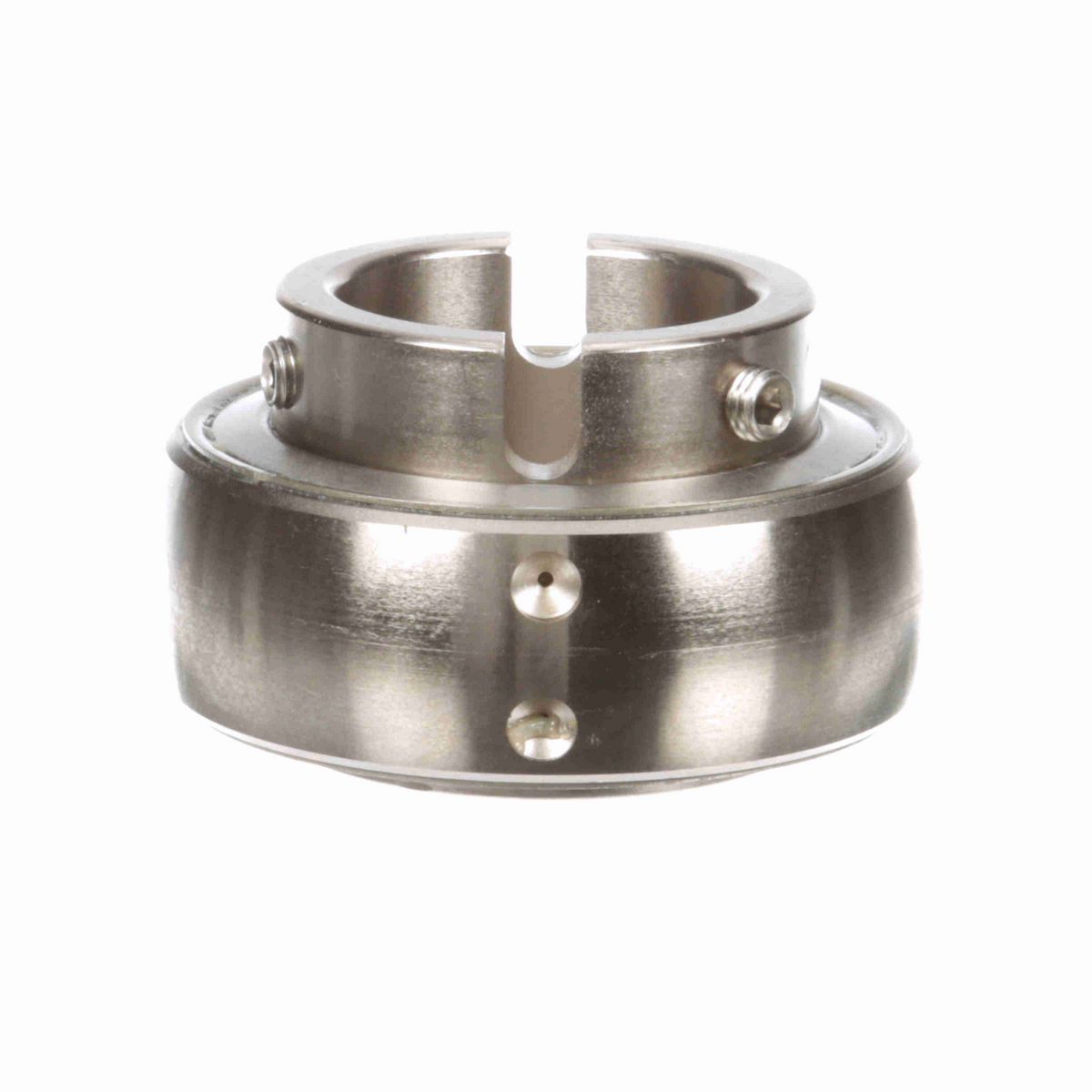

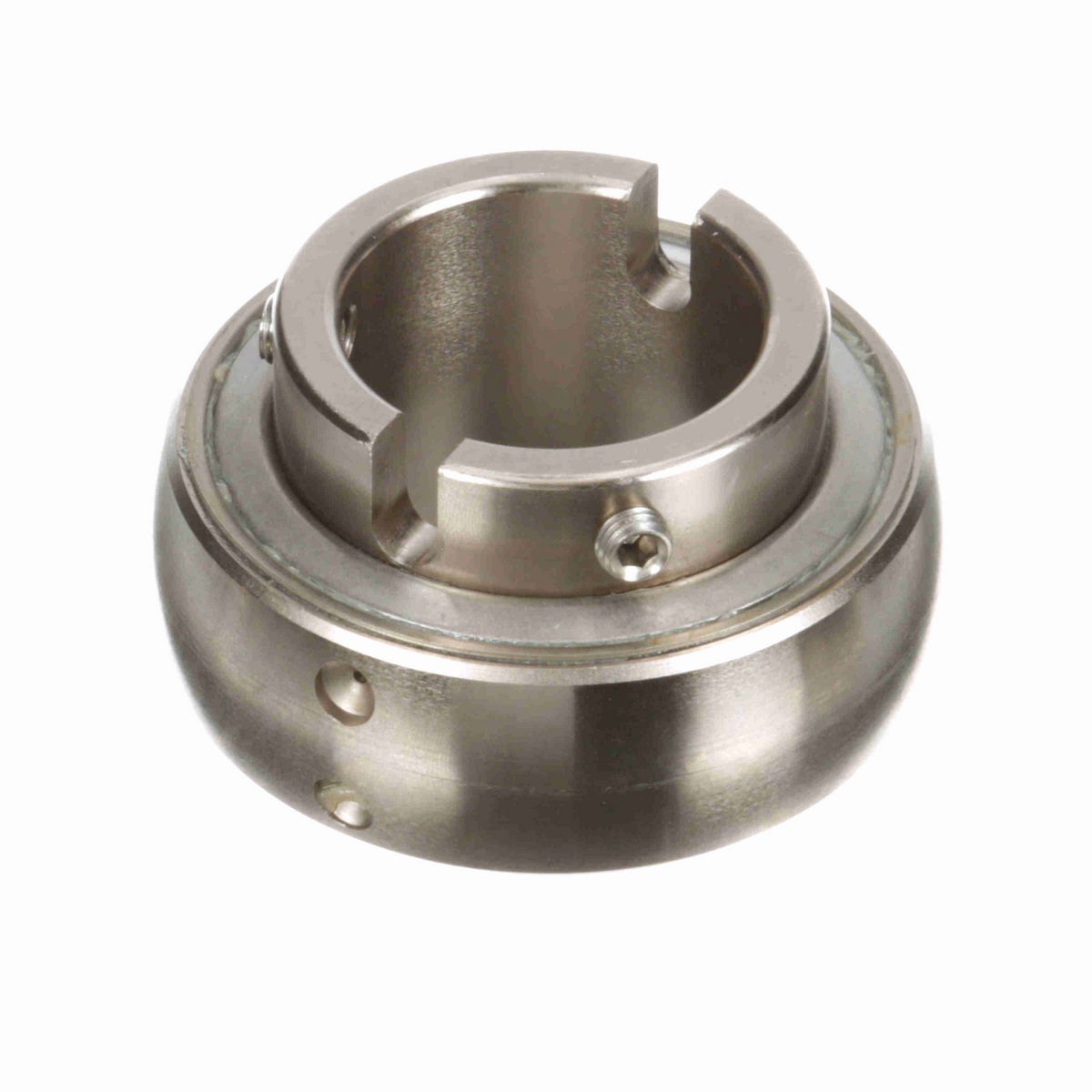

• Custom Sealmaster® mounted bearing insert with application specific features

Dimensions

Overall Width (in)	1.935 in
Bore Size (in)	1.7500 in
Outer Race Width (in)	1.09 in
Outer Race OD (in)	3.3461 in
Inner Race Length (in)	1.935 in
Centerline to Front Face (in)	1.185 in

Technical Specifications

Bore Shape	Straight
Measure Units	Inch
Housing Type	Insert Only
Insert Material	52100 Bearing Steel, Black Oxided
Set Screw Thread	5/16-24
Rolling Element	Ball Bearing
Radial Dynamic Load Capacity (lb)	7,901 lb
Speed (Max) (RPM)	350 rpm
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Replaceable Insert	Yes
Platform	Gold Line Ball Bearing
End Cap	No
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
Retainer Type	Land Riding Retainer
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Maximum Operating Temperature (F)	220 °F
Type of Seal	Triple Lip Contact Seal
Ability to Relubricate	Yes
Locking Type	Set Screw
Inner Race Heat Treat Method	Zone-Hardened
Duty/Series	Standard
Fixed vs. Expansion	No

General Specifications

UPC	662461280683
Weight	2.20 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
