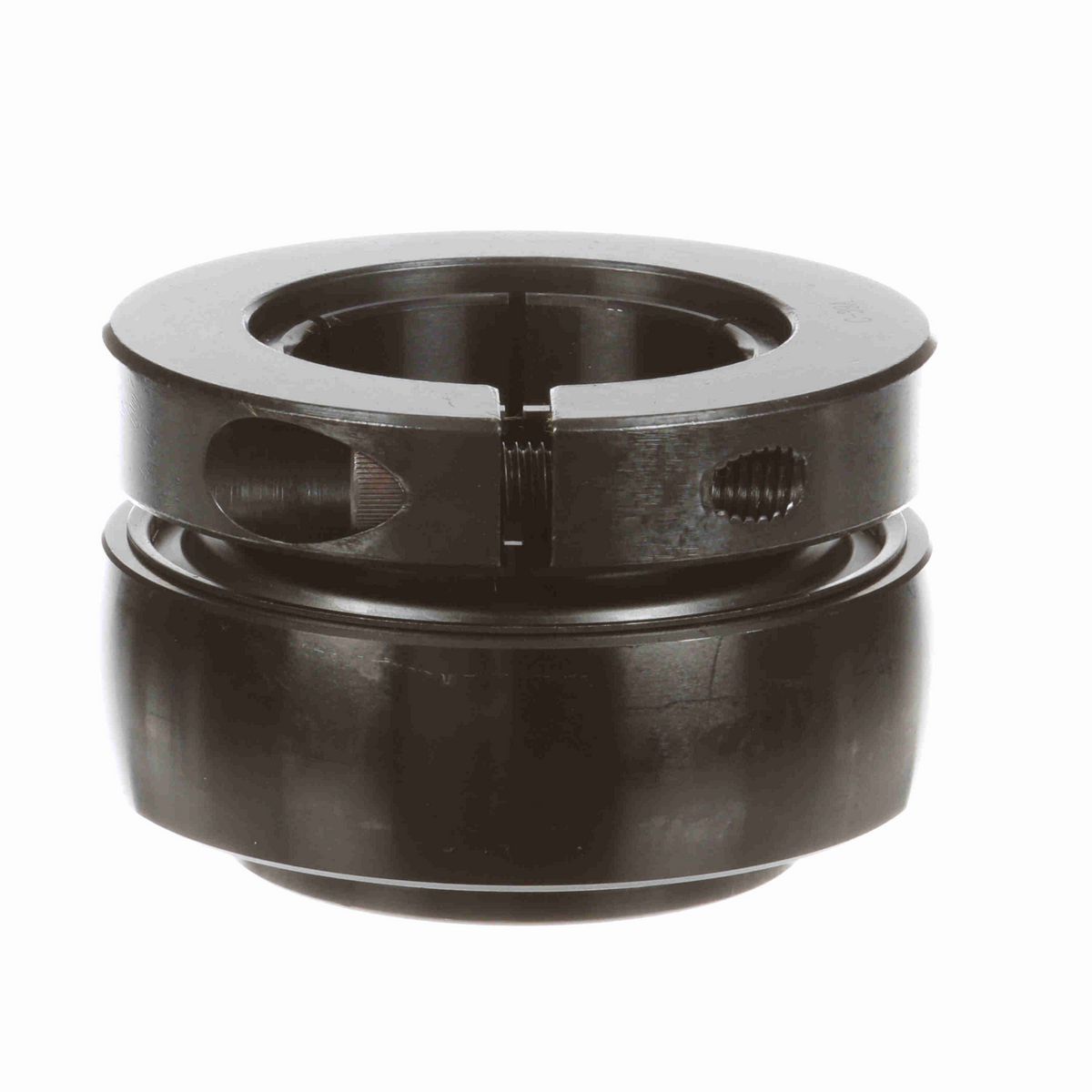

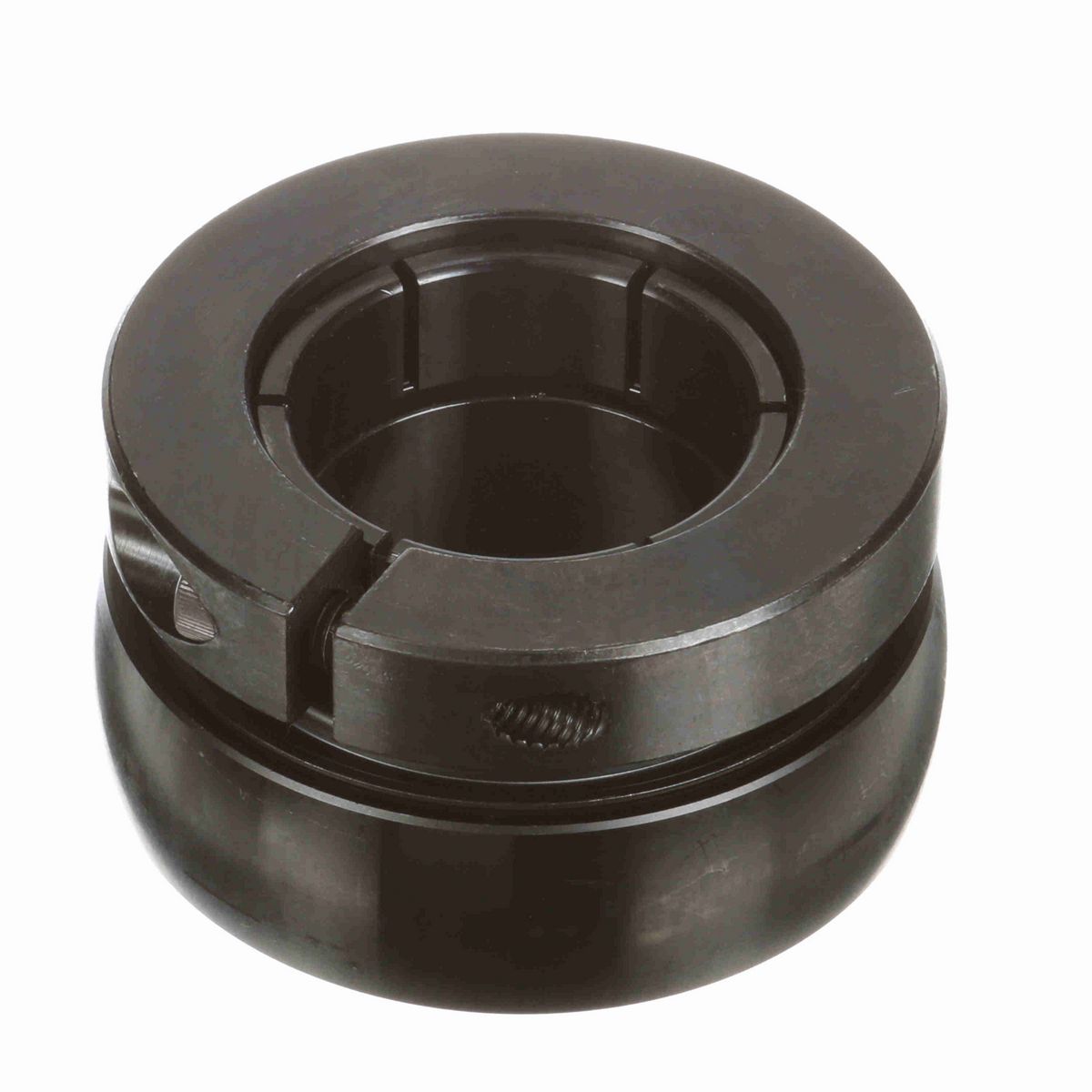

• Custom Sealmaster® mounted bearing insert with application specific features

Dimensions

Overall Width (in)	2.7 in
Bore Size (in)	2.2500 in
Inner Race Length (in)	2.56 in
Outer Race OD (in)	4.33 in
Outer Race Width (in)	1.25 in
Collar OD (in)	4.16 in
Centerline to Front Face (in)	1.7 in
Inner Ring OD (in)	4.16 in

Technical Specifications

Bore Shape	Straight
Radius	0.08
Insert Material	52100 Bearing Steel, Black Oxided
Rolling Element	Ball Bearing
Torx Cap Screw	3/8-16 X 1
Housing Type	Insert Only
Measure Units	Inch
Internal Clearance	Standard
Speed (Max) (RPM)	4100 rpm
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	11,789 lb
Bearing Insert Coating	Black Oxide Coated
Replaceable Insert	Yes
End Cap	No
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease
Duty/Series	Standard
Locking Type	Concentric
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Fixed vs. Expansion	No
Type of Seal	Single Lip Contact Seal
Inner Race Heat Treat Method	Zone-Hardened
Retainer Type	Land Riding Retainer

General Specifications

UPC	662461269671
Weight	5.15 LB
Packaged Length	4.75 IN
Packaged Width	2.63 IN
Packaged Height	4.81 IN
HTC	8482.10.5056
Country of Origin	Mexico
