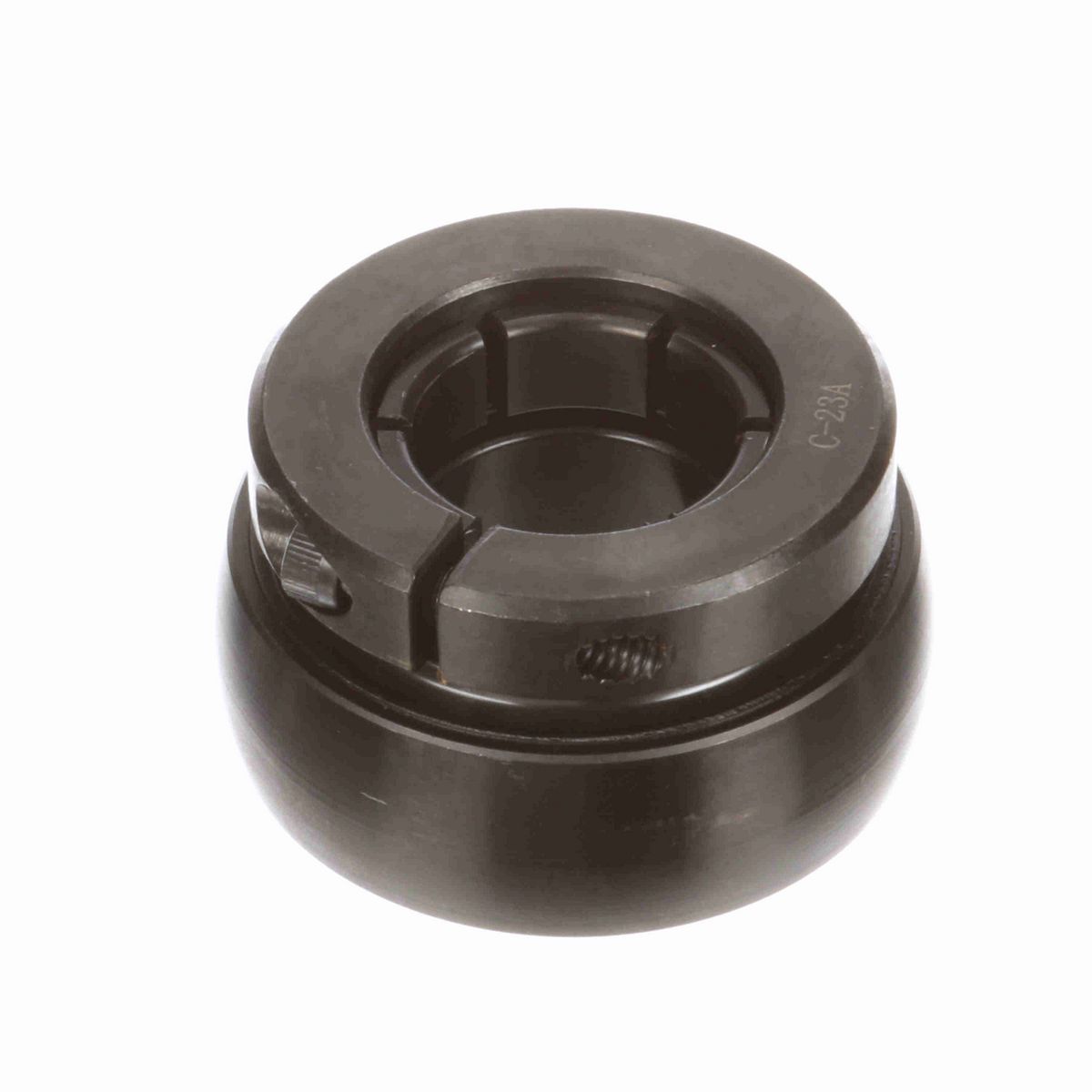

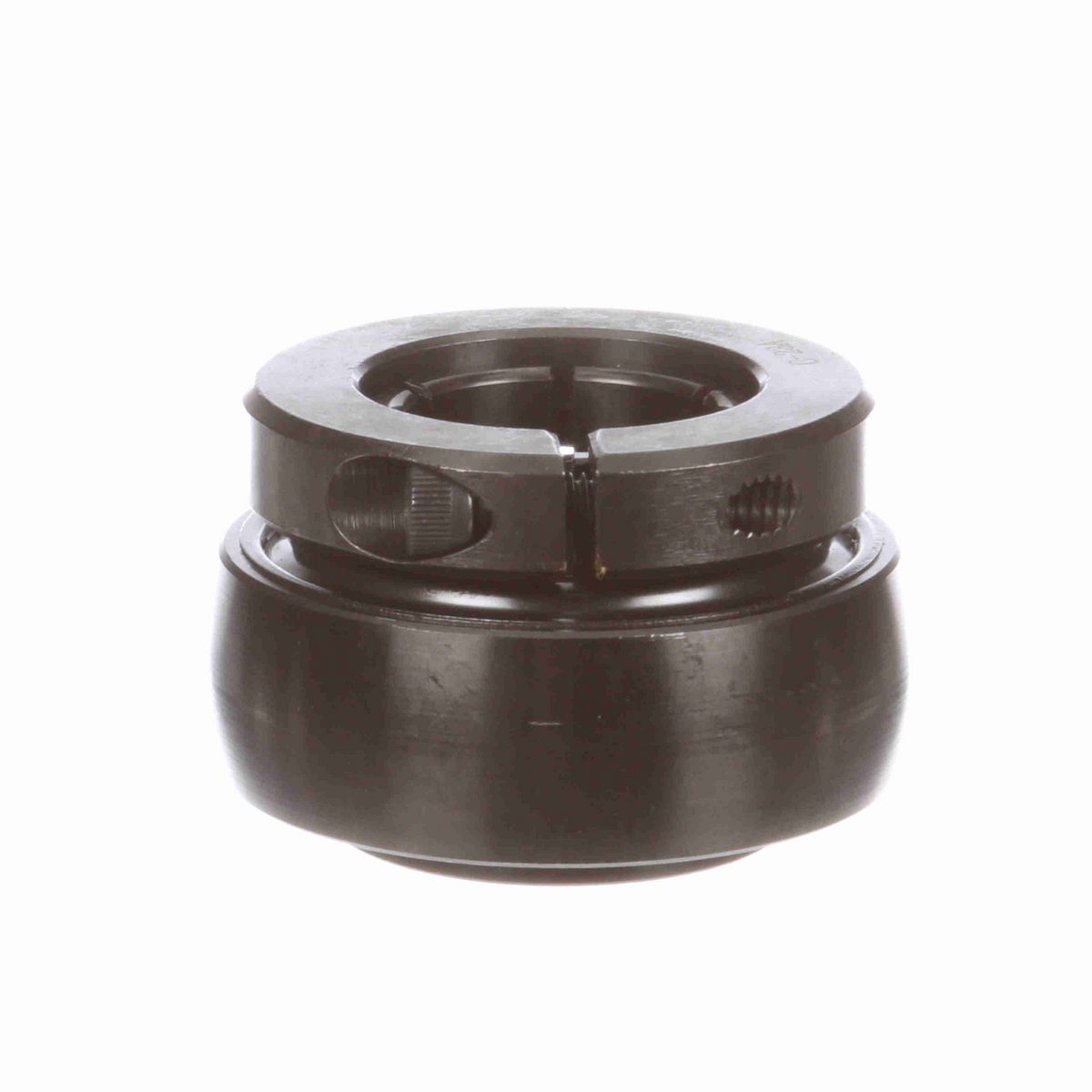

• Custom Sealmaster® mounted bearing insert with application specific features

Dimensions

Overall Width (in)	1.81 in
Bore Size (in)	1.2500 in
Collar OD (in)	2.5 in
Outer Race OD (in)	2.834 in
Inner Race Length (in)	1.81 in
Inner Ring OD (in)	2.5 in
Centerline to Front Face (in)	1.12 in
Outer Race Width (in)	0.94 in

Technical Specifications

Insert Material	52100 Bearing Steel, Black Oxided
Measure Units	Inch
Radius	0.04
Rolling Element	Ball Bearing
Housing Type	Insert Only
Bore Shape	Straight
Torx Cap Screw	1/4-20 X .75
Radial Dynamic Load Capacity (lb)	5,782 lb
Misalignment	±2.0° Misalignment - Static Only
Speed (Max) (RPM)	4650 rpm
Internal Clearance	Standard
Outer Ring Land Profile	Standard
Replaceable Insert	Yes
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
End Cap	No
Locking Type	Concentric
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened
Fixed vs. Expansion	No
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Duty/Series	Standard
Type of Seal	Single Lip Contact Seal
Retainer Type	Land Riding Retainer

General Specifications

UPC	662461269664
Weight	1.68 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
