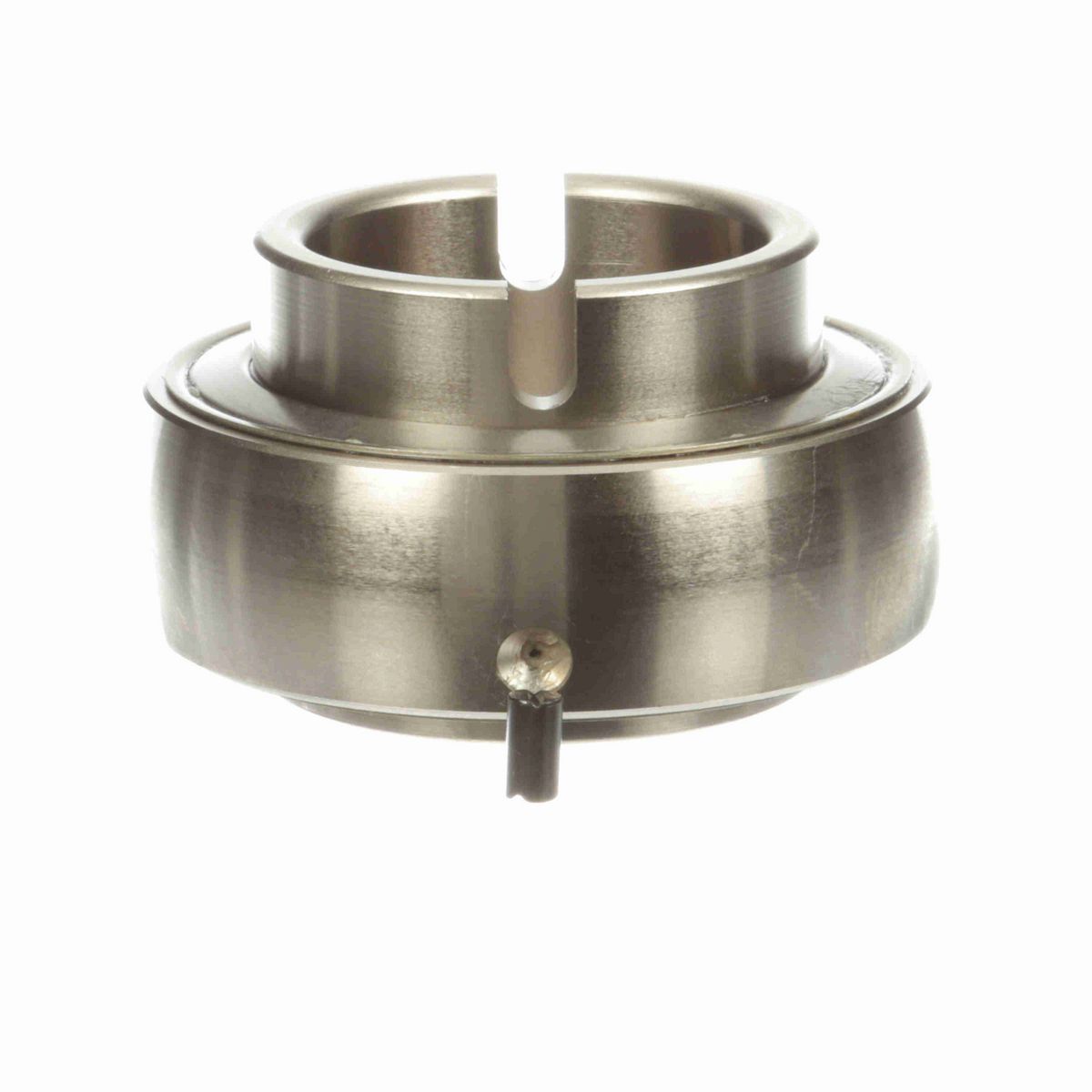

• Custom Sealmaster® mounted bearing insert with application specific features

Dimensions

Overall Width (in)	2.19 in
Bore Size (in)	2.1875 in
Inner Ring OD (in)	2.71 in
Outer Race Width (in)	1.19 in
Outer Race OD (in)	3.937 in
Centerline to Front Face (in)	1.31 in
Inner Race Length (in)	2.19 in

Technical Specifications

Bore Shape	Straight
Radius	0.08
Measure Units	Inch
Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel, Phosphorus Nickel Coated
Housing Type	Insert Only
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	9,752 lb
Speed (Max) (RPM)	3250 rpm
Bearing Insert Coating	Phosphorus Nickel Coated
End Cap	No
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Standard
Replaceable Insert	Yes
Misalignment Type	Static Only
Cage Material	PPS
Lubrication Type	Lithium Complex NLGI 2 Grease
Ability to Relubricate	Yes
Duty/Series	Standard
Locking Type	No Locking
Inner Race Heat Treat Method	Zone-Hardened
Type of Seal	Single Lip Contact Seal
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No
Retainer Type	Land Riding Retainer

General Specifications

UPC	662461391372
Weight	2.80 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
