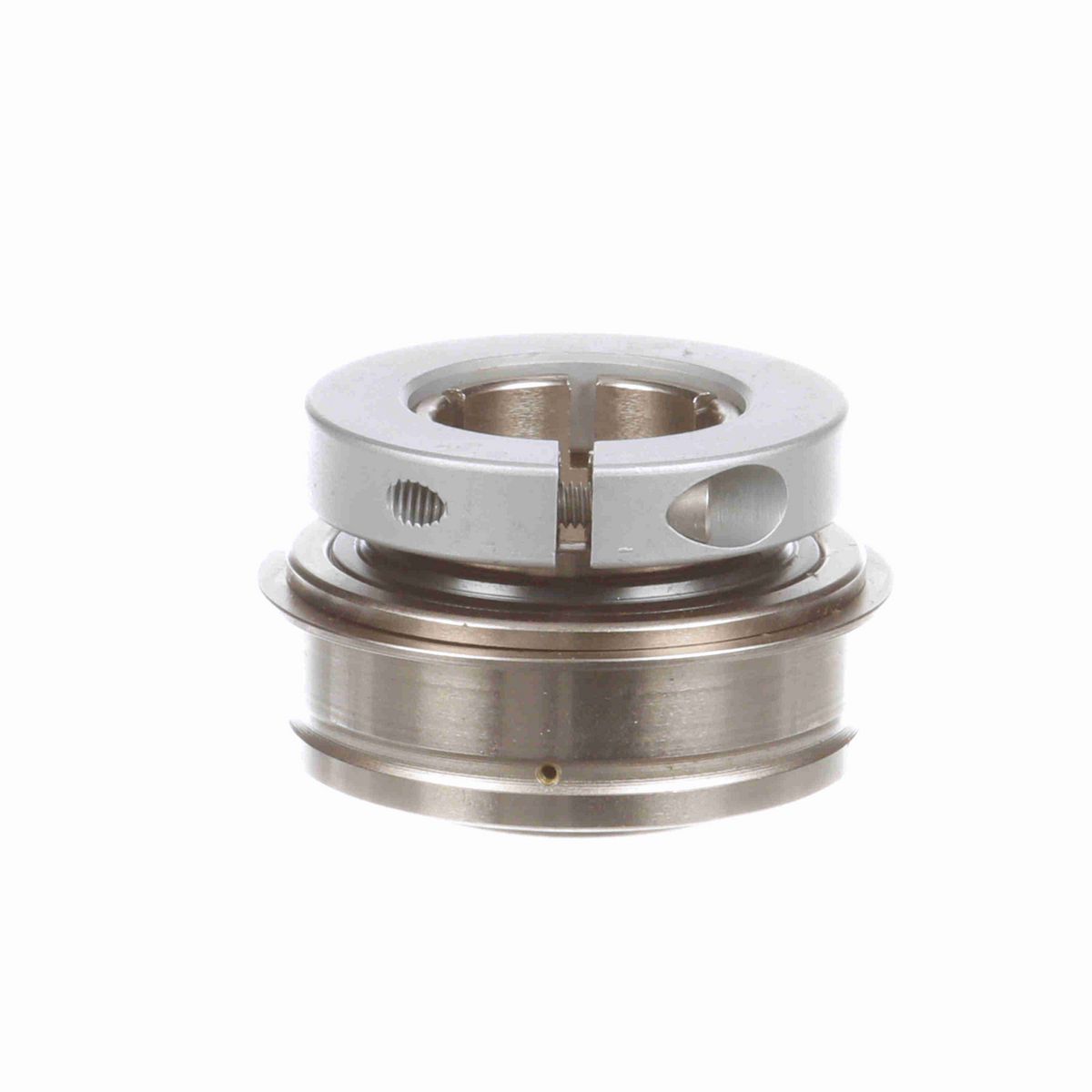

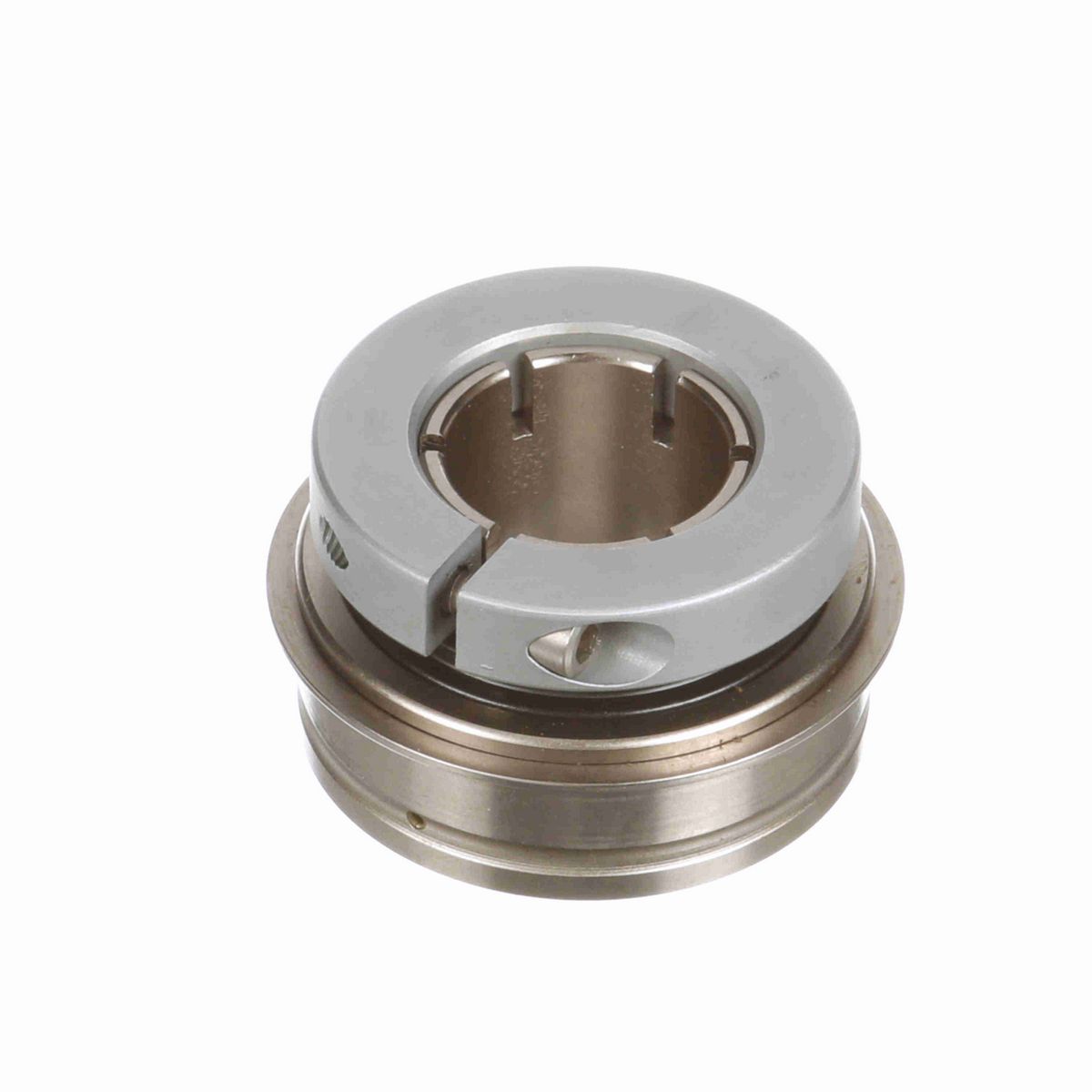

• Custom Sealmaster® mounted bearing insert with application specific features

Dimensions

Overall Width (in)	1.435 in
Bore Size (in)	1 in
Centerline to Front Face (in)	0.925 in
Collar OD (in)	1.937 in
Outer Race Width (in)	0.75 in
Outer Race OD (in)	2.047 in
Inner Race Length (in)	1.435 in
Inner Ring OD (in)	1.937 in

Technical Specifications

Housing Type	Insert Only
Bore Shape	Straight
Measure Units	Inch
Radius	0.04
Insert Material	52100 Bearing Steel, Phosphorus Nickel Coated
Rolling Element	Ball Bearing
Speed (Max) (RPM)	550 rpm
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	2,801 lb
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Standard
Bearing Insert Coating	Phosphorus Nickel Coated
Misalignment Type	Static Only
End Cap	No
Replaceable Insert	Yes
Ability to Relubricate	Yes
Duty/Series	Standard
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Retainer Type	Land Riding Retainer
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Concentric
Type of Seal	Triple Lip Contact Seal

General Specifications

UPC	662461188392
Weight	0.70 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
