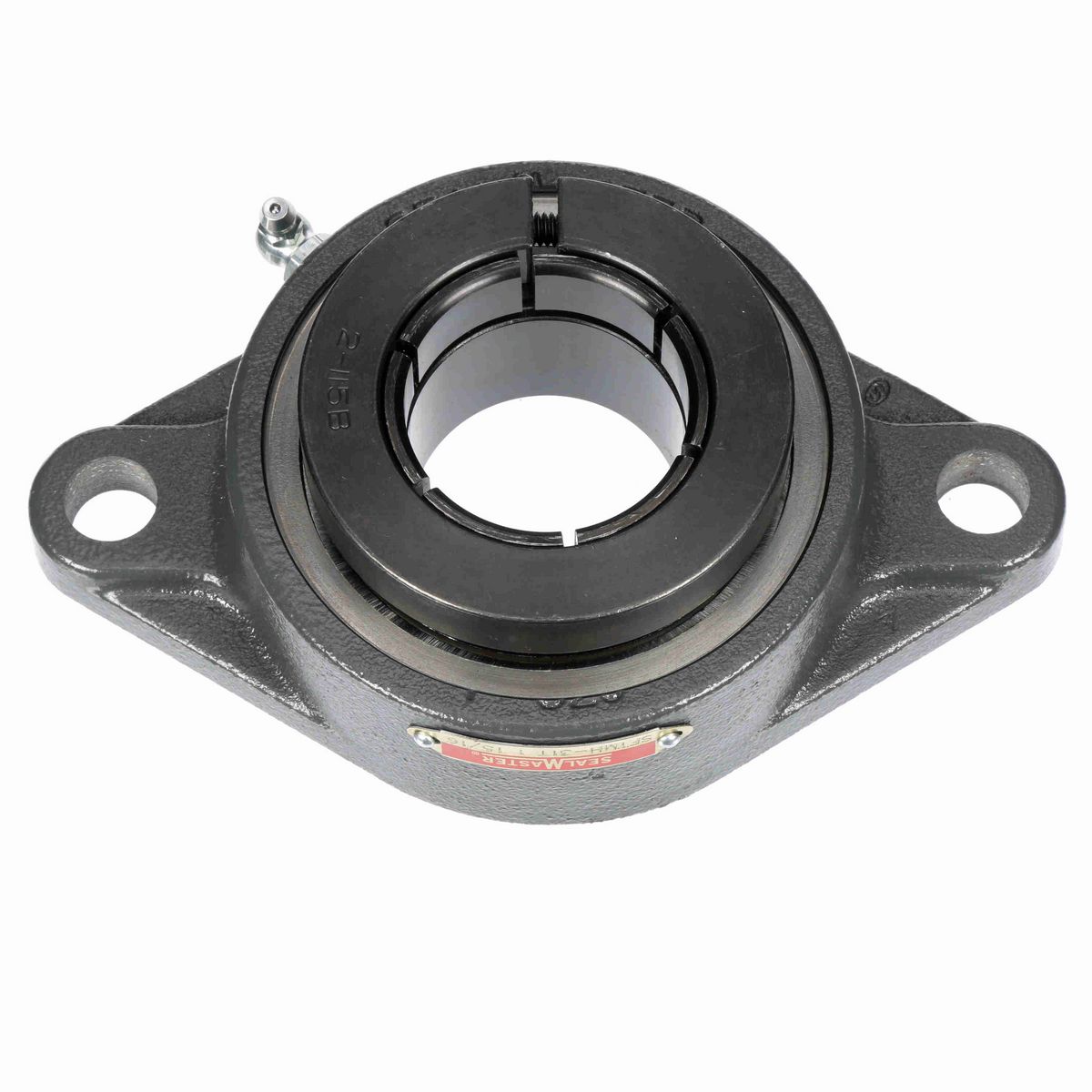

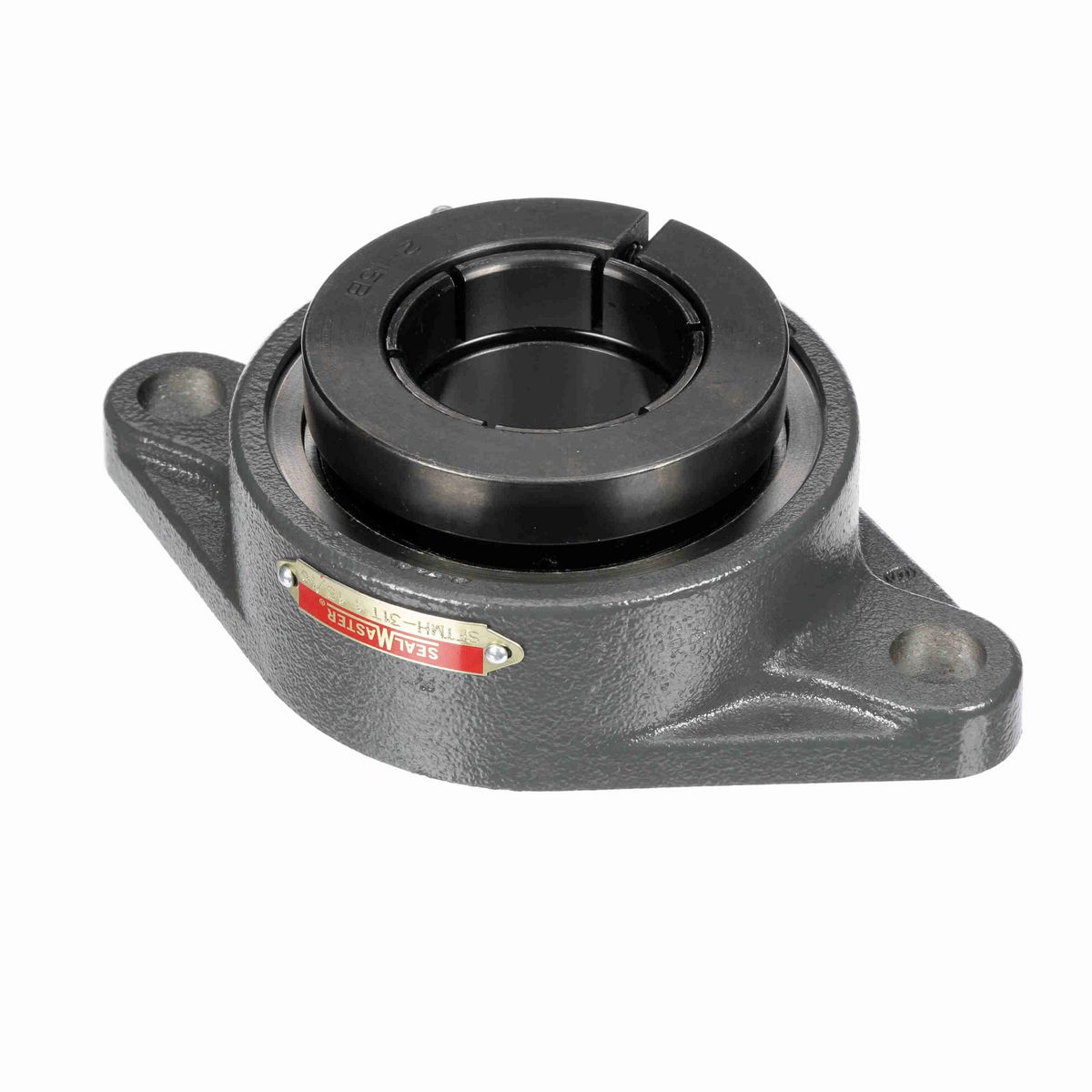

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Skwezloc® Concentric locking for near perfect concentricity
• Single lip contact seal and flinger
• Supplied with 90° lubrication fitting installed

Dimensions

Overall Width (in)	4.56 in
Bolt Size (in)	5/8 in
Overall Height (in)	2.219 in
Overall Length (in)	7.44 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.56 in
Overall Height to End Cap (in)	2.98 in
Length Through Bore (in)	2.17 in
Bolt Spacing (in)	6.1875 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	3.38 in
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Size Code	2-115
Misalignment Capability	±2.0° Misalignment - Static Only
Shaft Locking Type	Concentric
Inner Ring Outside Diameter (in)	2.469 in
Insert	MH-31T
Grease Fitting Thread Size	1/8 NPT
End Cap Available	No
Bearing Insert Finish	Black Oxide
Cage Type	Land Riding Retainer
Lubricant	Lithium Complex NLGI 2 Grease
Maximum Speed (RPM)	3000 rpm
Max Operating Temperature (C)	104 °C
Static Load Rating (lb)	5,216 lb
Max Operating Temperature (F)	220 °F
Bearing Type	Standard Duty
Housing Material	Cast Iron
Dynamic Load Rating (lb)	7,889 lb

General Specifications

UPC	662461340530
Weight	5.21 LB
Packaged Length	4.70 IN
Packaged Width	7.80 IN
Packaged Height	2.50 IN
HTC	8483.20.4040
Country of Origin	Mexico
