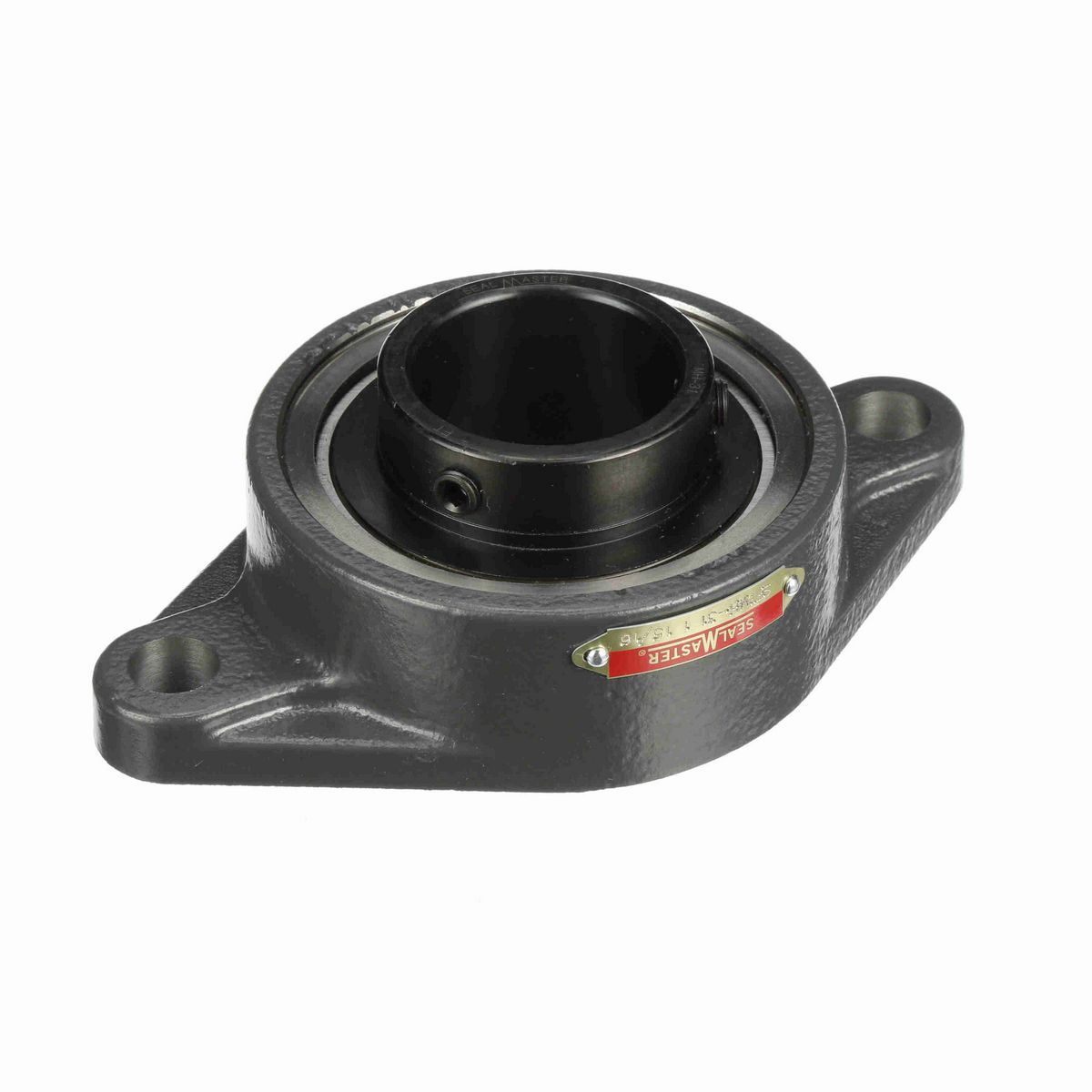

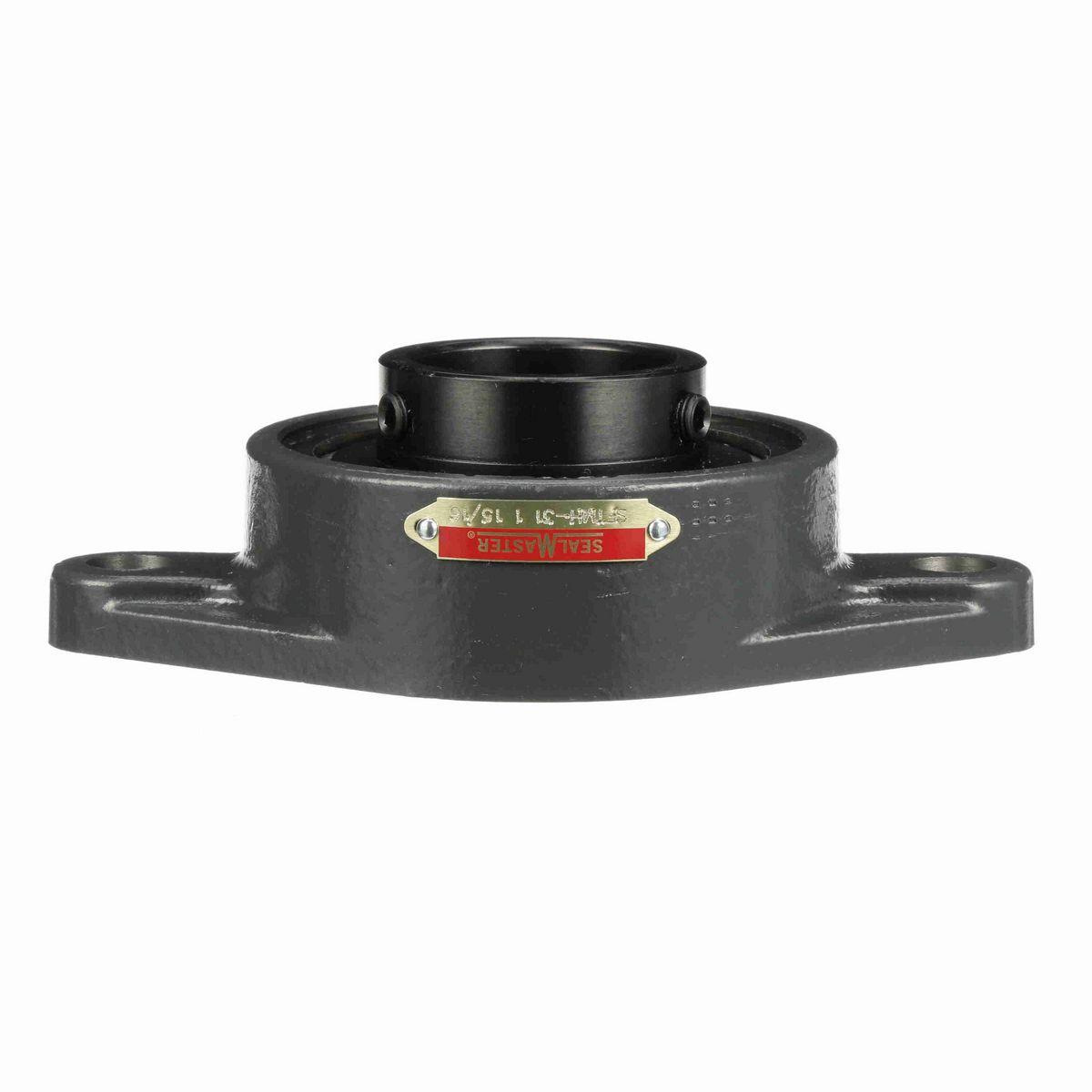

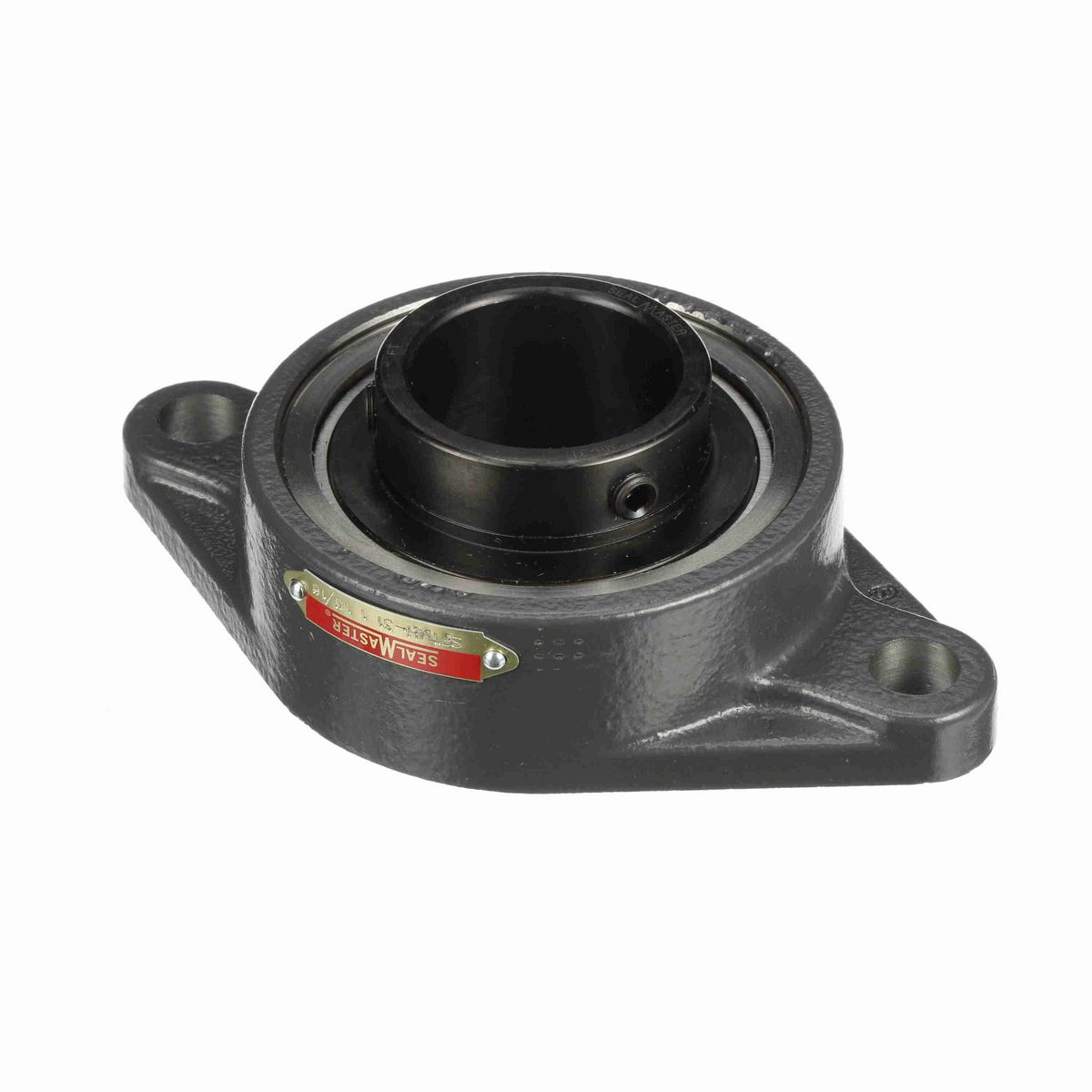

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Bolt Size (in)	5/8 in
Overall Width (in)	4.56 in
Overall Length (in)	7.44 in
Overall Height (in)	2.156 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.56 in
Overall Height to End Cap (in)	2.98 in
Length Through Bore (in)	2.031 in
Bolt Spacing (in)	6.1875 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
End Cap Available	No
Lubricant	Lithium Complex NLGI 2 Grease
Housing Coating	Powder Coated
Size Code	2-115
Grease Fitting Thread Size	1/8 NPT
Fixed vs. Expansion	Fixed
Cage Type	Land Riding Retainer
Max Operating Temperature (C)	104 °C
Inner Ring Outside Diameter (in)	2.469 in
Bearing Type	Standard Duty
Dynamic Load Rating (lb)	7,889 lb
Static Load Rating (lb)	5,216 lb
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Misalignment Capability	±2.0° Misalignment - Static Only
Shaft Locking Type	Set Screw
Bearing Insert Material	52100 Bearing Steel
Insert	MH-31
Housing Material	Cast Iron
Maximum Speed (RPM)	3000 rpm
Max Operating Temperature (F)	220 °F

General Specifications

UPC	662461342824
Weight	4.67 LB
Packaged Length	4.90 IN
Packaged Width	2.30 IN
Packaged Height	7.80 IN
HTC	8483.20.4040
Country of Origin	Mexico
