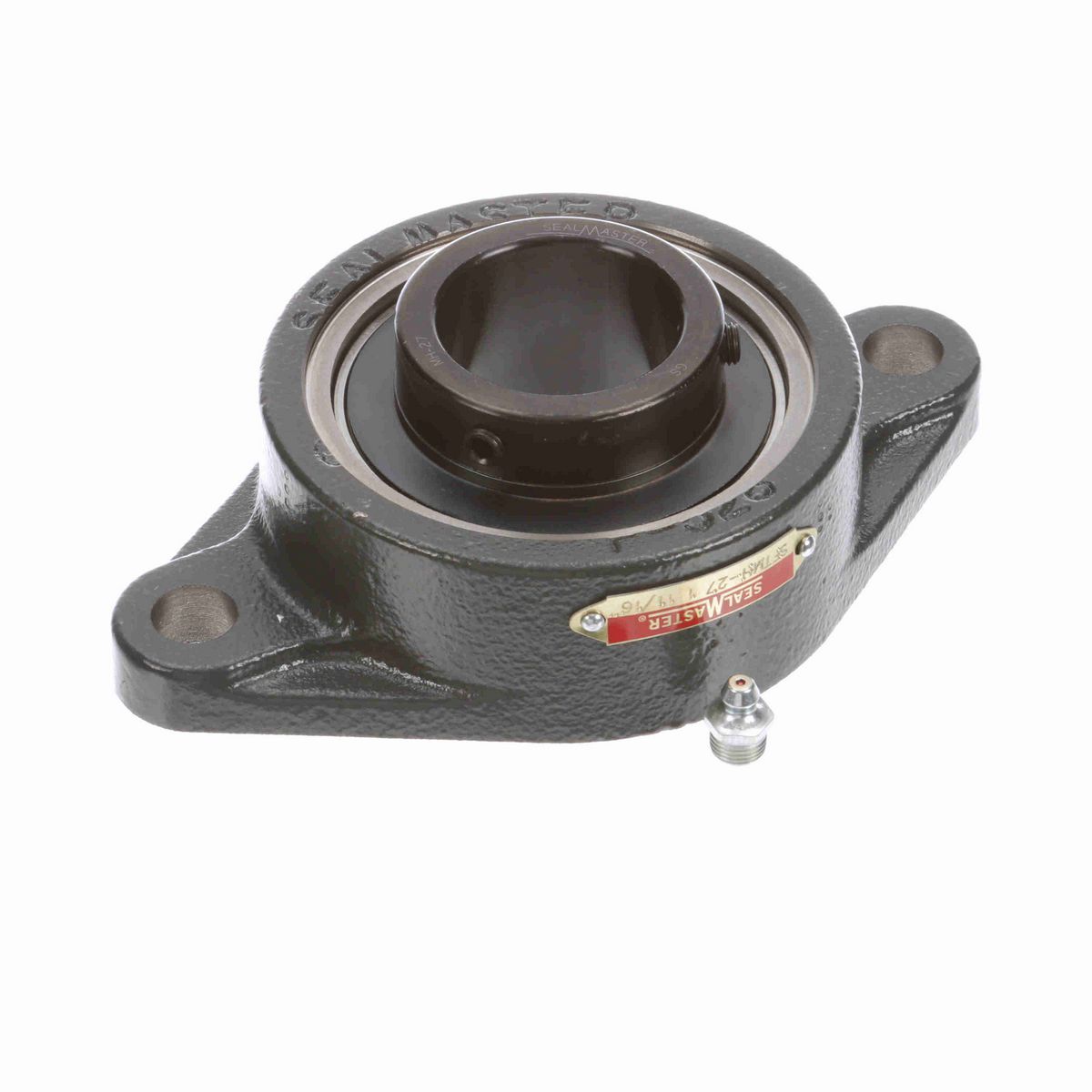

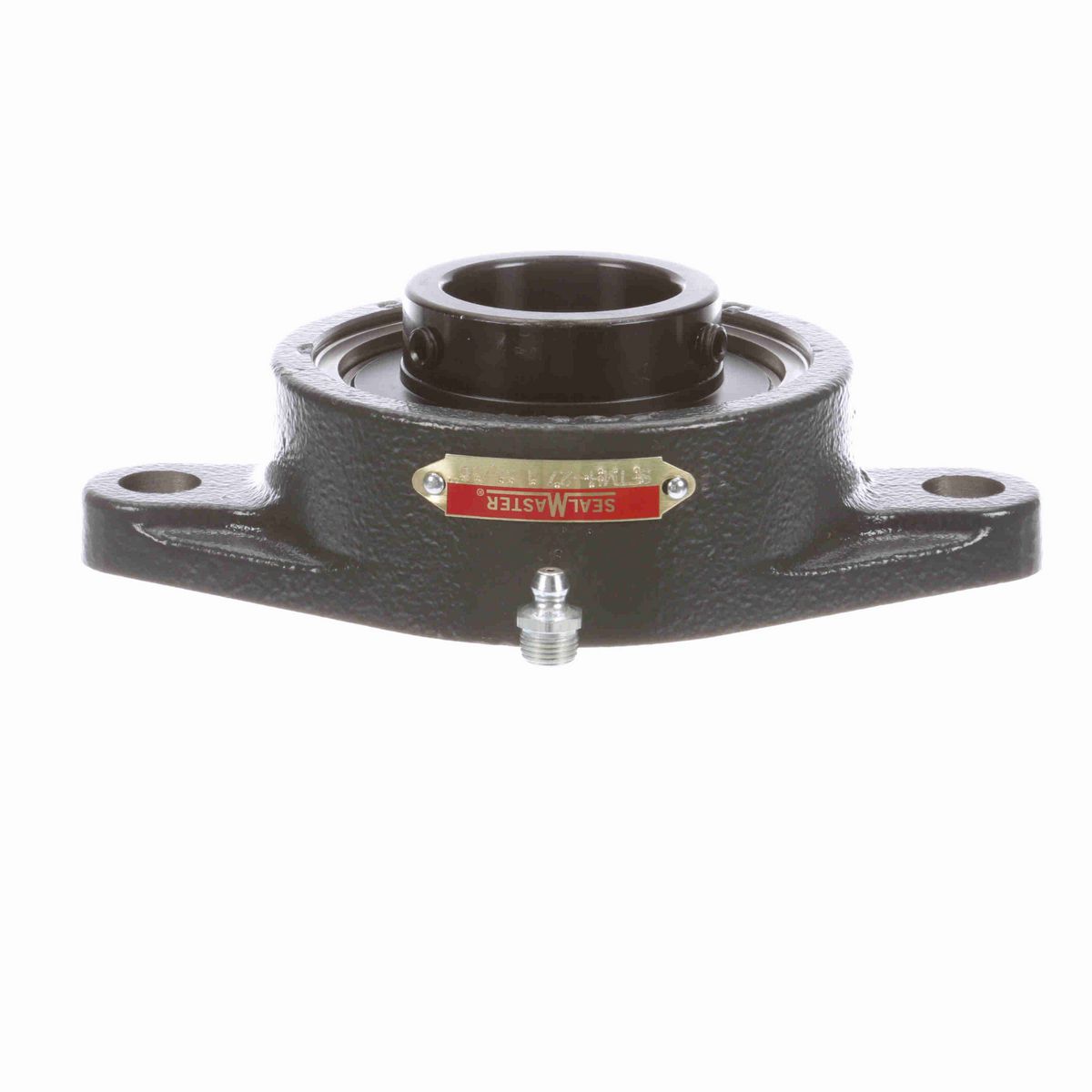

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	4.38 in
Overall Length (in)	7.06 in
Overall Height (in)	2.047 in
Bore Diameter (in)	1.6875 in
Foot Height (in)	0.56 in
Overall Height to End Cap (in)	3 in
Length Through Bore (in)	1.938 in
Bolt Spacing (in)	5.8438 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Radial Clearance	Standard
Max Operating Temperature (C)	104 °C
End Cap Available	No
Grease Fitting Thread Size	1/4-28
Size Code	2-111
Lubricant	Lithium Complex NLGI 2 Grease
Misalignment Capability	±2.0° Misalignment - Static Only
Static Load Rating (lb)	5,139 lb
Cage Type	Land Riding Retainer
Shaft Locking Type	Set Screw
Maximum Speed (RPM)	3000 rpm
Dynamic Load Rating (lb)	7,901 lb
Max Operating Temperature (F)	220 °F
Fixed vs. Expansion	Fixed
Inner Ring Outside Diameter (in)	2.297 in
Housing Material	Cast Iron
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel
Bearing Type	Standard Duty
Insert	MH-27
Bearing Insert Finish	Black Oxide

General Specifications

UPC	662461342817
Weight	4.44 LB
Packaged Length	7.70 IN
Packaged Width	4.80 IN
Packaged Height	2.30 IN
HTC	8483.20.4040
Country of Origin	Mexico
