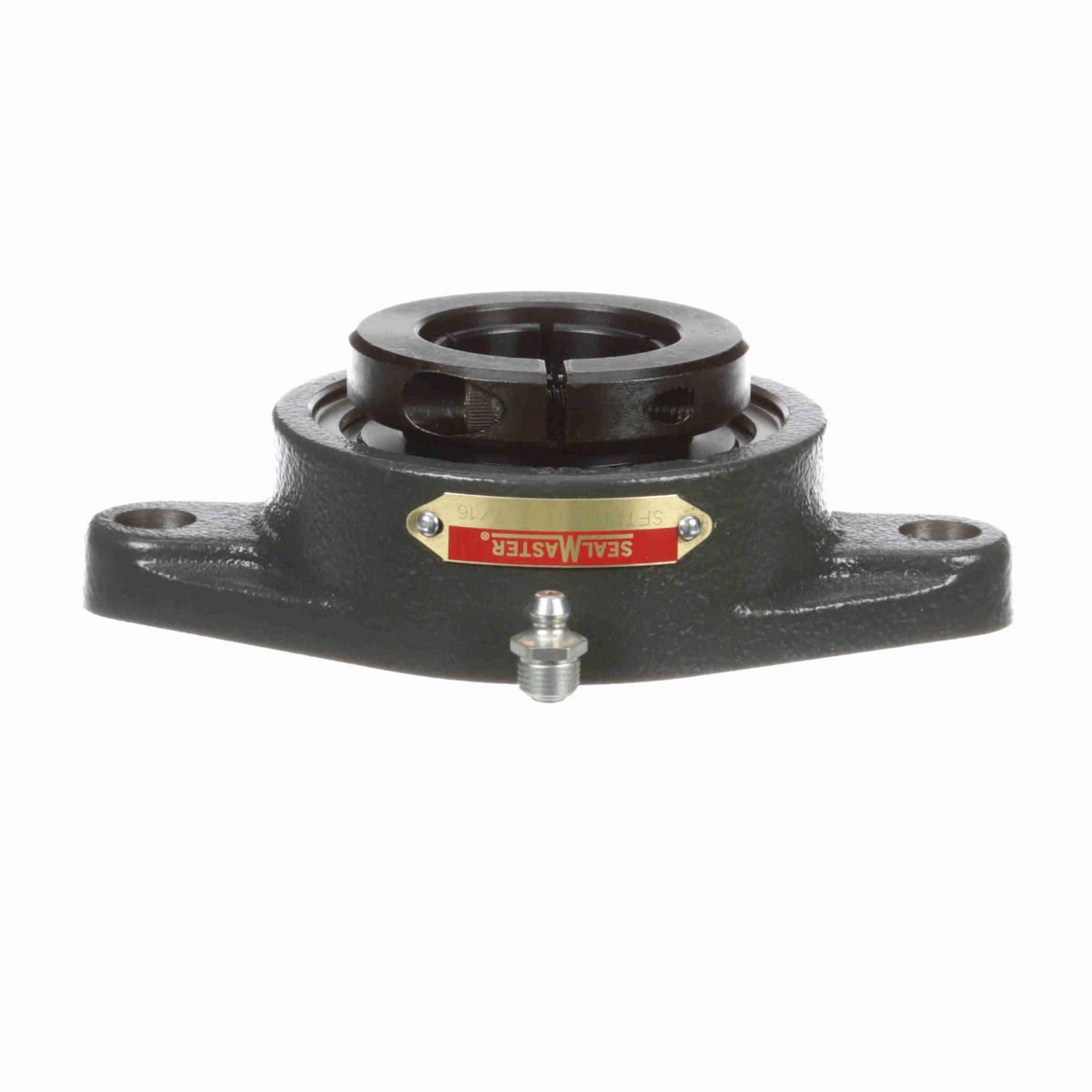

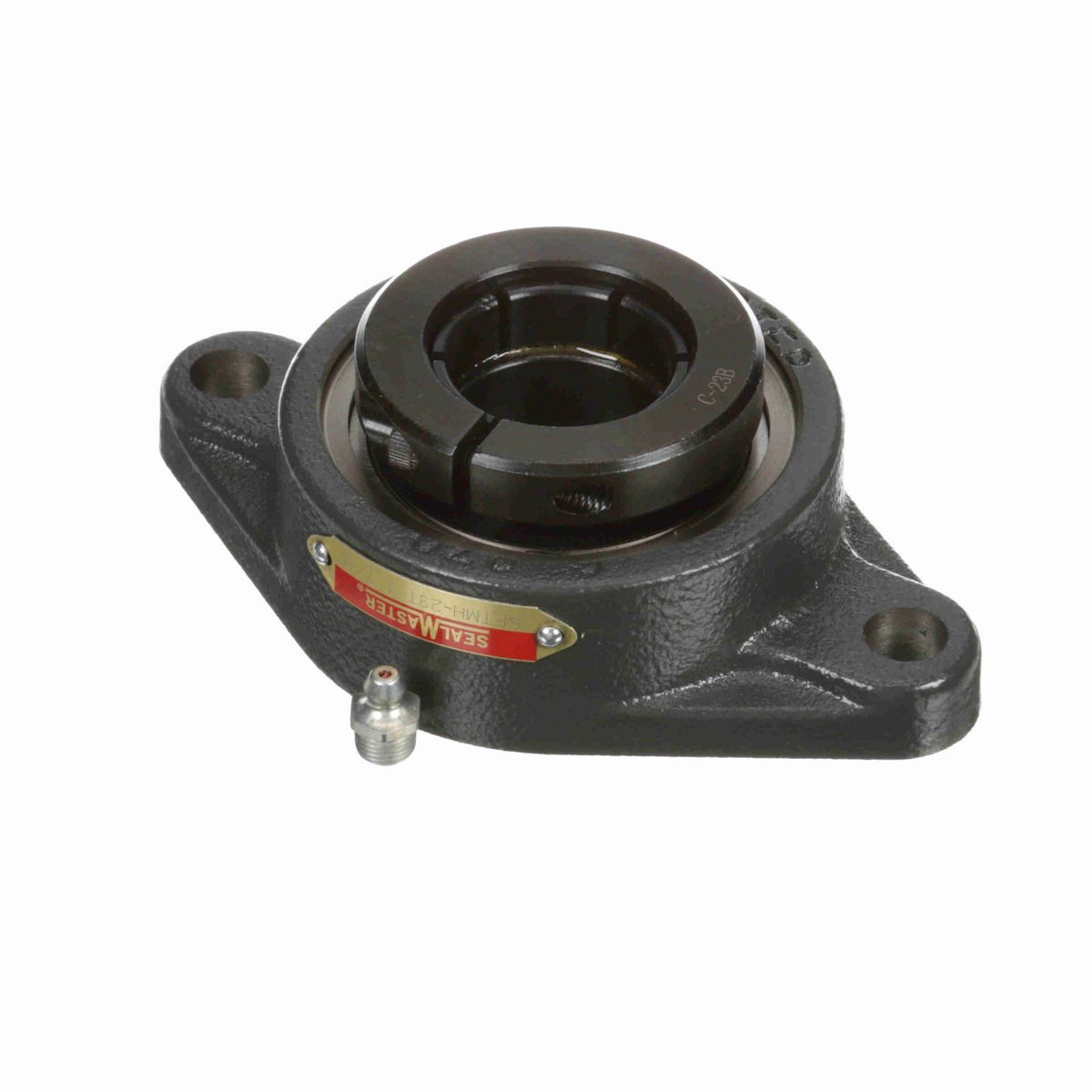

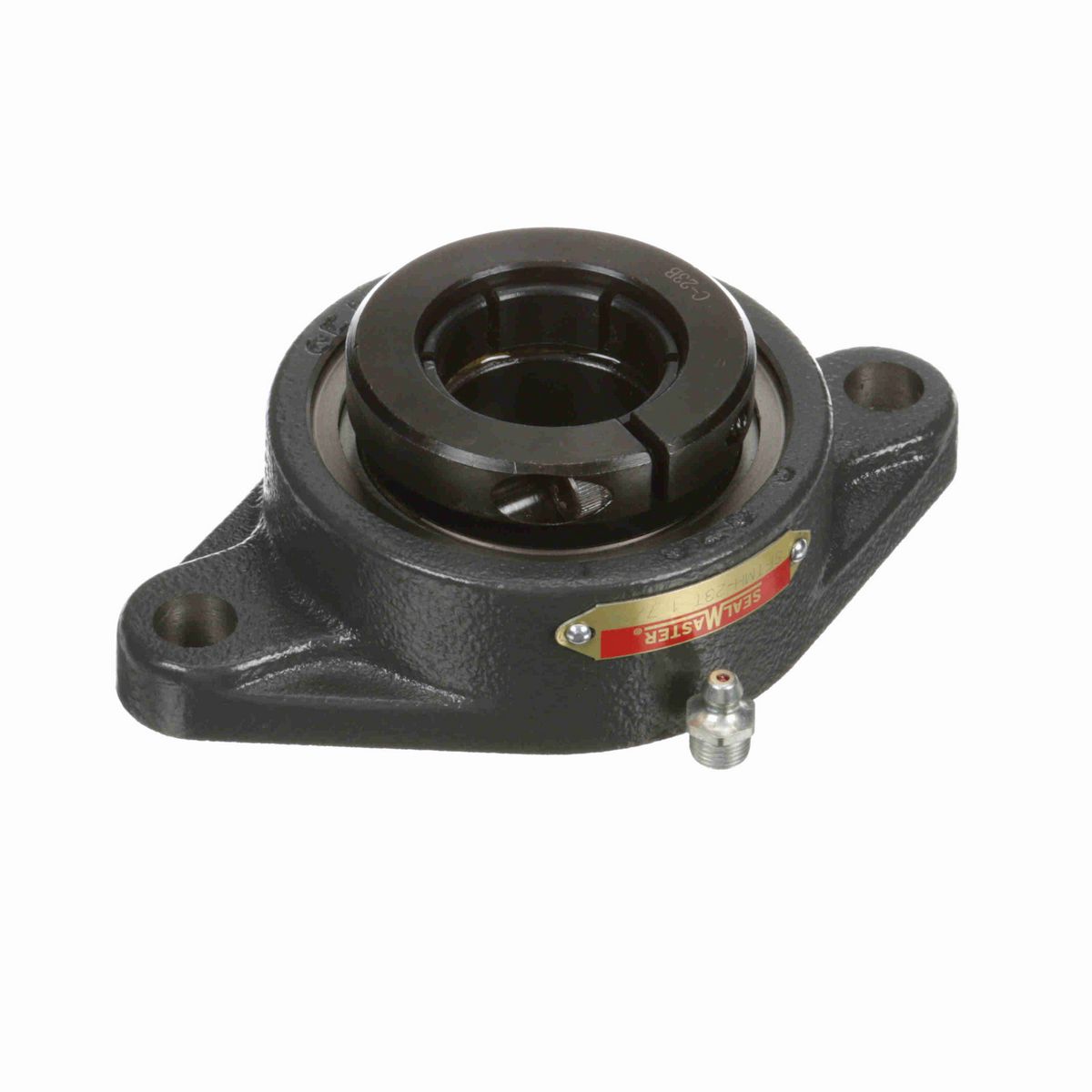

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Skwezloc® Concentric locking for near perfect concentricity
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Overall Width (in)	3.75 in
Bolt Size (in)	1/2 in
Overall Length (in)	6.13 in
Overall Height (in)	1.81 in
Bore Diameter (in)	1.4375 in
Overall Height to End Cap (in)	2.67 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.81 in
Bolt Spacing (in)	5.1250 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.56 in
Vibration Frequency Roller Spin	0.0386 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Shaft Locking Type	Concentric
Inner Ring Outside Diameter (in)	1.859 in
Size Code	2-17
Grease Fitting Thread Size	1/4-28
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	3,493 lb
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	5,782 lb
Lubricant	Lithium Complex NLGI 2 Grease
End Cap Available	No
Vibration Frequency Inner Ring Defect	0.0905 cps
Bearing Type	Standard Duty
Housing Coating	Powder Coated
Housing Material	Cast Iron
Vibration Frequency Fundamental Train	0.0066 cps
Max Operating Temperature (F)	220 °F
Radial Clearance	Standard
Vibration Frequency Outer Ring Defect	0.0595 cps
Maximum Speed (RPM)	4000 rpm
Insert	MH-23T
Bearing Insert Finish	Black Oxide

General Specifications

UPC	662461332139
Weight	3.13 LB
Packaged Length	5.30 IN
Packaged Width	5.00 IN
Packaged Height	1.80 IN
HTC	8483.20.4040
Country of Origin	Mexico
