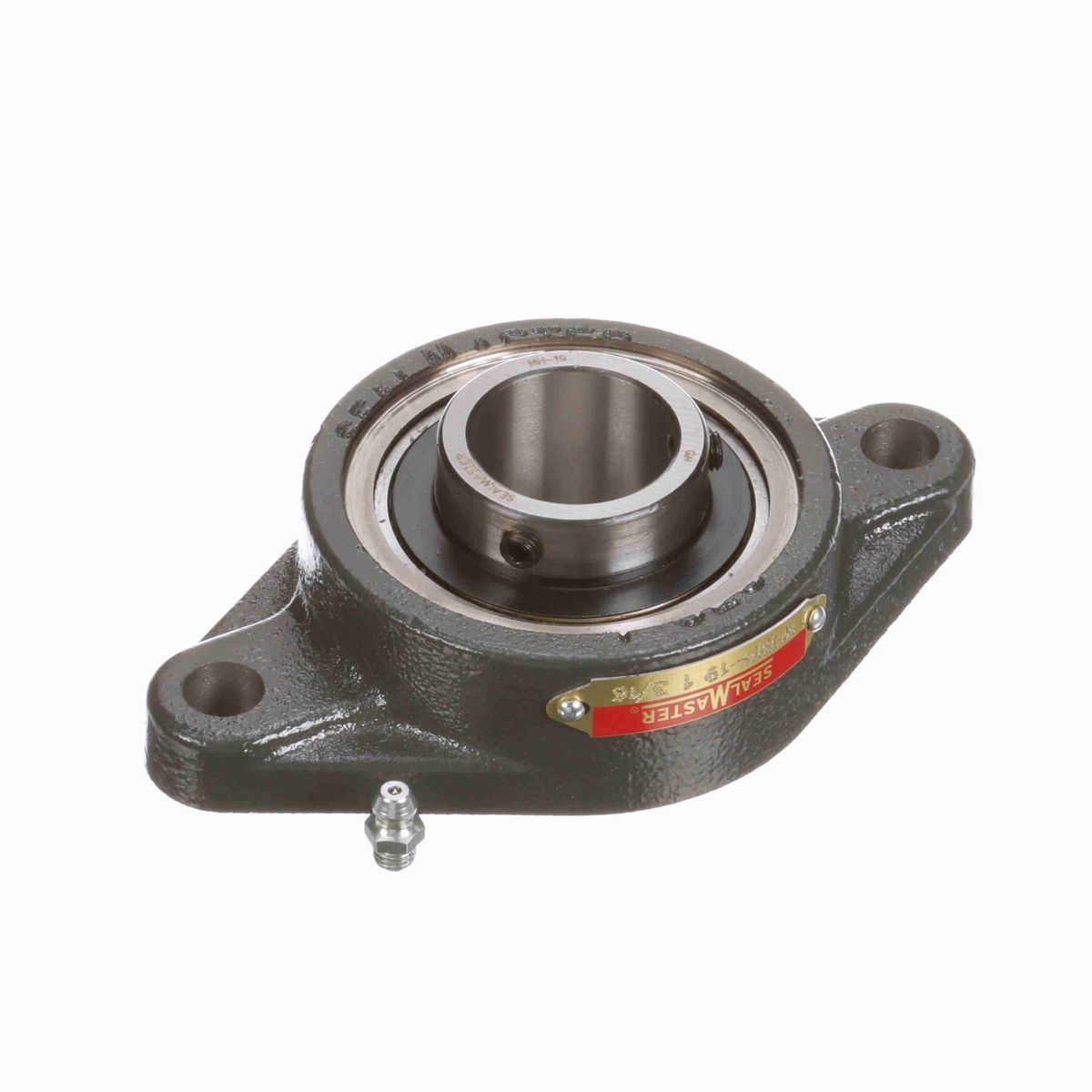

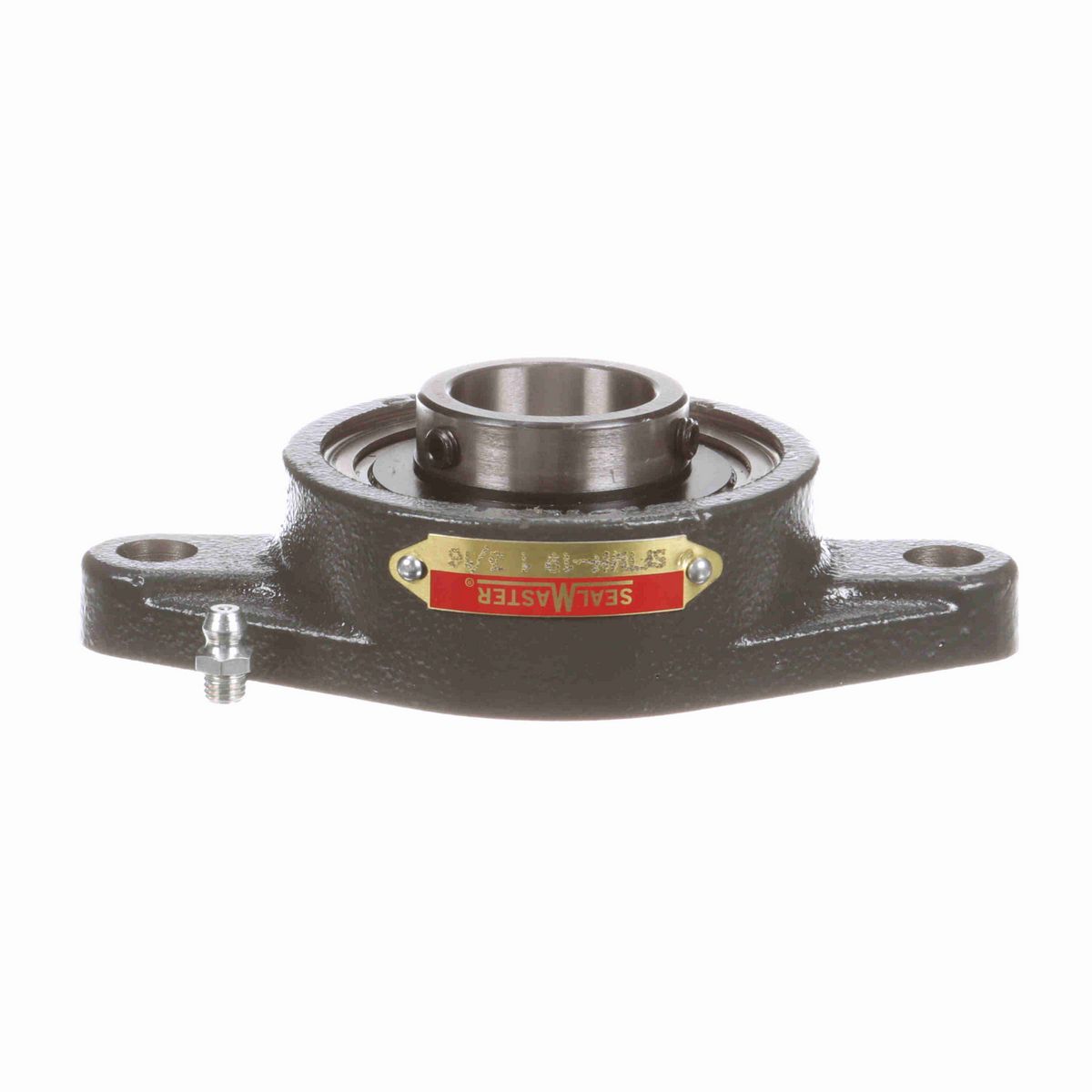

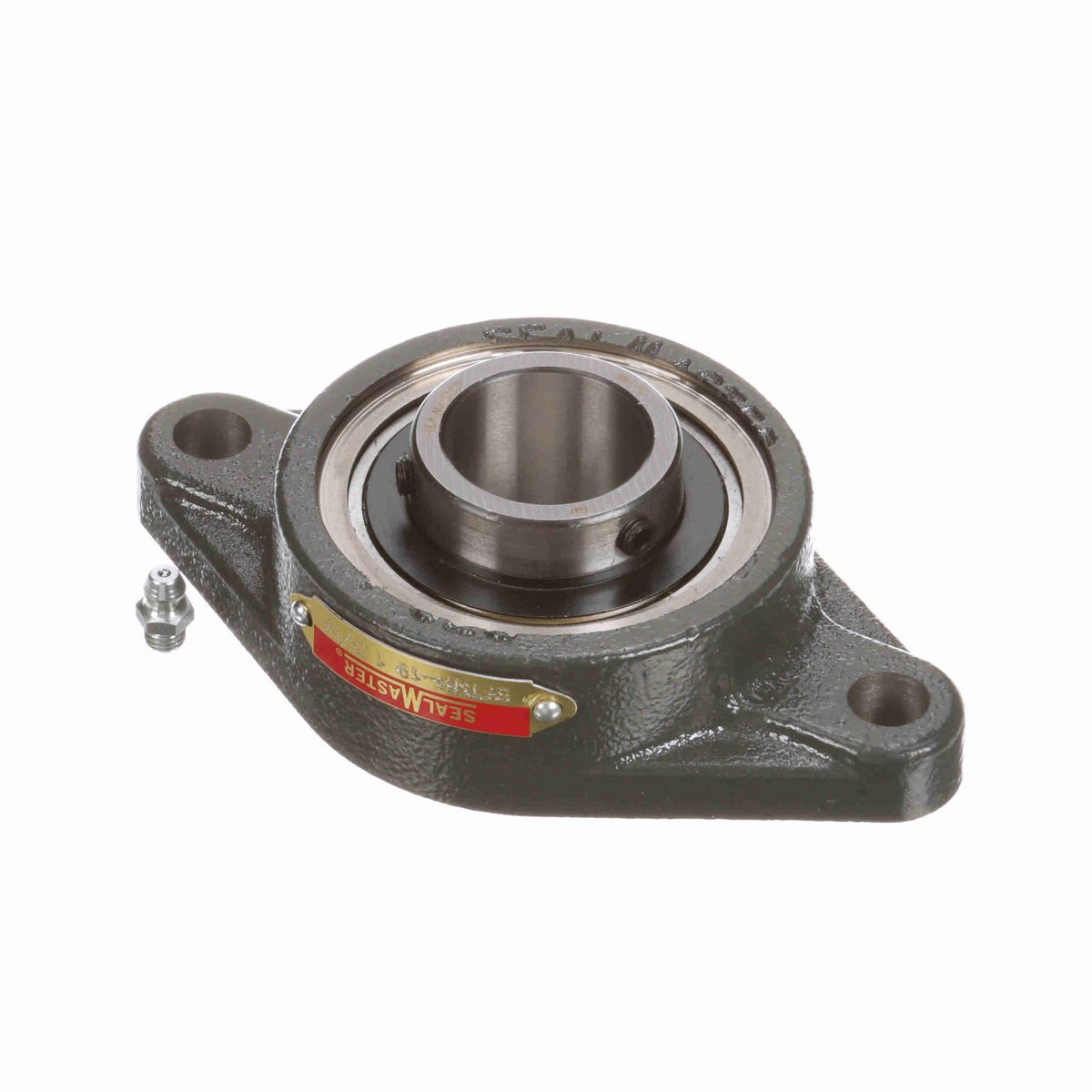

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Overall Width (in)	3.25 in
Bolt Size (in)	7/16 in
Overall Height (in)	1.563 in
Overall Length (in)	5.56 in
Bore Diameter (in)	1.1875 in
Overall Height to End Cap (in)	2.42 in
Foot Height (in)	0.53 in
Length Through Bore (in)	1.567 in
Bolt Spacing (in)	4.596 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Setscrew Torque (in-lbs)	85 in/lbs
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Dynamic Load Rating (lb)	4,390 lb
Vibration Frequency Inner Ring Defect	0.0905 cps
Housing Coating	Powder Coated
Vibration Frequency Roller Spin	0.0385 cps
Insert	MH-19
End Cap Available	No
Vibration Frequency Fundamental Train	0.0067 cps
Housing Material	Cast Iron
Size Code	206
Radial Clearance	Standard
Shaft Locking Type	Set Screw
Maximum Speed (RPM)	4500 rpm
Bearing Type	Standard Duty
Bearing Insert Finish	Black Oxide
Lubricant	Lithium Complex NLGI 2 Grease
Max Operating Temperature (F)	220 °F
Misalignment Capability	±2.0° Misalignment - Static Only
Cage Type	Land Riding Retainer
Fixed vs. Expansion	Fixed
Inner Ring Outside Diameter (in)	1.586 in
Grease Fitting Thread Size	1/4-28
Vibration Frequency Outer Ring Defect	0.0595 cps
Static Load Rating (lb)	2,567 lb
Bearing Insert Material	52100 Bearing Steel

General Specifications

UPC	662461342763
Weight	2.04 LB
Packaged Length	6.10 IN
Packaged Width	3.70 IN
Packaged Height	1.70 IN
HTC	8483.20.4040
Country of Origin	Mexico
