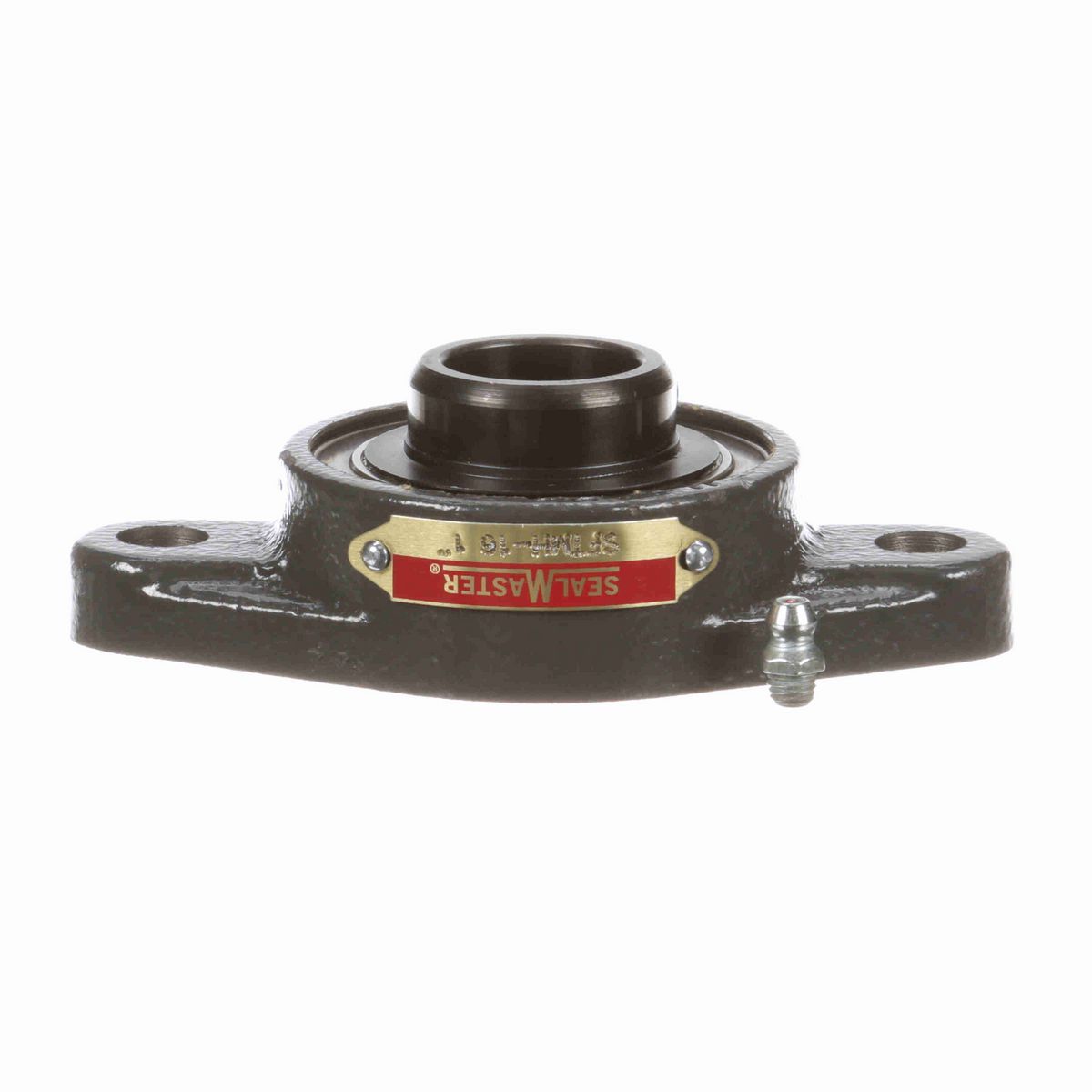

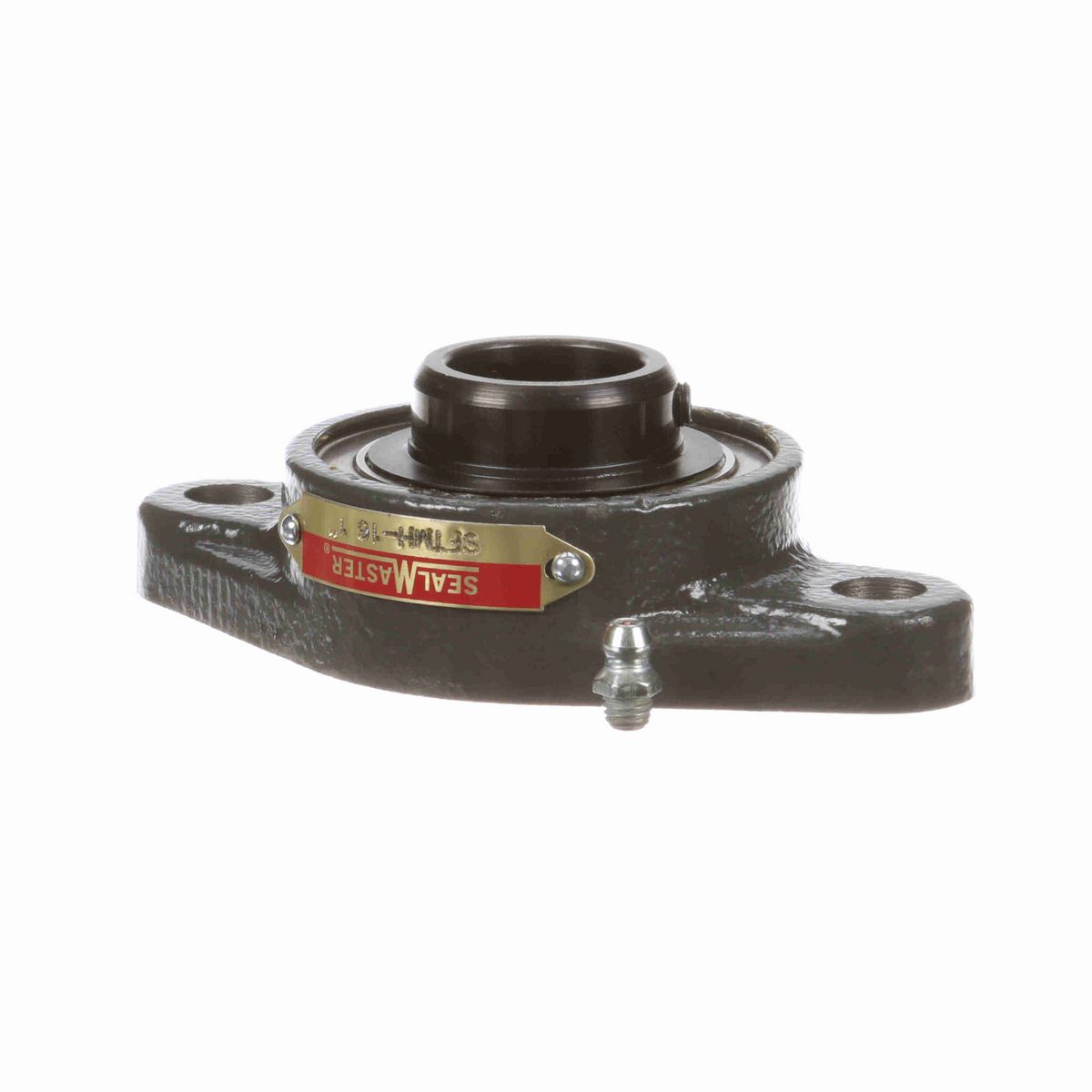

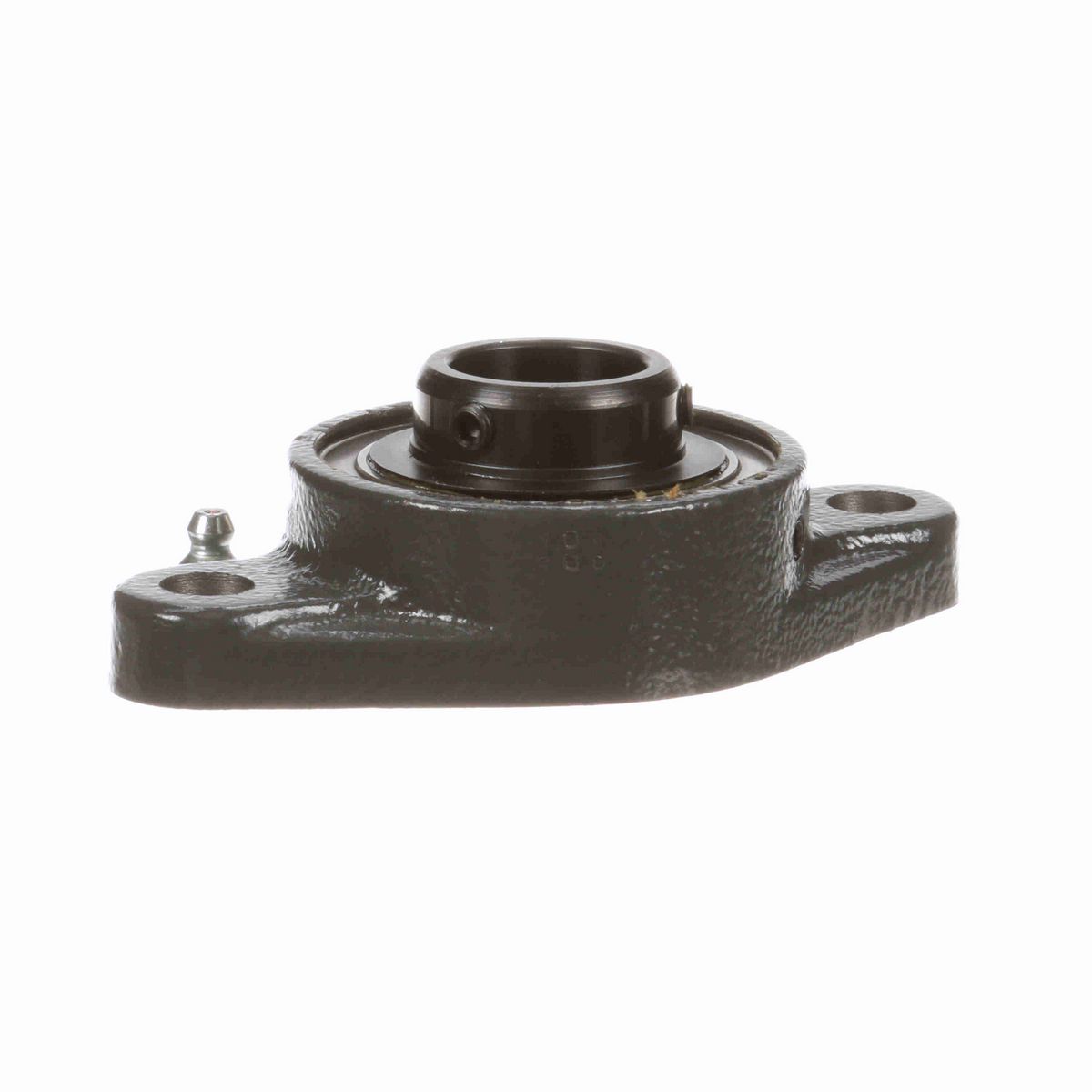

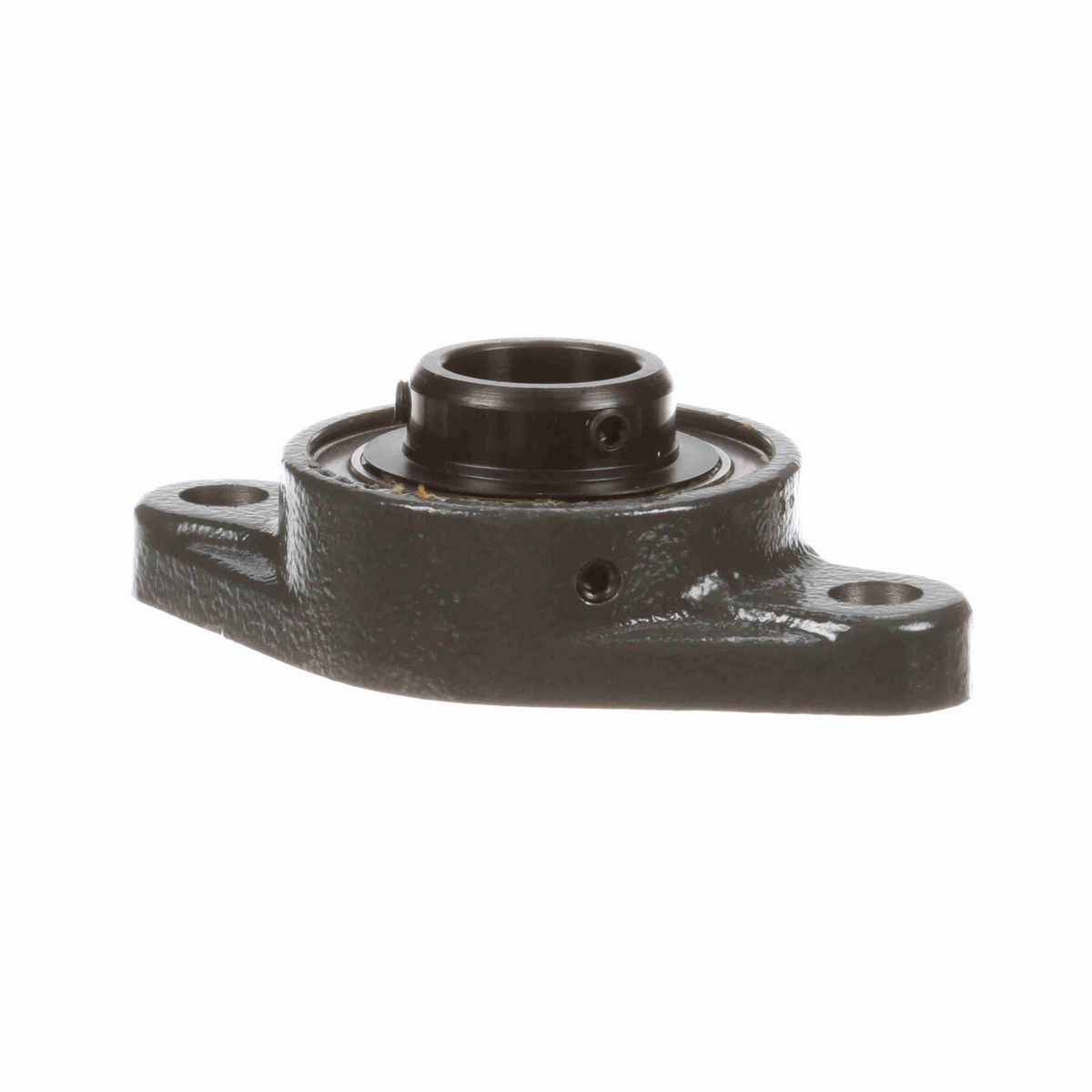

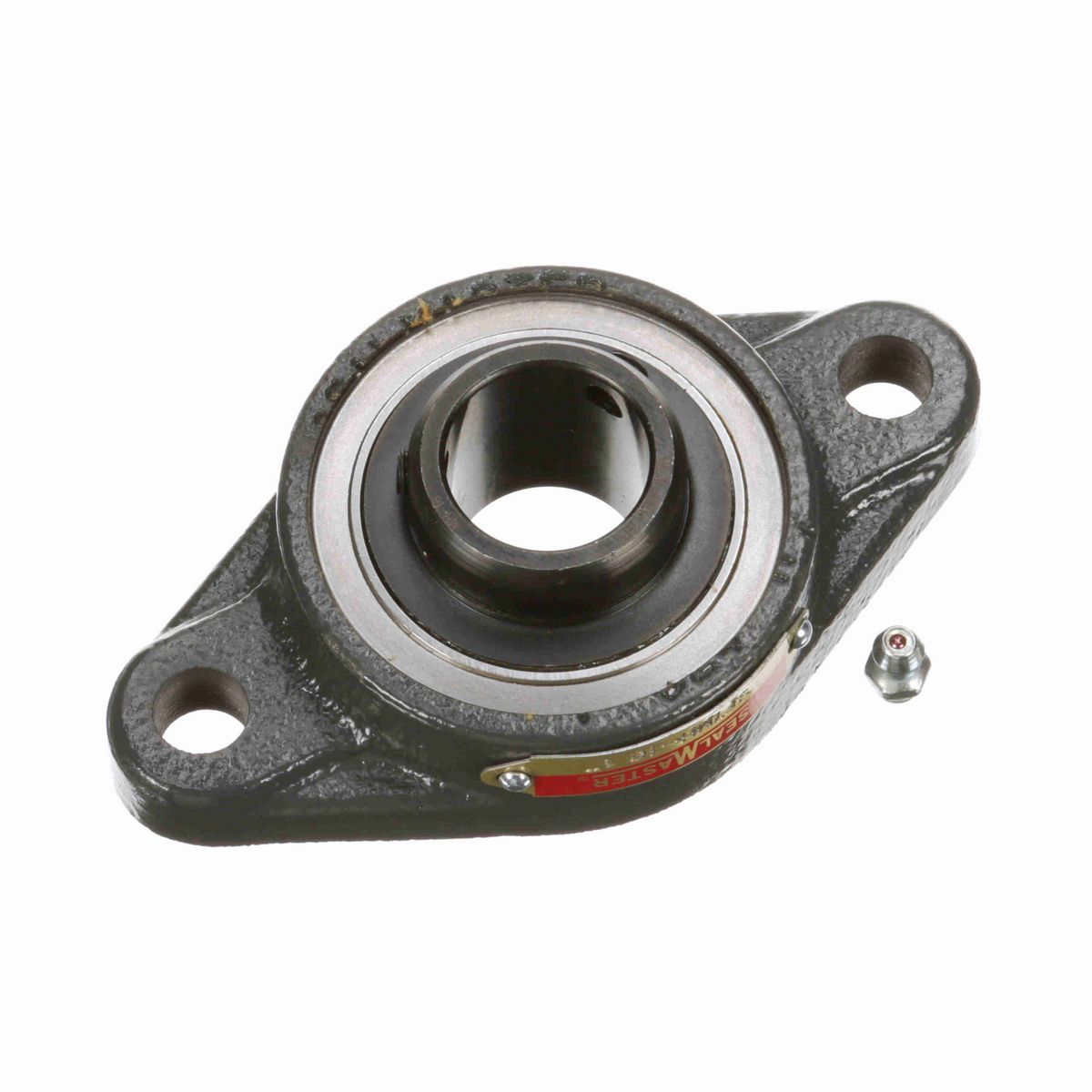

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Overall Width (in)	2.75 in
Bolt Size (in)	7/16 in
Overall Length (in)	4.88 in
Overall Height (in)	1.438 in
Bore Diameter (in)	1 in
Overall Height to End Cap (in)	2.3 in
Foot Height (in)	0.53 in
Length Through Bore (in)	1.375 in
Bolt Spacing (in)	3.8891 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	85 in/lbs
Ability to Relubricate	Yes
Shaft Locking Type	Set Screw
Static Load Rating (lb)	1,651 lb
End Cap Available	No
Max Operating Temperature (F)	220 °F
Size Code	2-015
Insert	MH-16
Vibration Frequency Roller Spin	0.0442 cps
Maximum Speed (RPM)	5500 rpm
Grease Fitting Thread Size	1/4-28
Fixed vs. Expansion	Fixed
Cage Type	Land Riding Retainer
Bearing Insert Material	52100 Bearing Steel
Housing Coating	Powder Coated
Vibration Frequency Fundamental Train	0.0068 cps
Housing Material	Cast Iron
Dynamic Load Rating (lb)	2,801 lb
Radial Clearance	Standard
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Inner Ring Defect	0.0985 cps
Bearing Type	Standard Duty
Bearing Insert Finish	Black Oxide
Inner Ring Outside Diameter (in)	1.375 in
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Outer Ring Defect	0.0682 cps

General Specifications

UPC	662461342756
Weight	1.35 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.4040
Country of Origin	Mexico
