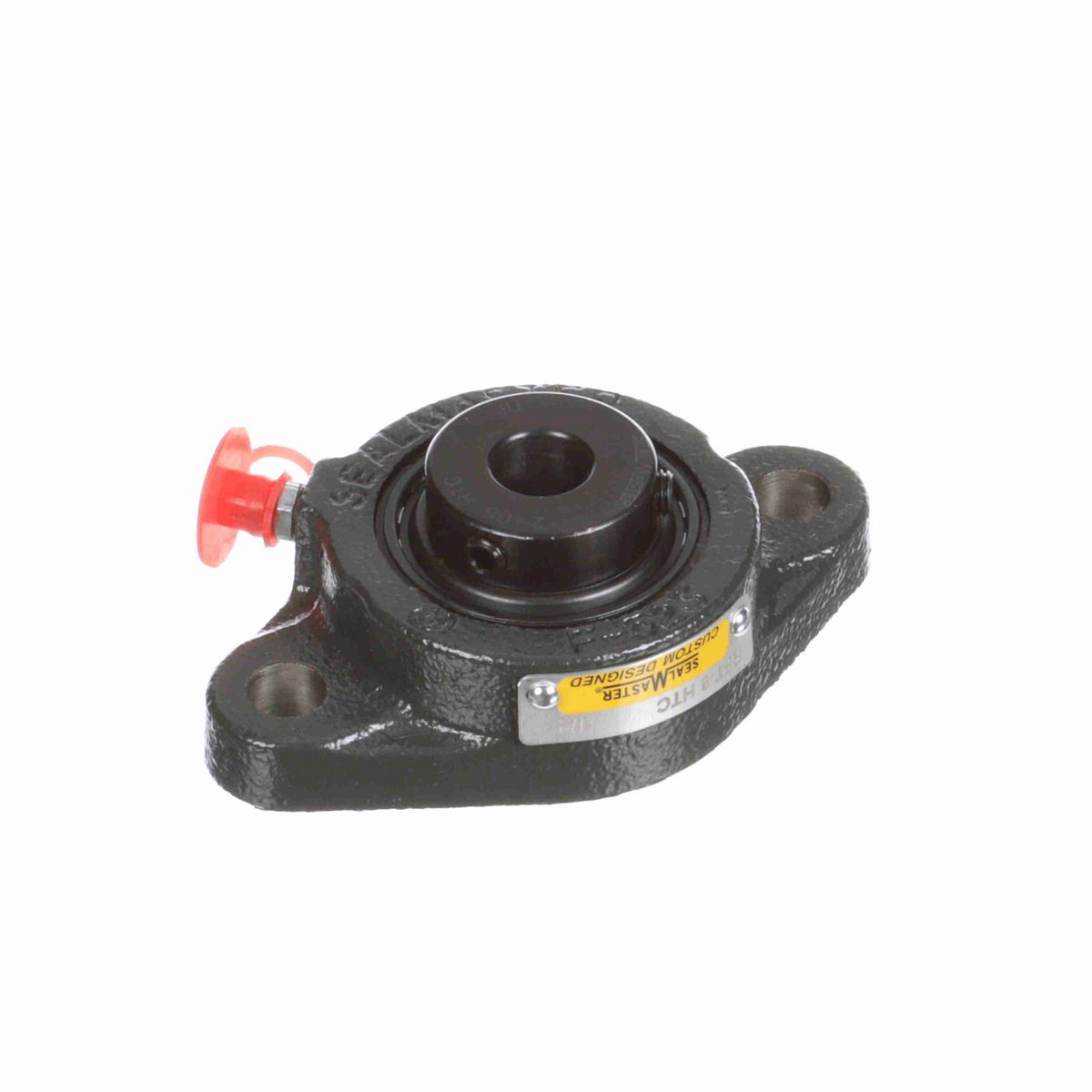

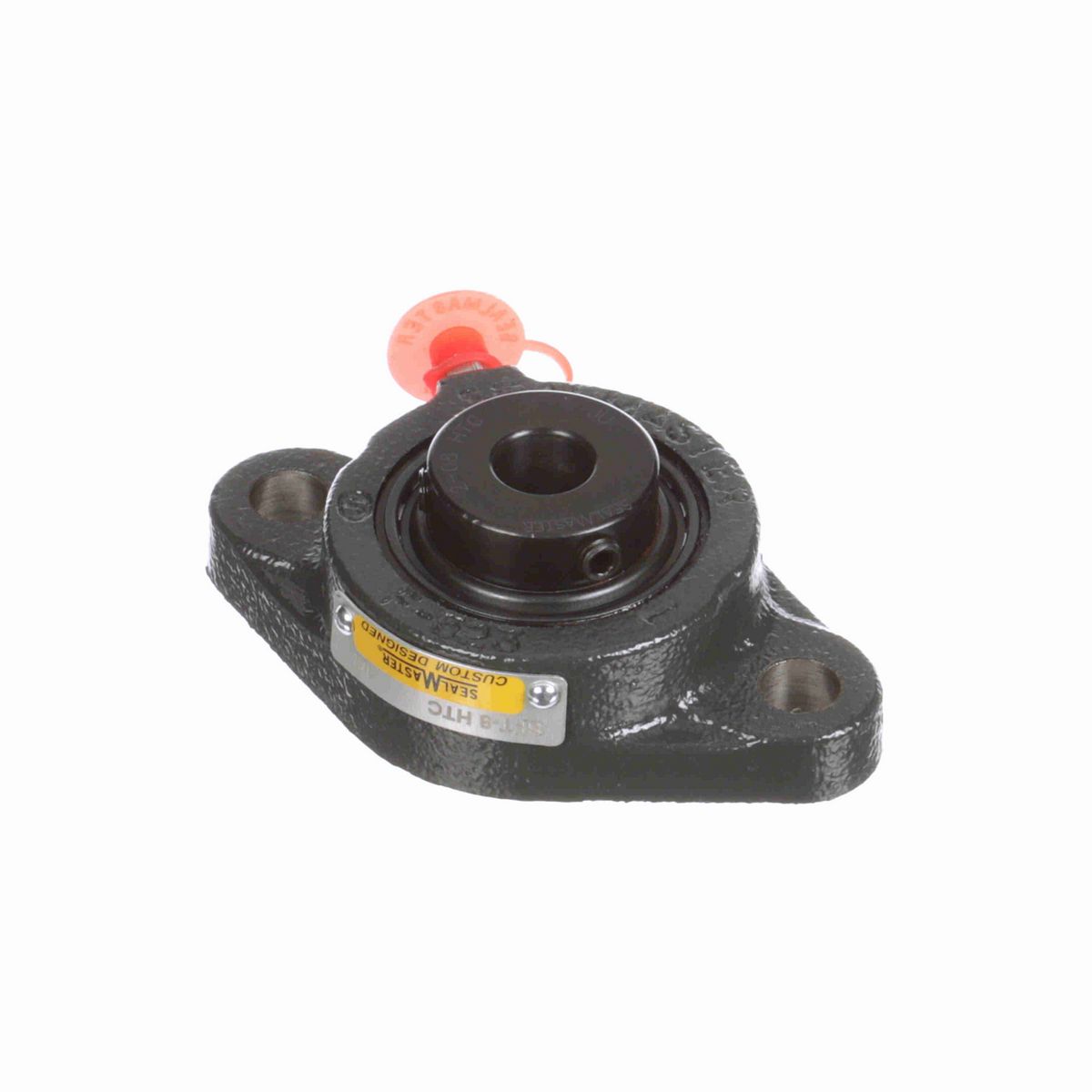

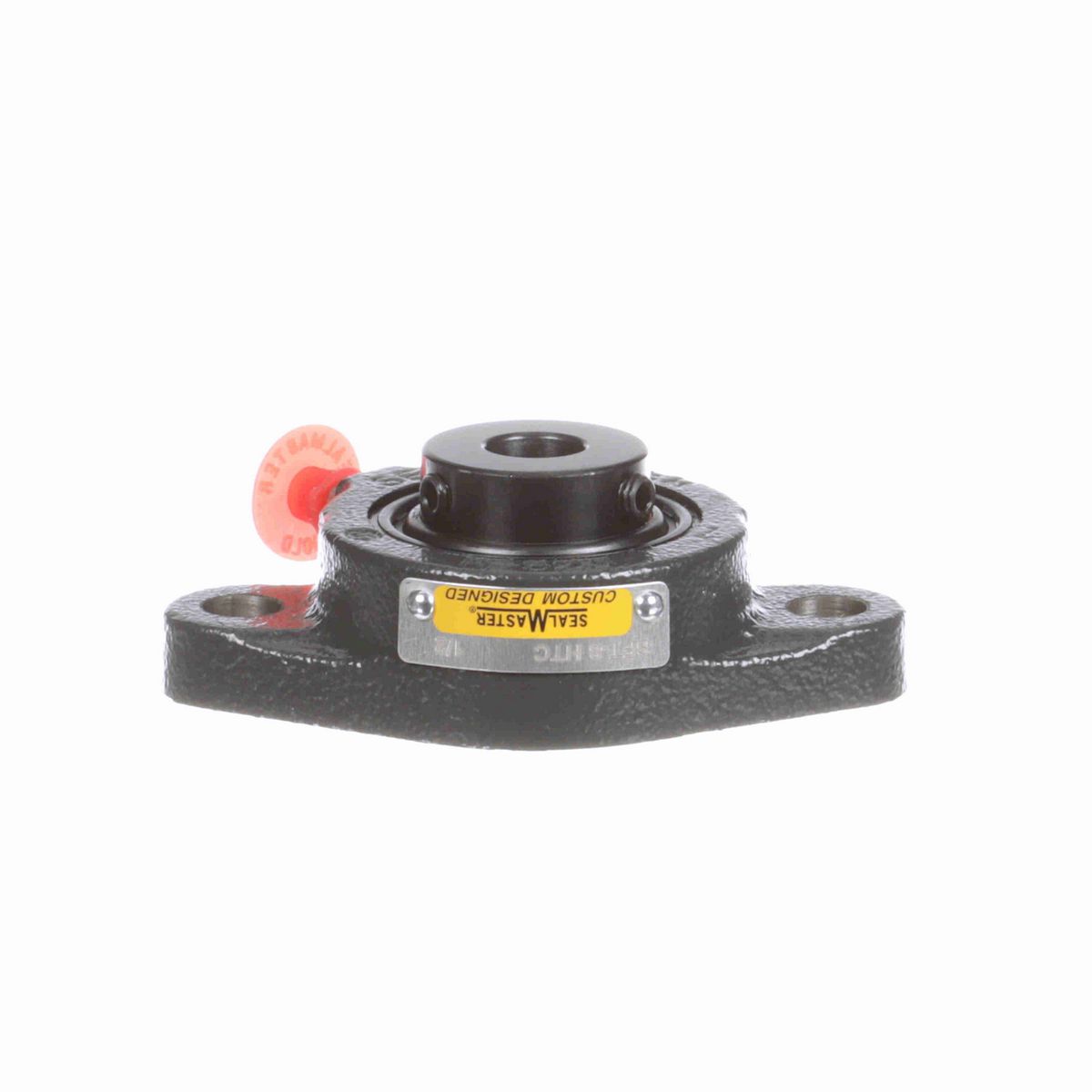

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• High temperature single lip contact seal
• Increased internal clearance and high temperature grease
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	3/8 in
Overall Width (in)	2.31 in
Overall Length (in)	3.88 in
Overall Height (in)	1.281 in
Bore Diameter (in)	0.5 in
Foot Height (in)	0.44 in
Length Through Bore (in)	1.219 in
Bolt Spacing (in)	3.0000 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Options	High Temperature
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	High Temperature Contact Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Bearing Insert Material	52100 Bearing Steel
Bearing Insert Finish	Black Oxide
Housing Material	Cast Iron
Inner Ring Outside Diameter (in)	1.192 in
Static Load Rating (lb)	1,444 lb
Dynamic Load Rating (lb)	2,611 lb
End Cap Available	No
Radial Clearance	Increased
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Fundamental Train	0.0066 cps
Maximum Speed (RPM)	800 rpm
Grease Fitting Thread Size	1/4-28
Insert	2-08 HTC
Vibration Frequency Outer Ring Defect	0.0593 cps
Vibration Frequency Inner Ring Defect	0.0907 cps
Vibration Frequency Roller Spin	0.0381 cps
Size Code	2-012
Shaft Locking Type	Set Screw
Max Operating Temperature (F)	400 °F
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Bearing Type	Standard Duty
Cage Type	Land Riding Retainer
Lubricant	Synthetic NLGI 2 High Temperature Grease

General Specifications

UPC	662461331811
Weight	1.20 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.4040
Country of Origin	United States of America
