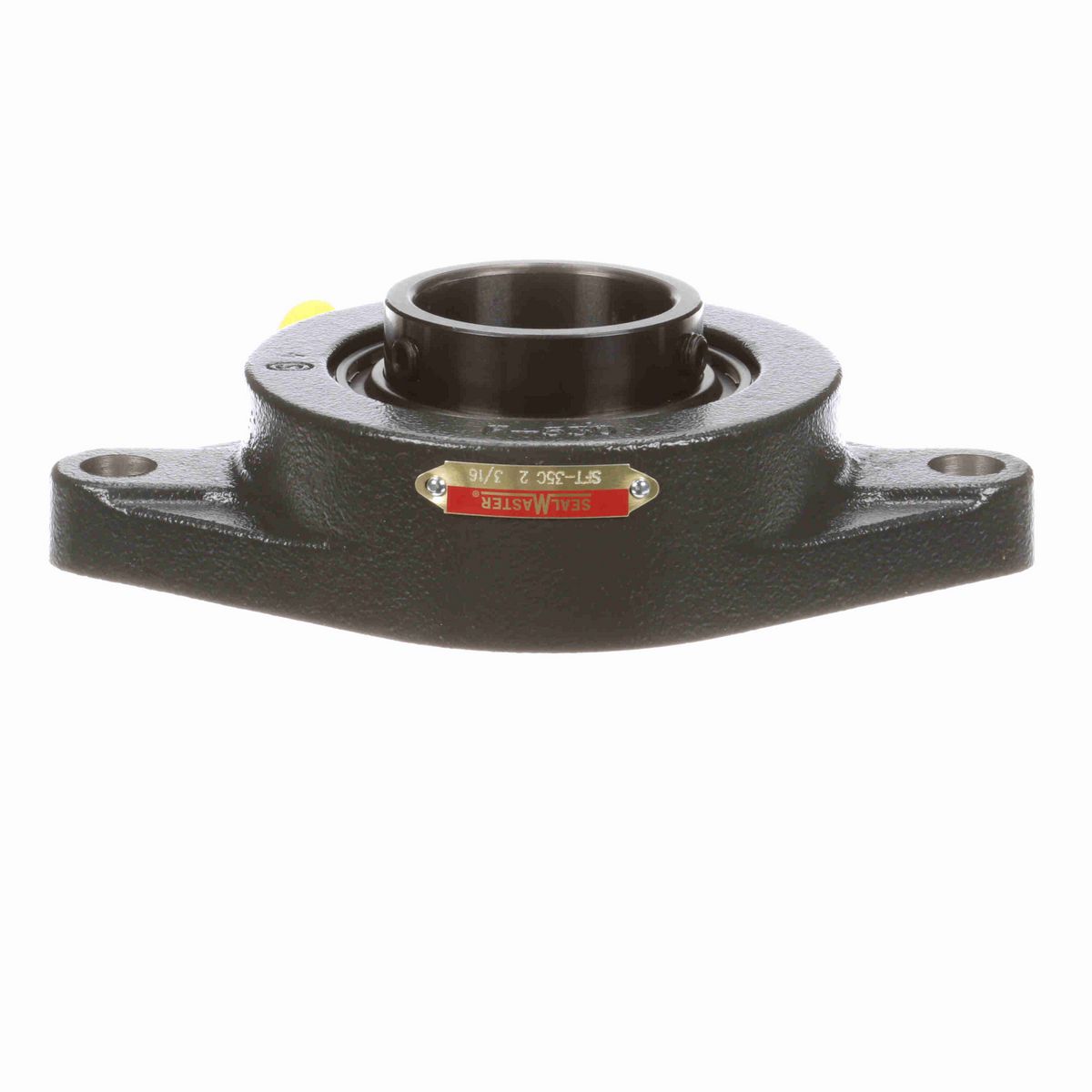

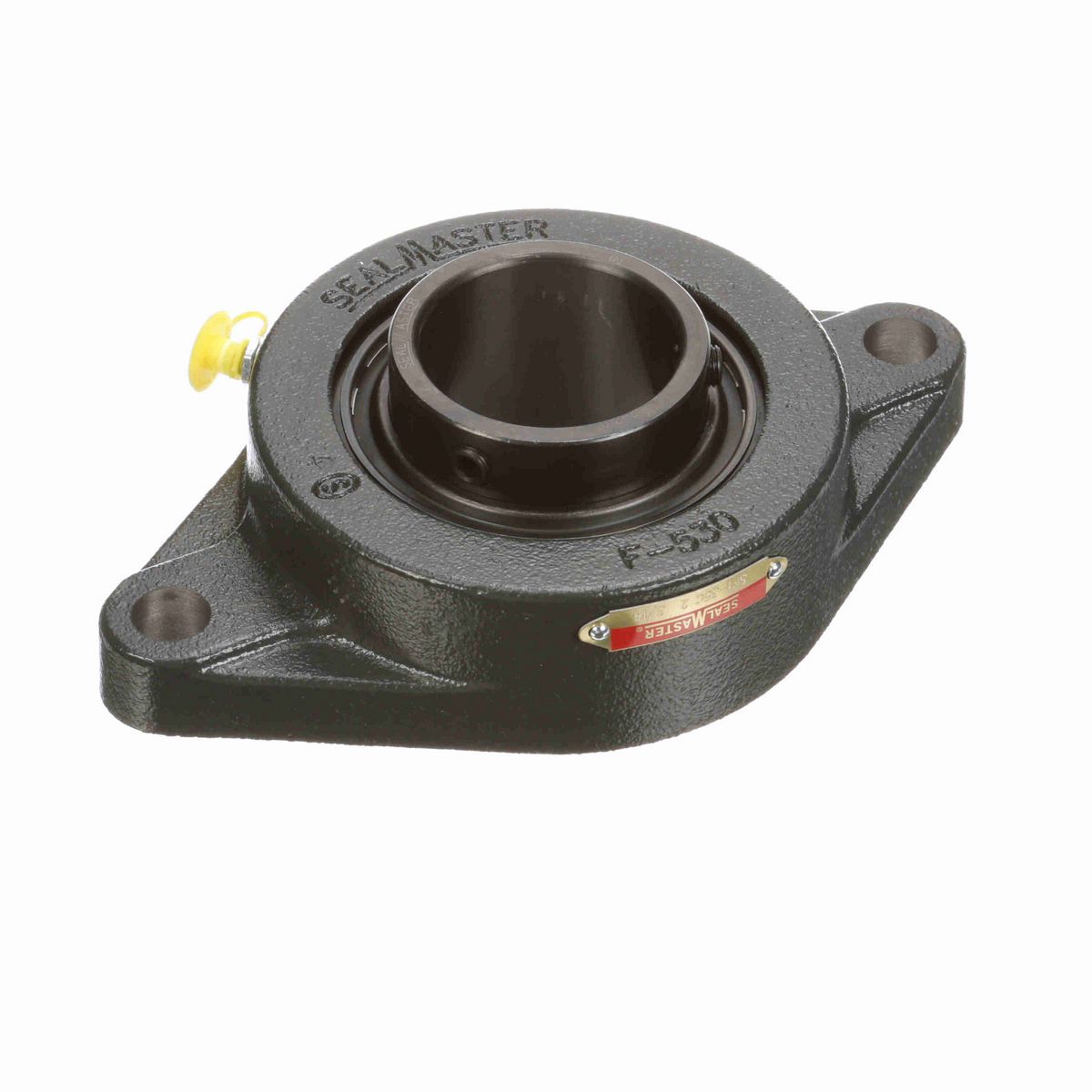

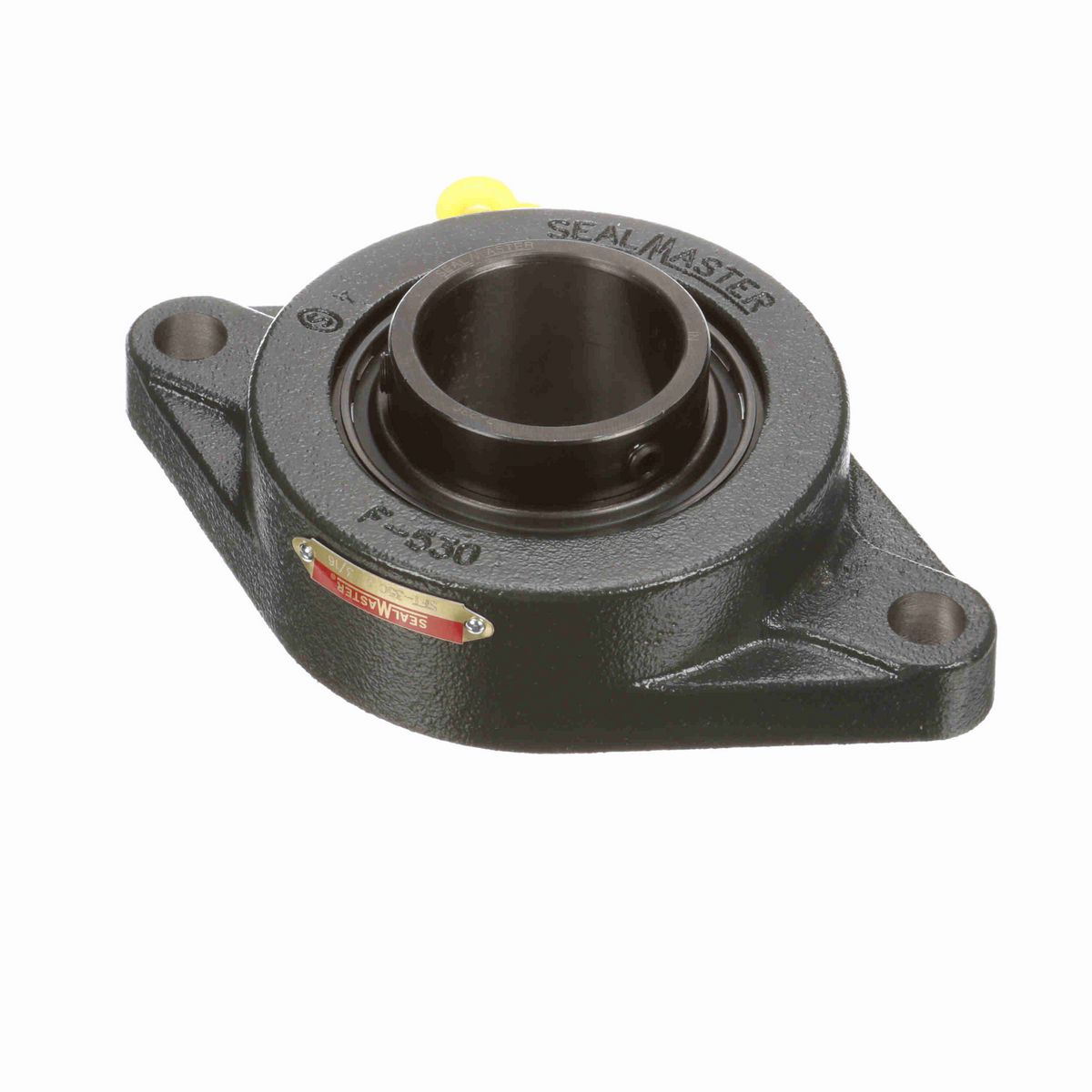

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	5.25 in
Bolt Size (in)	5/8 in
Overall Height (in)	2.313 in
Overall Length (in)	8.5 in
Bore Diameter (in)	2.1875 in
Foot Height (in)	0.81 in
Length Through Bore (in)	2.188 in
Bolt Spacing (in)	7.2500 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Radial Clearance	Standard
Cage Type	Land Riding Retainer
Static Load Rating (lb)	6,601 lb
Size Code	2-23
Bearing Insert Finish	Black Oxide
Insert	2-23C
Bearing Type	Standard Duty
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	9,752 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.719 in
Max Operating Temperature (F)	220 °F
Shaft Locking Type	Set Screw
Maximum Speed (RPM)	3250 rpm
Max Operating Temperature (C)	104 °C
Lubricant	Lithium Complex NLGI 2 Grease
End Cap Available	No
Housing Coating	Powder Coated
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed

General Specifications

UPC	662461022788
Weight	8.00 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
