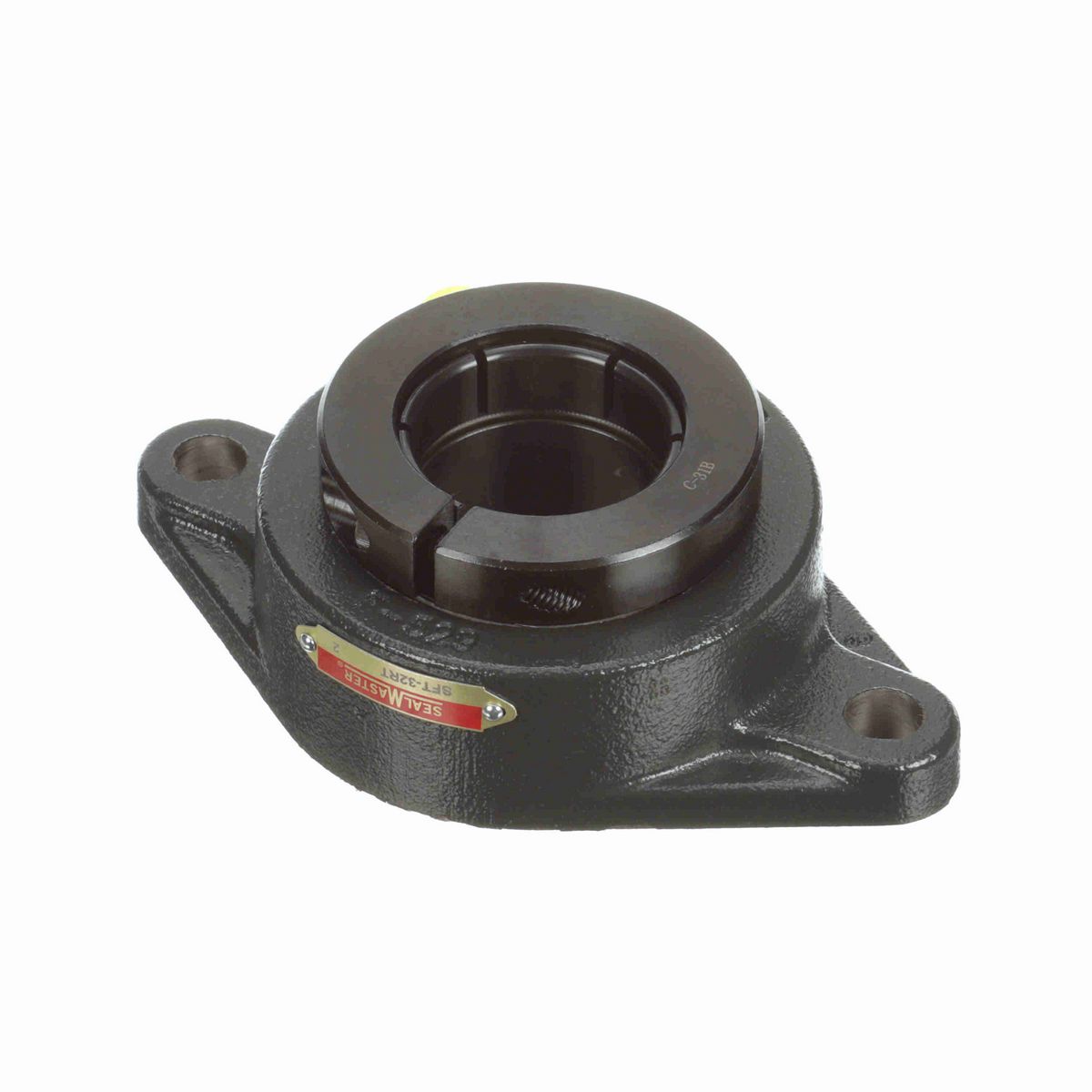

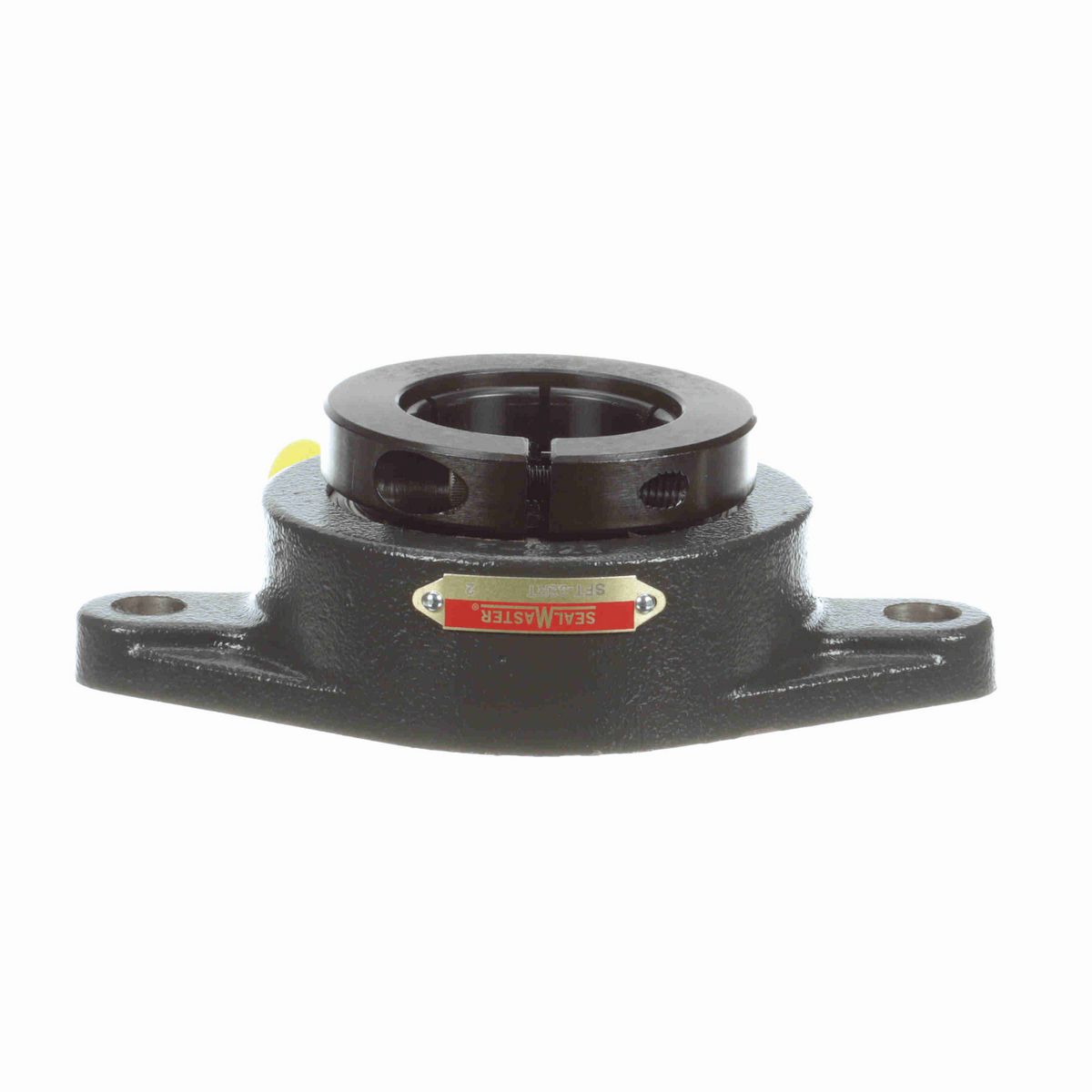

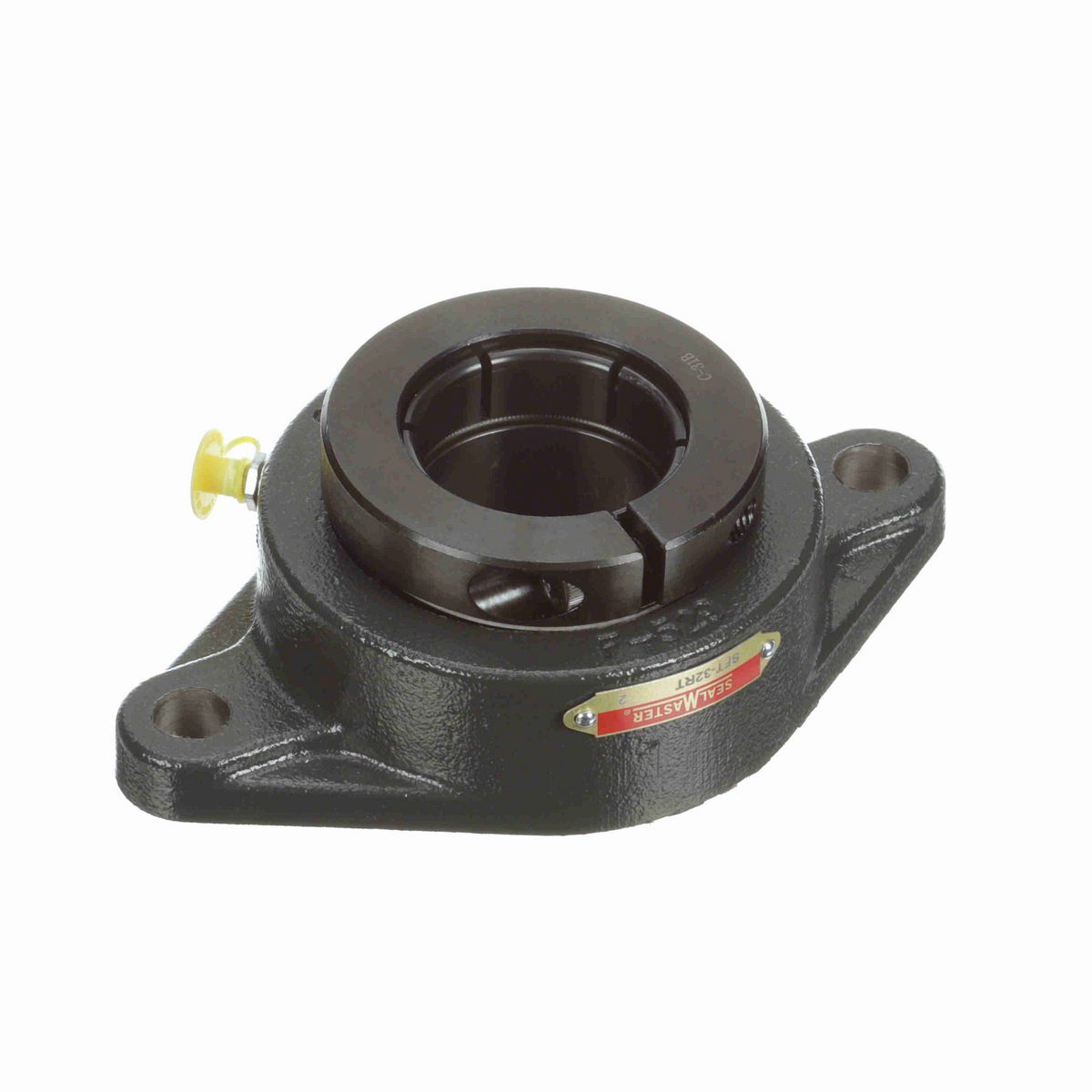

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	4.56 in
Overall Height (in)	2.219 in
Overall Length (in)	7.44 in
Bore Diameter (in)	2 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.17 in
Bolt Spacing (in)	6.1875 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	3.38 in
Inner Race Heat Treat Method	Zone-Hardened
Cage Type	Land Riding Retainer
Maximum Speed (RPM)	5000 rpm
Insert	1-2T
Dynamic Load Rating (lb)	7,889 lb
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Housing Coating	Powder Coated
Grease Fitting Thread Size	1/8 NPT
Housing Material	Cast Iron
Static Load Rating (lb)	5,216 lb
Fixed vs. Expansion	Fixed
Inner Ring Outside Diameter (in)	2.469 in
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-115
Radial Clearance	Standard
Shaft Locking Type	Concentric
End Cap Available	No
Max Operating Temperature (C)	104 °C
Bearing Insert Finish	Black Oxide
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Type	Standard Duty

General Specifications

UPC	662461071212
Weight	5.65 LB
Packaged Length	4.63 IN
Packaged Width	2.31 IN
Packaged Height	7.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
