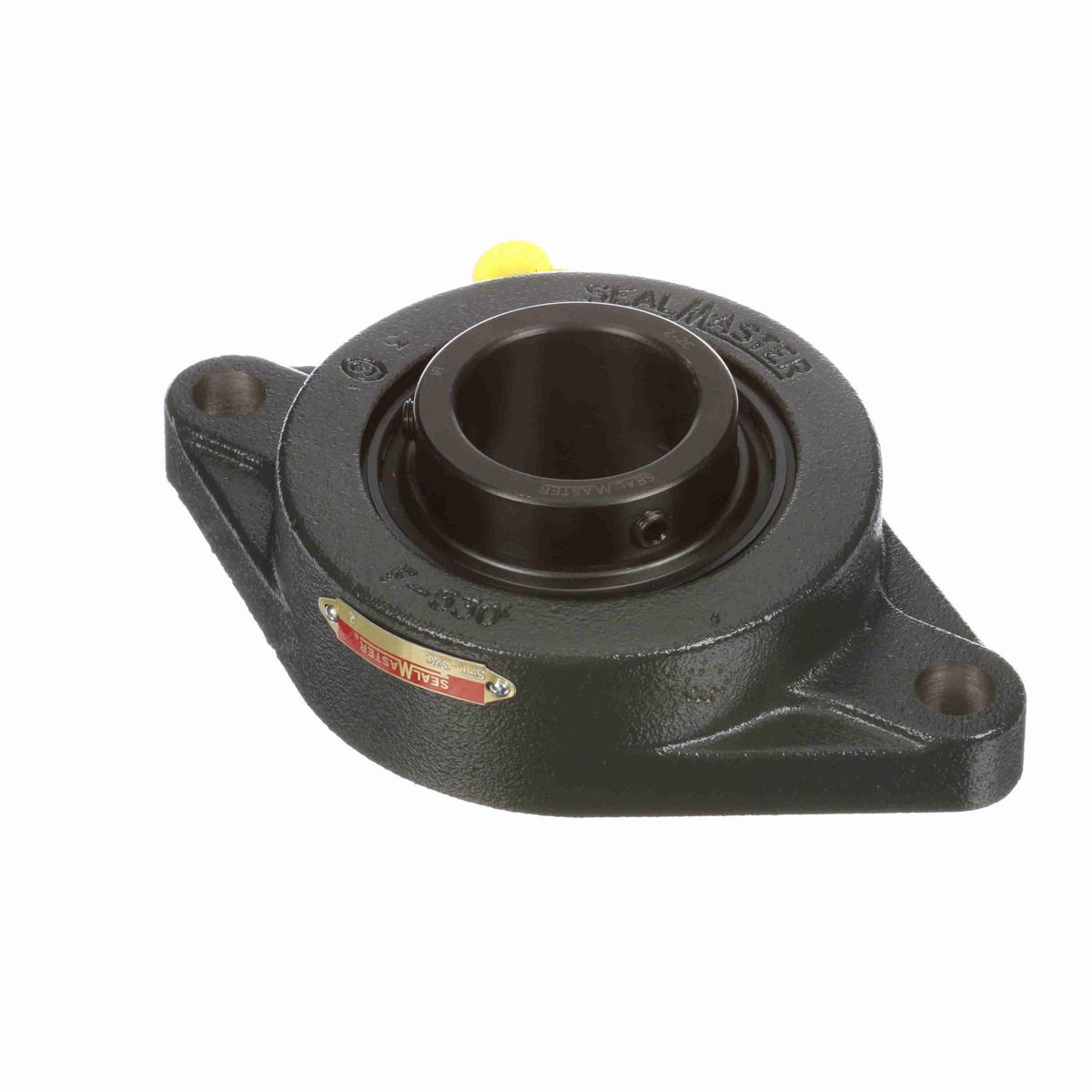

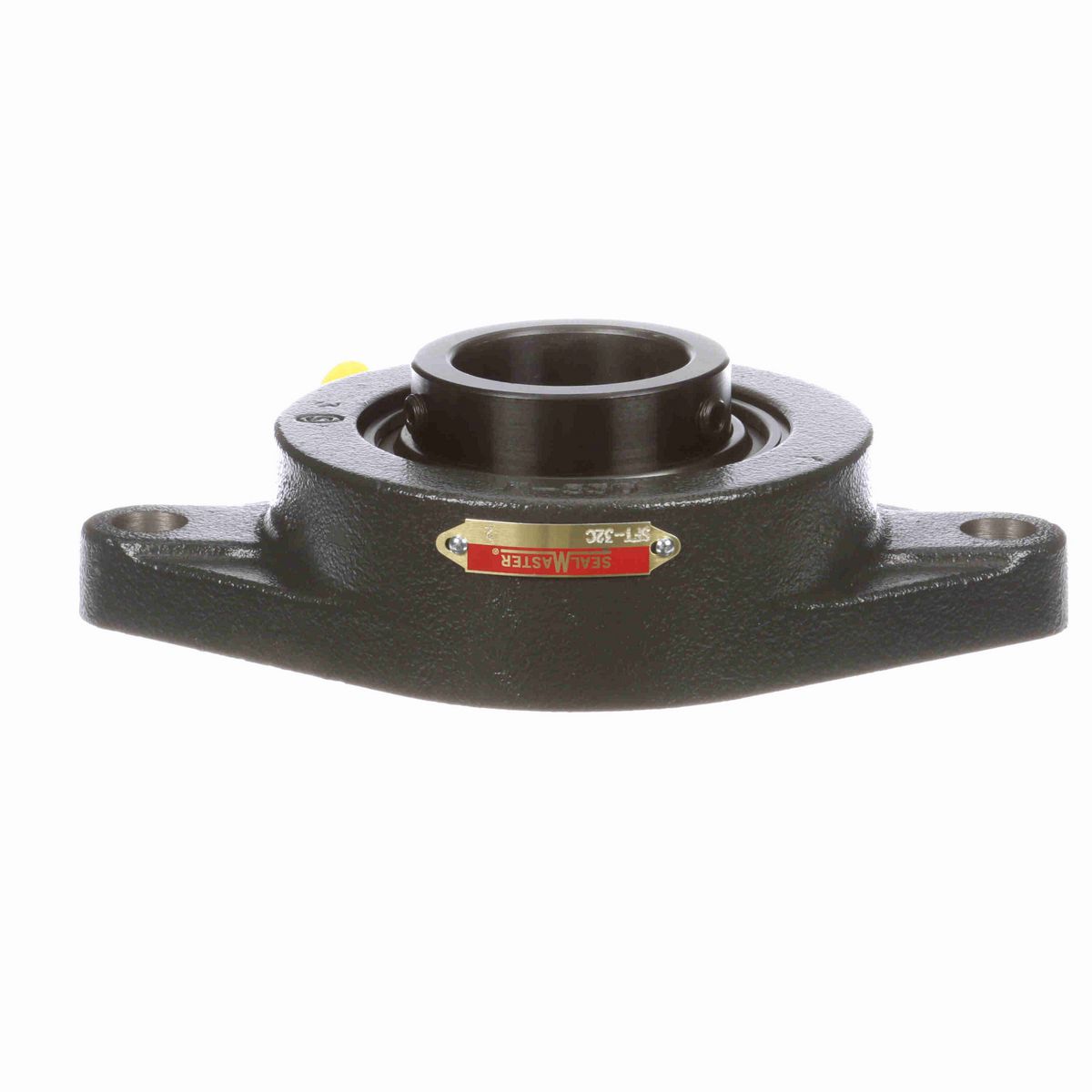

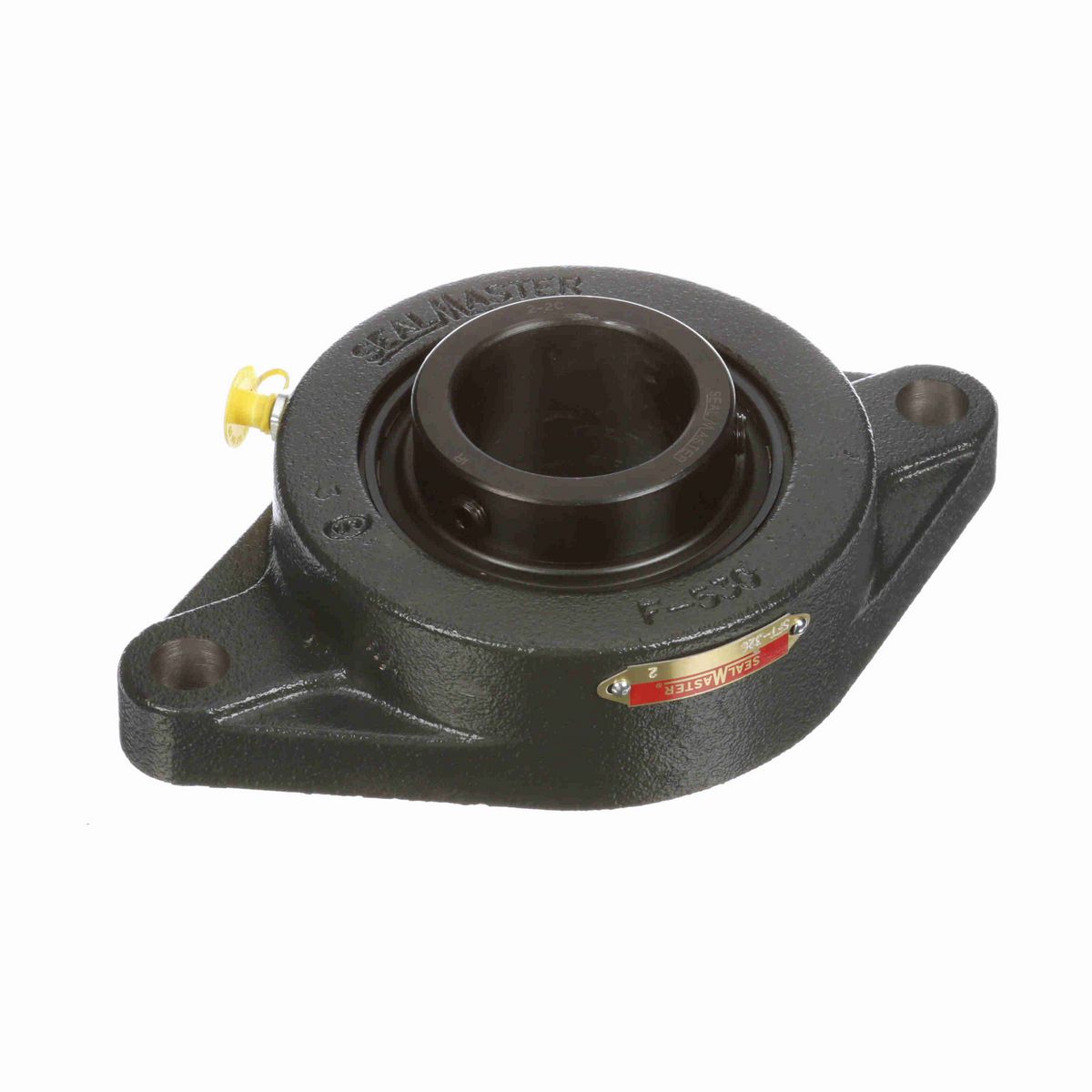

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal with black oxide bearing races
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	5/8 in
Overall Width (in)	5.25 in
Overall Length (in)	8.5 in
Overall Height (in)	2.313 in
Bore Diameter (in)	2 in
Foot Height (in)	0.81 in
Length Through Bore (in)	2.188 in
Bolt Spacing (in)	7.2500 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Max Operating Temperature (F)	220 °F
Radial Clearance	Standard
Cage Type	Land Riding Retainer
Insert	2-2C
End Cap Available	No
Static Load Rating (lb)	6,601 lb
Housing Material	Cast Iron
Max Operating Temperature (C)	104 °C
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Misalignment Capability	±2.0° Misalignment - Static Only
Maximum Speed (RPM)	3250 rpm
Shaft Locking Type	Set Screw
Inner Ring Outside Diameter (in)	2.719 in
Bearing Type	Standard Duty
Dynamic Load Rating (lb)	9,752 lb
Bearing Insert Finish	Black Oxide
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-23
Bearing Insert Material	52100 Bearing Steel

General Specifications

UPC	662461022764
Weight	8.35 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
