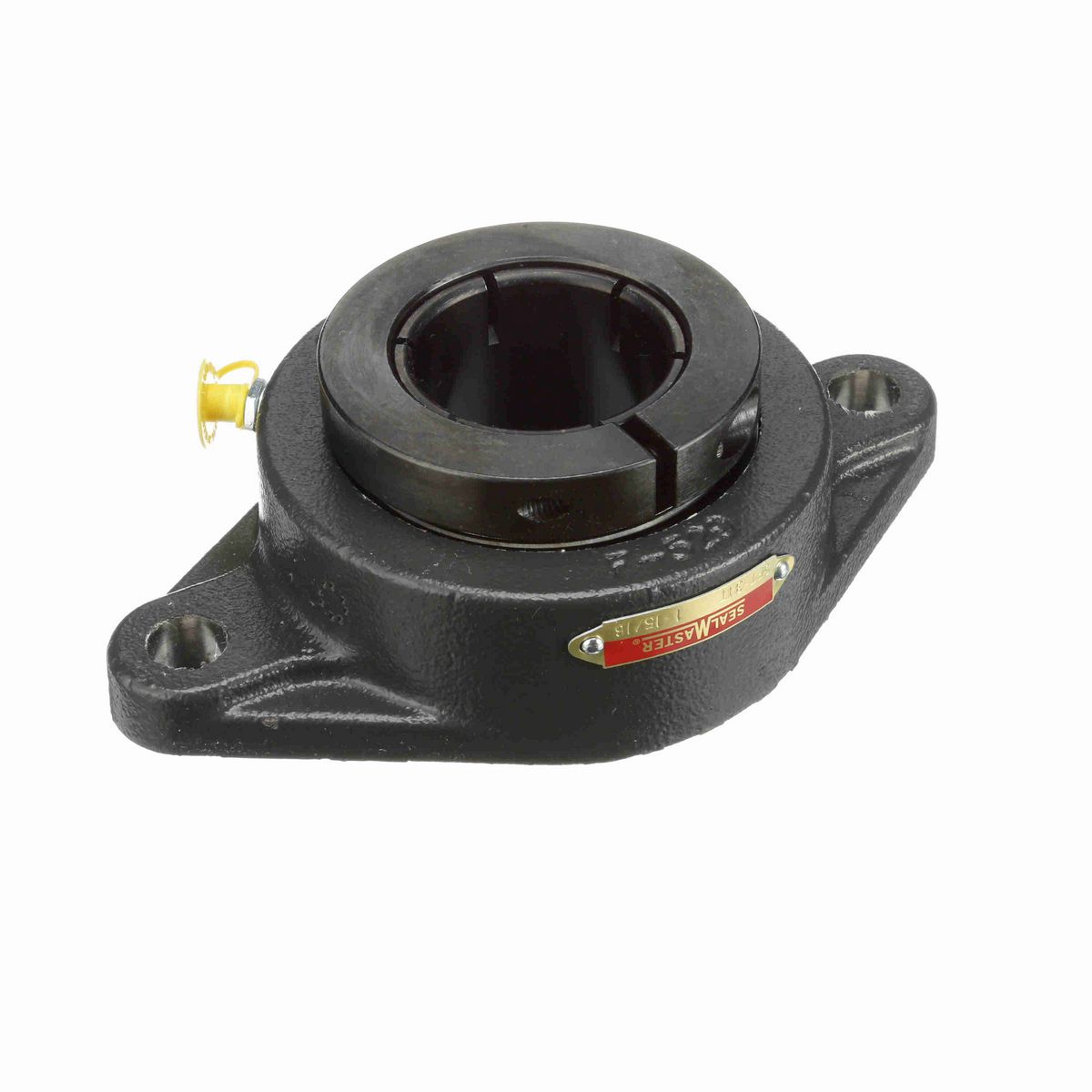

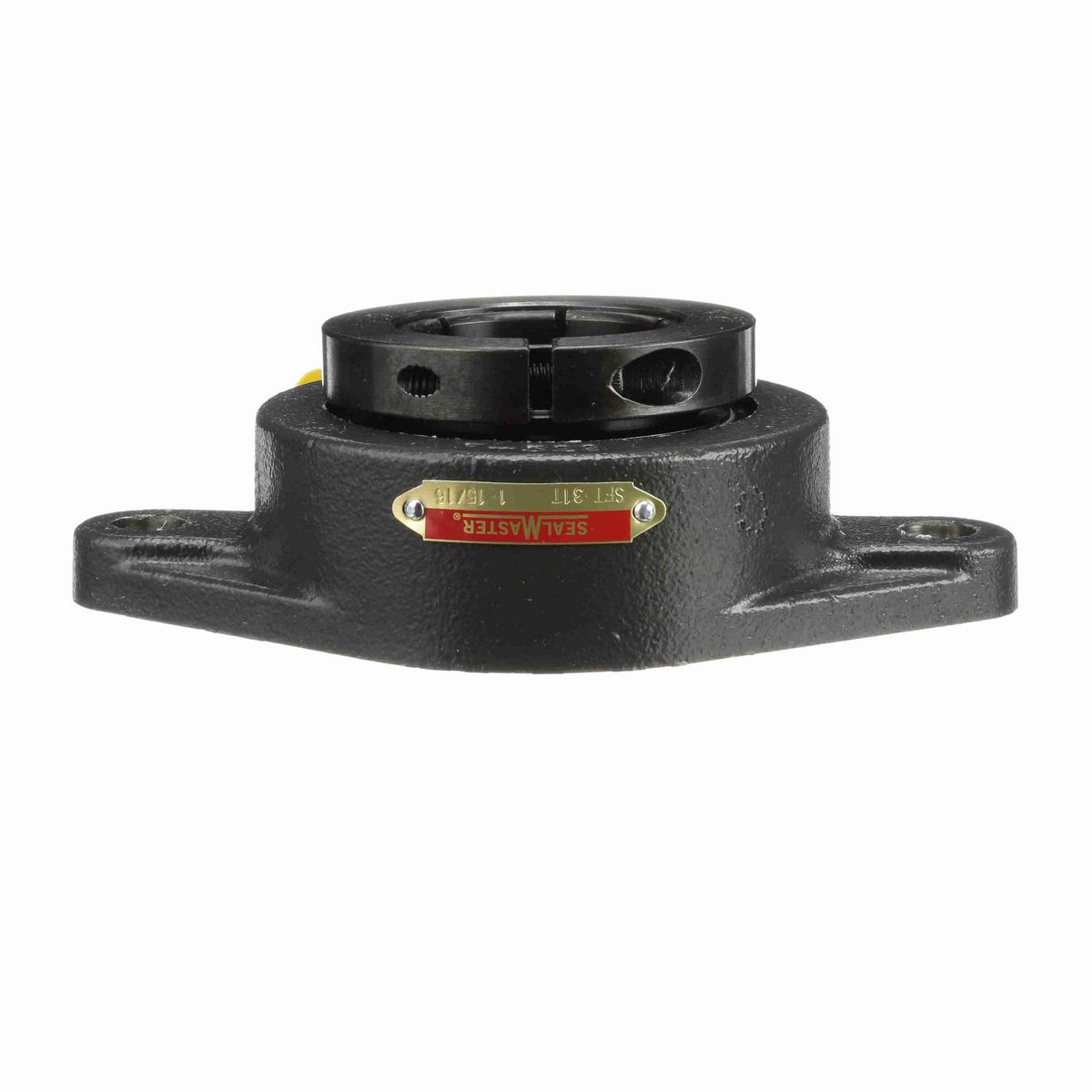

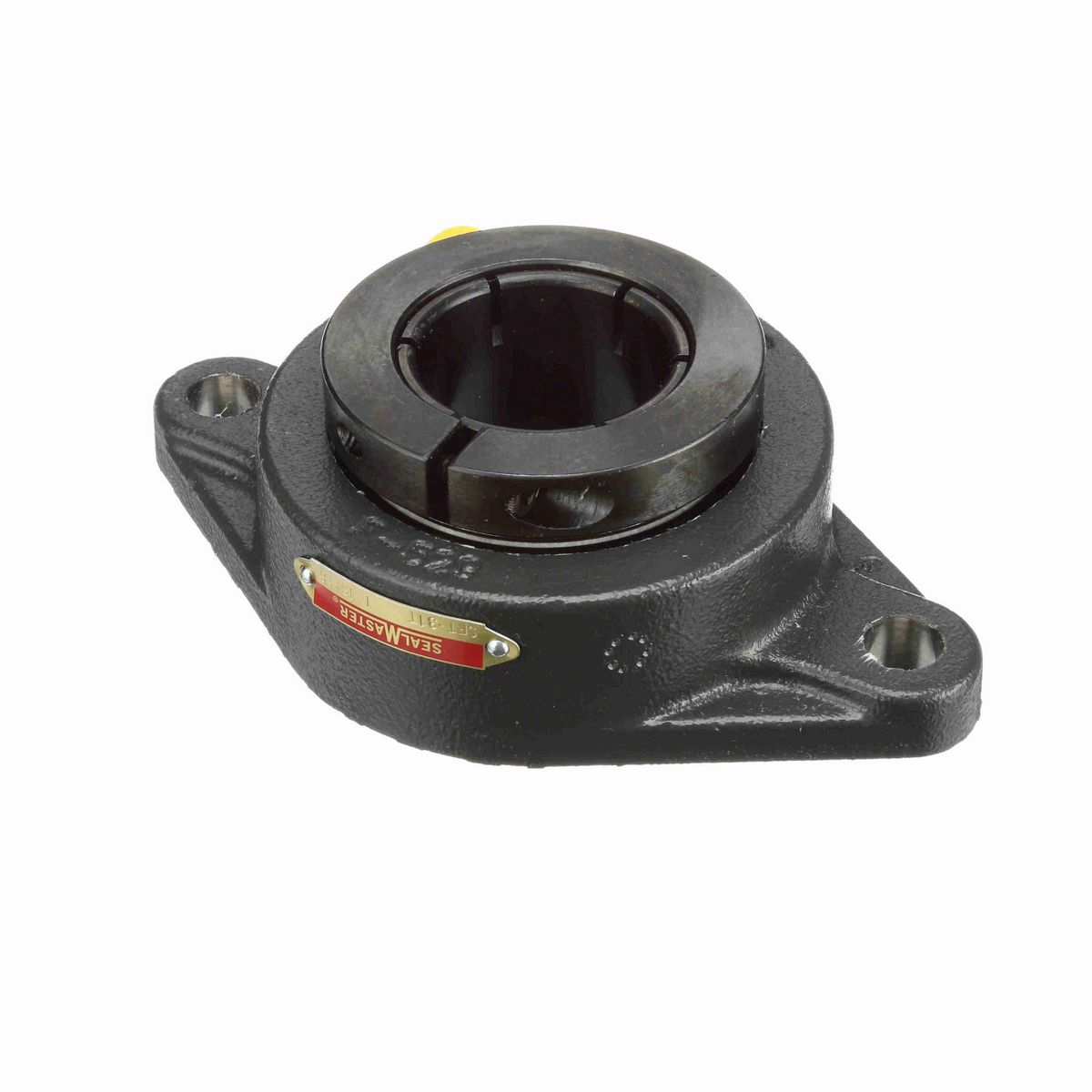

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	4.56 in
Overall Height (in)	2.219 in
Overall Length (in)	7.44 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.17 in
Bolt Spacing (in)	6.1875 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	3.38 in
Bearing Insert Finish	Black Oxide
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	5,216 lb
Size Code	2-115
Dynamic Load Rating (lb)	7,889 lb
Radial Clearance	Standard
Misalignment Capability	±2.0° Misalignment - Static Only
Cage Type	Land Riding Retainer
Bearing Insert Material	52100 Bearing Steel
Inner Ring Outside Diameter (in)	2.469 in
Grease Fitting Thread Size	1/8 NPT
Maximum Speed (RPM)	5000 rpm
Shaft Locking Type	Concentric
Housing Coating	Powder Coated
Housing Material	Cast Iron
Insert	2-115T
End Cap Available	No
Lubricant	Lithium Complex NLGI 2 Grease
Max Operating Temperature (F)	220 °F
Bearing Type	Standard Duty
Max Operating Temperature (C)	104 °C

General Specifications

UPC	662461030448
Weight	5.77 LB
Packaged Length	4.63 IN
Packaged Width	2.31 IN
Packaged Height	7.50 IN
HTC	8483.20.4040
Country of Origin	Mexico
