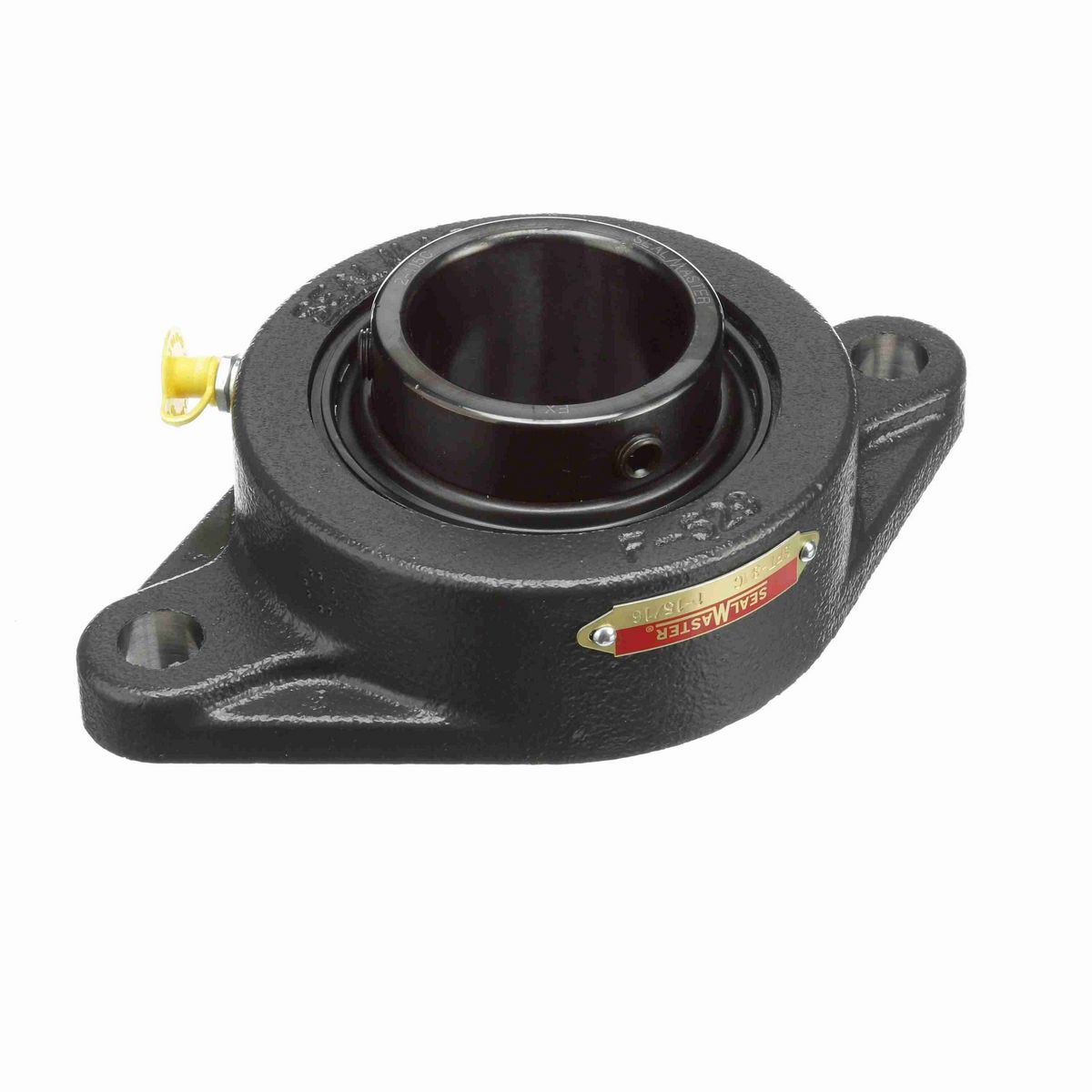

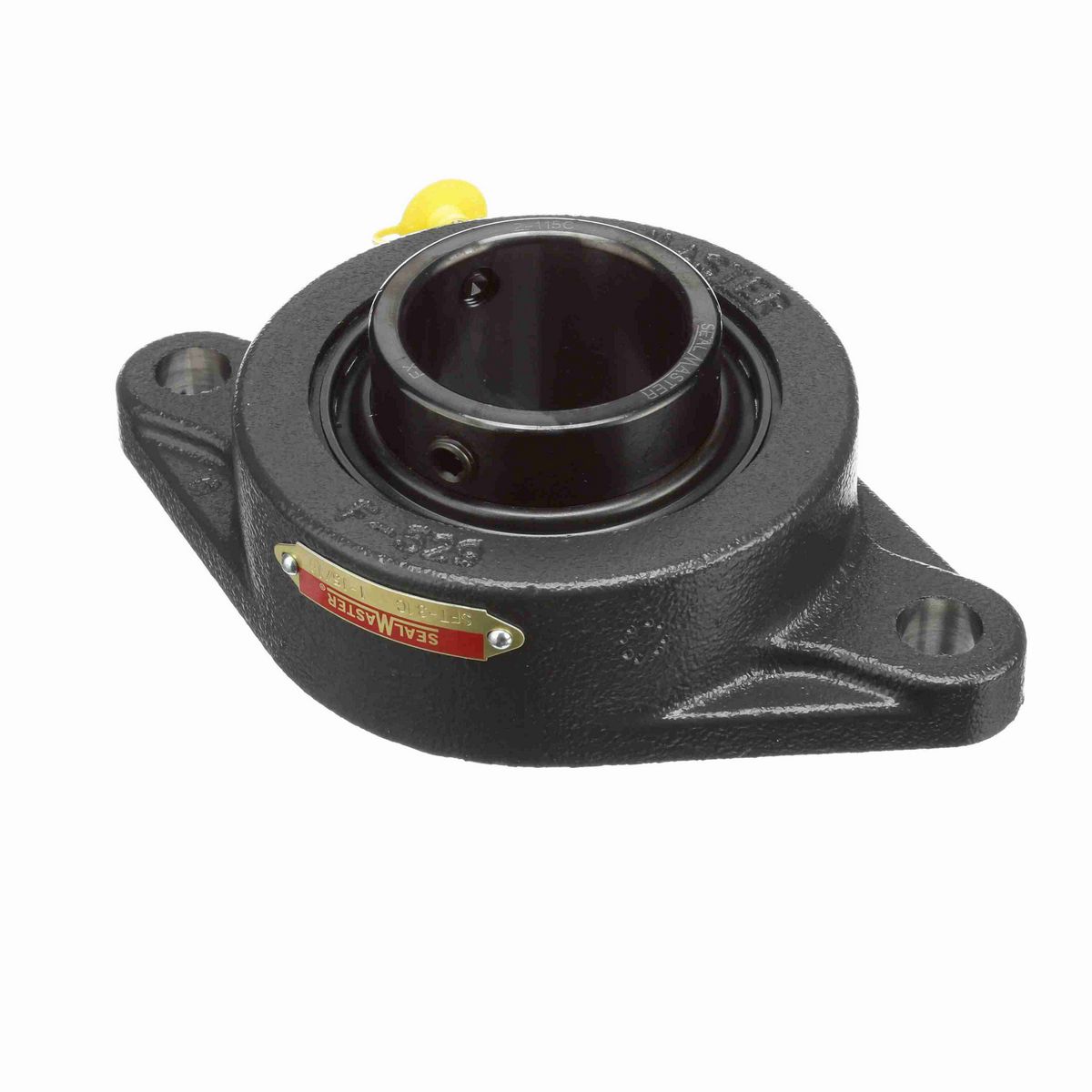

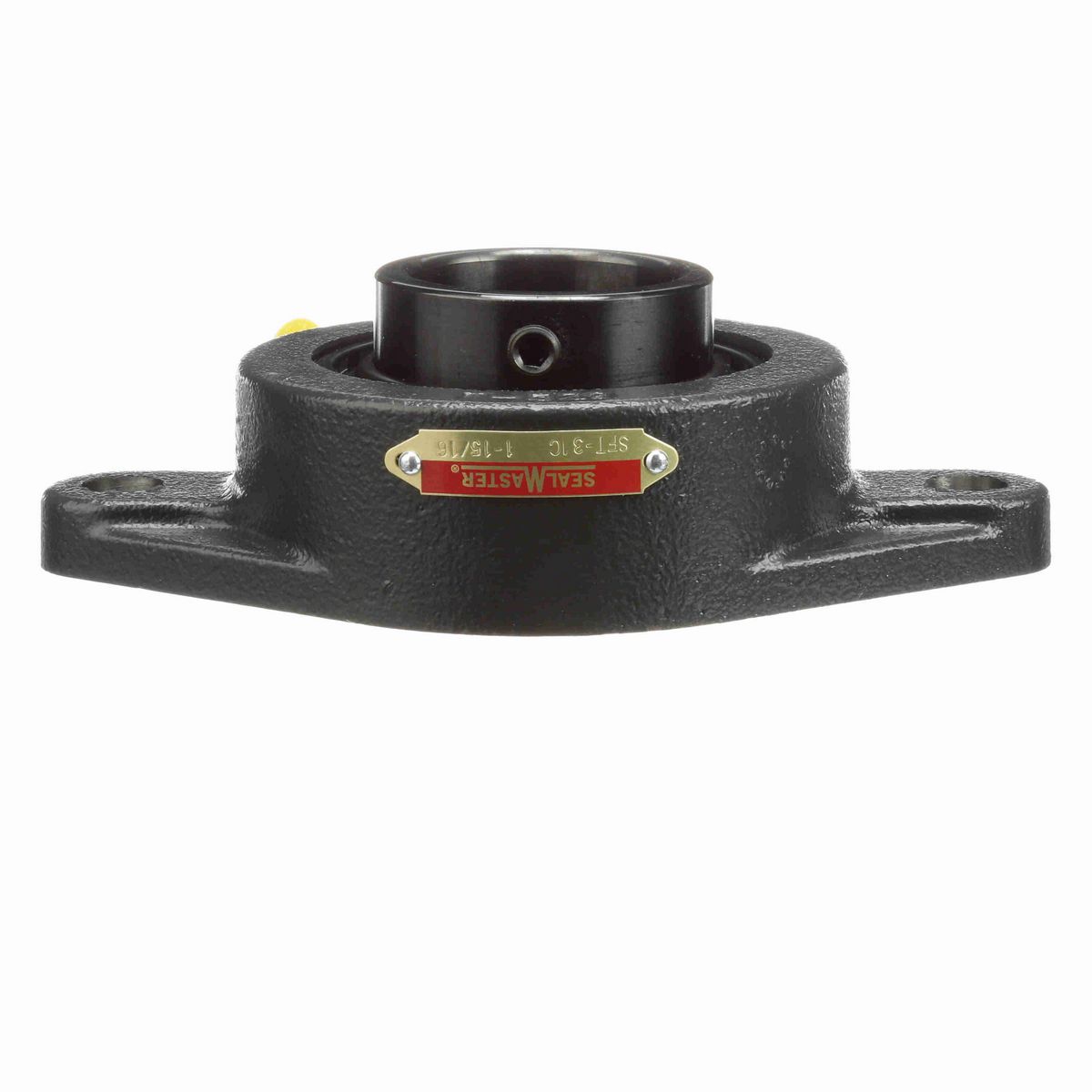

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	4.56 in
Overall Length (in)	7.44 in
Overall Height (in)	2.156 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.031 in
Bolt Spacing (in)	6.1875 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Housing Coating	Powder Coated
Max Operating Temperature (C)	104 °C
Static Load Rating (lb)	5,216 lb
Bearing Insert Material	52100 Bearing Steel
Bearing Insert Finish	Black Oxide
Shaft Locking Type	Set Screw
Radial Clearance	Standard
Max Operating Temperature (F)	220 °F
Size Code	2-115
Housing Material	Cast Iron
End Cap Available	No
Fixed vs. Expansion	Fixed
Grease Fitting Thread Size	1/8 NPT
Dynamic Load Rating (lb)	7,889 lb
Insert	2-115C
Bearing Type	Standard Duty
Maximum Speed (RPM)	3550 rpm
Cage Type	Land Riding Retainer
Lubricant	Lithium Complex NLGI 2 Grease
Inner Ring Outside Diameter (in)	2.469 in
Misalignment Capability	±2.0° Misalignment - Static Only

General Specifications

UPC	662461022740
Weight	5.00 LB
Packaged Length	4.63 IN
Packaged Width	2.31 IN
Packaged Height	7.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
