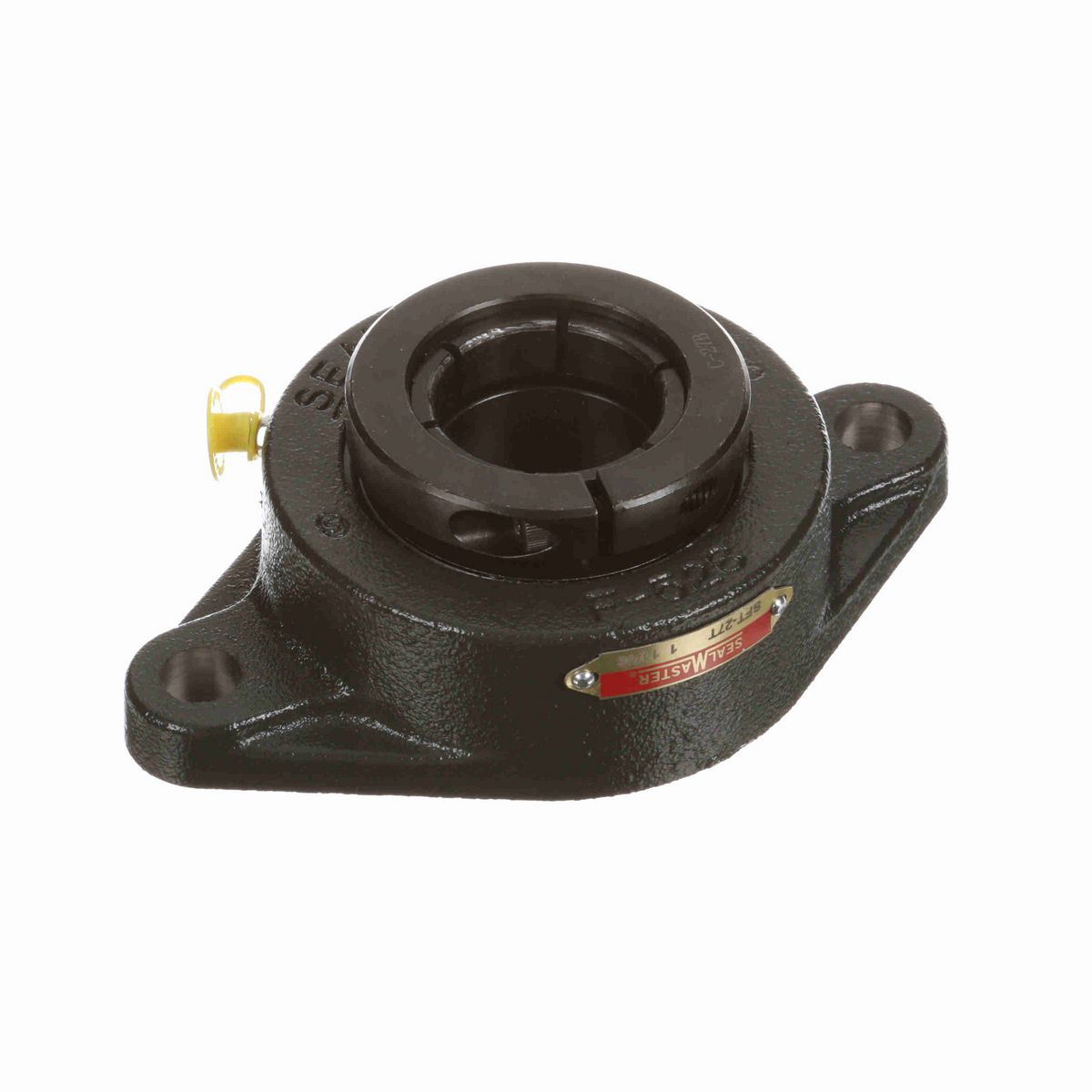

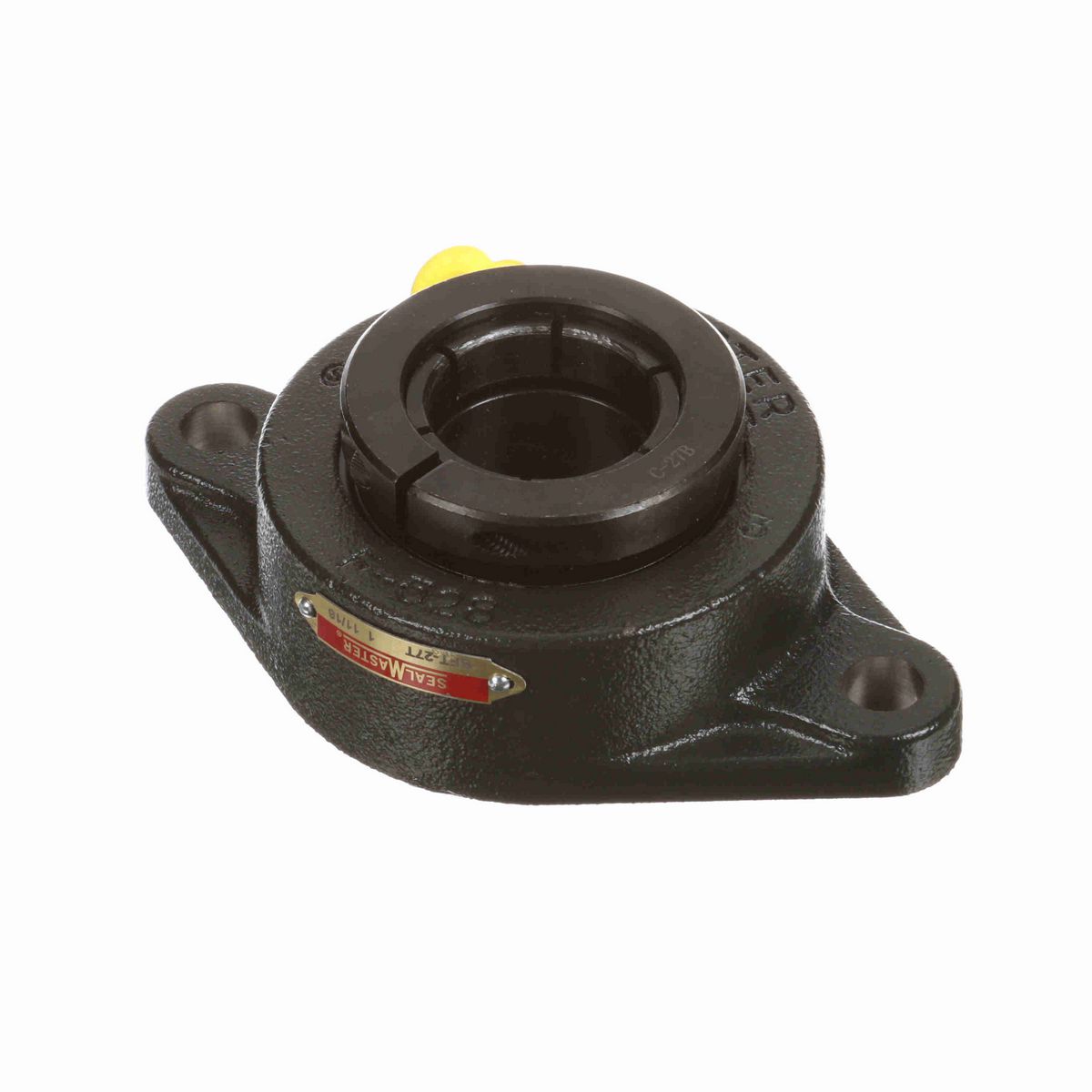

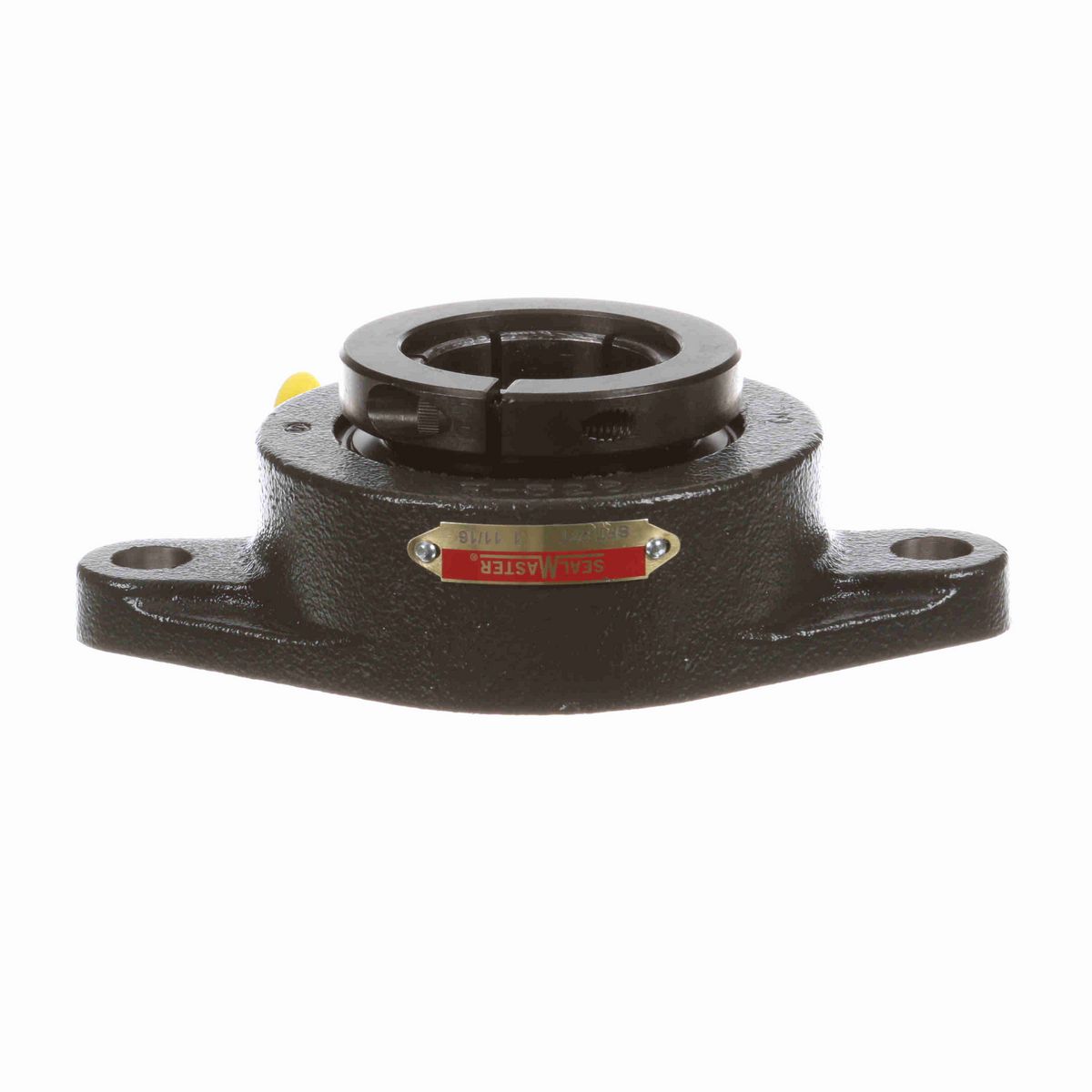

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	4.38 in
Bolt Size (in)	9/16 in
Overall Height (in)	2.109 in
Overall Length (in)	7.06 in
Bore Diameter (in)	1.6875 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.00 in
Bolt Spacing (in)	5.8438 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.9375 in
Ability to Relubricate	Yes
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Type	Standard Duty
Dynamic Load Rating (lb)	7,901 lb
Max Operating Temperature (F)	220 °F
End Cap Available	No
Housing Material	Cast Iron
Radial Clearance	Standard
Fixed vs. Expansion	Fixed
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/4-28
Inner Ring Outside Diameter (in)	2.307 in
Housing Coating	Powder Coated
Max Operating Temperature (C)	104 °C
Bearing Insert Finish	Black Oxide
Insert	2-111T
Shaft Locking Type	Concentric
Misalignment Capability	±2.0° Misalignment - Static Only
Maximum Speed (RPM)	5300 rpm
Bearing Insert Material	52100 Bearing Steel
Size Code	2-111
Static Load Rating (lb)	5,139 lb

General Specifications

UPC	662461030424
Weight	5.03 LB
Packaged Length	4.63 IN
Packaged Width	2.31 IN
Packaged Height	7.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
