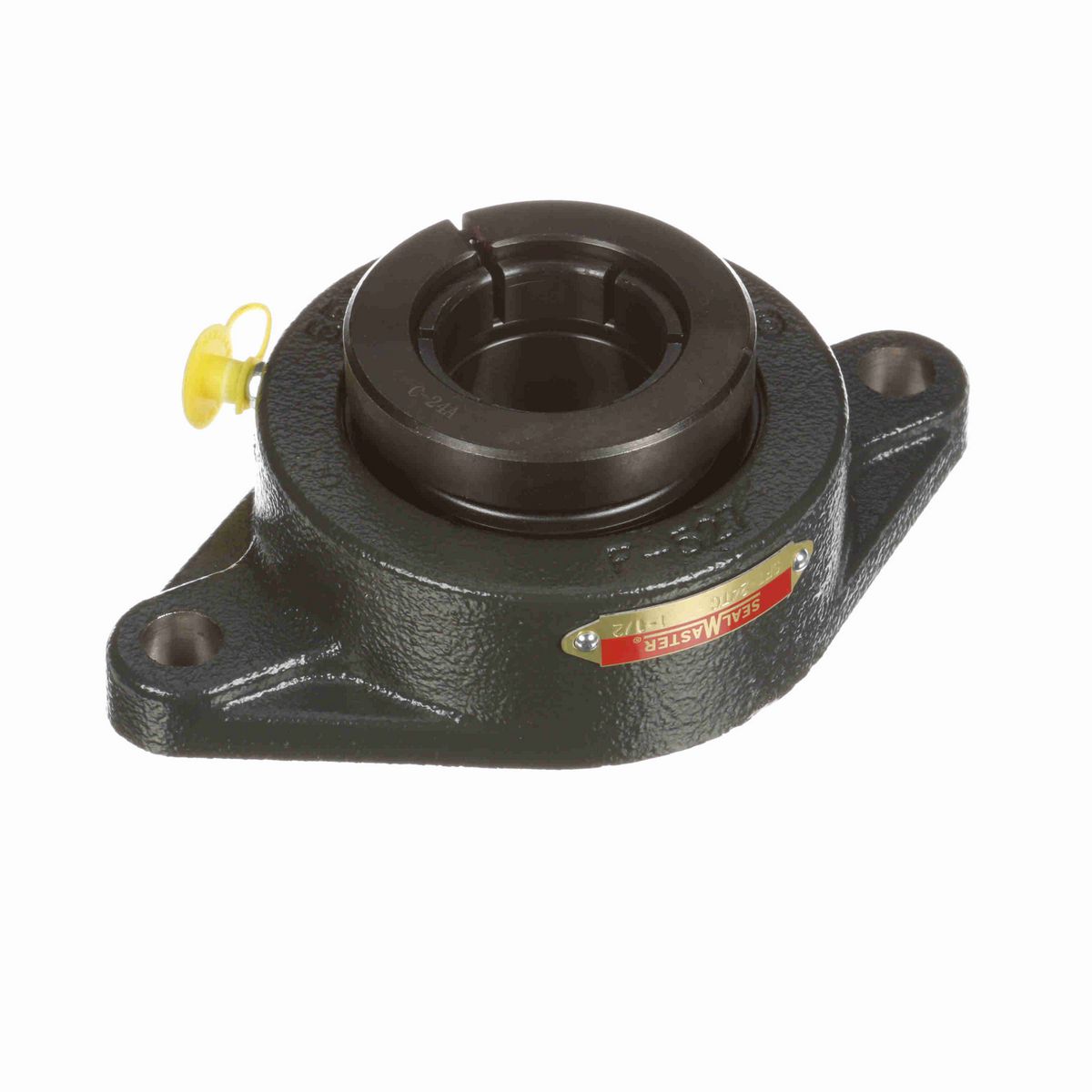

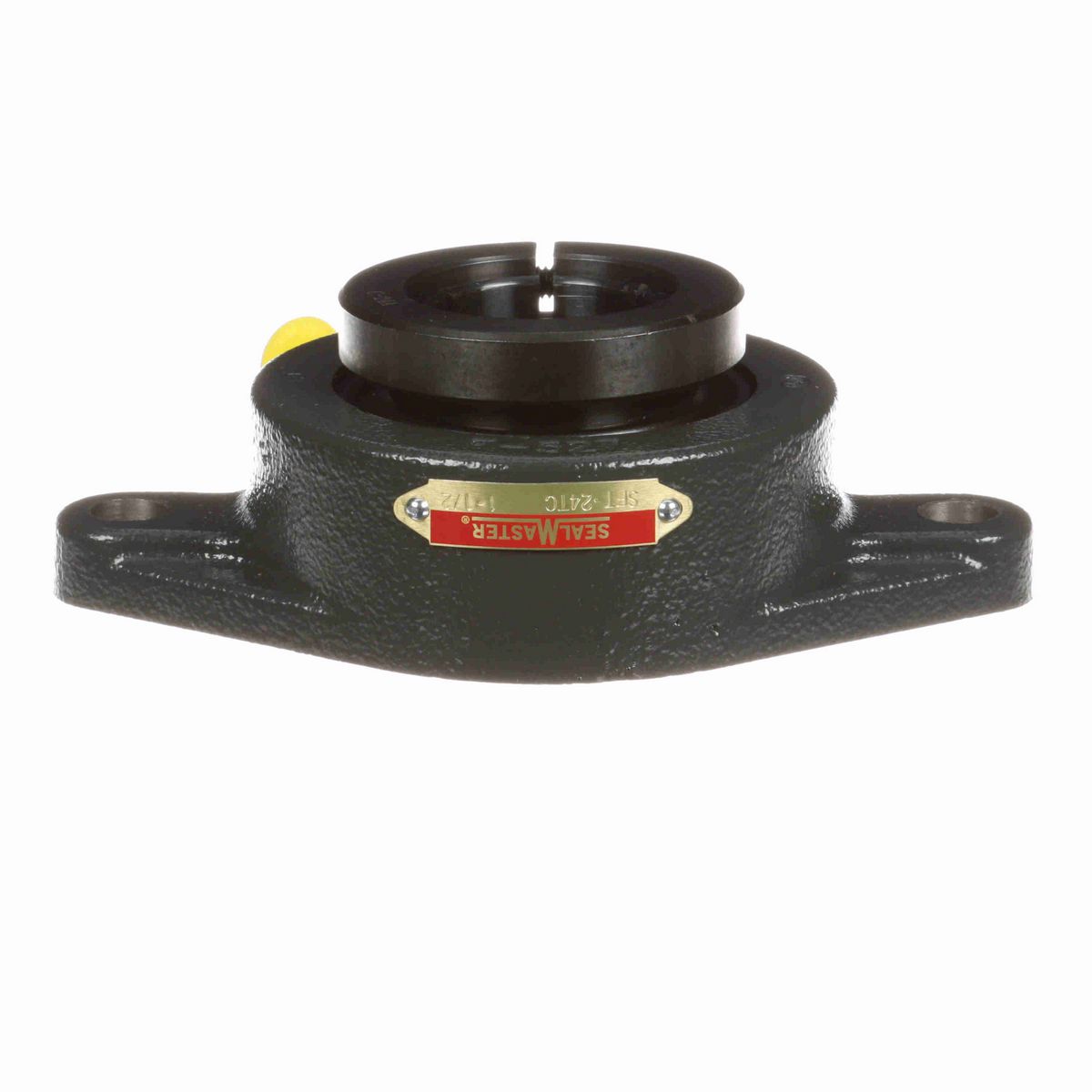

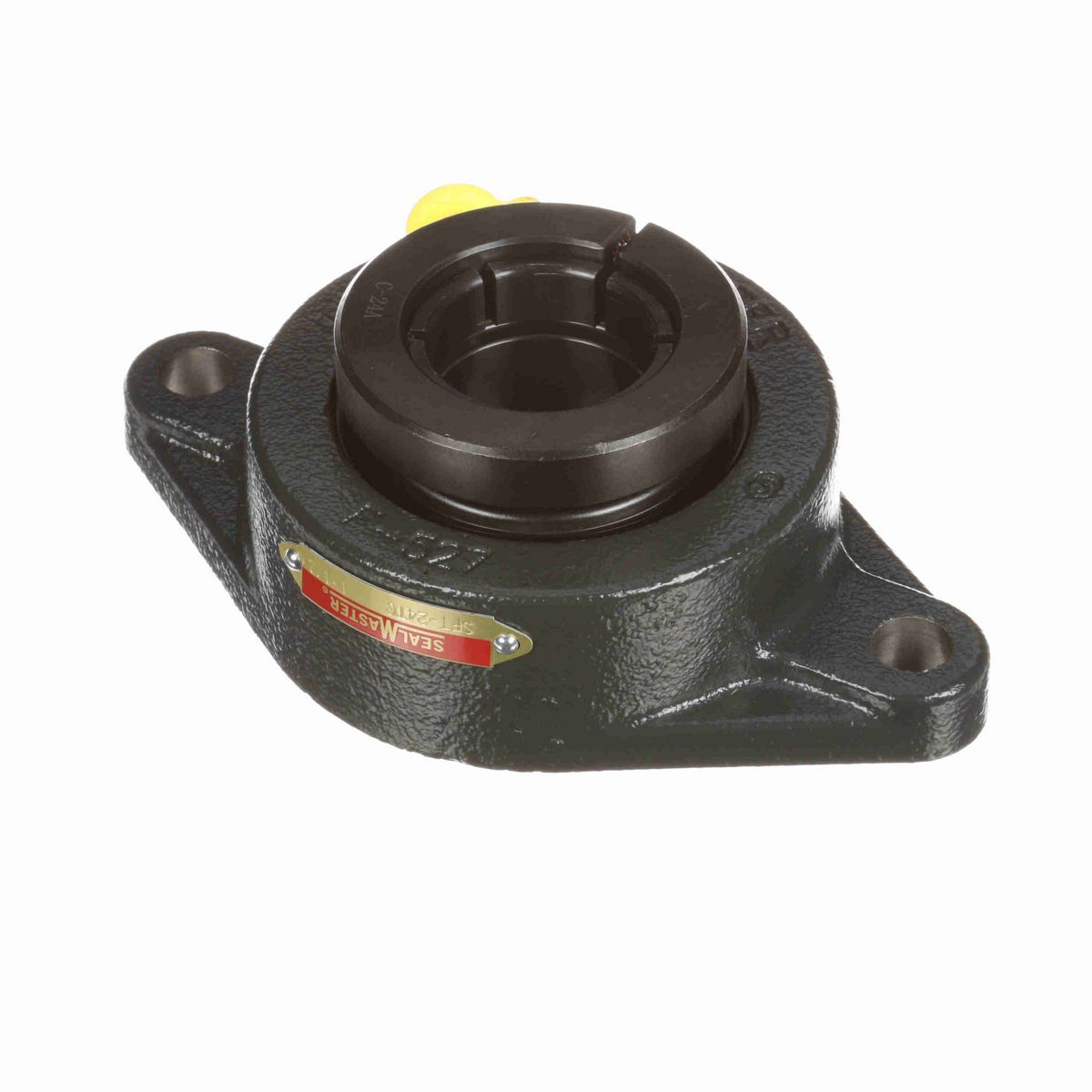

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	1/2 in
Overall Width (in)	4.13 in
Overall Length (in)	6.75 in
Overall Height (in)	2.078 in
Bore Diameter (in)	1.5 in
Foot Height (in)	0.56 in
Bolt Spacing (in)	5.6363 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	2.69 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Fixed vs. Expansion	Fixed
Dynamic Load Rating (lb)	7,340 lb
Cage Type	Land Riding Retainer
Insert	2-18TC
Static Load Rating (lb)	4,467 lb
Housing Coating	Powder Coated
Misalignment Capability	±2.0° Misalignment - Static Only
Radial Clearance	Standard
Max Operating Temperature (F)	220 °F
Bearing Type	Standard Duty
Maximum Speed (RPM)	4150 rpm
Shaft Locking Type	Concentric
Inner Ring Outside Diameter (in)	2.083 in
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/4-28
Housing Material	Cast Iron
Size Code	2-19
End Cap Available	No
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Finish	Black Oxide

General Specifications

UPC	662461033449
Weight	4.60 LB
Packaged Length	4.63 IN
Packaged Width	2.31 IN
Packaged Height	7.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
