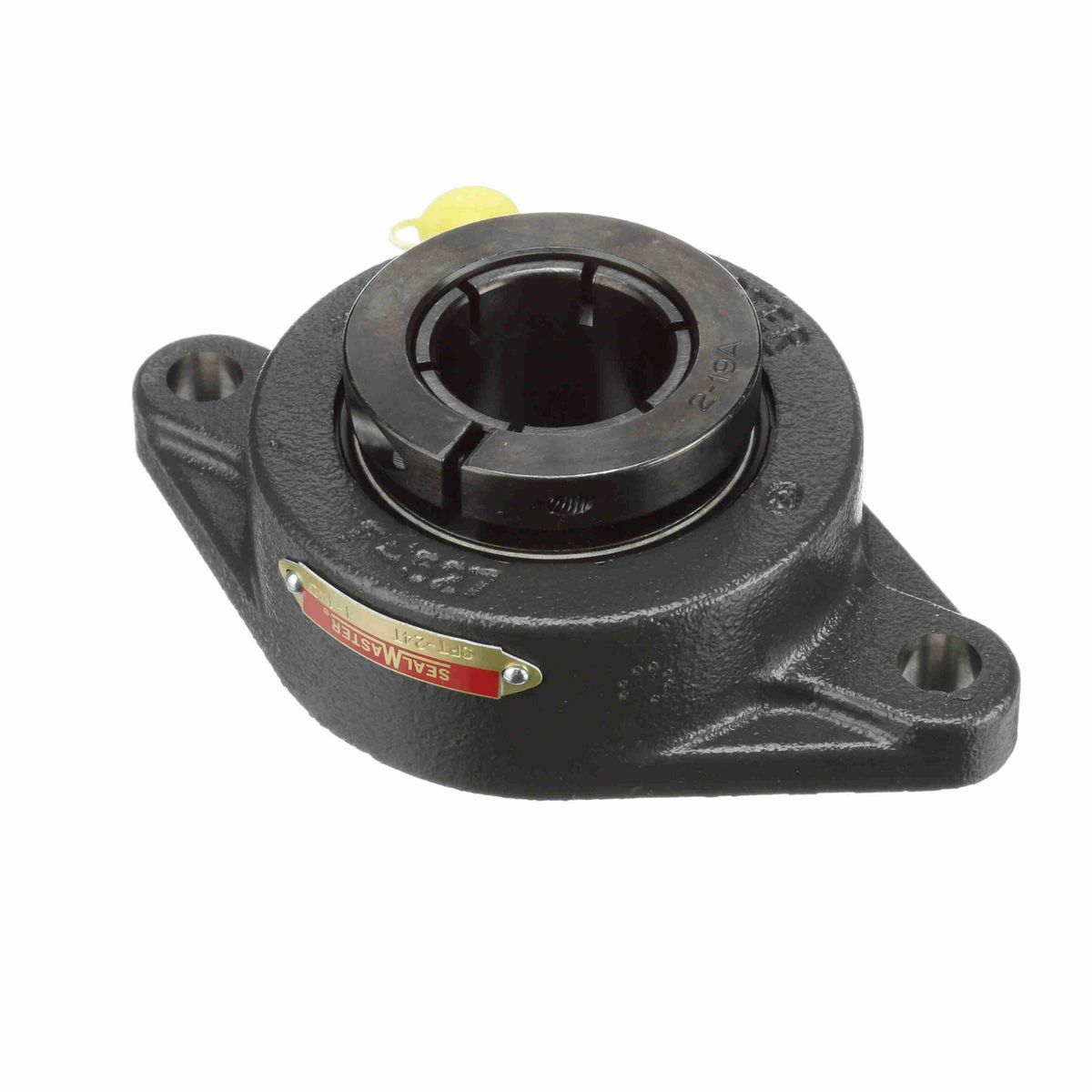

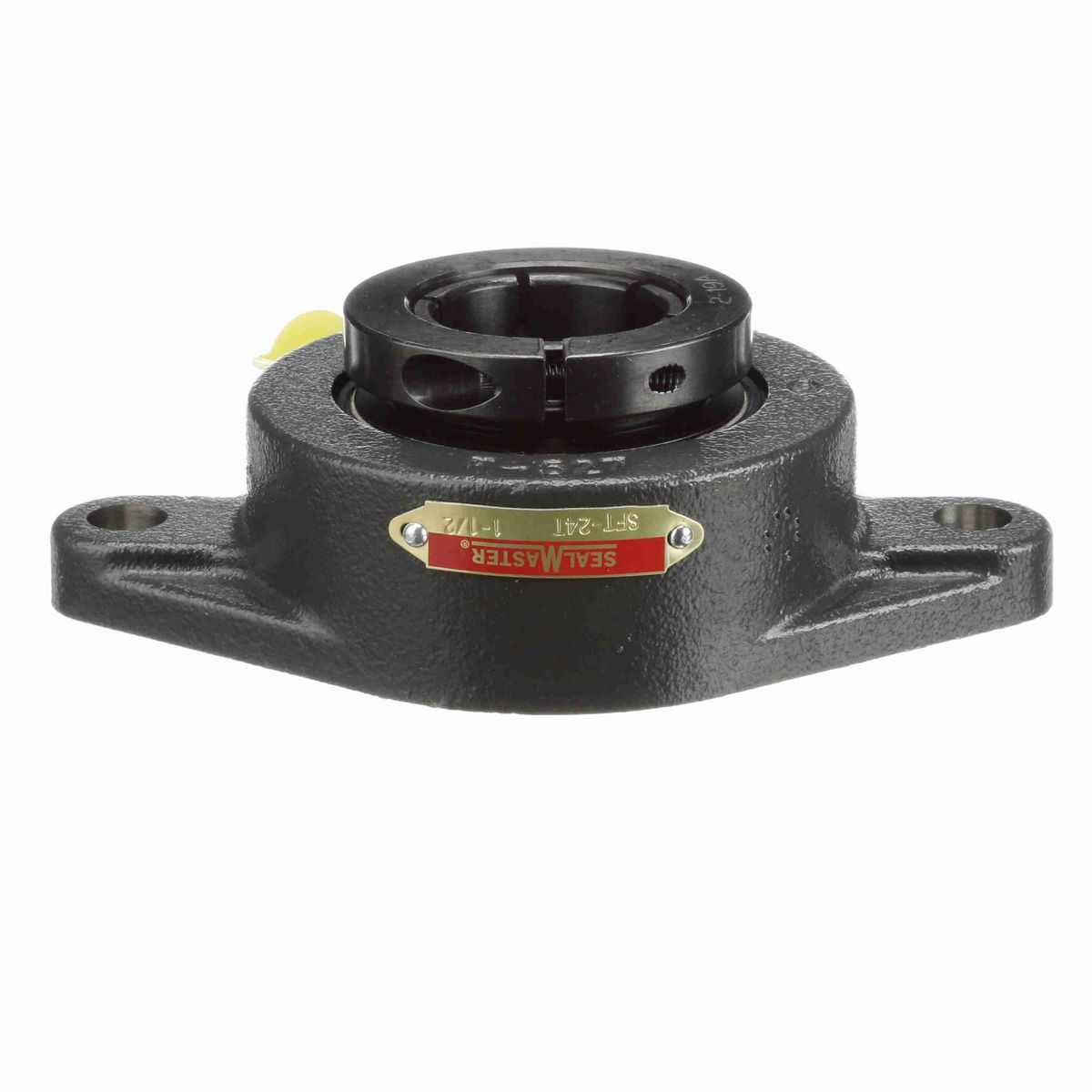

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	1/2 in
Overall Width (in)	4.13 in
Overall Length (in)	6.75 in
Overall Height (in)	2.078 in
Bore Diameter (in)	1.5 in
Foot Height (in)	0.56 in
Bolt Spacing (in)	5.6363 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	2.69 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Max Operating Temperature (F)	220 °F
Size Code	2-19
Fixed vs. Expansion	Fixed
Bearing Type	Standard Duty
Dynamic Load Rating (lb)	7,340 lb
Housing Material	Cast Iron
End Cap Available	No
Maximum Speed (RPM)	5850 rpm
Misalignment Capability	±2.0° Misalignment - Static Only
Insert	2-18T
Static Load Rating (lb)	4,467 lb
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Inner Ring Outside Diameter (in)	2.083 in
Grease Fitting Thread Size	1/4-28
Radial Clearance	Standard
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Lubricant	Lithium Complex NLGI 2 Grease
Shaft Locking Type	Concentric

General Specifications

UPC	662461030400
Weight	4.60 LB
Packaged Length	4.63 IN
Packaged Width	2.31 IN
Packaged Height	7.50 IN
HTC	8483.20.4040
Country of Origin	Mexico
