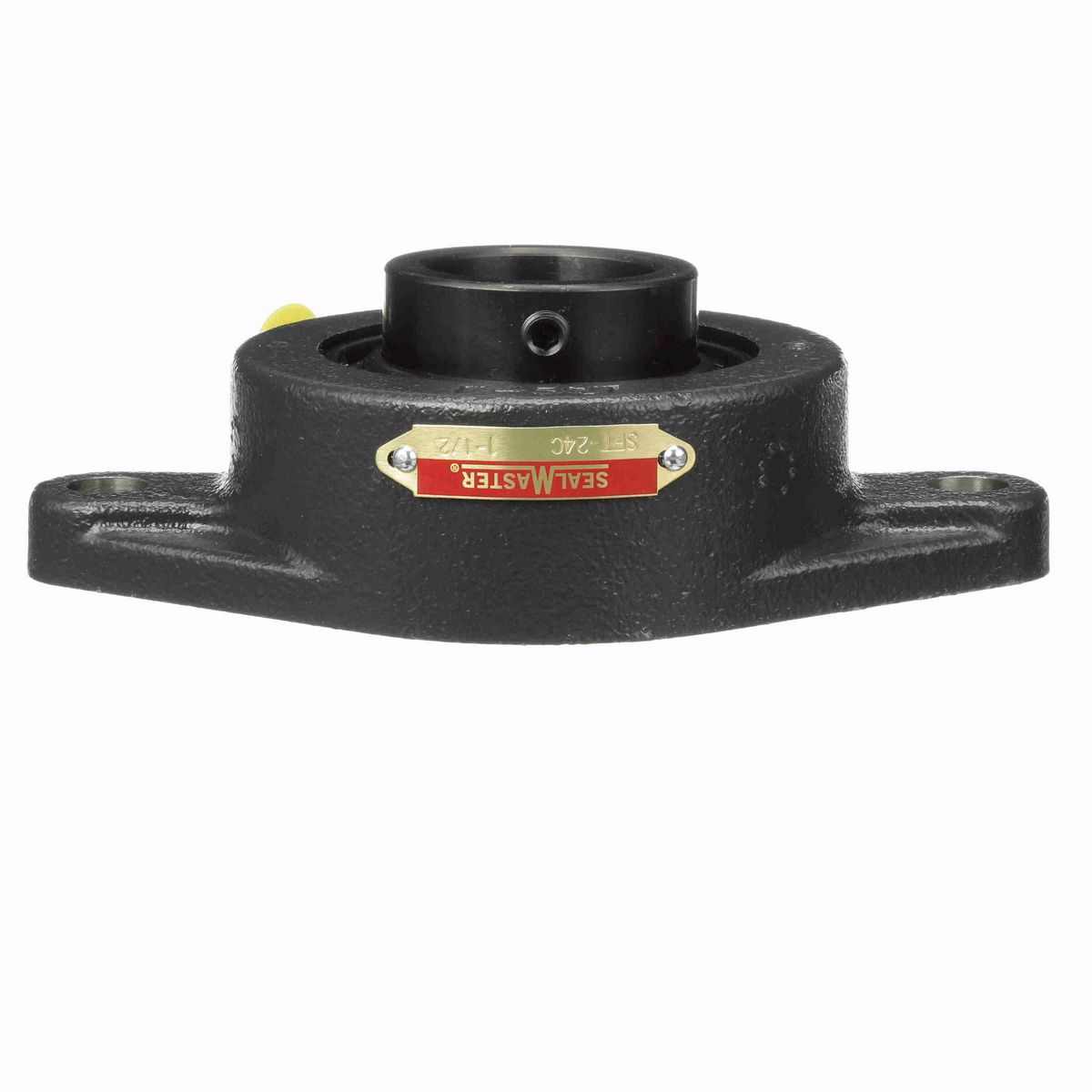

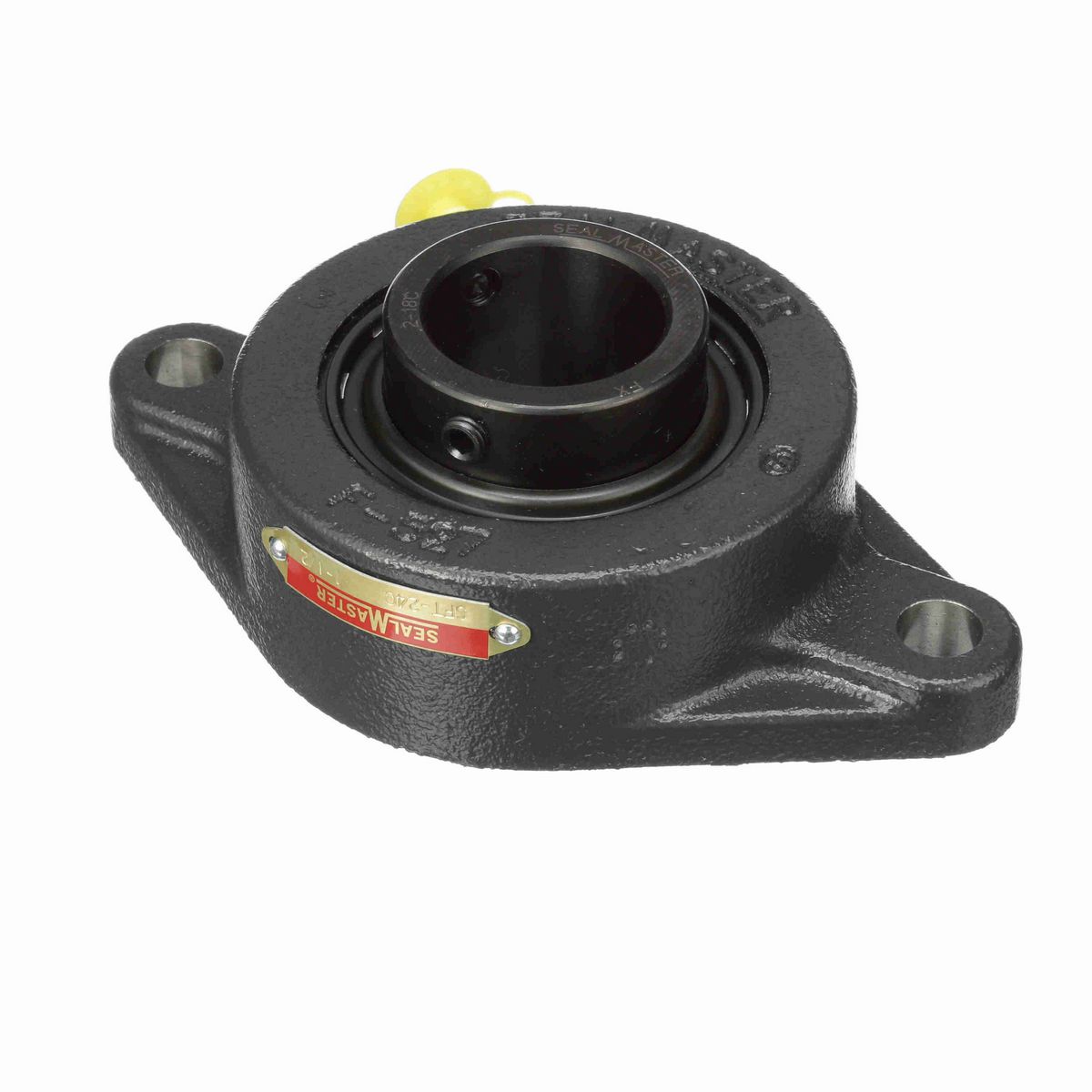

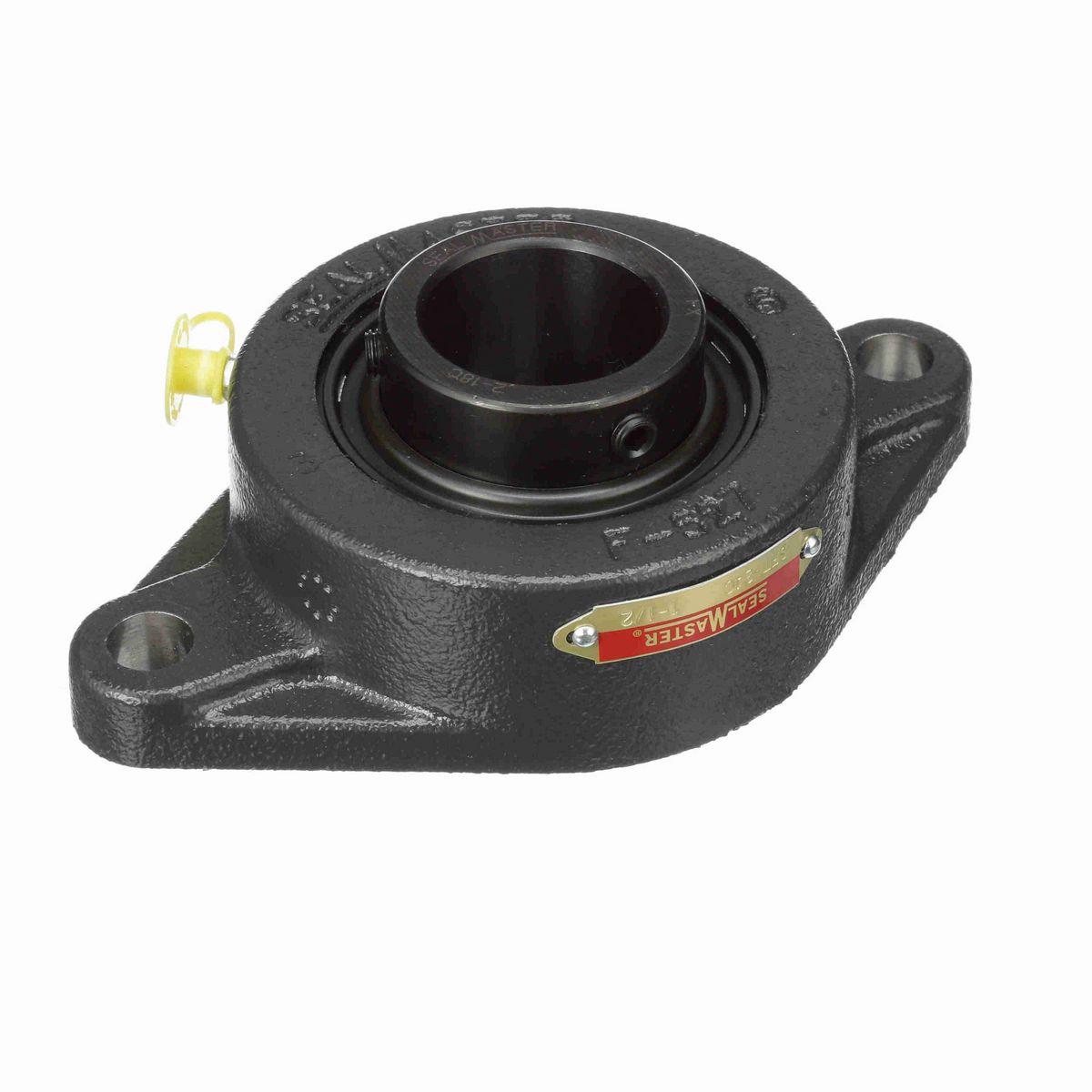

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	1/2 in
Overall Width (in)	4.13 in
Overall Length (in)	6.75 in
Overall Height (in)	2.016 in
Bore Diameter (in)	1.5 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.938 in
Bolt Spacing (in)	5.6363 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Insert	2-18
Grease Fitting Thread Size	1/4-28
Shaft Locking Type	Set Screw
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Bearing Type	Standard Duty
Cage Type	Land Riding Retainer
End Cap Available	No
Size Code	2-19
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.063 in
Radial Clearance	Standard
Static Load Rating (lb)	4,467 lb
Bearing Insert Finish	Black Oxide
Maximum Speed (RPM)	4150 rpm
Bearing Insert Material	52100 Bearing Steel
Max Operating Temperature (F)	220 °F
Dynamic Load Rating (lb)	7,340 lb

General Specifications

UPC	662461022672
Weight	4.24 LB
Packaged Length	4.38 IN
Packaged Width	2.06 IN
Packaged Height	6.81 IN
HTC	8483.20.4040
Country of Origin	United States of America
