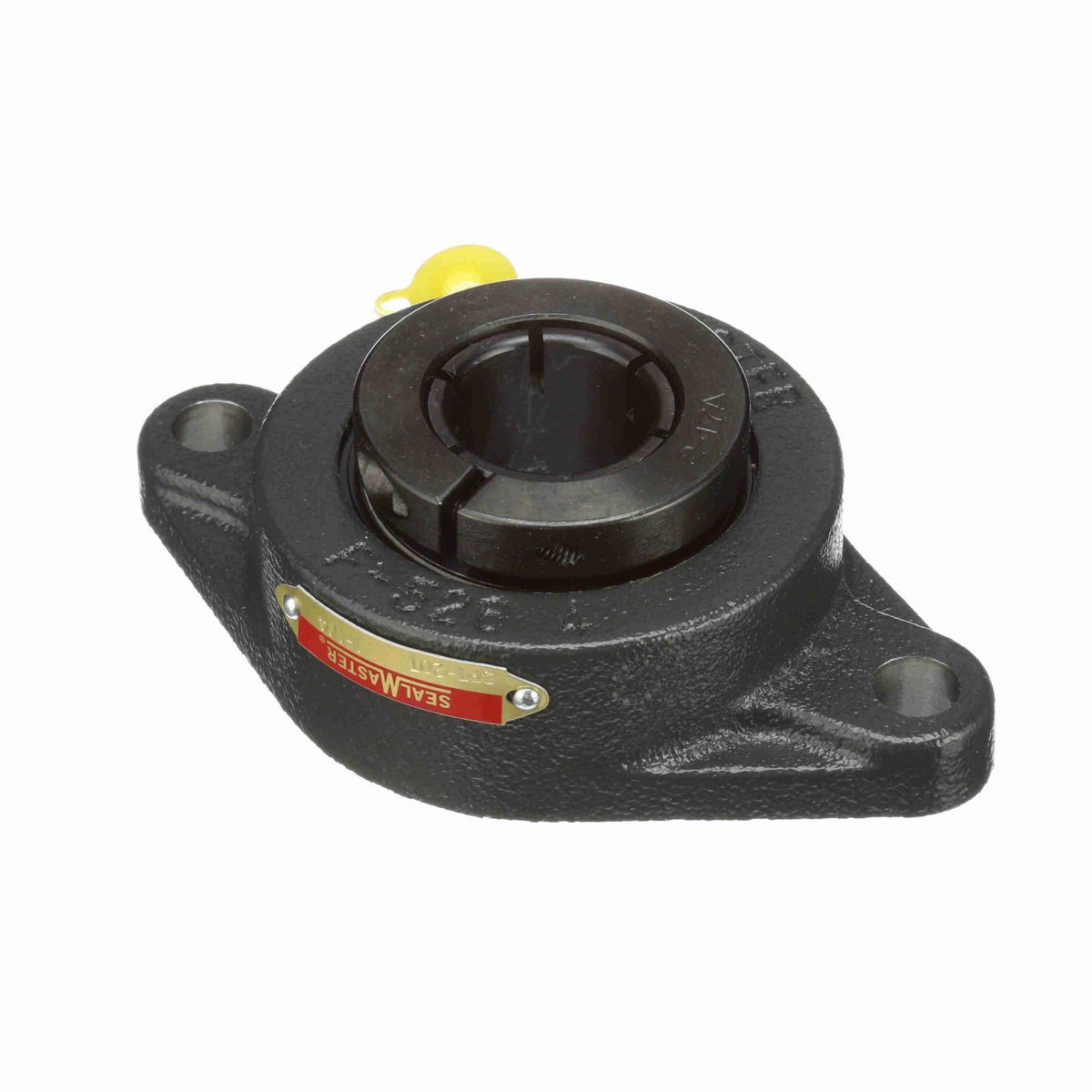

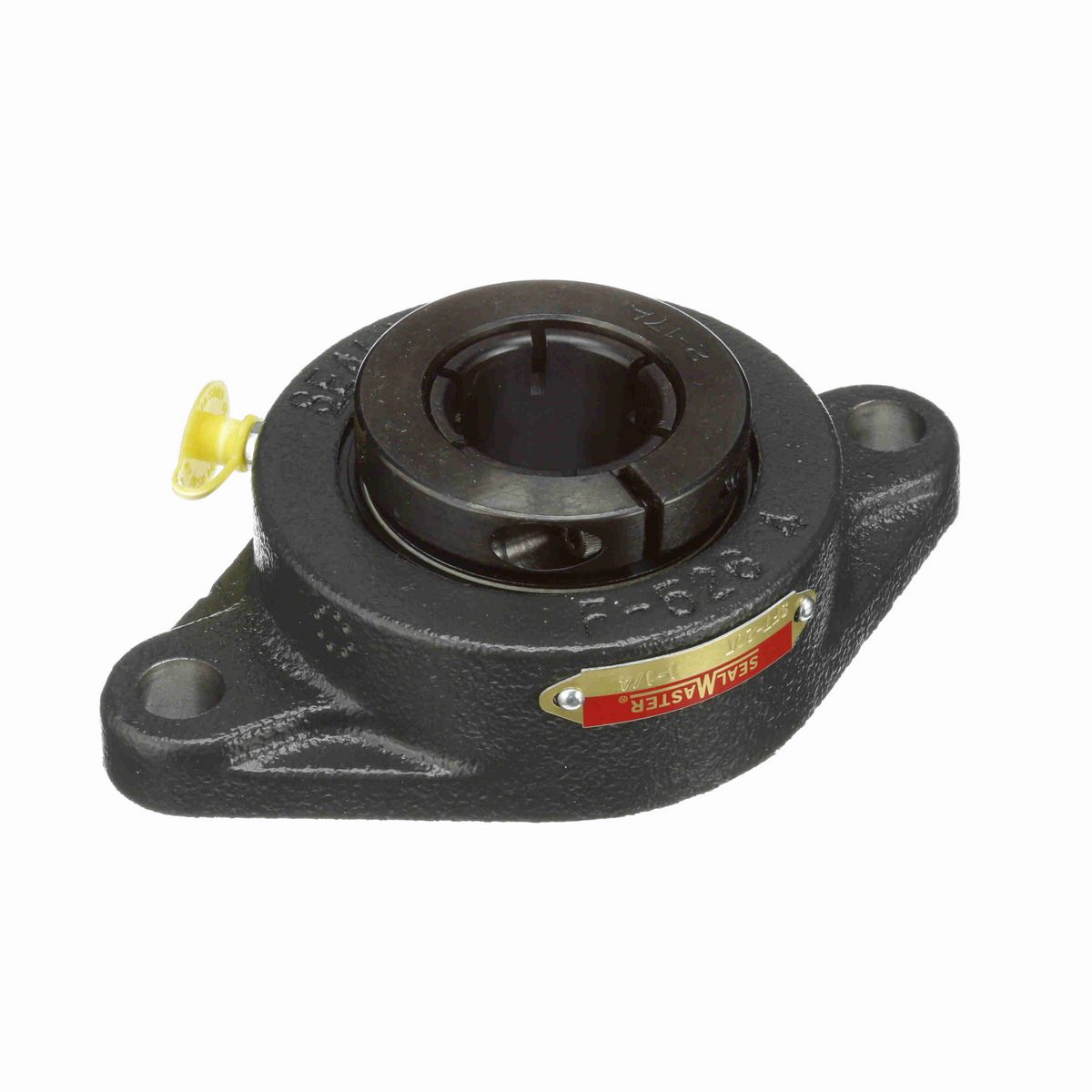

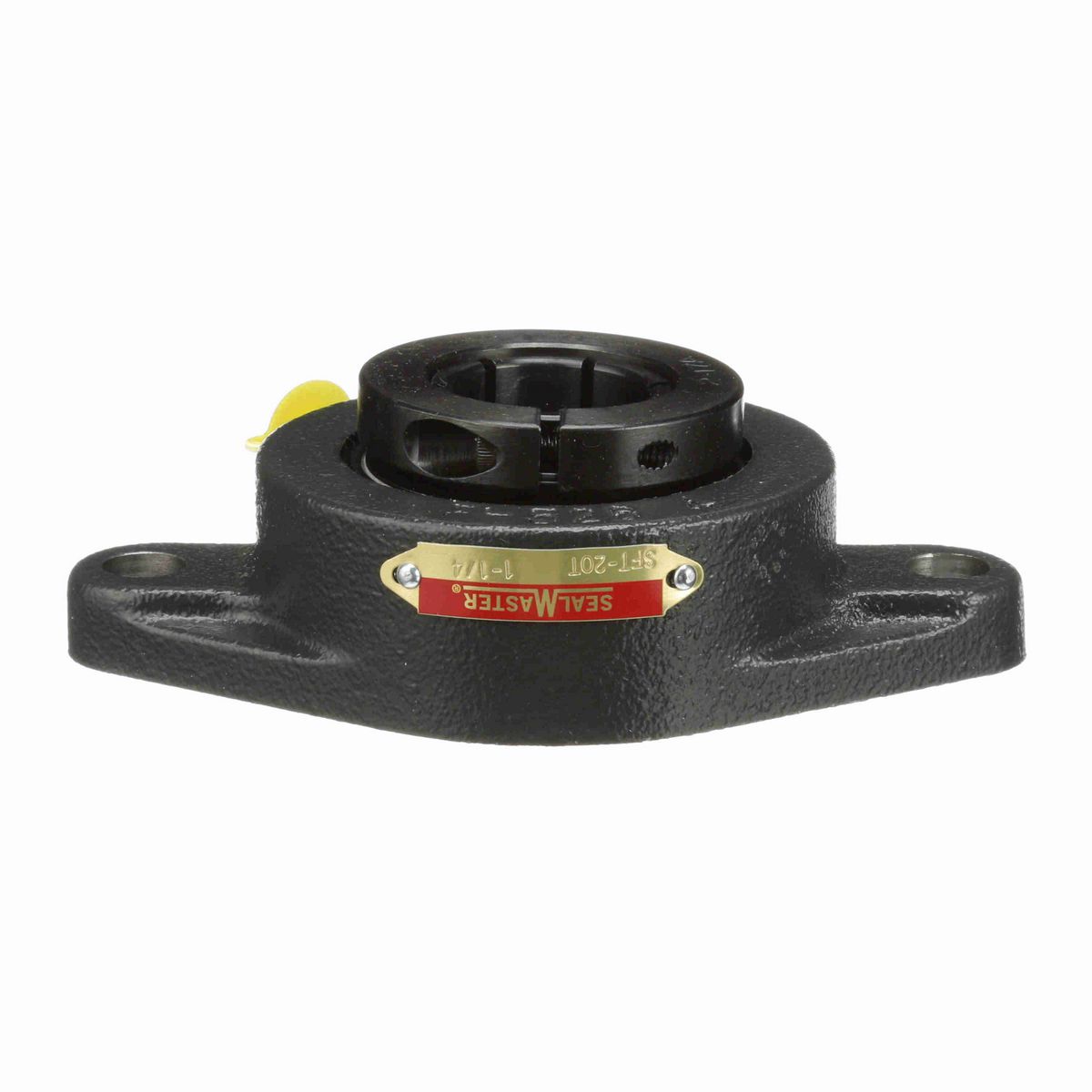

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	3.75 in
Bolt Size (in)	1/2 in
Overall Length (in)	6.13 in
Overall Height (in)	1.81 in
Bore Diameter (in)	1.25 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.81 in
Bolt Spacing (in)	5.1250 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	2.56 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.0905 cps
Bearing Type	Standard Duty
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Finish	Black Oxide
Vibration Frequency Fundamental Train	0.0066 cps
Radial Clearance	Standard
Cage Type	Land Riding Retainer
End Cap Available	No
Housing Coating	Powder Coated
Grease Fitting Thread Size	1/4-28
Fixed vs. Expansion	Fixed
Dynamic Load Rating (lb)	5,782 lb
Static Load Rating (lb)	3,493 lb
Vibration Frequency Roller Spin	0.0386 cps
Maximum Speed (RPM)	6500 rpm
Lubricant	Lithium Complex NLGI 2 Grease
Insert	2-14T
Max Operating Temperature (F)	220 °F
Size Code	2-17
Housing Material	Cast Iron
Vibration Frequency Outer Ring Defect	0.0595 cps
Shaft Locking Type	Concentric
Bearing Insert Material	52100 Bearing Steel
Inner Ring Outside Diameter (in)	1.859 in

General Specifications

UPC	662461030370
Weight	3.49 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	Mexico
