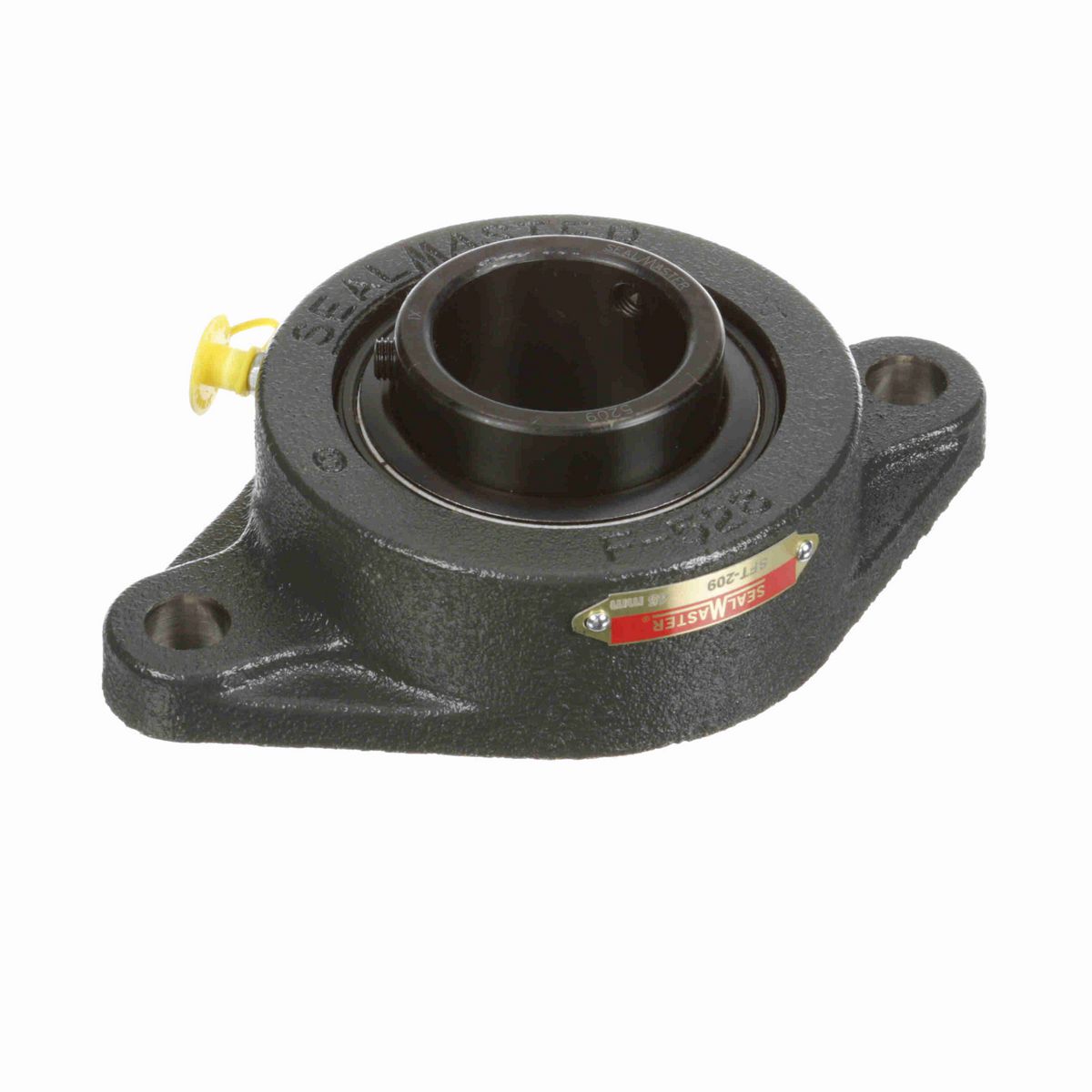

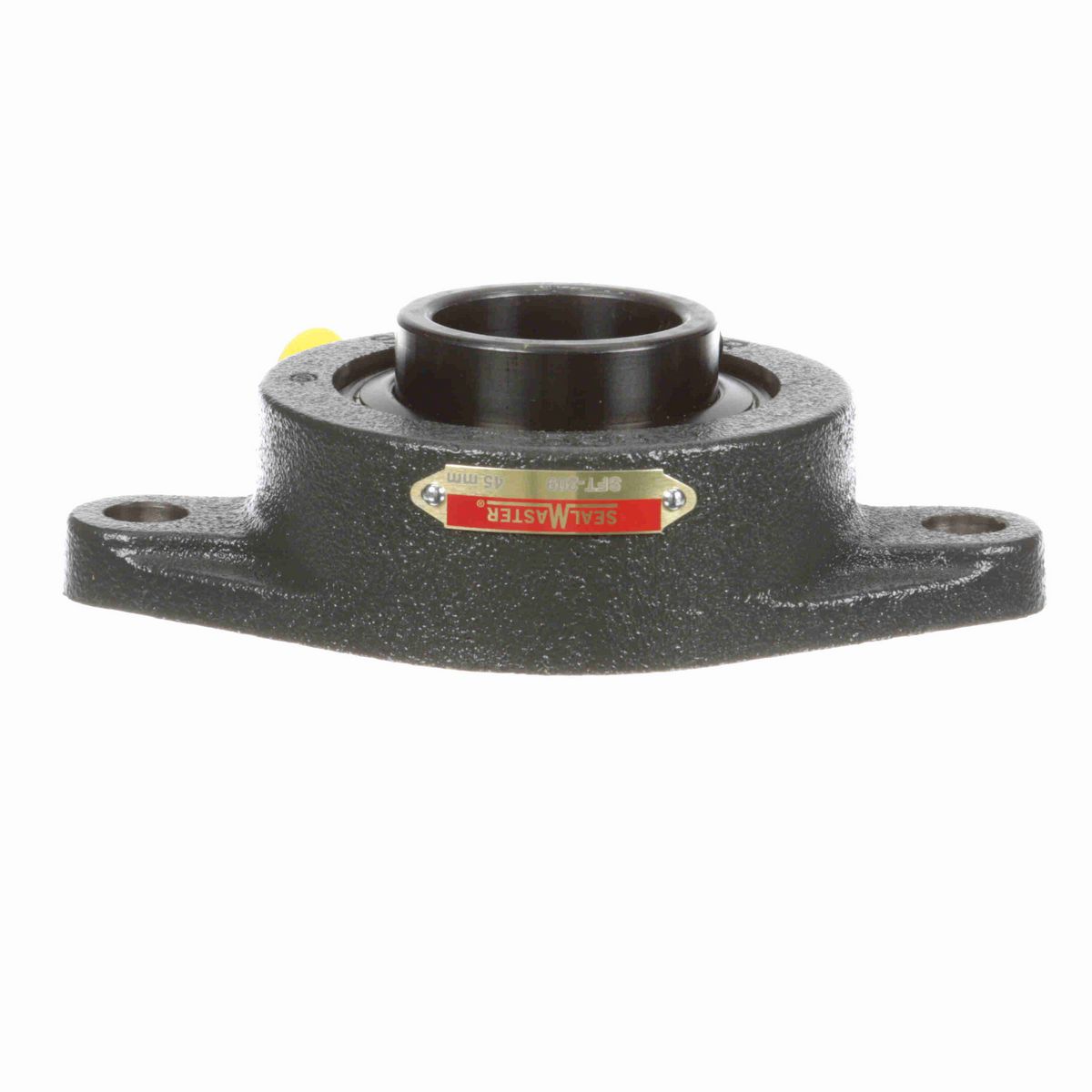

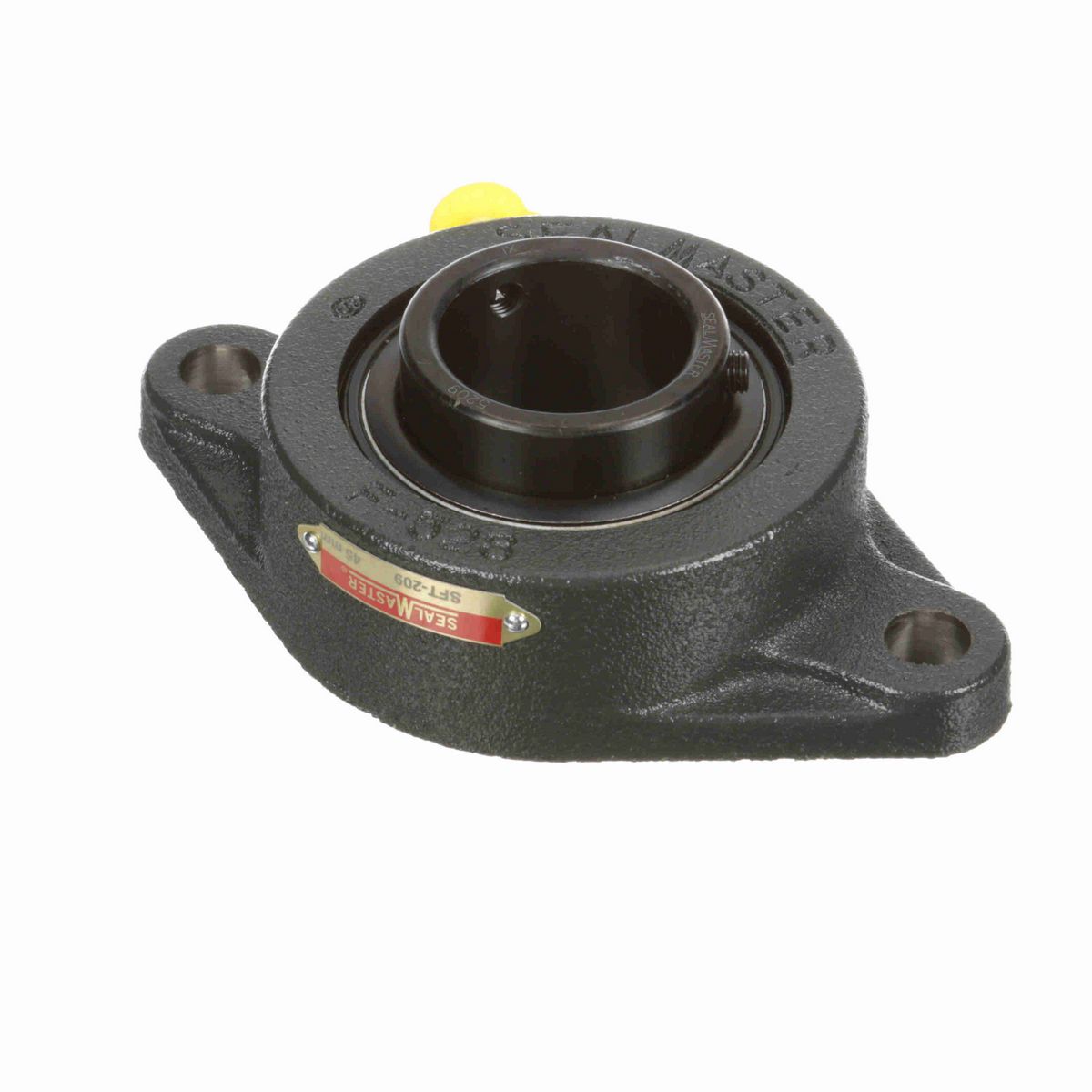

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	4.38 in
Overall Height (in)	2.047 in
Overall Length (in)	7.06 in
Bore Diameter (mm)	45 mm
Foot Height (in)	0.56 in
Length Through Bore (in)	1.930 in
Bolt Spacing (in)	5.8438 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Misalignment Capability	±2.0° Misalignment - Static Only
Max Operating Temperature (F)	220 °F
Insert	5209
Fixed vs. Expansion	Fixed
Dynamic Load Rating (lb)	7,901 lb
End Cap Available	No
Static Load Rating (lb)	5,139 lb
Lubricant	Lithium Complex NLGI 2 Grease
Inner Ring Outside Diameter (in)	2.297 in
Bearing Type	Standard Duty
Bearing Insert Finish	Black Oxide
Shaft Locking Type	Set Screw
Maximum Speed (RPM)	3800 rpm
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/4-28
Housing Coating	Powder Coated
Size Code	2-111
Max Operating Temperature (C)	104 °C
Housing Material	Cast Iron
Radial Clearance	Standard

General Specifications

UPC	662461052518
Weight	5.00 LB
Packaged Length	2.31 IN
Packaged Width	4.63 IN
Packaged Height	7.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
