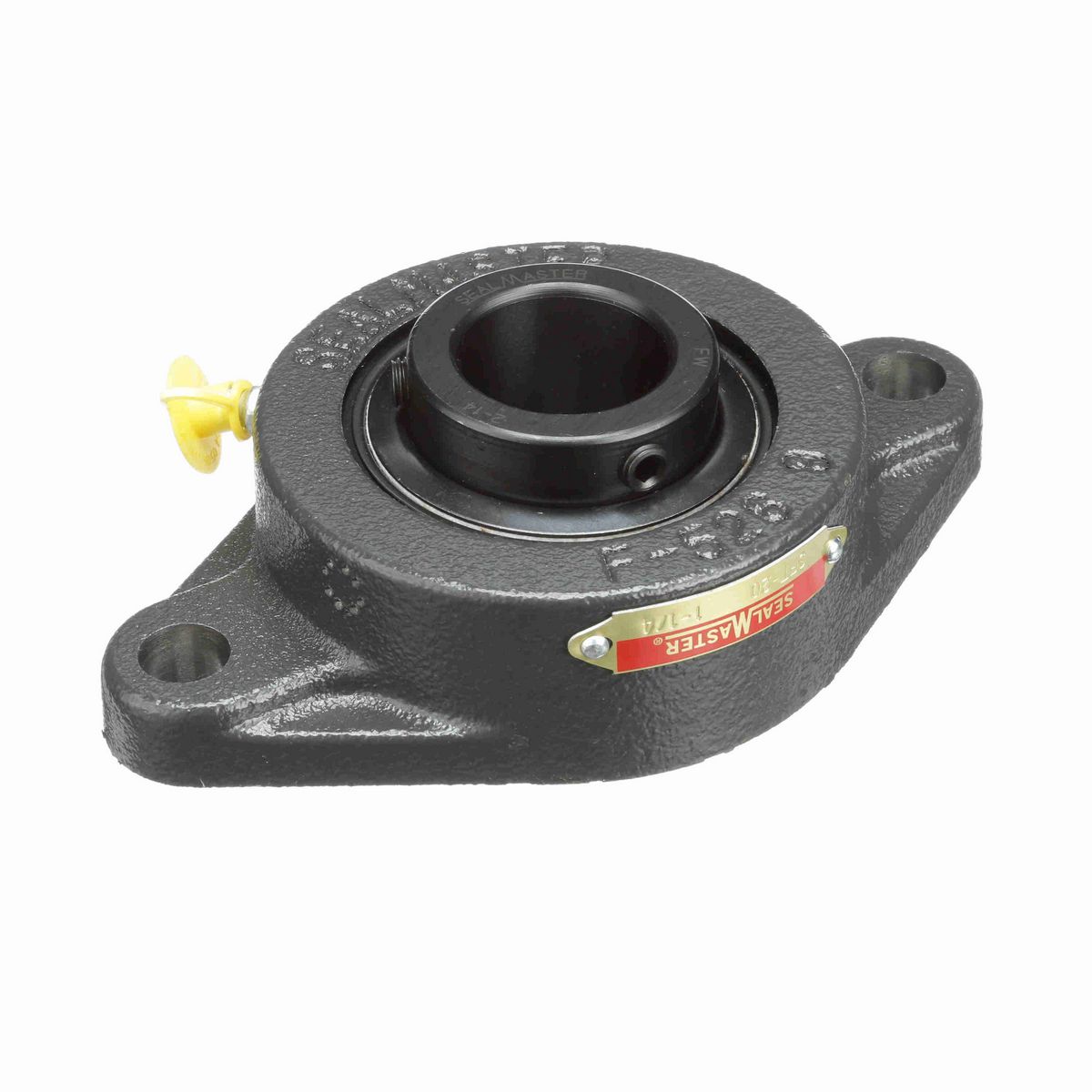

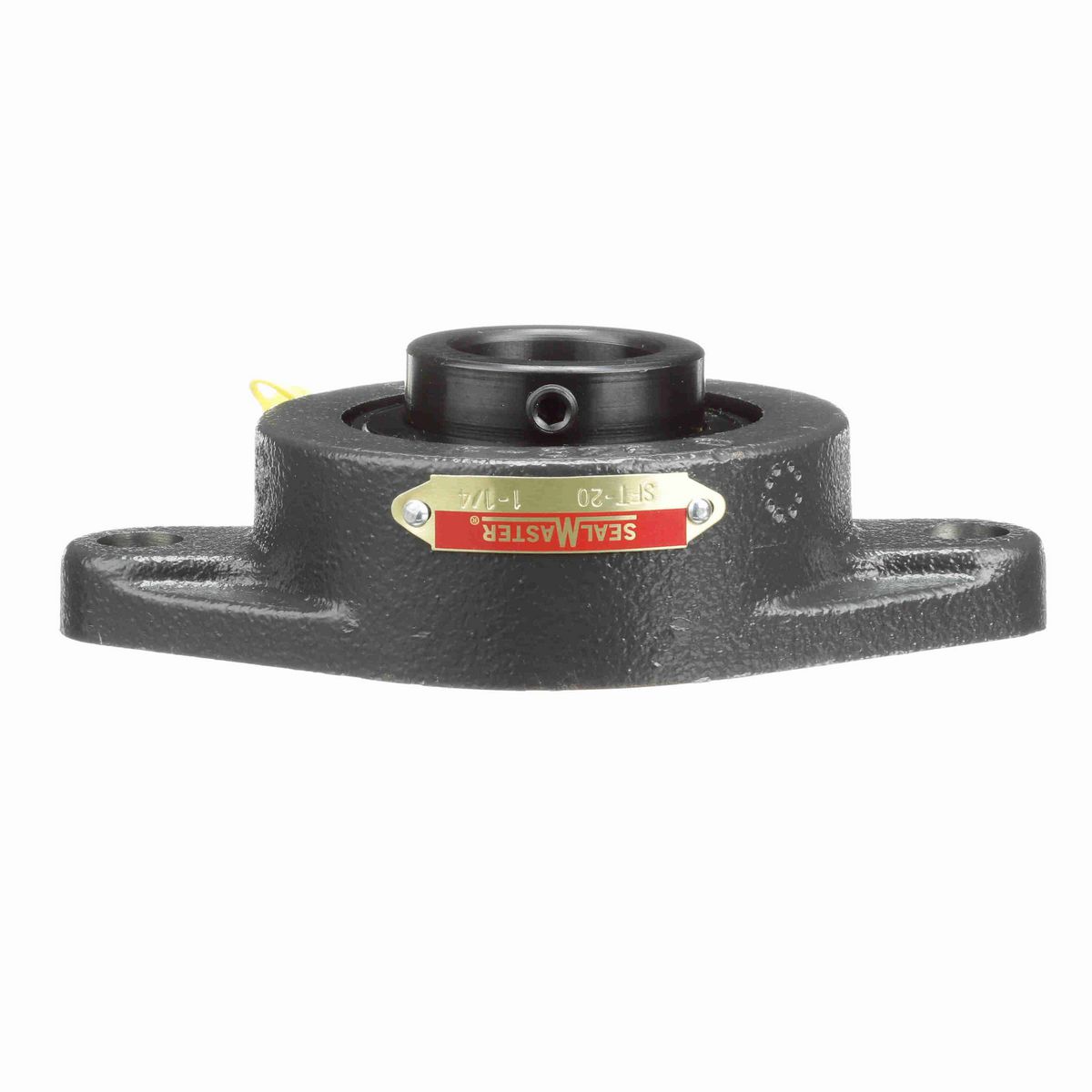

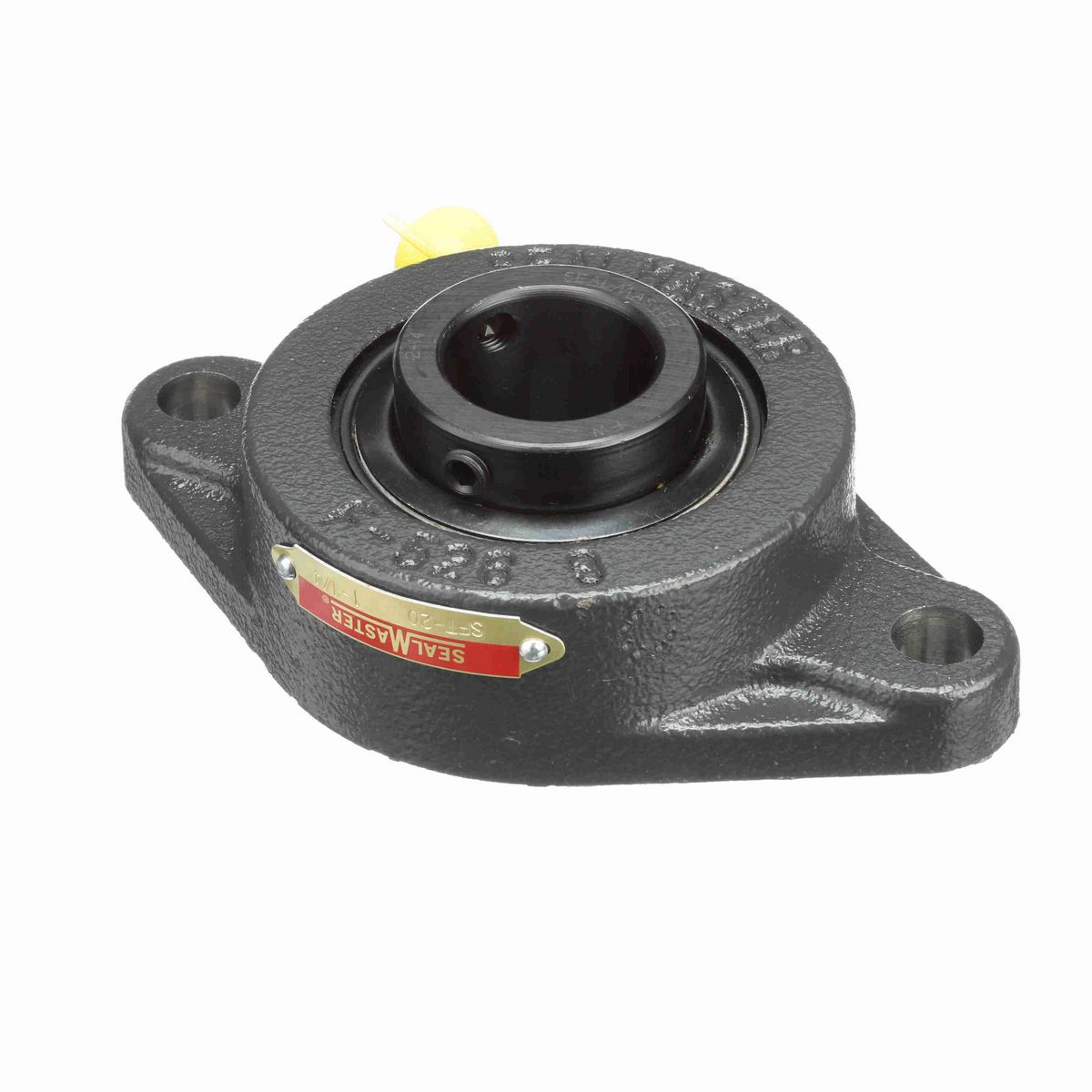

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	1/2 in
Overall Width (in)	3.75 in
Overall Height (in)	1.75 in
Overall Length (in)	6.13 in
Bore Diameter (in)	1.25 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.688 in
Bolt Spacing (in)	5.1250 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Setscrew Torque (in-lbs)	125-165 in/lbs
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Outer Ring Defect	0.0595 cps
Lubricant	Lithium Complex NLGI 2 Grease
Shaft Locking Type	Set Screw
Misalignment Capability	±2.0° Misalignment - Static Only
Grease Fitting Thread Size	1/4-28
Size Code	2-17
Static Load Rating (lb)	3,493 lb
Housing Coating	Powder Coated
Housing Material	Cast Iron
Bearing Insert Finish	Black Oxide
Inner Ring Outside Diameter (in)	1.859 in
Vibration Frequency Fundamental Train	0.0066 cps
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0905 cps
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Roller Spin	0.0386 cps
Cage Type	Land Riding Retainer
End Cap Available	No
Bearing Type	Standard Duty
Dynamic Load Rating (lb)	5,782 lb
Radial Clearance	Standard
Insert	2-14
Maximum Speed (RPM)	4650 rpm

General Specifications

UPC	662461004333
Weight	3.27 LB
Packaged Length	2.00 IN
Packaged Width	5.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	Mexico
