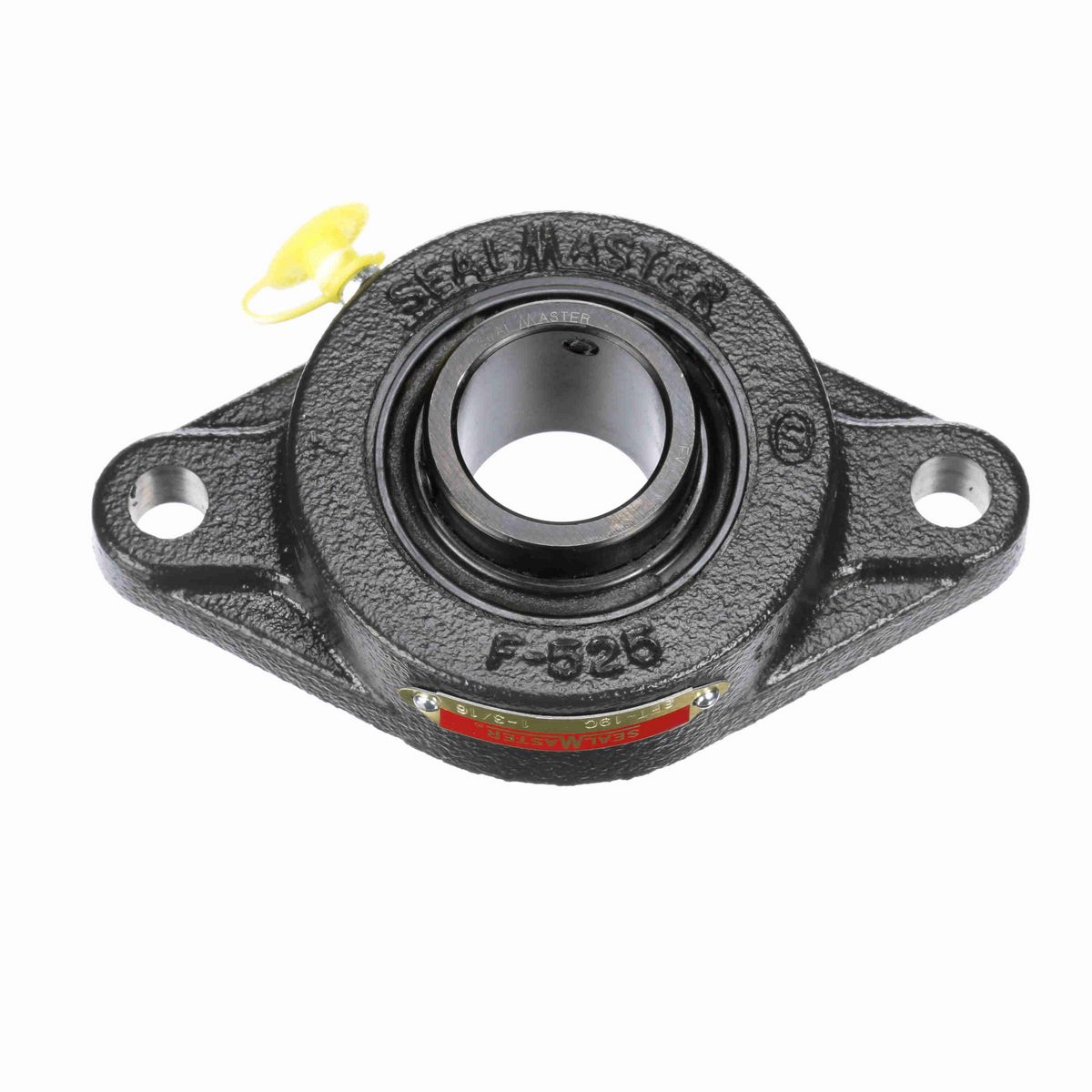

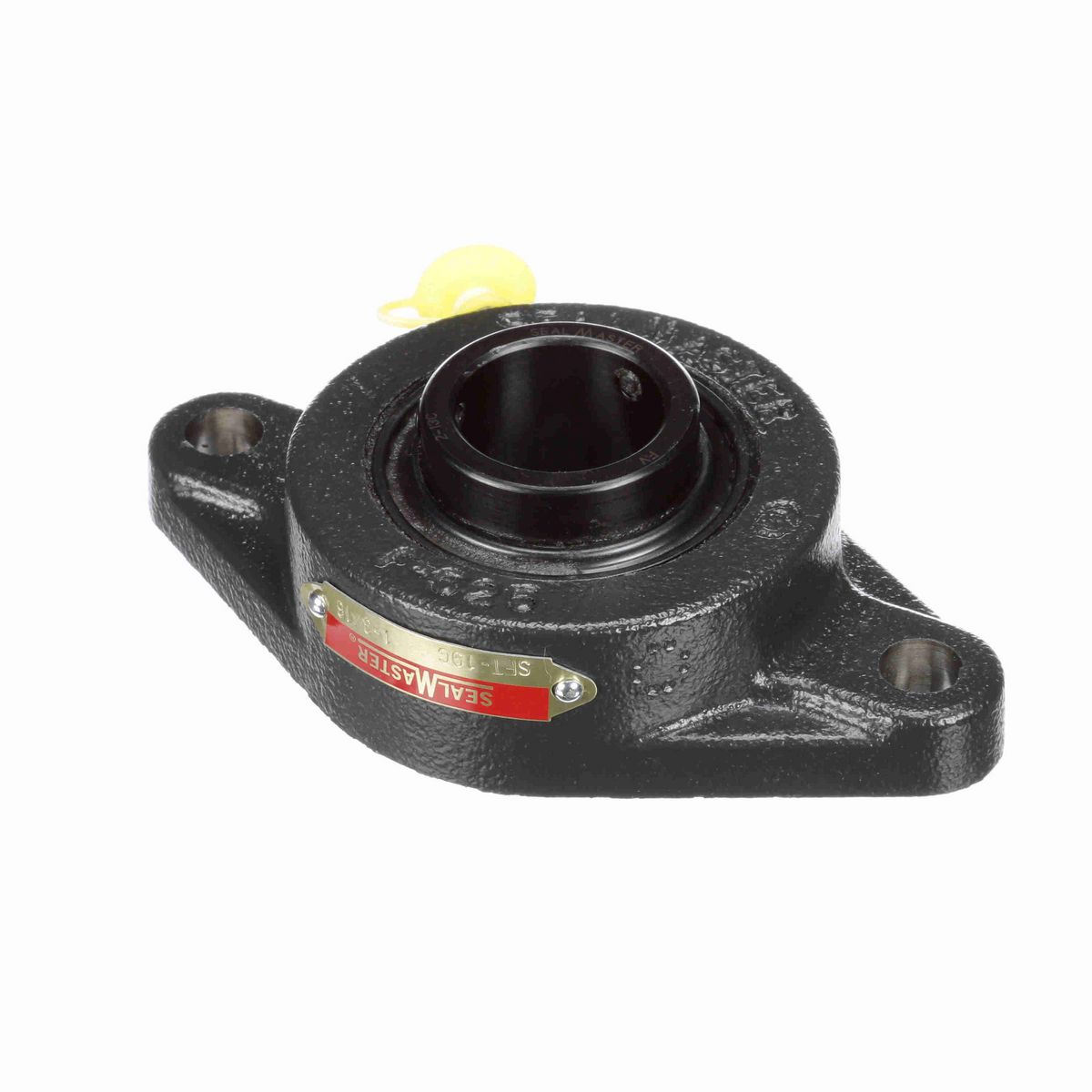

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	7/16 in
Overall Width (in)	3.25 in
Overall Height (in)	1.563 in
Overall Length (in)	5.56 in
Bore Diameter (in)	1.1875 in
Foot Height (in)	0.53 in
Length Through Bore (in)	1.5 in
Bolt Spacing (in)	4.5940 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	85 in/lbs
Ability to Relubricate	Yes
Lubricant	Lithium Complex NLGI 2 Grease
Insert	2-13C
Vibration Frequency Inner Ring Defect	0.0905 cps
Bearing Type	Standard Duty
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel
Maximum Speed (RPM)	5450 rpm
Dynamic Load Rating (lb)	4,381 lb
Vibration Frequency Roller Spin	0.0385 cps
Inner Ring Outside Diameter (in)	1.587 in
Housing Material	Cast Iron
Vibration Frequency Outer Ring Defect	0.0595 cps
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
End Cap Available	No
Size Code	2-13
Grease Fitting Thread Size	1/4-28
Cage Type	Land Riding Retainer
Vibration Frequency Fundamental Train	0.0066 cps
Static Load Rating (lb)	2,567 lb
Shaft Locking Type	Set Screw
Max Operating Temperature (F)	220 °F
Misalignment Capability	±2.0° Misalignment - Static Only
Fixed vs. Expansion	Fixed

General Specifications

UPC	662461022610
Weight	2.15 LB
Packaged Length	3.50 IN
Packaged Width	1.69 IN
Packaged Height	5.75 IN
HTC	8483.20.4040
Country of Origin	United States of America
