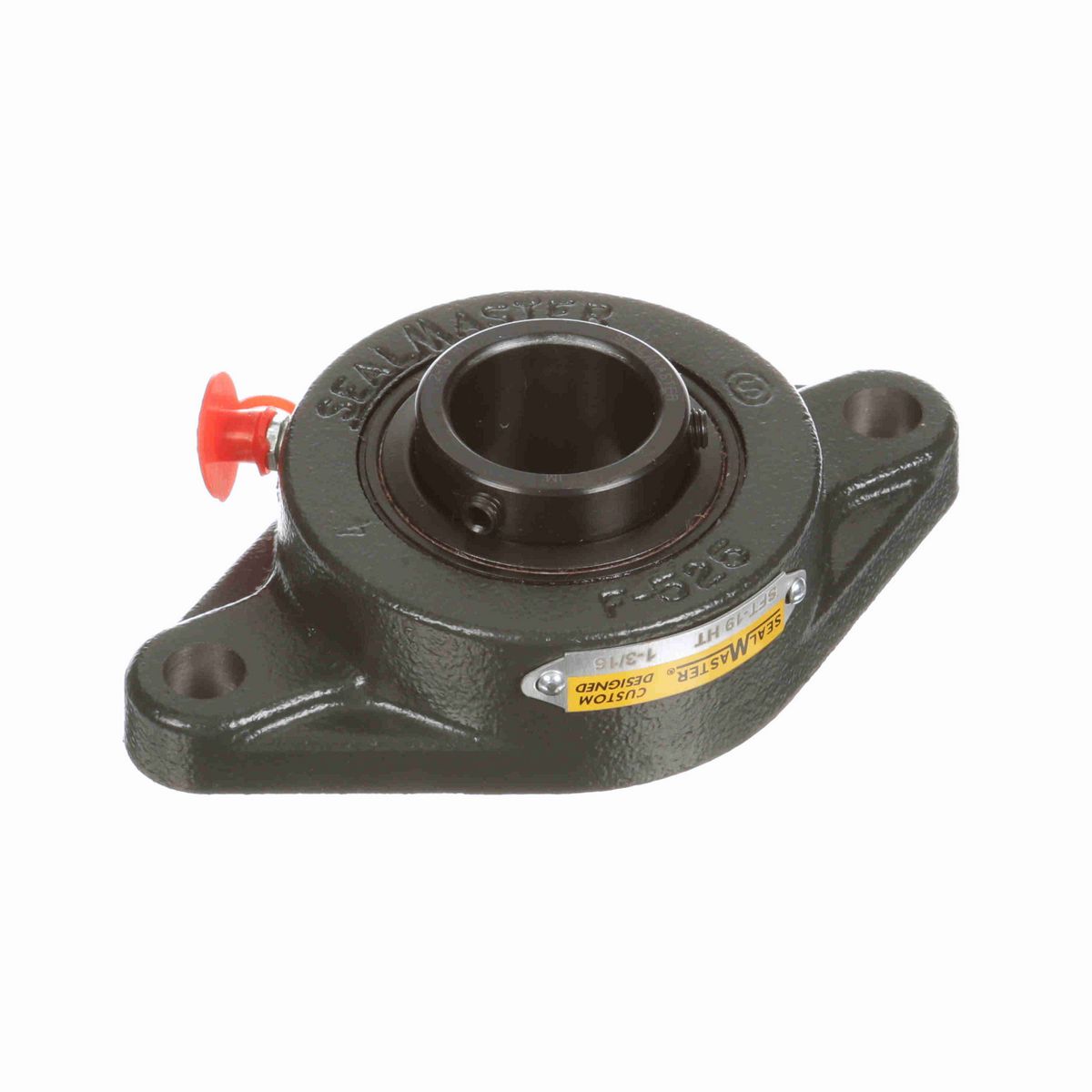

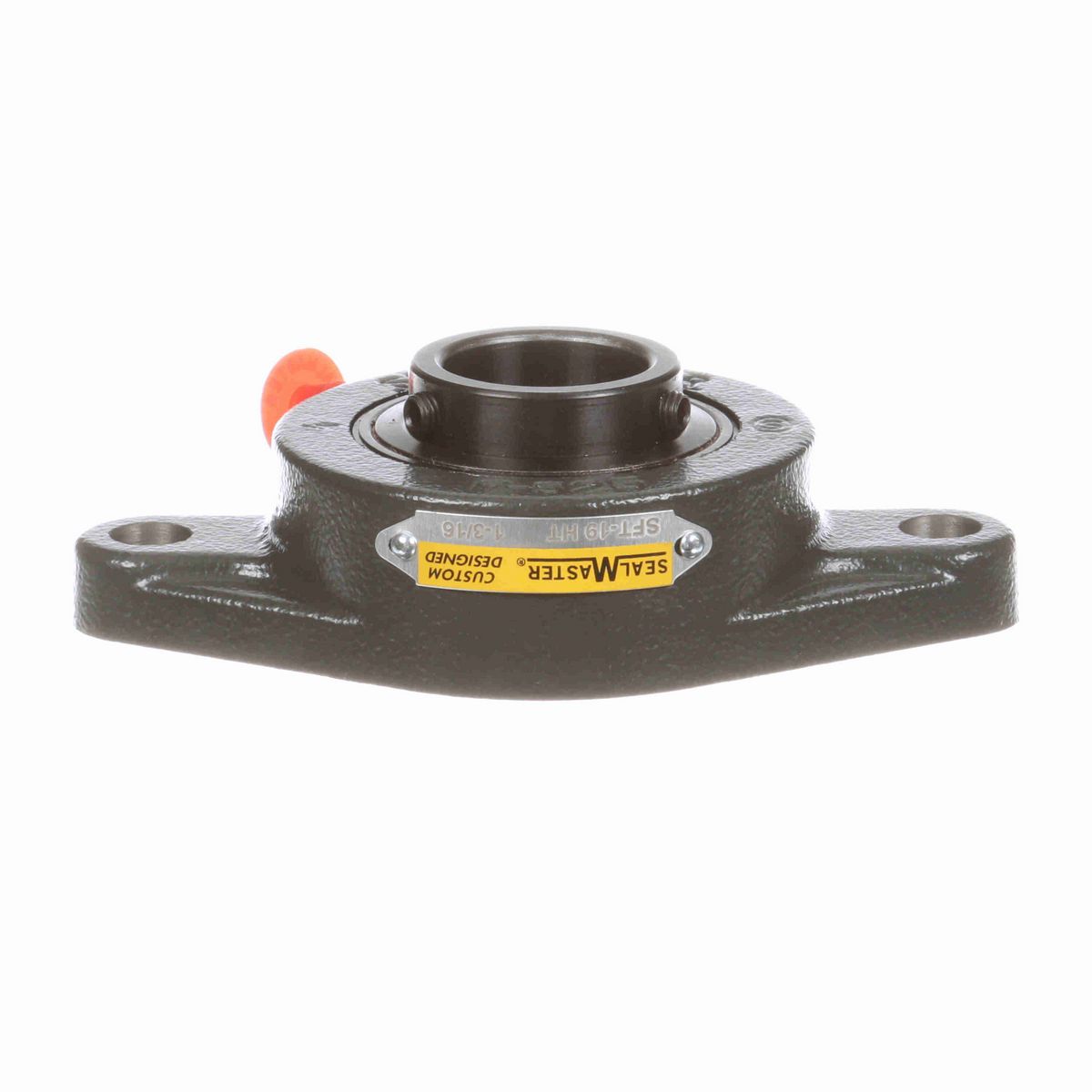

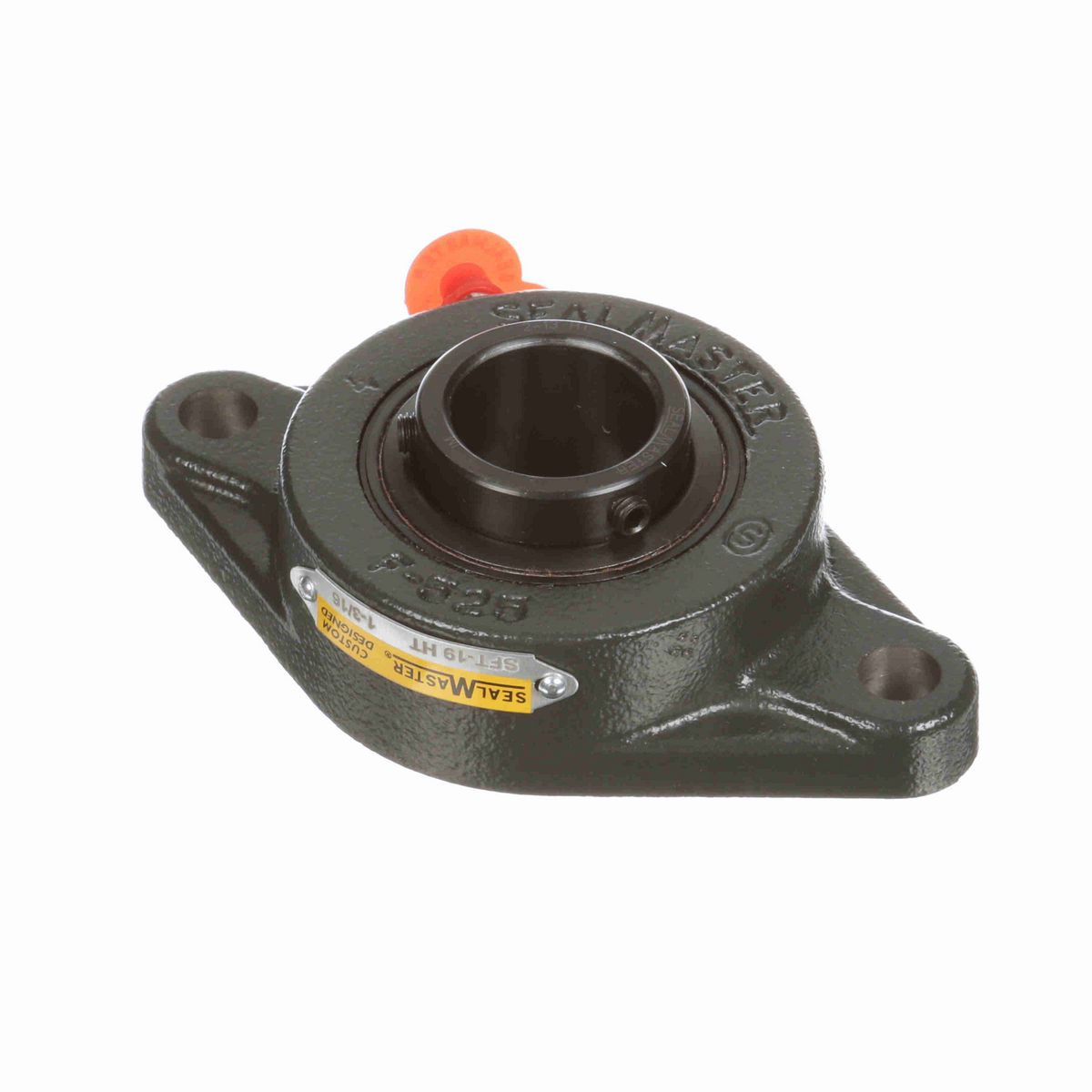

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• High temperature felt labyrinth seal and flinger for dry and dusty environment
• Increased internal clearance and high temperature grease
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	3.25 in
Bolt Size (in)	7/16 in
Overall Height (in)	1.563 in
Overall Length (in)	5.56 in
Bore Diameter (in)	1.1875 in
Foot Height (in)	0.53 in
Length Through Bore (in)	1.5 in
Bolt Spacing (in)	4.5940 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Options	High Temperature
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	High Temp Labyrinth
Housing Style	Flange Block
Setscrew Torque (in-lbs)	85 in/lbs
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
End Cap Available	No
Bearing Insert Material	52100 Bearing Steel
Max Operating Temperature (F)	400 °F
Vibration Frequency Inner Ring Defect	0.0905 cps
Shaft Locking Type	Set Screw
Housing Material	Cast Iron
Vibration Frequency Fundamental Train	0.0066 cps
Size Code	2-13
Misalignment Capability	±2.0° Misalignment - Static Only
Maximum Speed (RPM)	5450 rpm
Fixed vs. Expansion	Fixed
Vibration Frequency Roller Spin	0.0385 cps
Inner Ring Outside Diameter (in)	1.587 in
Static Load Rating (lb)	2,567 lb
Insert	2-13 HT
Dynamic Load Rating (lb)	4,381 lb
Vibration Frequency Outer Ring Defect	0.0595 cps
Radial Clearance	Increased
Grease Fitting Thread Size	1/4-28
Lubricant	Synthetic NLGI 2 High Temperature Grease
Bearing Type	Standard Duty
Cage Type	Land Riding Retainer
Housing Coating	Powder Coated
Bearing Insert Finish	Black Oxide

General Specifications

UPC	662461315347
Weight	2.20 LB
Packaged Length	3.50 IN
Packaged Width	1.69 IN
Packaged Height	5.75 IN
HTC	8483.20.4040
Country of Origin	United States of America
